Name: Liebherr Transmission 2plus2 Repair Manual 10011107
SKU: 444921
Availability: InStock

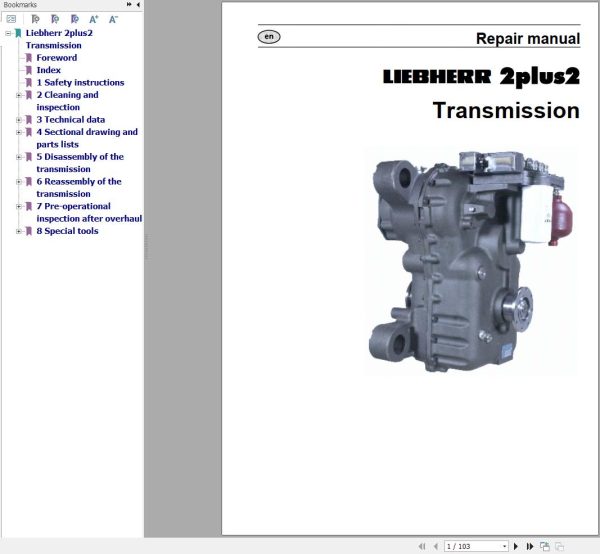

Liebherr Transmission 2plus2 Repair Manual 10011107 1

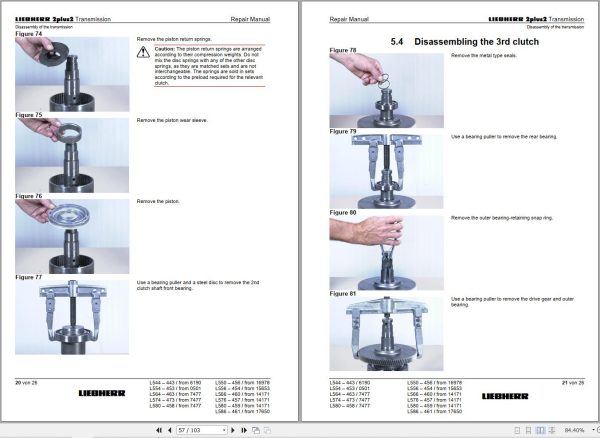

Liebherr Transmission 2plus2 Repair Manual 10011107 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Liebherr Transmission 2plus2 Repair Manual 10011107

Size: 42.15 MB

Format: PDF

Language: English

Brand: Liebherr

Type of Machine: Transmission

Type of Manual: Repair Manual

Model: Liebherr 2plus2 Transmission

Part Number: 10011107

Number of Pages: 103 Pages

20 USD

Tag: Liebherr Heavy Equipment Manual

Description

Description

Contents:
1 Safety instructions
2 Cleaning and inspection
2.1 Cleaning
2.2 Inspection
3 Technical data
3.1 General data
3.2 Versions and Changes
3.3 Tightening torques
4 Sectional drawing and parts lists
4.1 Sectional drawing
4.2 Parts lists
5 Disassembly of the transmission
5.1 Disassembling the casing
5.2 Disassembling the1st clutch
5.3 Disassembling the 2nd clutch
5.4 Disassembling the 3rd clutch
6 Reassembly of the transmission
6.1 Reassembling the 3rd clutch
6.2 Reassembling the 2nd clutch
6.3 Reassembling the 1st clutch
6.4 Reassembling the casing
7 Pre-operational inspection after overhaul
7.1 Transmission inspection
7.2 Accumulator Check
8 Special tools
8.1 Splined socket
8.2 Socket support tool
8.3 Compression sleeve
