Linde Forklift H1401-01 H100D to H180D Electrical Hydraulic Diagrams 1401801301 2023

Size: 56.13 MB

Format: PDF

Language: English

Brand: Linde

Type of Machine: Forklift

Type of Manual: Electrical Diagrams, Hydraulic Diagrams

Model: Linde Series H1401-01 Circuit Forklift

H100D-01, H120D-01, H140D-01, H150D-01, H160D-01, H180D-01

Part Number: 1401801301

Publication Date: 2023

Number of Pages: 382 Pages

50 USD

Tags: H100D, H1401-01, H180D, Linde Electrical Hydraulic Diagrams, Linde Forklift Manual

Description

Description

Contents:
2 Circuit Diagrams From 04/2019
2.1 Wiring Diagram
Tier 4i Engine Control Unit, Sheet 01

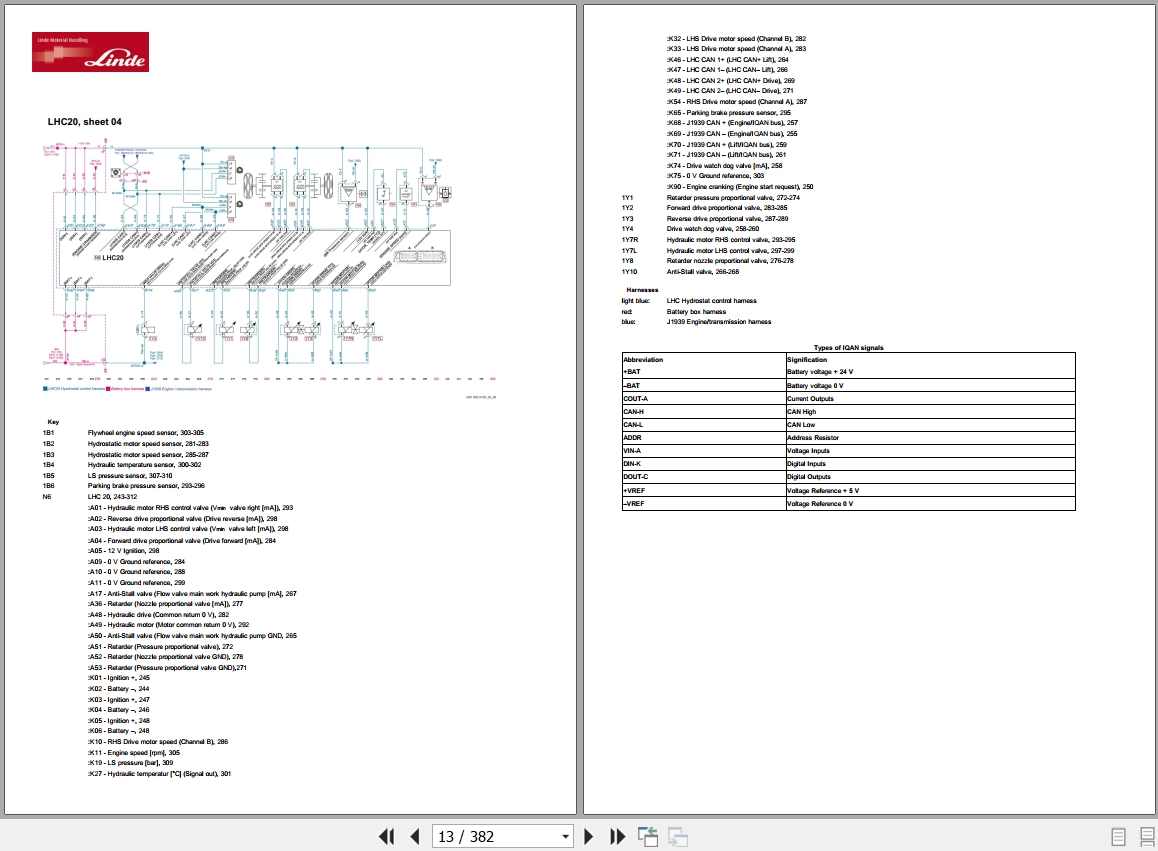

IqanÂXs2Â(A0) Controller (Cab), Sheet 02
IqanÂXa2Â(A3t) Valve Plate Control, Sheet 03
Lhc20, Sheet 04
Mdl Display, Sheet 05
Network Overview (Mdl Display), Sheet 06
Lighting, Sheet 07
Lighting, Sheet 08
Lighting And Cab Options, Sheet 09
Wipers, Sheet 10
Horn, Cab Heater, LFM And Communication, Sheet 11
Lighting, Greasing Unit, Air Condition And Cab Tilt Switch, Sheet 12
Fuses For Elme Spreader, Sheet 13
Eu Stage V Engine Control Unit, Sheet 14
Tier 3 Engine Control Unit, Sheet 15
Tier 4f Engine Control Unit, Sheet 16
Controller Network, Sheet 17
Network Overview (Md4 Display), Sheet 18
Parts List, Sheet 19
Truck Harness Overview, Sheet 20
Cabin Fuse Box Layout, Sheet 21
Chassis Fuse Box Layout, Sheet 22
2.2 Hydraulic Diagram
14018020200 (With Logic Valve)
14018020209 (Without Logic Valve)
2.3 Hydraulic Diagram Breakdown

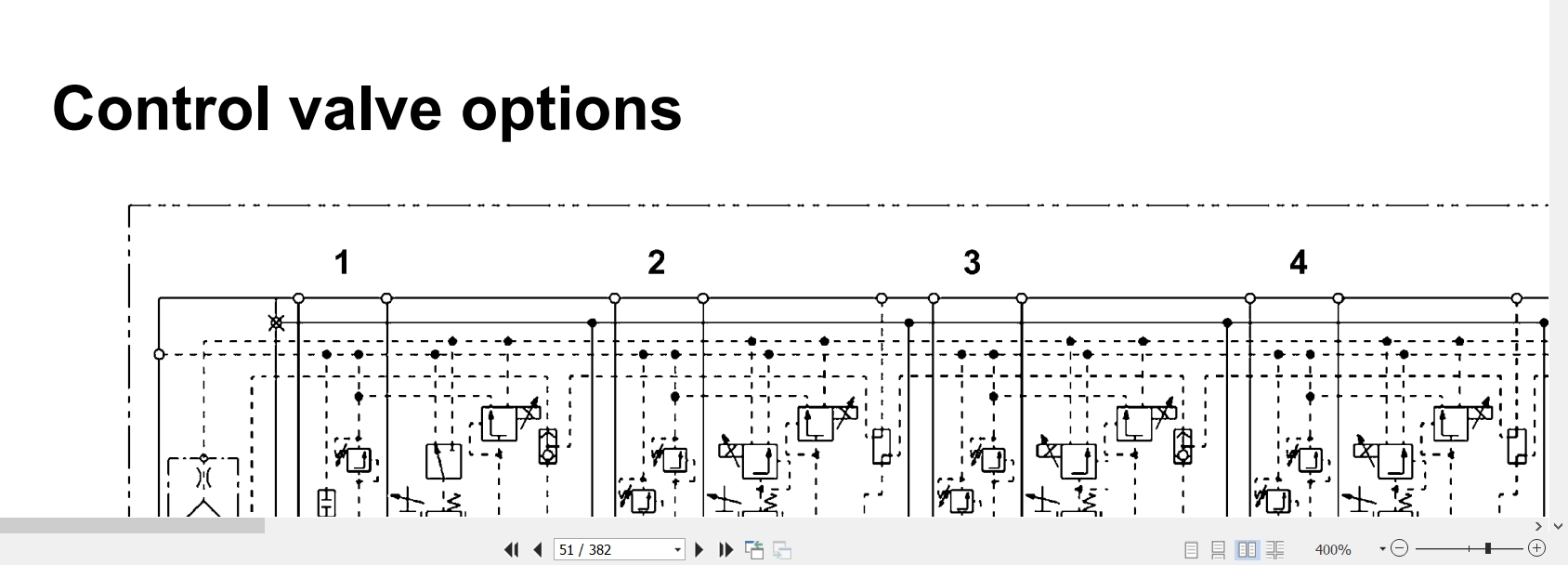

Cabin Tilt
Control Valve Options
Drive Motors
Load Lift
Steer Control
1 Circuit Diagrams Until 03/2019
1.1 Wiring Diagram
14018020100 Â Sheet 1
14018020100 Â Sheet 2
14018020100 Â Sheet 3
14018020100 Â Sheet 4
14018020100 Â Sheet 5
14018020100 Â Sheet 6
Lighting, Sheet 07
14018020100 Â Sheet 8
Lighting And Cab Options, Sheet 09
14018020100 Â Sheet 1014018020100 Â Sheet 11
Lighting, Greasing Unit, Air Condition And Cab Tilt Switch, Sheet 12
14018020100 Â Sheet 13
14018020100 Â Sheet 14
14018020100 Â Sheet 15
14018020100 Â Sheet 16
Cabin Fuse Box Layout
Parts List
1000185808 Â Bergstrom Ac Unit Wire Harness
1.2 Hydraulic Diagram
14018020200 (With Logic Valve)
14018020209 (Without Logic Valve)
1.3 Hydraulic Diagram Breakdown
Cabin Tilt
Control Valve Options
Drive Motors
Load Lift
Steer Control
