Name: Linde Forklift H391-02 H14D-02 to H20T-02 Electrical Hydraulic Diagrams 3918013801 2021
SKU: 634016
Availability: InStock

Linde Forklift H391 02 H14D 02 to H20T 02 Electrical Hydraulic Diagrams 3918013801 2021 (1)

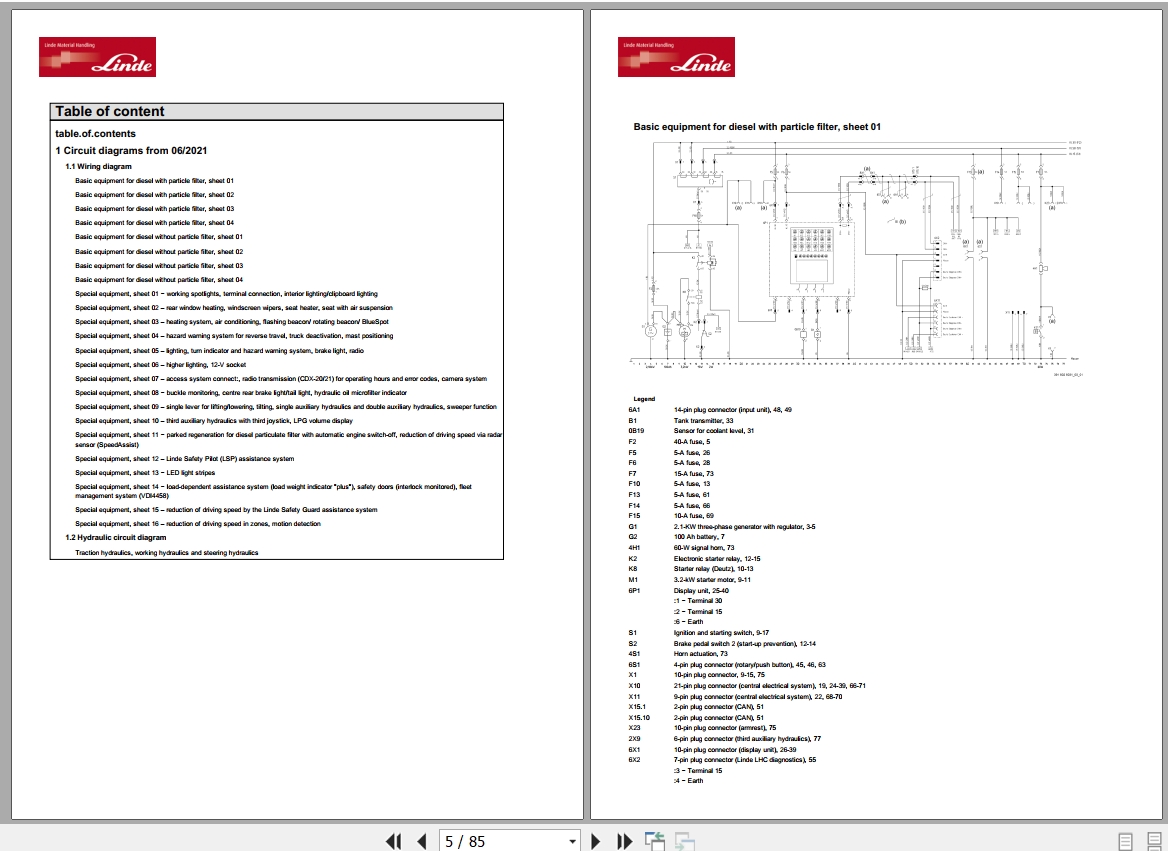

Linde Forklift H391 02 H14D 02 to H20T 02 Electrical Hydraulic Diagrams 3918013801 2021 (2)

Linde Forklift H391 02 H14D 02 to H20T 02 Electrical Hydraulic Diagrams 3918013801 2021 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Linde Forklift H391-02 H14D-02 to H20T-02 Electrical Hydraulic Diagrams 3918013801 2021

Size: 8.99 MB

Format: PDF

Language: English

Brand: Linde

Type of Machine: Forklift

Type of Manual: Electrical Diagrams, Hydraulic Diagrams

Model: Linde Series H391-02, H14D-02, H14T-02, H16CNG-02, H16D-02, H16T-02, H18CNG-02, H18D-02, H18T-02, H20CNG-02, H20D-02, H20T-02 Forklift

Serial Number: 0621

Part Number: 3918013801

Publication Date: 2021

Number of Pages: 85 Pages

40 USD

Tags: H14D-02, H20T-02, H391-02, Linde Electrical Hydraulic Diagrams, Linde Forklift Manual

Description

Description

Contents:
1 Circuit Diagrams From 06/2021
1.1 Wiring Diagram
Basic Equipment For Diesel With Particle Filter, Sheet 01
Basic Equipment For Diesel With Particle Filter, Sheet 02
Basic Equipment For Diesel With Particle Filter, Sheet 03
Basic Equipment For Diesel With Particle Filter, Sheet 04
Basic Equipment For Diesel Without Particle Filter, Sheet 01
Basic Equipment For Diesel Without Particle Filter, Sheet 02
Basic Equipment For Diesel Without Particle Filter, Sheet 03
Basic Equipment For Diesel Without Particle Filter, Sheet 04
Special Equipment, Sheet 01 âˆ’ Working Spotlights, Terminal Connection, Interior Lighting/Clipboard Lighting
Special Equipment, Sheet 02 â€“ Rear Window Heating, Windscreen Wipers, Seat Heater, Seat With Air Suspension
Special Equipment, Sheet 03 â€“ Heating System, Air Conditioning, Flashing Beacon/ Rotating Beacon/ Bluespot
Special Equipment, Sheet 04 â€“ Hazard Warning System For Reverse Travel, Truck Deactivation, Mast Positioning
Special Equipment, Sheet 05 â€“ Lighting, Turn Indicator And Hazard Warning System, Brake Light, Radio
Special Equipment, Sheet 06 â€“ Higher Lighting, 12ÂV Socket
Special Equipment, Sheet 07 â€“ Access System Connect:, Radio Transmission (CdxÂ20/21) For Operating Hours And Error Codes, Camera System
Special Equipment, Sheet 08 âˆ’ Buckle Monitoring, Centre Rear Brake Light/Tail Light, Hydraulic Oil Microfilter Indicator
Special Equipment, Sheet 09 â€“ Single Lever For Lifting/Lowering, Tilting, Single Auxiliary Hydraulics And Double Auxiliary Hydraulics, Sweeper Function
Special Equipment, Sheet 10 â€“ Third Auxiliary Hydraulics With Third Joystick, Lpg Volume Display
Special Equipment, Sheet 11 âˆ’ Parked Regeneration For Diesel Particulate Filter With Automatic Engine SwitchÂOff, Reduction Of Driving Speed Via Radar
Sensor (Speedassist)
Special Equipment, Sheet 12 â€“ Linde Safety Pilot (Lsp) Assistance System
Special Equipment, Sheet 13 âˆ’ Led Light Stripes
Special Equipment, Sheet 14 âˆ’ LoadÂDependent Assistance System (Load Weight Indicator “Plus”), Safety Doors (Interlock Monitored), Fleet
Management System (Vdi4458)
Special Equipment, Sheet 15 â€“ Reduction Of Driving Speed By The Linde Safety Guard Assistance System
Special Equipment, Sheet 16 â€“ Reduction Of Driving Speed In Zones, Motion Detection

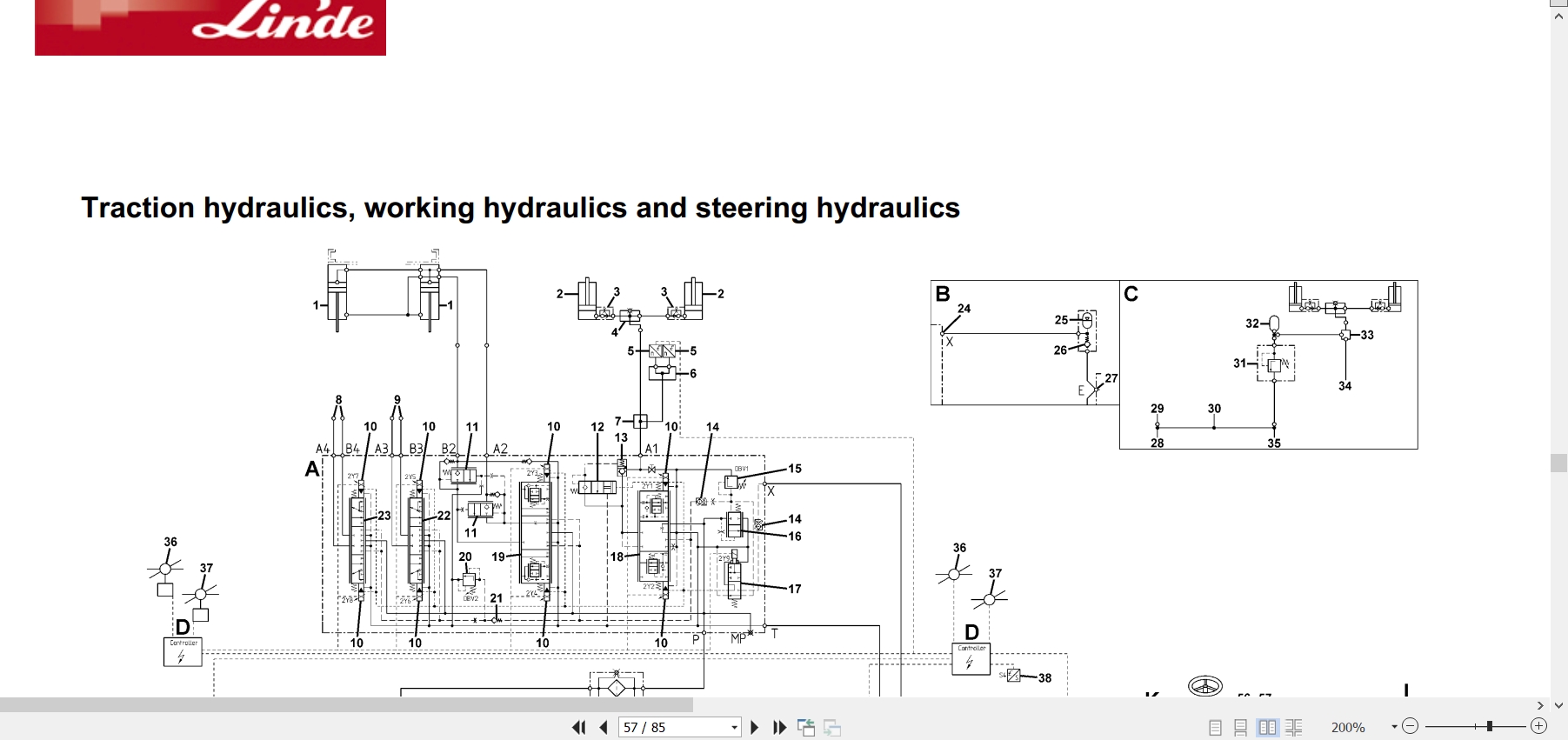

1.2 Hydraulic Circuit Diagram
Traction Hydraulics, Working Hydraulics And Steering Hydraulics
