Name: Linde Forklift H393-02 H25D H25T H30D H30T H35D H35T Electrical Hydraulic Diagrams 393801301 2019
SKU: 634018
Availability: InStock

Linde Forklift H393 02 H25D H25T H30D H30T H35D H35T Electrical Hydraulic Diagrams 393801301 2019 (1)

Linde Forklift H393 02 H25D H25T H30D H30T H35D H35T Electrical Hydraulic Diagrams 393801301 2019 (2)

Linde Forklift H393 02 H25D H25T H30D H30T H35D H35T Electrical Hydraulic Diagrams 393801301 2019 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Linde Forklift H393-02 H25D H25T H30D H30T H35D H35T Electrical Hydraulic Diagrams 393801301 2019

Size: 33.63 MB

Format: PDF

Language: English

Brand: Linde

Type of Machine: Forklift

Type of Manual: Electrical Diagrams, Hydraulic Diagrams

Model: Linde Series H393-02 Forklift

393-H25D-02, 393-H25T-02, 393-H30D-02, 393-H30T-02, 393-H35D-02, 393-H35T-02

Serial Number: 0113, 0720

Part Number: 3938013601

Publication Date: 2019

Number of Pages: 286 Pages

30 USD

Tags: H25D, H25T, H30D, H30T, H35D, H35T, H393-02, Linde Electrical Hydraulic Diagrams, Linde Forklift Manual

Description

Description

Contents:
3 Circuit Diagrams From 03/2018 (H2x393j00940)
3.1 Wiring Diagram
Basic Equipment For Diesel, Sheet 01
Basic Equipment For Diesel, Sheet 02
Basic Equipment For Diesel, Sheet 03
Basic Equipment For Diesel, Sheet 04 â€“ Engine Control Unit
Special Equipment, Sheet 01 â€“ Working Spotlights, Interior Lighting/Clipboard Lighting
Special Equipment, Sheet 02 â€“ Rear Window Heating, Windscreen Wipers, Seat Heater, Seat With Air Suspension
Special Equipment, Sheet 03 â€“ Heating System, Air Conditioning, Flashing Beacon/Rotating Beacon/Bluespotâ„¢/Truckspotâ„¢, Reversing Signal,
Warning Sound During Reverse Travel

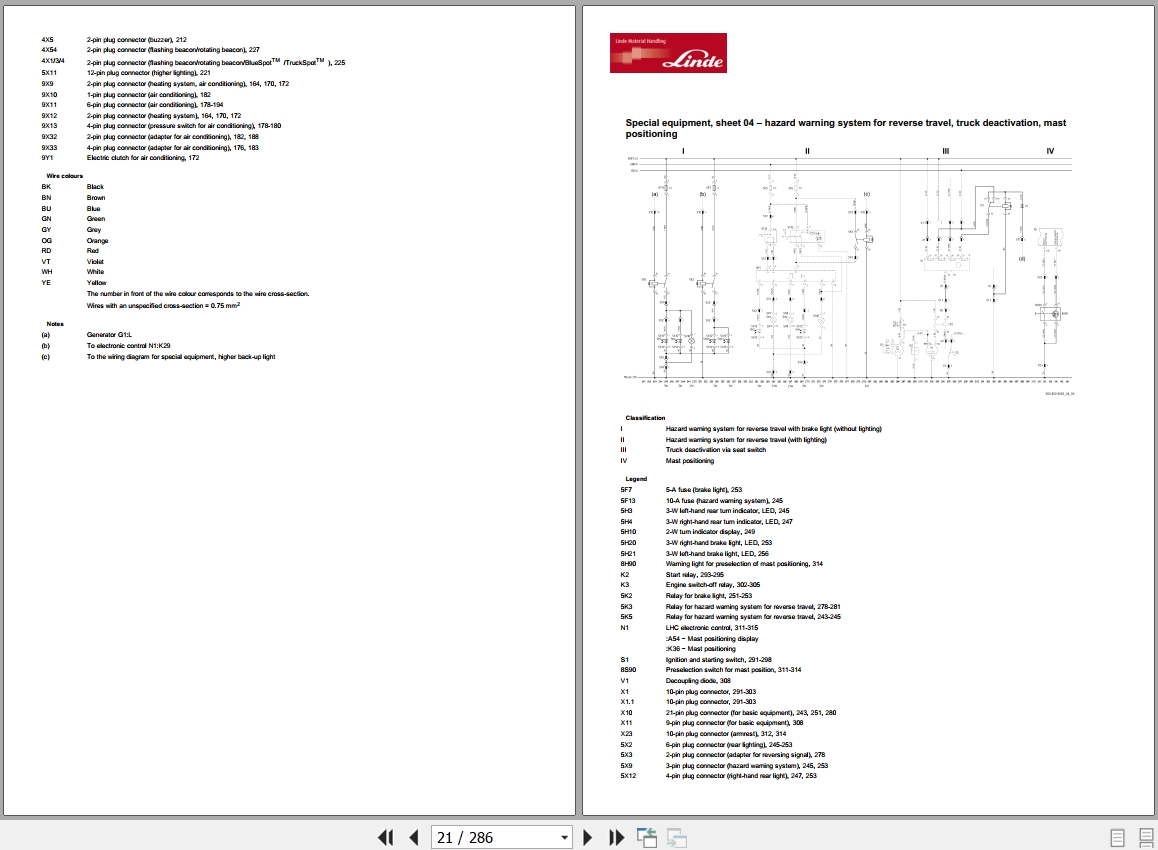

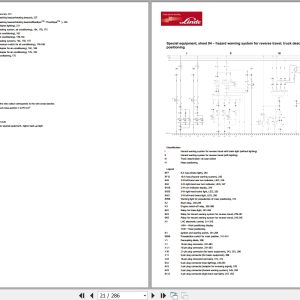

Special Equipment, Sheet 04 â€“ Hazard Warning System For Reverse Travel, Truck Deactivation, Mast Positioning
Special Equipment, Sheet 05 â€“ Lighting, Turn Indicator And Hazard Warning System, Brake Light, Radio
Special Equipment, Sheet 06 â€“ Higher Lighting, 12ÂV Socket
Special Equipment, Sheet 07 â€“ Access System Connect: (LFM), Radio Transmission (CdxÂ20) For Operating Hours And Error Codes, Buckle
Monitoring, Camera System
Special Equipment, Sheet 08 â€“ Battery Main Switch With Power Supply For Display Unit, Rear Centre Brake Light/Tail Light, Hydraulic Oil Microfilter
Indicator
Special Equipment, Sheet 09 â€“ Single Lever For Lifting/Lowering, Tilting, Single Auxiliary Hydraulics And Double Auxiliary Hydraulics, Sweeper Function
Special Equipment, Sheet 10 âˆ’ Third Auxiliary Hydraulics With Third Joystick, LPG Volume Display, Radio Transmission (CdxÂ10) For Operating Hours
And Error Codes
Special Equipment, Sheet 11 â€“ Higher Front Lighting/Standard Rear Lighting, Terminal Connection
Special Equipment, Sheet 12 Â Particle Filter (Only For 392Â02 Diesel Series), Reducing The Driving Speed Using A Radar Sensor (Speedassist)
Special Equipment, Sheet 13 â€“ Linde Safety Pilot (Lsp) Assistance System
Special Equipment, Sheet 14 âˆ’ Led Light Stripes
Special Equipment, Sheet 15 âˆ’ LoadÂDependant Assistance System (Load Weight Indicator “Plus”), Fleet Management System (Vdi4458)
Special Equipment, Sheet 16 â€“ Reduction In The Driving Speed Via The Linde Safety Guard Assistance System
3.2 Hydraulic Circuit Diagram

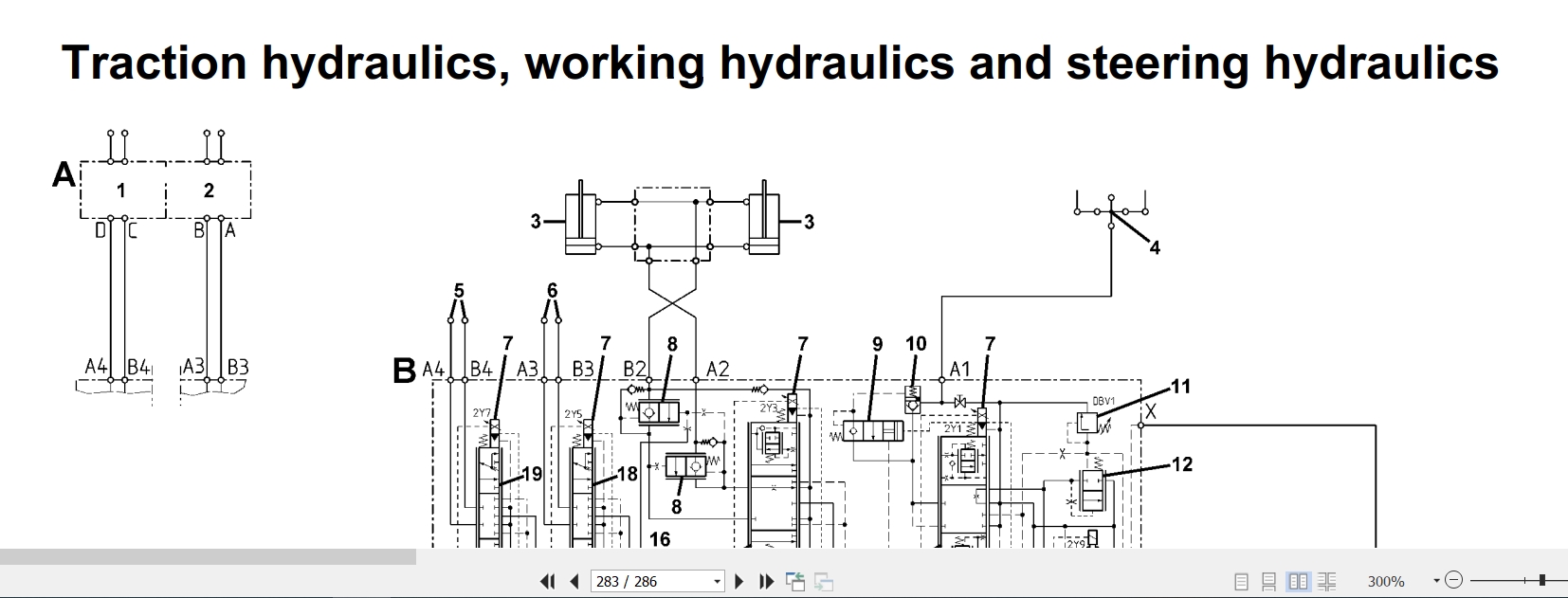

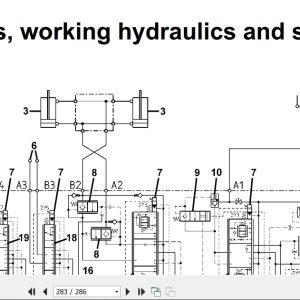

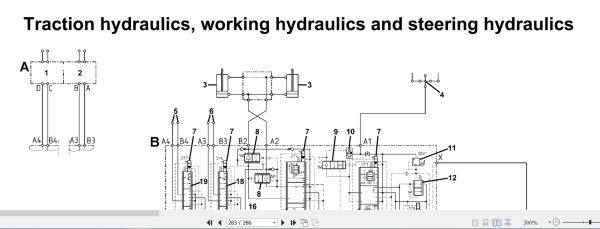

Traction Hydraulics, Working Hydraulics And Steering Hydraulics
Accumulator
2 Circuit Diagrams From 07/2016 (H2x393g02800) To 02/2018 (H2x393j00939)
2.1 Wiring Diagram
Basic Equipment For Diesel â€“ Sheet 01
Basic Equipment For Diesel â€“ Sheet 02
Basic Equipment For Diesel â€“ Sheet 03
Basic Equipment For Diesel â€“ Sheet 04 (Engine Control Unit)
Special Equipment, Sheet 01 â€“ Working Spotlights, Interior Lighting/Clipboard Lighting
Special Equipment, Sheet 02 â€“ Rear Window Heating, Windscreen Wipers, Seat Heater, Seat With Air Suspension
Special Equipment, Sheet 03 â€“ Heating System, Air Conditioning, Flashing Beacon/Rotating Beacon/Bluespotâ„¢/Truckspotâ„¢, Reversing Signal,
Warning Sound During Reverse Travel
Special Equipment, Sheet 04 â€“ Hazard Warning System For Reverse Travel, Truck Deactivation, Mast Positioning
Special Equipment, Sheet 05 â€“ Lighting, Turn Indicator And Hazard Warning System, Brake Light, Radio
Special Equipment, Sheet 06 â€“ Higher Lighting, 12ÂV Socket
Special Equipment, Sheet 07 â€“ Access System Connect: (LFM), Radio Transmission (CdxÂ20) For Operating Hours And Error Codes, Buckle
Monitoring, Camera System
Special Equipment, Sheet 08 â€“ Battery Main Switch With Power Supply For Display Unit, Rear Centre Brake Light/Tail Light, Hydraulic Oil Microfilter
Indicator
Special Equipment, Sheet 09 â€“ Single Lever For Lifting/Lowering, Tilting, Single Auxiliary Hydraulics And Double Auxiliary Hydraulics, Sweeper Functionspecial Equipment, Sheet 10 âˆ’ Third Auxiliary Hydraulics With Third Joystick, LPG Volume Display, Radio Transmission (CdxÂ10) For Operating Hours
And Error Codes
Special Equipment, Sheet 11 â€“ Higher Front Lighting/Standard Rear Lighting, Terminal Connection
Special Equipment, Sheet 12 Â Particle Filter (Only For 392Â02 Diesel Series), Reducing The Driving Speed Using A Radar Sensor (Speedassist)
Special Equipment, Sheet 13 â€“ Linde Safety Pilot (Lsp) Assistance System
Special Equipment, Sheet 14 âˆ’ Led Light Stripes
Special Equipment, Sheet 15 âˆ’ LoadÂDependant Assistance System (Load Weight Indicator “Plus”), Fleet Management System (Vdi4458)
Special Equipment, Sheet 16 â€“ Reduction In The Driving Speed Via The Linde Safety Guard Assistance System
2.2 Hydraulic Circuit Diagram
Traction Hydraulics, Working Hydraulics And Steering Hydraulics
Accumulator
1 Circuit Diagrams From 01/2013 To 06/2016 (H2x393g02799)
1.1 Wiring Diagram
Basic Equipment For Diesel â€“ Sheet 01
Basic Equipment For Diesel â€“ Sheet 02
Basic Equipment For Diesel â€“ Sheet 03
Basic Equipment For Diesel â€“ Sheet 04 (Engine Control Unit)
Special Equipment Sheet 01 â€“ Working Spotlights, Interior/Clipboard Lighting
Special Equipment Sheet 02 â€“ Rear Window Heating, Windscreen Wipers, Seat Heater, Seat With Air Suspension
Special Equipment Sheet 03 â€“ Heating System, Air Conditioning, Flashing Beacon/Rotating Beacon/Bluespot, Reversing Signal, Warning Sound When
Reversing
Special Equipment Sheet 04 â€“ Hazard Warning System For Reverse Travel, Truck Deactivation, Mast Positioning
Special Equipment, Sheet 05 â€“ Lighting, Turn Indicator And Hazard Warning System, Led Brake Light, Radio
Special Equipment Sheet 06 â€“ Higher Lighting, 12 V Socket
Special Equipment Sheet 07 â€“ Truck Data Management, Camera System
Special Equipment, Sheet 08 â€“ Battery Main Switch With Power Supply To Display Unit, Centre Rear Brake Light/Tail Light, Indicator For Hydraulic Oil
Microfilter, Led Centre Rear Brake Light/Tail Light
Special Equipment Sheet 09 â€“ Single Lever For Lifting/Lowering, Tilting, Single Auxiliary Hydraulics And Double Auxiliary Hydraulics, Sweeper Function
Special Equipment Sheet 10 â€“ Third Auxiliary Hydraulics With Third Joystick, LPG Volume Display
Special Equipment Sheet 11 â€“ Higher Front Lighting/Standard Rear Led Lighting, Terminal Connection
Special Equipment, Sheet 12 âˆ’ Particle Filter (Only For 392Â02 Diesel Family)
Special Equipment, Sheet 13 âˆ’ Led Lighting, Led Turn Indicator And Hazard Warning System, Led Brake Light
Special Equipment, Sheet 14 âˆ’ Higher Led Lighting
Special Equipment, Sheet 15 â€“ Higher Front Led Lighting/Standard Rear Led Lighting
1.2 Hydraulic Circuit Diagram Up To 08/2015 (H2x393f03638)
Traction Hydraulics, Working Hydraulics And Steering Hydraulics
Accumulator
1.3 Hydraulic Circuit Diagram From 09/2015 (H2x393f03639)
Traction Hydraulics, Working Hydraulics And Steering Hydraulics
Accumulator
