Linde Order Picker N1159-01 N20 to N24HP Electrical Hydraulic Diagrams 11598013601 2020

Size: 1.03 MB

Format: PDF

Language: English

Brand: Linde

Type of Machine: Order Picker

Type of Manual: Electrical Diagrams, Hydraulic Diagrams

Model: Linde Series N1159-01 N20-01, N24-01, N20HP-01, N24HP-01 Order Picker

Serial Number: 0516

Part Number: 11598013601

Publication Date: 2020

Number of Pages: 14 Pages

30 USD

Tags: Linde Electrical Hydraulic Diagrams, Linde Order Picker Manual, N1159-01, N20, N24HP

Description

Description

Contents:
1 1159 Series Schematic Diagrams
1.1 Electrical Diagram
Power Circuit Diagram
Control Electric Circuit Diagram N20â€“N24 (Four Points)

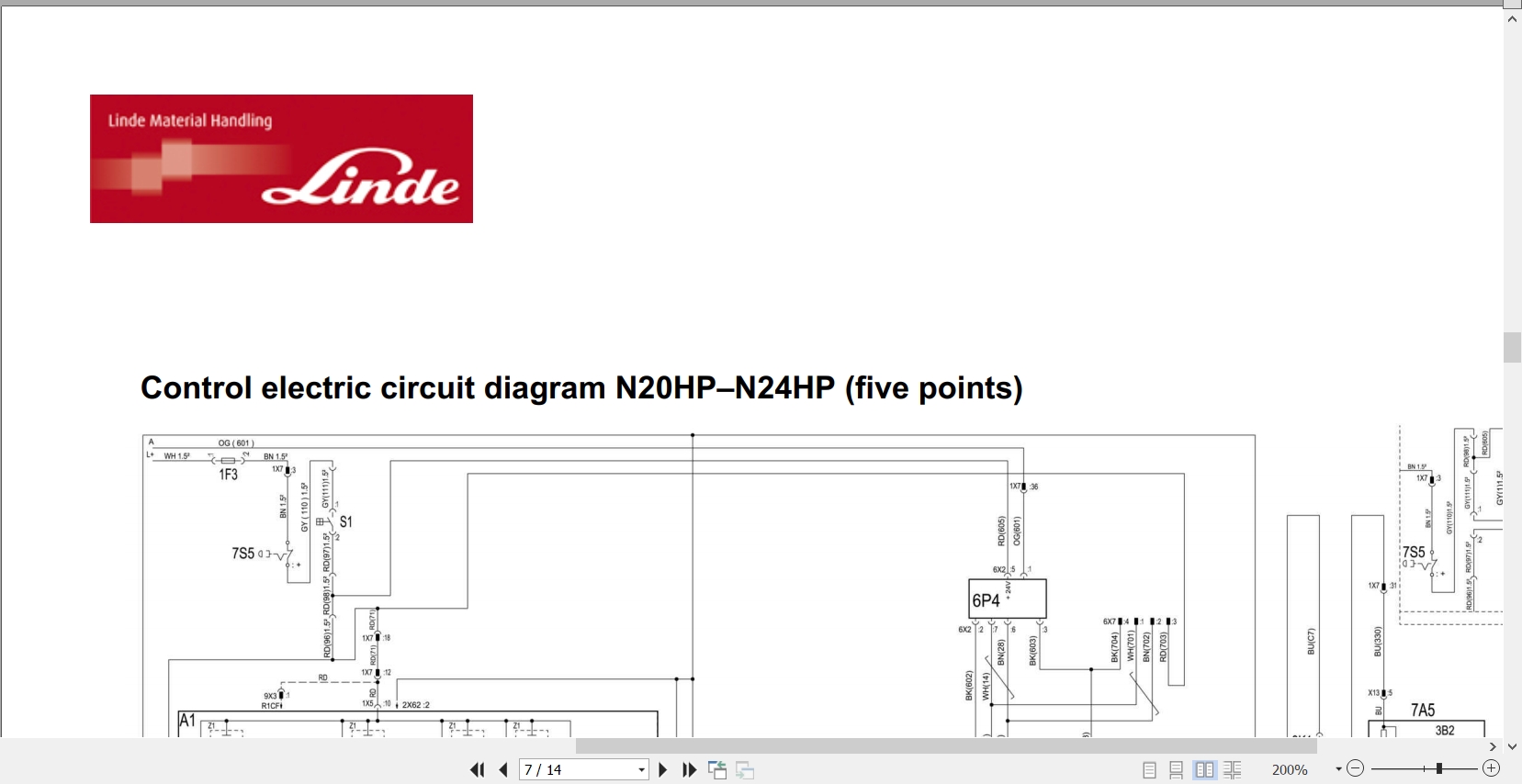

Control Electric Circuit Diagram N20hpâ€“N24hp (Five Points)
LithiumÂIon Battery Option Control
1.2 Hydraulic Diagram

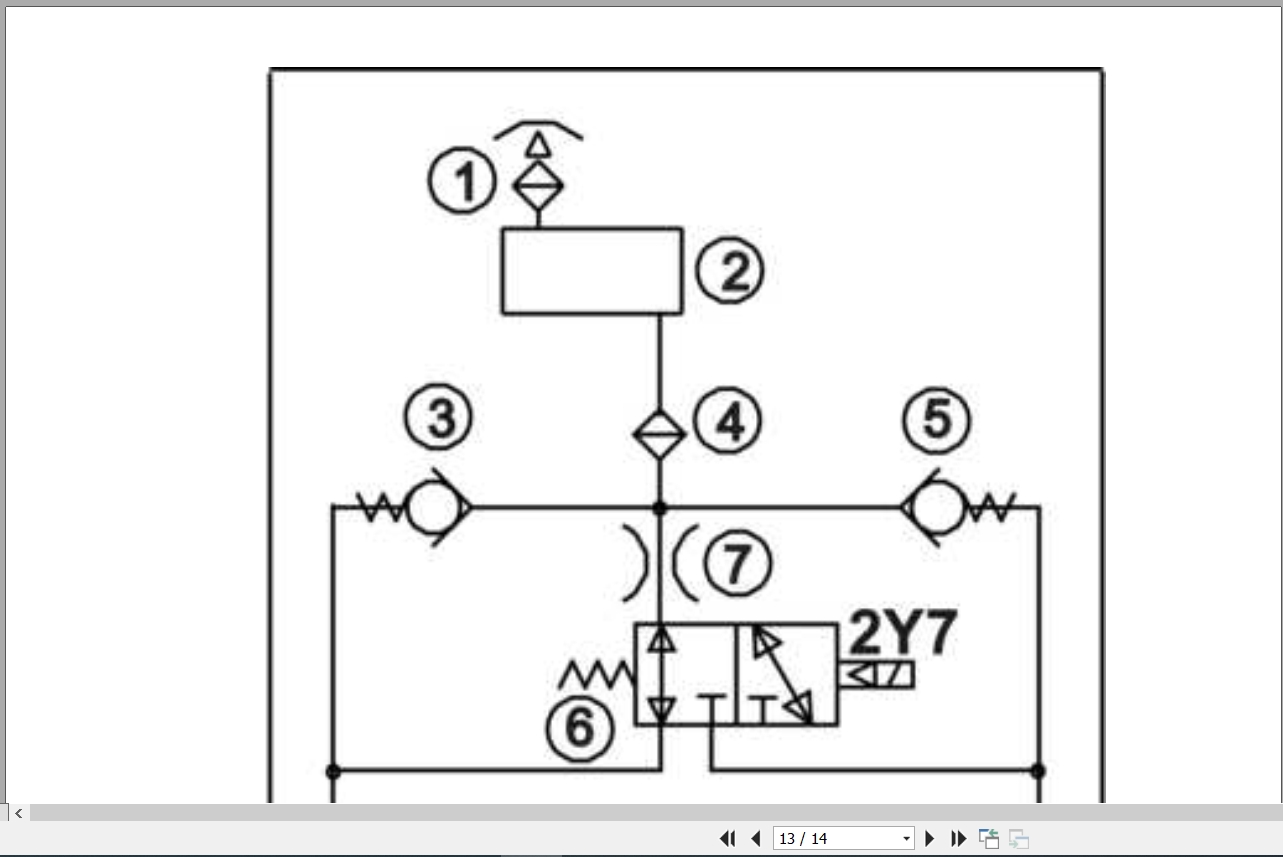

Main Hydraulic Circuit Diagram N20, N20b, N20hp, N24hp
Main Hydraulic Circuit Diagram N24, N24b
Hydraulic Diagram For Stabilisers
