Linde Pallet Stacker D1160-01 D06 D08 Electrical Hydraulic Diagrams 11608013601 2019

Size: 8.16 MB

Format: PDF

Language: English

Brand: Linde

Type of Machine: Pallet Stacker

Type of Manual: Electrical Diagrams, Hydraulic Diagrams

Model: Linde Series D1160-01 D06-01 D08-01 Pallet Stacker

Serial Number: W41160V00450

Parts Number: 11608013601

Publication Date: 2019

Number of Pages: 69 Pages

30 USD

Tags: D06, D08, D1160-01, Linde Electrical Hydraulic Diagrams, Linde Pallet Stacker Manual

Description

Description

Contents:

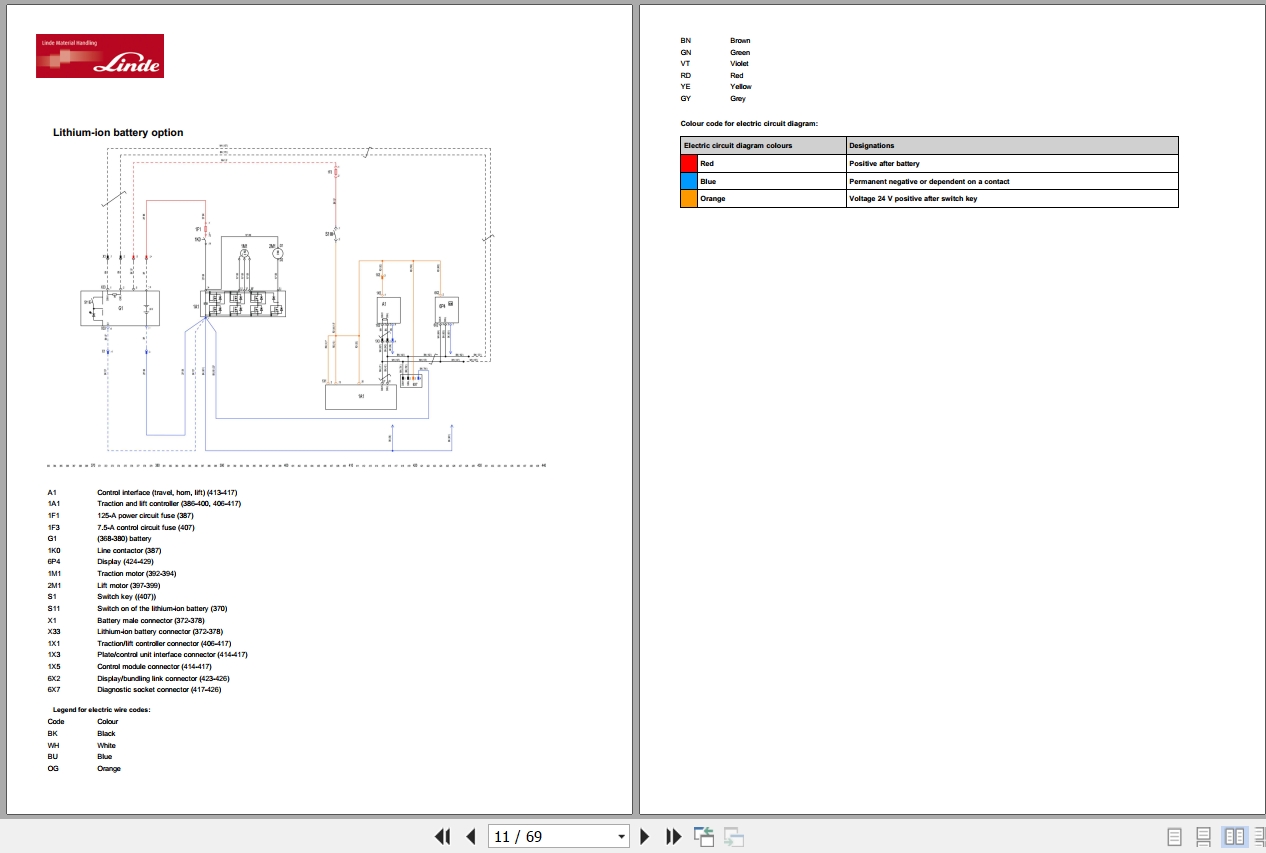

5 Circuit diagrams for the D06/D08 from 04/2019
5.1 Electric circuit diagrams
Electric circuit diagram parts list D06, D08
LithiumÂion battery option
LithiumÂion power pack option
LithiumÂion, gel, lead, onÂboard charger option
Automatic fork lifting/lowering option
OnÂboard charger and LFM Go option
connect:/impact sensor/WiFi option
Fork automatic lifting option and fork lifting and lowering side buttons option

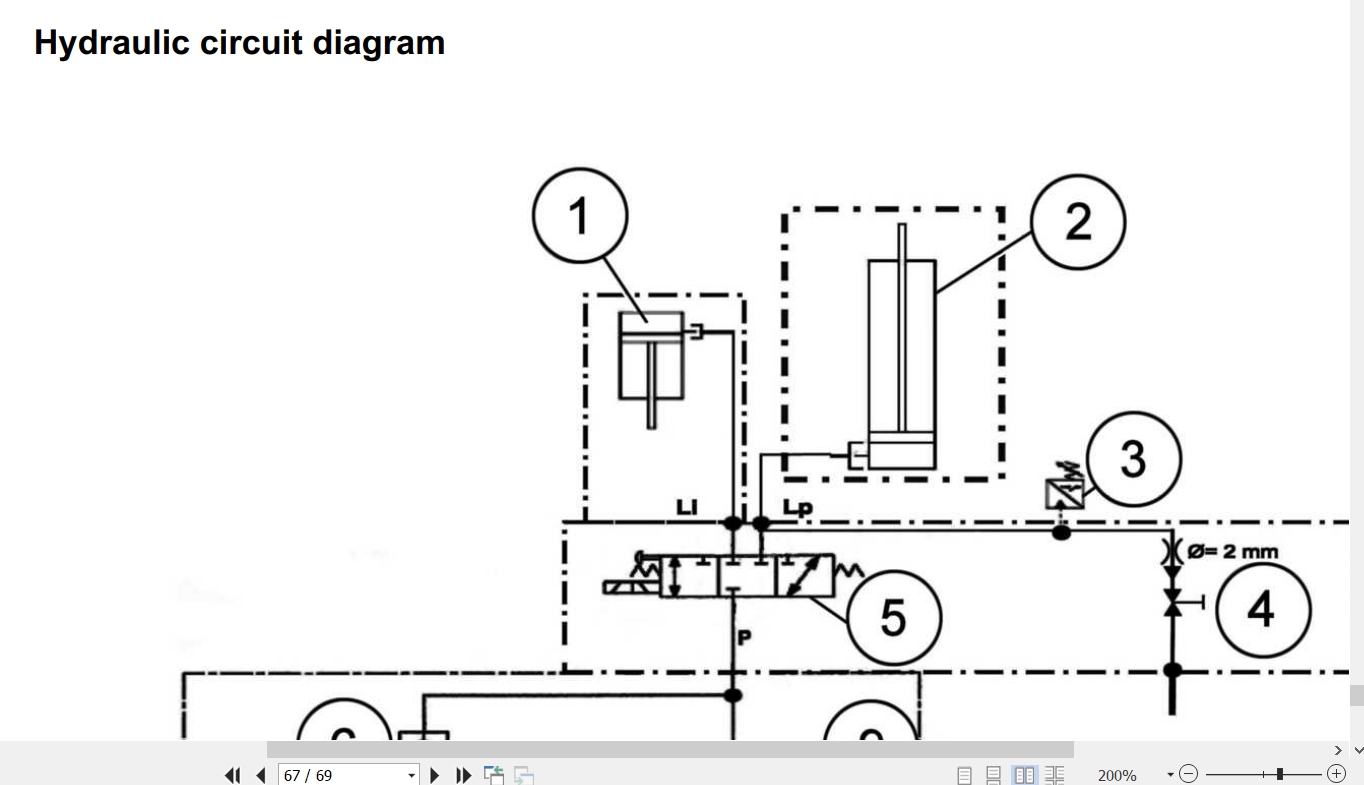

5.2 Hydraulic circuit diagram
Hydraulic circuit diagram
Line break safety valves
4 Circuit diagrams for the D06/D08 from 06/2018 to 04/2019
4.1 Electric circuit diagrams
Electric circuit diagram parts list D06, D08
LithiumÂion battery option
LithiumÂion power pack option
Automatic fork lifting/lowering option
OnÂboard charger and LFM Go option
FDE/shock sensor/GSM WLan option
Fork automatic lifting option and fork lifting and lowering side buttons option
4.2 Hydraulic circuit diagram
Hydraulic circuit diagram
Line break safety valves
3 Circuit diagrams for the D06/D08 from 10/2016 to 06/2018
3.1 Electric circuit diagrams
Electric circuit diagram parts list D06, D08
Circuit diagram for the lithiumÂion battery option
Automatic fork lifting/lowering option
OnÂboard charger and LFM Go option
FDE/shock sensor/GSM WLan option
Fork automatic lifting option and fork lifting and lowering side buttons option
3.2 Hydraulic circuit diagram
Hydraulic circuit diagram
Line break safety valves
2 Circuit diagrams for the D06/D08 from 12/2014 to 10/20162.1 Electric circuit diagrams
Electric circuit diagram parts list D06, D08
Automatic fork lifting/lowering option
OnÂboard charger and LFM Go option
FDE/shock sensor/GSM WLan option
Fork automatic lifting option and fork lifting and lowering side buttons option
2.2 Hydraulic circuit diagram
Hydraulic circuit diagram
Line break safety valves
1 Circuit diagrams for the D06/D08 from 09/2013 to 12/2014
1.1 Electric circuit diagrams D06, D08
OnÂboard charger and LFM Go option
1.2 Hydraulic circuit diagram
Hydraulic circuit diagram
Line break safety valves
