Link-Belt Excavator 225 Spin Ace Operator Manual 1054 2003

Link Belt Excavator 225 Spin Ace Operator Manual 1054 2003 (1)
Link Belt Excavator 225 Spin Ace Operator Manual 1054 2003 (2)
Link Belt Excavator 225 Spin Ace Operator Manual 1054 2003 (1)
Link Belt Excavator 225 Spin Ace Operator Manual 1054 2003 (2)
✓

Expert Support

✓

Full Speed

✓

100% Working

Link-Belt Excavator 225 Spin Ace Operator Manual 1054 2003

Size: 3.35 MB
Format: PDF
Language: English
Brand: Link-Belt
Type of Machine: Excavator
Type of Manual: Operator Manual
Model: Link-Belt 225 Spin Ace Excavator
Engine: Isuzu BB-6BG1T Engine
Book Number: 1054
Publication Date: 2003
Number of Pages: 146 Pages

15 USD

Tags: , ,
  • Description

Description

Contents:
General Information
To The Owner
Excavator Components
Identification Numbers
Safety, Decals, And Hand Signals
Safety Rules
Safety Area
Utility Safety
Operator Precautions

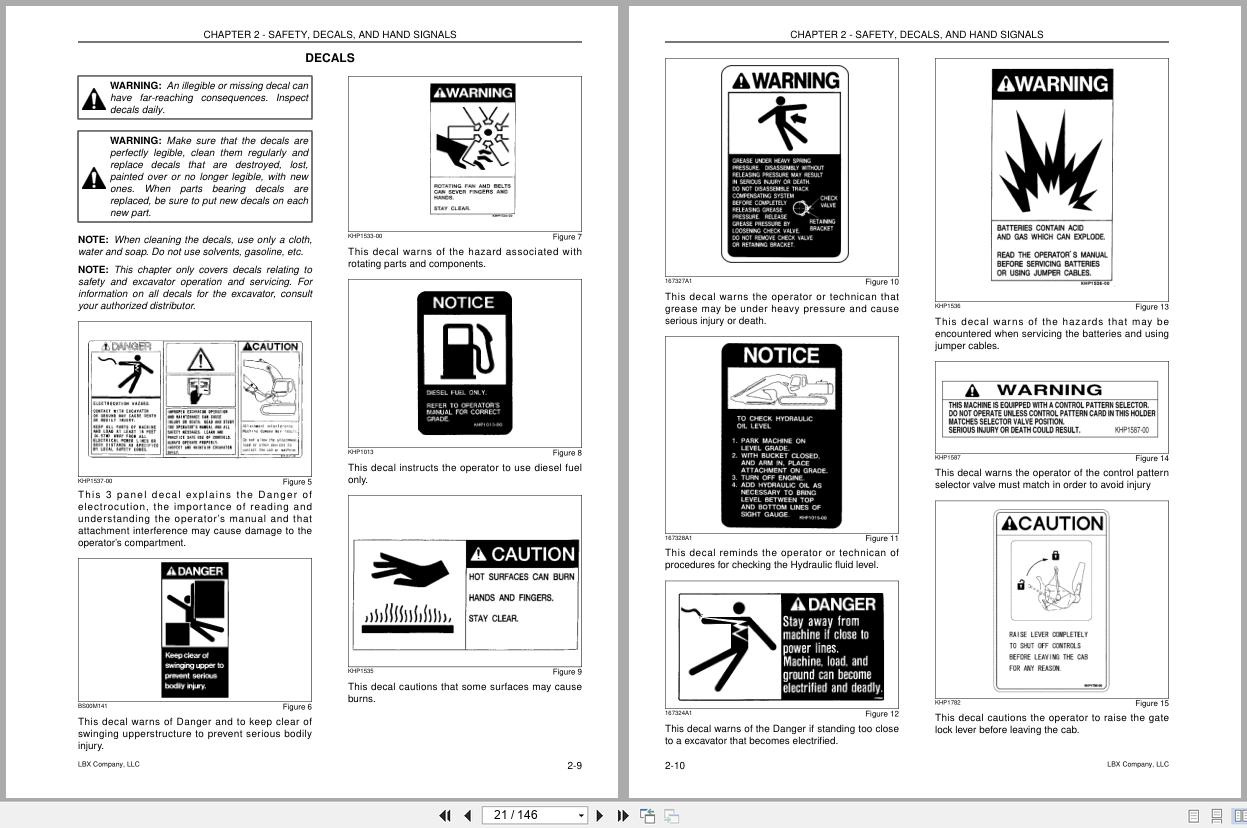

Decals
Hand Signals
Instruments And Controls
Cab Door
Steps And Access Handles
Control And Accessories
Rh Control Arm
Instrument Panel
Lh Control Arm
Working Light Switch
Windshield Washer Switch
Windshield Wiper Switch
High Speed Travel Switch
Heating, Ventilation, Ac Control
Gate Lock Lever
Arm, Upperstructure Swing Control
Boom & Bucket Control
Travel Control
Option Pedal
Unlocking, Locking Pedals
Cab Light
Coat Hanger Hook
Rear Rh Window
Cup Holder
Storage Tray
Ashtray
Cab Radio Compartment
Speaker Compartments
Fuse Box
Operator’s Seat
Windshield
Left Front Window
Window Break Hammer
Air Vents
Rear View Mirrors
Fuel Tank
Engine Hood
Windshield Washer Reservoir
Side Doors
Lower Panels
Towing Point
Lifting Eyes
Tool Supply Valves (Optional)
Optional Tool Flow Selector Valve
Operating Instructions
Before Operating The Excavator
Operating The Excavator
Run-In Period
Hydraulic Fluid Warm-Up
Starting The Engine
Bringing Excavator To Opearting Temperature
Engine Operation
Stopping The Engine
Operating In Cold Weather
Operating In Hot Weather
Basic Operation
Travel
Transporting The Excavator
Handling The Excavator
Operating In Water
Parking The Excavator
Towing The Excavator
Operating On Sloping Ground
Operating The Bucket
Lowering Attachment In Event Of Failure
Auxiliary Hydraulic Circuits
Excavator Storage
Lubrication, Filters & Fluids
Servicing Instructions
Daily Inspections
Hourmeter
Lubrication Chart
Fluids And Lubricants
Fluid, Lubricant Capacities And Specs
Lubrication Points
Fluid Levels
Engine
Cooling System
Fuel System
Releasing Pressure In Hydraulic System
Hydraulic System
Air Filter
Removing The Elements
Cleaning Primary Element
Cleaning The Element Housing
Swing Reductiion Gear
Travel Reduction Gears
Maintenance And Adjustrments
Tracks
Track Rollers And Idler Wheels
Fan And Alternator Drive Belt
Fuel Tank Filter
Inspecting & Cleaning
Adjusting Rocker Arm Clearance
Checking For Cylinder Leakage
Replacing A Bucket
Fire Extinquisher (Not Supplied)
Welding On Excavator
Plastic And Resin Parts
Air Conditioning
Hardware Torque Inspection
Electrical
Fuses
Battery
Connecting 1 Or 2 Booster Batteries
Alternator
Starting Motor
Replacing A Bulb
Adjusting Working Lights
Specifications
Engine
Electrical Systems
Hydraulic System
Capacity Of System And Components
Weights
Ground Pressure
Attachment
Arms
Esco Buckets
Excavator Overall Dimensions
Working Range
