Link-Belt Excavator 5800Q Quantum Shop Manual

Size: 17.28 MB

Format: PDF

Language: English

Brand: Link-Belt

Type of Machine: Excavator

Type of Manual: Shop Manual, Hydraulic And Electrical Schematic

Model: Link-Belt 5800Q Quantum Excavator

Part Number: 837

Number of Pages: 224 Pages

30 USD

Tags: 5800Q Quantum, Link-Belt Excavator Manual, Link-Belt Shop Manual, QUANTUM

Description

Description

Contents:
Lower Mechanism
Travel Motor & Reduction Gears, R & I
Take-Up Roller, Recon.
Take -Up Roller, R & I
Upper Rollers, R & I
Lower Rollers, R & I
Recoil Spring, R & I
Track Assembly, R & I
Upper Mechanism
Swing Motor & Reduction Gears, R & I
Engine
Throttle Motor, R & I
Hydraulic Equipment & Lines

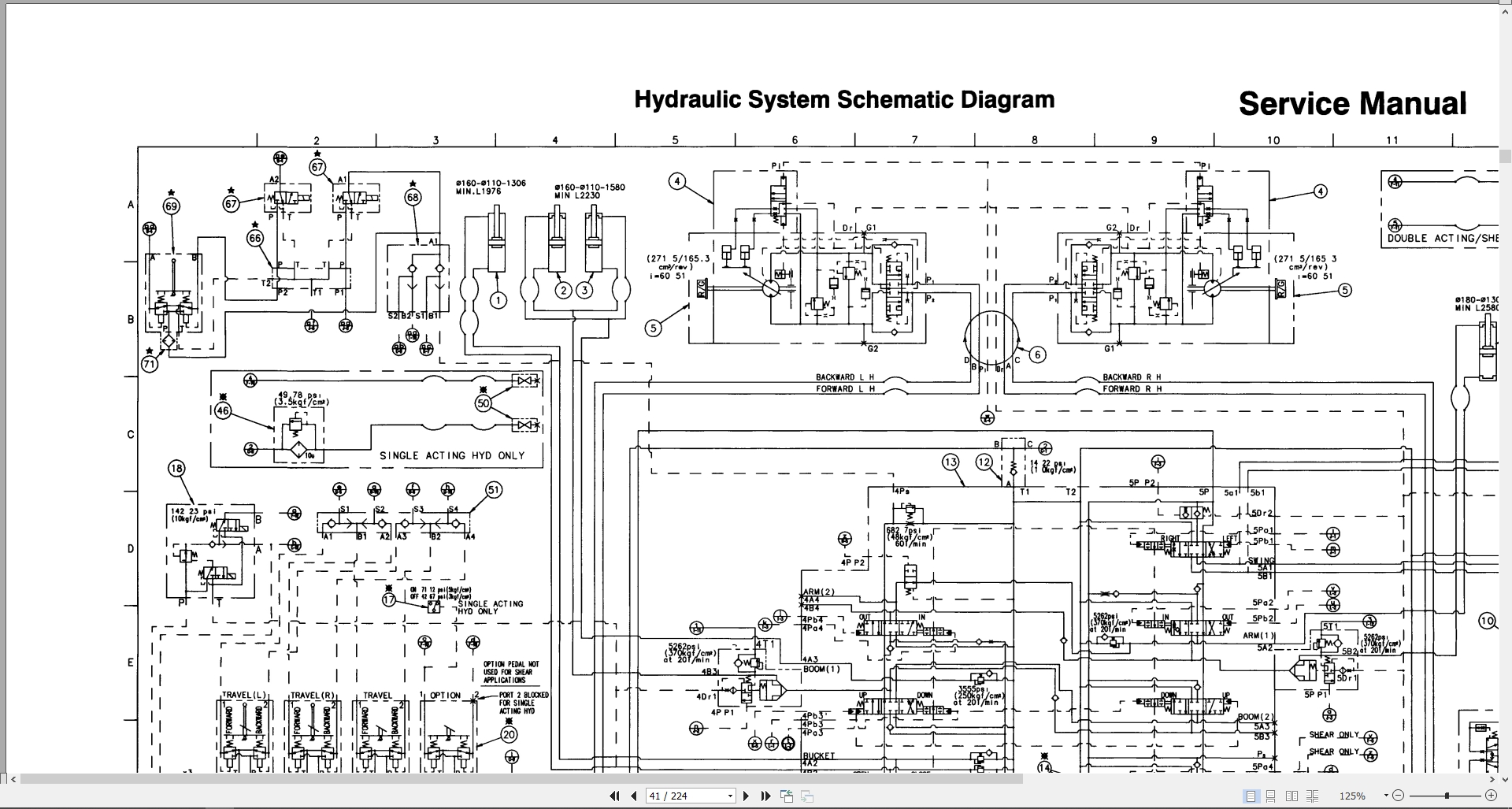

Hydraulic System Schematic Diagram
Pilot Pump, R & I
Hydraulic System Cleaning Procedure
Rotating Joint, R & I
Controls
Joystick Control Valve, R & I
Travel/Service Control Valve, R & I
Main Control Valve, R & I
Attachment
Boom Cylinder, R & I
Arm Cylinder, R & I
Bucket Cylinder, R & I
Electric Parts
Electrical System Schematic Diagram
Monitor System Controller, R & I/Adjustment
Name Plates & Accessories
Capscrew Torques
Spare Pump, R & I
Inner Parts
Hydraulic Pump Troubleshooting
Spare Pump, Recon.
Pilot Pump, Recon.
Hydraulic Pump, Recon.
Travel Motor, Recon.
Travel Motor Troubleshooting
Travel Motor Reduction Gears, Recon.
Swing Motor Assembly, Recon.
Swing Motor Troubleshooting
Swing Reduction Gears, Recon.
Main Control Valve, Recon.
Boom Cylinder, Recon.
Arm Cylinder, Recon.
Bucket Cylinder, Recon.
Joystick Control Valve, Recon.
Travel/Service Valve Control Valve, Recon.
Rotating Joint, Recon.
Reducing Valve, Recon.
8 Spool Solenoid Valve Assembly, Recon.
Boom Cylinder Hose Burst Check Valve, Recon.
Arm Cylinder Hose Burst Check Valve, Recon.
Cushion Valve, Recon.
Stack Valve, Recon.
