Name: Link-Belt Scrap Grapple LSG All Models Safety Operator Manual
SKU: 581461
Price: 15.00 USD
Availability: InStock

Link Belt Scrap Grapple LSG All Models Safety Operator Manual (1)

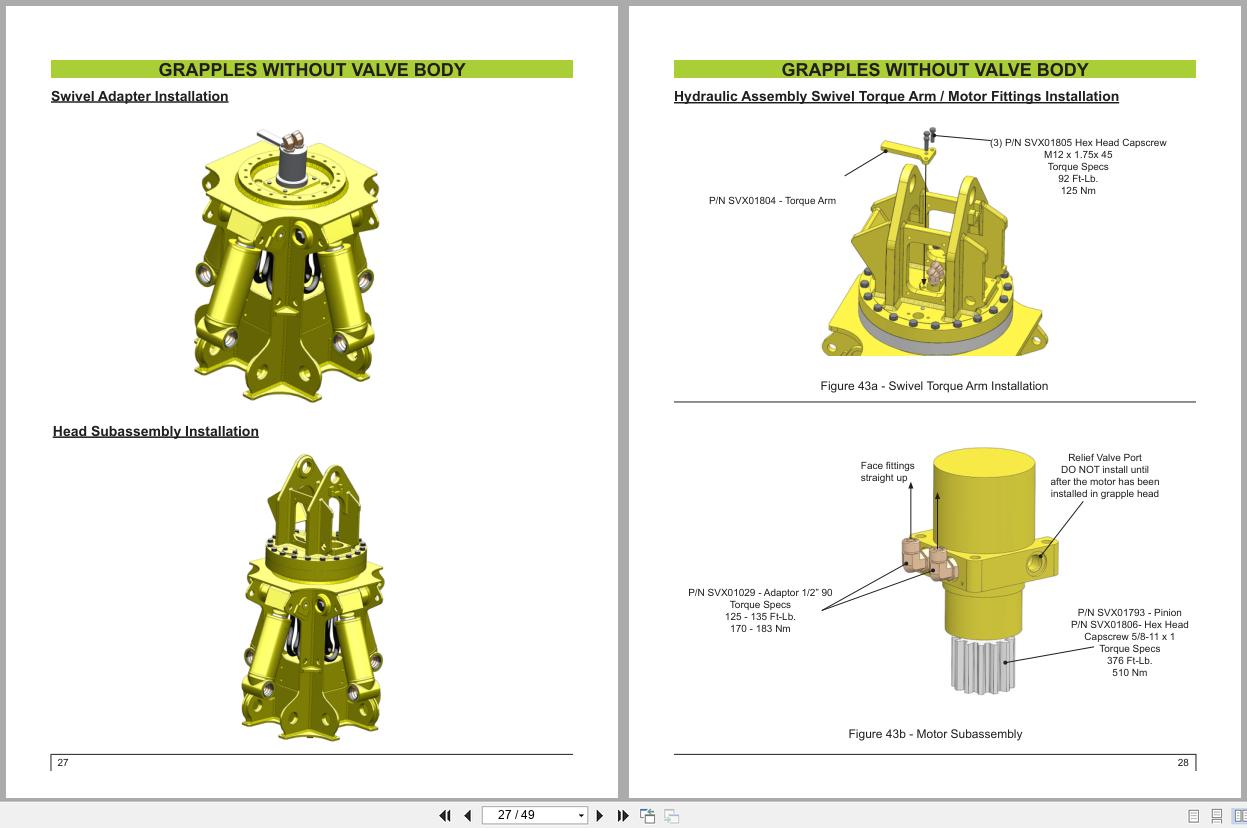

Link Belt Scrap Grapple LSG All Models Safety Operator Manual (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Link-Belt Scrap Grapple LSG All Models Safety Operator Manual

Size: 12.77 MB

Format: PDF

Language: English

Brand: Link-Belt

Type of Machine: Scrap Grapple

Type of Manual: Safety And Operator Manual

Model: Link-Belt Scrap Grapple LSG All Models

Number of Pages: 49 Pages

15 USD

Tags: Link-Belt Safety Operator Manual, Link-Belt Scrap Grapple Manual, LSG All Models

Description

Description

Contents:
Preface
Important
Manual Replacement
Registration Form
Possible Variations
Public Notice
Warranty
Safety Statements
Operational Safety
Read Manual Before Operating Or Maintaining The Tool
Personal Protection
Know Your Equipment
Before Operating
Check The Equipment
Stability
Know The Work Area
Starting Procedure
Place The Load Safely
Safely Operate Equipment
Transporting The Tool
Equipment Condition
Working Overhead
Power Lines
Use Care With Hydraulic Fluid Pressure
Prioritized Oil Flow
Emergency Situations
Unsafe Conditions
Crystalline Silica Dust
Process Material Safely
Lift The Load Safely
Place The Load Safely
Tool Markings
Maintenance Safety
Pinch Points & Crush Points
Performing Maintenance
Removing Outer Cylinder Guard
Maintenance Schedule
Eight-Hour Checklist
Long-Term Maintenance
Bolt Torque Specifications
Grapple Installation
Installation Procedure
Hydraulic Requirements
Hydraulic Start-Up
Start-Up Procedure
Hydraulic / Rotation Maintenance
Mounting Bolts
Bolt Torque
Grease Slewing Ring
Rotate After Greasing
Grease Points – Yoke And Bearings
Grease Temperatures
Hydraulic Adapter Mounting
Swivel Mounting Bolts
Hydraulic Adapter Orientation
Cylinder Subassembly
Cylinder Installation
Swivel Adapter Installation
Head Subassembly Installation
Hydraulic Assembly Swivel Torque Arm / Motor Fittings Installation
Hydraulic Assembly Motor Subassembly Installation
Cylinder Removal And Replacement Procedure
Hydraulic Swivel Subassembly
Hydraulic Component Relationships
Hydraulic Assembly Valve Body / Manifold Subassembly
Hydraulic Assembly Valve Body / Manifold Installation – Cylinder Subassembly
Hydraulic Assembly Cylinder 1 / Hose Installation
Hydraulic Assembly Cylinder 2, 3 & 4 Installation
Hydraulic Assembly Swivel Fittings And Head Installation
Hydraulic Assembly Swivel Torque Arm / Motor Fittings Installation
Hydraulic Assembly Motor Subassembly Installation
Cylinder Removal And Replacement Procedure
Tine Hard-Surfacing
Tine Tip Removal
Tine Tip Replacement – Factory Welding Process
Trouble-Shooting Guide
Warranty And Parts Information
