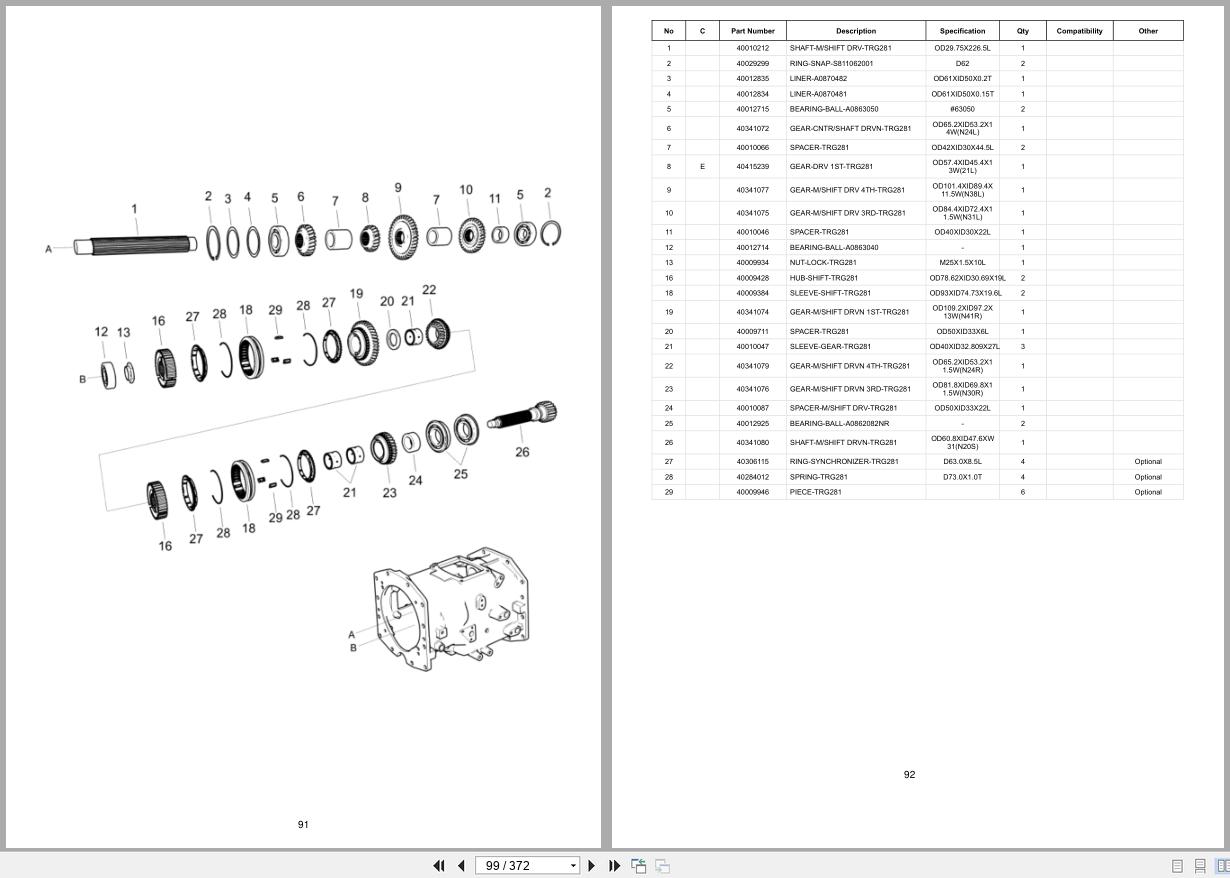

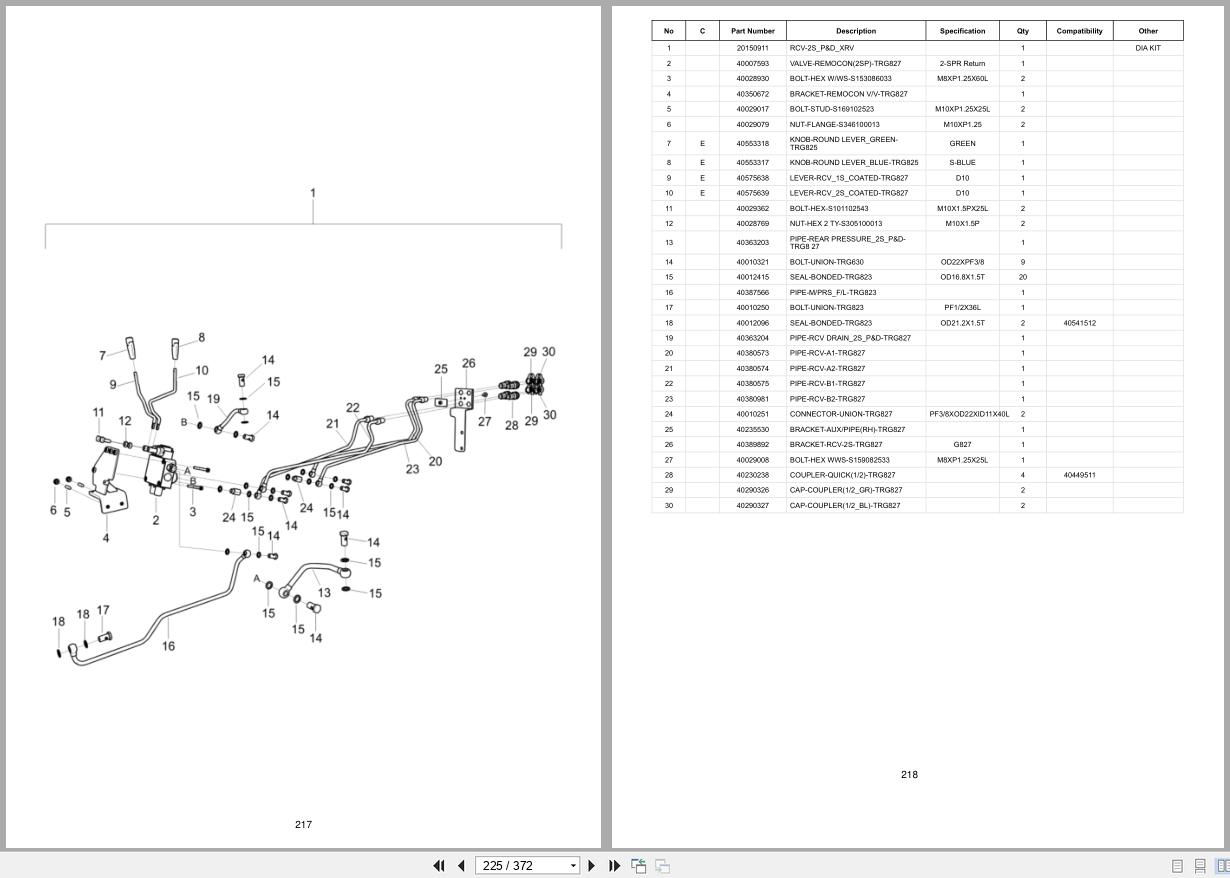

LS Tractor MT3E Series MT345E MT345HE MT350E MT350HE (TIER4) Parts Catalog

Description

Contents:
01. ENGINE
G010S01-05 ENGINE LONG BLOCK ASSY
G010S01-10 ENGINE SHORT BLOCK ASSY
G010S02-01 PILOT BEARING
Q110S01-04 CRANKCASE ASSY
Q115S01-04 ROCKER COVER & CAMSHAFT
Q115S02-02 BLOW BY GAS HOSE
Q116S01-04 CYLINDER HEAD
Q120S01-04 MAIN MOVING PARTS
Q121S01-03 VALVE MECHANISM
Q125S01-04 FUEL SYSTEM
Q125S02-02 FUEL FILTER
Q125S04-01 INJECTION PUMP
Q130S01-01 TIMING GEAR & CASE
Q135S01-04 COOLING SYSTEM
Q140S01-01 OIL SYSTEM
Q145S01-04 OIL PAN
Q160S01-04 INLET & OUTLET MANIFOLD
Q166S01-01 EGR
Q166S02-06 EGR VV SVC KIT (ERAE to KAMTEC)
Q167S01-02 DOC&DPF
Q167S01-03 DPF SUPPORT (F or WO-AIR-CON)
Q180S01-01 ELECTRIC PARTS
Q180S01-06 ELECTRIC PARTS
Q180S02-01 MAF SENSOR
Q185S01-02 TURBOCHARGER
02. ENGINE APPLICATION
G040S01-01 FUEL TANK
G100S01-01 THROTTLE LEVER
G100S01-02 THROTTLE PEDAL (MEC)
G130S01-01 FUEL COOLER
G150S01-01 MUFFLER
G170S01-01 RADIATOR
G190S01-01 AIR CLEANER
G210S01-01 ENGINE FRAME
G210S02-01 WIND COVER
03. TRANSMISSION
G250S01-01 CLUTCH (L3C19-45,47,50,52HP,MEC)
G250S02-01 CLUTCH HOUSING (MEC)
G250S02-02 HST HOUSING (HST33CC)
G250S03-01 DAMPER (MEC or HST33CC)
G260S01-01 CLUTCH PEDAL (MEC)
G270S01-02 HST UNIT (HST33CC)
G280S01-01 TRANSMISSION CASE (MEC)
G280S01-03 TRANSMISSION CASE (HST33CC)
G280S02-01 TAPER PLUG
G281S01-01 F-R DRIVE GEAR SHAFT (MEC)
G281S01-02 F-R DRIVEN GEAR SHAFT (MEC)
G281S02-01 MAIN GEAR SHAFT (MEC)
G285S01-01 RANGE GEAR SHAFT (MEC)
G285S01-02 RANGE GEAR SHAFT (HST33CC)
G310S01-01 REAR DIFFERENTIAL (MEC)
G310S01-02 REAR DIFFERENTIAL (HST33CC)
G869S04-01 TM AIR BREATHER
04. PTO DRIVE
G283S01-01 PTO MAIN SHAFT (MEC)
G283S01-03 PTO MAIN SHAFT (HST33CC)
G283S02-01 PTO CLUTCH & SHAFT (LSTA,INDP)
G287S01-01 PTO DRIVE SHAFT (PTO1,Without NEUTRAL)
G287S01-02 PTO DRIVE SHAFT (PTO1,With NEUTRAL)
G287S04-01 PTO SHAFT COVER
G287S04-02 PTO SHIELD (STD or EC)
G287S05-01 PTO SHAFT CAP
05. FOUR WHEEL DRIVE (4WD)
G288S01-01 4WD DRIVE SHAFT
G288S01-02 4WD SHAFT COVER (MEC)
G288S01-03 4WD SHAFT COVER (HST33CC)
06. FRONT AXLE & STEERING LINKAGE
G400S01-01 FRONT AXLE ASSY
G400S02-01 FRONT AXLE CASE
G400S02-02 FRONT AXLE CASE(RH)
G400S02-03 FRONT AXLE CASE(LH)
G400S03-01 FRONT DIFFERENTIAL
G400S04-01 FRONT DRIVE
G610S01-01 TIE-ROD
G630S01-01 STEERING CYLINDER
07. REAR AXLE & BRAKE
G480S01-01 REAR AXLE(RH)
G480S01-02 REAR AXLE(LH)
G650S01-01 BRAKE (STD)
G670S01-01 REAR BRAKE LINKAGE (MEC)
G670S01-02 BRAKE PEDALS (MEC)
G670S01-03 REAR BRAKE LINKAGE (HST33CC)
G670S01-04 BRAKE PEDALS (HST33CC)
G670S02-01 PARKING BRAKE LEVER (MEC)
G670S02-02 PARKING BRAKE LEVER (HST33CC)
08. SHIFT FORK & LINKAGE
G290S02-01 LEVER&FORK(MAIN GEAR) (MEC)
G290S03-01 LEVER&FORK(F-R GEAR) (MEC)
G291S01-01 SHIFT LEVER & FORK(RANGE GEAR) (MEC)
G291S01-02 SHIFT LEVER & FORK(RANGE GEAR) (HST33CC)
G291S02-01 LEVER&FORK(4WD) (4WD)
G291S03-01 LEVER&FORK(PTO) (PTO1,Without NEUTRAL)
G291S03-02 LEVER&FORK(PTO) ((PTO1,With NEUTRAL) or PTO2)
G292S01-03 HST PEDAL (HST33CC)
G292S01-04 HST CONTROL LINK (HST33CC)
G320S01-01 DIFF-LOCK (MEC)
G320S01-02 DIFF-LOCK (HST33CC)
09. HYDRAULIC & PNEUMATIC CONTROLS
G630S01-02 STEERING LINES (MEC)
G630S01-03 STEERING LINES (HST33CC)
G640S01-01 T-M OIL COOLER (MEC)
G640S01-03 T-M OIL COOLER (HST33CC)
G640S02-01 COOLER VALVE & LUBRICATION (MEC)
G640S02-02 HST FILTER & PIPES (HST33CC)
G822S02-01 INDP PTO VALVE (MEC)
G822S02-02 INDP PTO VALVE (HST33CC)
G822S03-02 JOYSTICK LEVER (L-V)
G822S03-04 LOADER VALVE (L-V)
G822S04-01 LOADER VALVE KIT (L-V,3SP,DIA KIT)
G823S01-01 HYD. SUCTION LINES (MEC)
G823S01-02 HYD. F-PRESSURE LINE (MEC)
G823S01-05 HYD. M-PRESSURE LINES (MEC,WO AUX)
G823S01-06 HYD. M-PRESSURE LINES (HST33CC,WO AUX)
G823S01-08 HYD. SUCTION LINES (HST33CC)
G823S01-09 HYD. F-PRESSURE LINES (HST33CC)
G827S01-02 REMOTE CONTROL VALVE (F,2-QC,DIA KIT)
G827S01-03 REMOTE CONTROL VALVE (F,4-QC,DIA KIT)
10. ELECTRIC & ELECTRONIC PARTS
G730S01-01 MAIN HARNESS (MEC)
G730S01-02 MIDDLE HARNESS
G730S01-03 HARNESS BRACKET
G730S01-04 GLOW HARNESS
G730S01-05 MAIN HARNESS (HST33CC)
G730S01-08 HEAD LAMP HARNESS
G730S02-01 7 POLE CONNECTOR (ASAE, DIA KIT)
G730S03-03 HORN (DIA KIT)
G740S01-01 BATTERY (80A)
G750S01-01 METER PANEL
G750S01-02 RELAY & FUSE
G750S01-03 ECU
G750S01-04 RELAY & FUSE (HST33CC)
G750S02-01 F-R SENSOR
G750S02-02 DIAGNOSIS CONNECTOR
G750S02-03 HST CRUISE MAGNET (HST33CC)
G750S02-05 HST NEUTRAL SWITCH (HST33CC)
G750S06-01 E-PTO PLUG (NO-EPTO)
G760S01-01 TURN SIGNAL LAMP
G760S01-02 REAR LAMP
G760S01-03 REAR WORK LAMP (DIA KIT)
G760S01-22 HEAD LAMP (LED)
11. HYDRAULIC LIFT UNIT
G820S01-01 HYD. HOUSING ASSY-SVC OFF
G820S02-01 HYDRAULIC HOUSING
G822S01-01 LIFT CTRL. VALVE & LINK
G824S01-01 POSITION & DRAFT LINK
G825S01-01 HYD. CONTROL LEVER
G825S01-02 HYD. LEVER GUIDE (S-BLUE)
G826S01-01 HYDRAULIC CYLINDER
G826S02-01 DOWN SPEED CONTROL KNOB
G828S01-01 UPPER LINK BRACKET
12. 3-POINT LINKAGE & HITCH
G891S01-02 DRAWBAR & HITCH (TELESCOPIC DRAWBAR,LSTA)
G896S01-01 UPPER & LOWER LINK (GENERAL,CAT1)
G896S01-06 TOP LINK HOOK (F,STD TOP LINK)
G896S02-01 LIFT ROD (NO-LEVEL,CAT1or2)
G896S03-01 CHECK LINK (TELESCOPIC,Ball type)
13. SHEET METALS & MOUNTS
G830S01-01 GRILLE ASSY (S-BLUE)
G830S01-15 HOOD (XR-S-LOOK,L3C,S-BLUE)
G830S02-01 HOOD SUPPORT(REAR)
G830S02-03 HOOD SUPPORT(FRONT)
G840S01-01 MOUNT RUBBER (MEC)
G840S01-02 MOUNT RUBBER (HST33CC)
G840S02-01 STEP (MEC,S-BLUE)
G840S02-02 STEP (HST33CC,S-BLUE)
G840S03-01 SUB STEP-SVC OFF (S-BLUE)
14. DRIVER’S STATION
G630S02-01 STEERING WHEEL (LS-CAP)
G630S02-02 STEERING COLUMN (MEC)
G630S02-03 STEERING COLUMN (HST33CC)
G835S01-01 PEDAL FRAME (MEC)
G835S01-02 PEDAL FRAME (HST33CC)
G850S01-01 SEAT (GRAMMER)
G864S01-01 INTERIOR(FRONT) (MEC)
G864S01-02 INTERIOR(FRONT) (HST33CC)
G864S01-11 JOYSTICK COVER (F,L-V)
G870S01-01 FENDER (S-BLUE)
G880S01-01 SAFETY FRAME (R-ROPS(FOLDERBLE))
15. TIRES, WHEELS & REAR BALLAST
G490S01-01 WHEEL BOLTS & NUTS
16. ACCESSORY & ETC
G868S02-02 SLOW MOVING VEHICLES (F)
G920S02-01 TOOL BOX
G920S05-01 BOLT CAP
G920S05-02 RUBBER PLUGS
G920S07-01 CUP HOLDER
17. DECALS
G980S01-01 SAFETY DECAL
G980S01-02 MODEL DECAL
18. DIA KIT & SVC KIT
G730S02-01 7 POLE CONNECTOR (ASAE, DIA KIT)
G730S03-03 HORN (DIA KIT)
G760S01-03 REAR WORK LAMP (DIA KIT)
G822S04-01 LOADER VALVE KIT (L-V,3SP,DIA KIT)
G827S01-02 REMOTE CONTROL VALVE (F,2-QC,DIA KIT)
G827S01-03 REMOTE CONTROL VALVE (F,4-QC,DIA KIT)
G990S01-01 DIA KIT LIST (LSTA)
G991S01-01 SVC KIT LIST (ERAE to KAMTEC)
Q166S02-06 EGR VV SVC KIT (ERAE to KAMTEC)
