LS Tractor MT7 Series MT774 Parts Catalog

Description

Contents:
01. ENGINE
G010S01-02 ENGINE (55kW)
G010S02-03 ENGINE ACCESSORY
Q100S01-11 ENGINE ASSY (55kW)
Q110S01-11 CRANKCASE ASSY (55kW)
Q115S01-11 CYL.HEAD SPACE BAR (55kW)
Q115S01-12 CYL.HEAD COVER (55kW)
Q115S01-13 ROCKER SHAFT (55kW)
Q115S02-11 ENGINE BREATHER (55kW)
Q116S01-11 CYLINDER HEAD (55kW)
Q140S01-14 SUCTION STRAINER
Q140S01-15 OIL COOLER (55kW)
Q145S01-11 OIL SUMP (55kW)
Q146S01-11 BALANCER (55kW)
Q150S01-11 FLYWHEEL
Q155S02-11 FLYWHEEL HOUSING (55kW)
Q160S02-11 INTAKE MANIFOLD (55kW)
Q160S02-12 AIR INTAKE ELBOW (55kW)
Q165S01-11 EXHAUST MANIFOLD (55kW)
Q166S01-11 EGR ASSEMBLY (55kW)
Q167S01-13 AFTER TREATMENT-PARTS (55kW)
Q167S01-14 ATS PRESSURE SENSOR LINE (55kW)
Q170S01-11 STARTER MOTOR (55kW)
Q175S01-11 ALTERNATOR (55kW)
Q180S01-12 ENGINE HARNESS (55kW)
Q180S01-13 GLOW PLUG (55kW)
Q180S01-14 DIAGNOSIS SENSOR (55kW)
Q180S02-11 ACCESSORY (55kW)
Q185S01-11 TURBOCHARGER (55kW)
02. ENGINE APPLICATION
G040S01-02 FUEL TANK
03. TRANSMISSION
G285S02-01 CREEPER GEAR SHAFT (W-O CRP)
G310S01-01 REAR DIFFERENTIAL (MEC or PST)
04. PTO DRIVE
G283S01-02 PTO CLUTCH & SHAFT (PST)
G287S01-03 PTO CLUTCH (INDP,NO-GSP)
G287S01-04 PTO GEAR & SHAFT (PTO3,LSTA)
G287S04-02 PTO SHAFT COVER (LSTA)
G287S05-01 PTO SHAFT CAP
05. FOUR WHEEL DRIVE (4WD)
G288S01-03 4WD DRIVE SHAFT
G288S01-04 4WD SHAFT COVER
06. FRONT AXLE & STEERING LINKAGE
G400S01-03 FRONT AXLE ASSY (CARRARO,STD)
G400S02-05 FRONT AXLE CASE (CARRARO,EXP)
G400S03-03 BEVEL GEAR SET (CARRARO)
G400S03-04 FRONT DIFFERENTIAL (CARRARO)
G400S04-02 U-JOINT SHAFT (CARRARO,STD)
G400S04-03 WHEEL HUB & FINAL REDUCTION (CARRARO)
G400S04-04 FINAL REDUCTION (CARRARO)
G630S01-04 STEERING CYLINDER (CARRARO,STD)
07. REAR AXLE & BRAKE
G480S01-01 REAR AXLE(RH)
G480S01-02 REAR AXLE(LH)
G650S01-01 BRAKE
08. SHIFT FORK & LINKAGE
09. HYDRAULIC & PNEUMATIC CONTROLS
G822S03-03 LOADER VALVE (60LPM,3-SPOOL)
G822S03-07 JOYSTICK LEVER (C,3-SPOOL)
G823S01-04 HYD. F-PRESSURE LINES (60LPM,L-V,(MEC or PST))
G823S01-05 HYD. M-PRESSURE LINES (C,60LPM,L-V,(MEC or PST))
G823S01-10 HYD. SUCTION LINES (60LPM)
G827S01-12 REMOTE CONTROL VALVE KIT (C,SEC2,LSTA,DIA KIT)
G827S01-17 REMOTE CONTROL VALVE (C,SEC2(1FLT))
G827S01-18 REMOTE CONTROL LEVER (C,SEC2(1FLT))
G827S02-10 REMOTE CONTROL VALVE (C,SEC2(1FLT))
G829S01-10 PST LUBRICATION LINE (C,NO-LEVEL,PST HC)
G829S02-02 PST LUBRICATION VALVE (NO-LEVEL)
G991S40-01 SVC KIT-CUT OFF VALVE (PST HC)
10. ELECTRIC & ELECTRONIC PARTS
G730S01-01 MAIN POWER HARNESS
G730S01-06 REAR HARNESS
G730S01-11 CABIN EARTH CABLE (C)
G730S01-12 ENGINE HARNESS
G730S01-18 HEAD LAMP HARNESS (FULL LED)
G730S02-01 7 POLE CONNECTOR (C)
G730S03-02 HORN
G760S01-03 REAR COMBINATION LAMP (C,LED)
G760S01-05 TURN SIGNAL LAMP (C)
G760S01-09 REAR WORK LAMP (C,LED)
G760S01-15 HEAD LAMP (FULL LED)
11. HYDRAULIC LIFT UNIT
G820S01-01 HYD. HOUSING ASSY (C,MHL)
G820S02-01 HYDRAULIC HOUSING (MHL)
G822S01-01 LIFT CTRL. VALVE & LINK (MHL)
G824S01-01 POSITION & DRAFT LINK (MHL)
G825S01-06 HYD. CONTROL LEVER (C,PST HC,MHL)
G825S02-03 EXTERNAL POSITION CTRL. LEVER (C,MHL,Optional)
G825S02-05 AUTO LIFT & EXTERNAL CTRL. (C,MHL)
G826S01-01 HYDRAULIC CYLINDER (MHL)
G826S01-04 HYD. SUB CYLINDER (1-SUB CYLINDER)
G828S01-01 UPPER LINK BRACKET
12. 3-POINT LINKAGE & HITCH
G891S01-03 DRAWBAR & HITCH (SWING BAR&CLEVIS)
G896S01-01 LOWER LINK (TELESCOPIC)
G896S01-03 UPPER LINK (SEC2,SEC3)
G896S02-02 LIFT ROD (NO LEVEL)
G896S03-03 CHECK LINK (CHECK LINK)
13. SHEET METALS & MOUNTS
G830S01-09 HOOD (DS-BLUE)
G830S01-10 GRILLE ASSY (DS-BLUE,FULL LED TYPE,NO-SMARTREK)
G830S02-03 HOOD SUPPORT (55kW)
G840S01-03 SUB STEP (C)
G840S01-05 MOUNT RUBBER (55kW,C)
14. DRIVER’S STATION
G630S02-03 STEERING COLUMN (HORN-IN-STR)
G630S02-04 STEERING WHEEL (LS-CAP,HORN-IN-STR)
G825S01-07 HYD. LEVER GUIDE (C,MHL)
G835S01-03 PEDAL FRAME (C,HORN-IN-STR)
G850S01-01 SEAT (C,GRAMMAR,FABRIC)
G861S01-01 FRAME (C,NO-REAR LAMP COVER)
G862S01-05 DOOR(LH) (C(MT7))
G862S01-06 DOOR(RH) (C(MT7))
G862S02-03 DOOR HANDLE ASSY (C(MT7))
G863S01-02 SIDE WINDOW (C)
G863S01-05 FRONT WINDOW (C(MT7))
G863S02-04 REAR WINDOW (C(MT7))
G864S01-07 INTERIOR(FRONT) (STD KEY)
G864S02-03 INTERIOR(RH) (C)
G864S03-02 INTERIOR(LH) (C)
G864S04-04 INTERIOR(TOP) (C)
G864S05-04 INTERIOR(RH-PILLAR) (C,WO-HMI)
G864S06-05 RH LEVER GUIDE & COVERS (C,PST)
G865S01-03 AIR COMPRESSOR (C,WO-AIR GUN,WO-AIR T BRAKE)
G865S01-06 AIR-CON BLOWER (C)
G865S01-07 AIR-CON LINE (C,WO-AIR GUN,WO-AIR T BRAKE)
G865S01-08 HEATER SUB LINE (55kW)

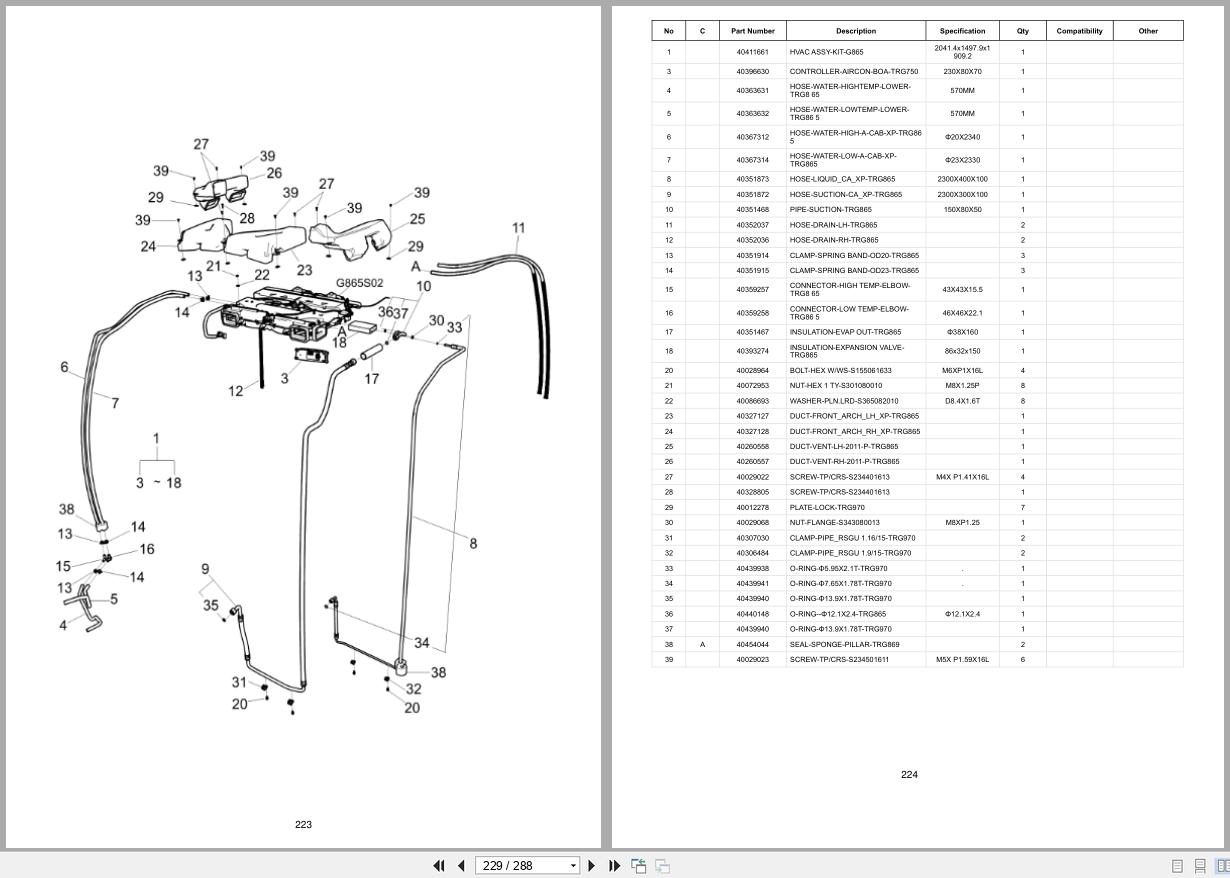

G865S02-02 AIR-CON UNIT (C,HVAC-40411662)
G866S01-09 ELECTRICAL WIRING (C,PST HC)
G866S02-03 WINDOW WASHER TANK (C)
G866S02-04 WINDOW WIPER(FRONT) (C)
G866S02-05 WINDOW WIPER(REAR) (C)
G866S03-03 AUDIO SYSTEM (C(MT7),WO-HMI)
G867S01-04 ROOF (C,DS-BLUE,WO-REAR MONITOR)
G868S01-03 EXTERIOR (C,DS-BLUE)
G869S01-02 SUN SCREEN (C)
G869S02-02 MISCELLANY (C,MHL)
G869S02-04 WIRE HOLE PLUG (C)
G869S02-05 WIRE HOLE GROMMET (C,NO-SMARTREK)
15. TIRES, WHEELS & REAR BALLAST
G490S01-08 WHEEL BOLTS & NUTS (CARRARO)
16. ACCESSORY & ETC
G868S02-01 SLOW MOVING VEHICLES (LSTA)
G869S03-02 REAR MUD PROTECTOR (C,FULL LED)
G869S04-01 TM AIR BREATHER
G920S01-03 ROOM MIRROR (C)
G920S01-06 REAR VIEW MIRROR (C,STD,DUAL)
G920S02-01 TOOL BOX (55kW)
G920S05-01 BOLT CAP
17. DECALS
G980S01-05 SAFETY DECAL (C)
G980S01-21 MODEL DECAL
G980S01-22 SAFETY DECAL (LSTA)
18. DIA KIT & SVC KIT
G827S01-12 REMOTE CONTROL VALVE KIT (C,SEC2,LSTA,DIA KIT)
G990S01-02 DIA KIT LIST (LSTA)
G991S01-01 SVC KIT LIST
G991S40-01 SVC KIT-CUT OFF VALVE (PST HC)
