Name: Macdon Harvest Header D50 D60 Unloading &amp; Assembly Instructions
SKU: 528859
Price: 10.00 USD
Availability: InStock

Macdon Harvest Header D50 D60 Unloading & Assembly Instructions (1)

Macdon Harvest Header D50 D60 Unloading & Assembly Instructions (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Macdon Harvest Header D50 D60 Unloading & Assembly Instructions

Size: 44.12 MB

Format: PDF

Language: English

Brand: Macdon

Type of Machine: Harvest Header

Type of Manual: Unloading & Assembly Instructions

Model: Macdon D50 D60 Harvest Header

Application Model: Macdon M Series Self-Propelled Windrowers

Region: North America

List Of Files:

Macdon Harvest Header D50 D60 Unloading & Assembly Instructions 169007 2009

Macdon Harvest Header D50 D60 Unloading & Assembly Instructions 169007 2010

Macdon Harvest Header D50 D60 Unloading & Assembly Instructions 169007 Revision C

Macdon Harvest Header D50 D60 Unloading & Assembly Instructions 169007 Revision D

10$ USD

Tags: D50, D60, Macdon Harvest Header Manual, Macdon Unloading & Assembly Instructions

Description

Description

Contents:
Introduction
General Safety
Recommended Torques
A General
B SAE Bolts
C Metric Bolts
D Hydraulic Fittings
English/Metric Equivalents
Step 1 Unload Header
Step 2 Lower Header
A Single Reel Headers
B Double Reel Headers – D60 Only
Step 3 Remove Shipping Supports

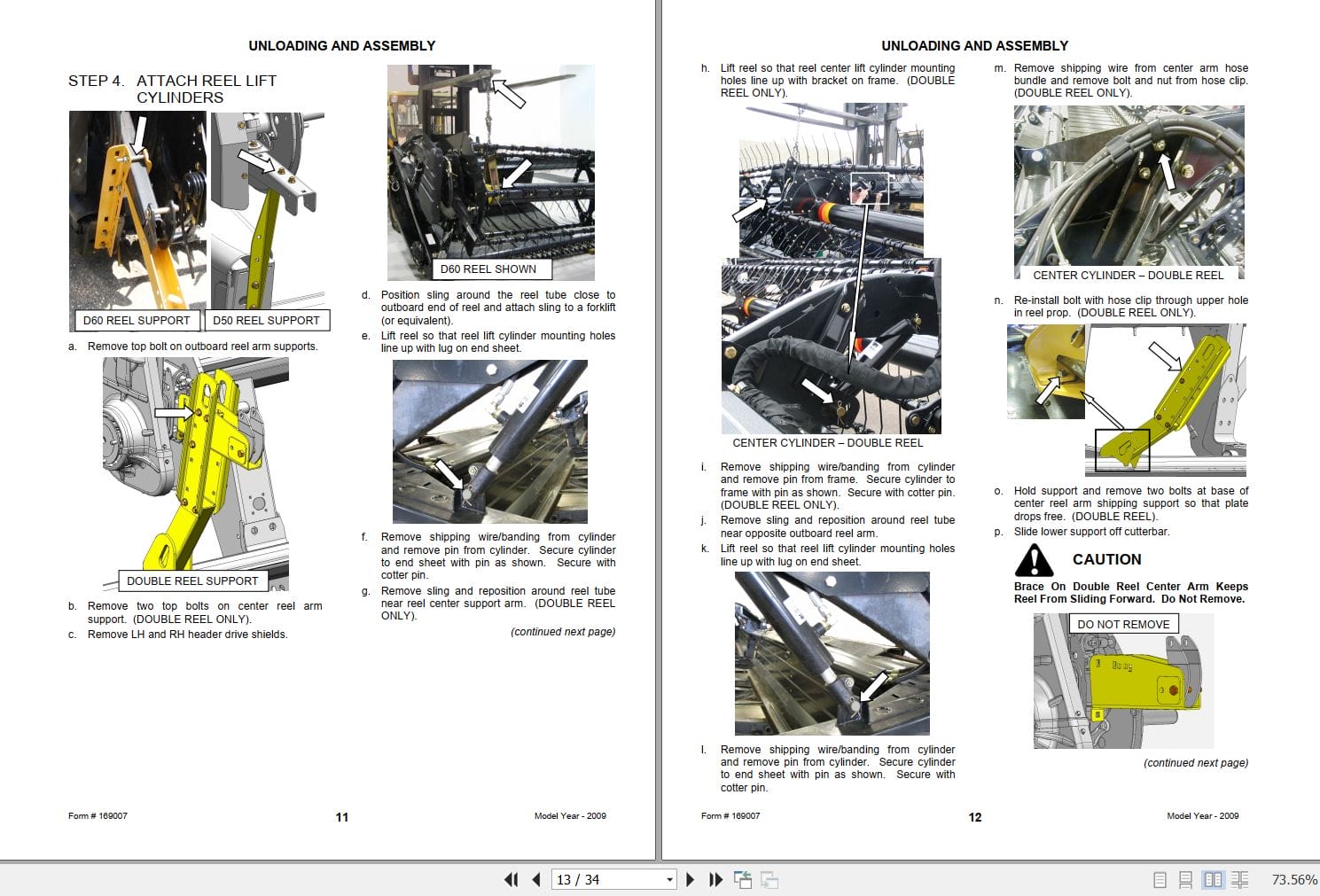

Step 4 Attach Reel Lift Cylinders
Step 5 Attach To Tractor
Step 6 Connect Reel To Fore/Aft Cyl – D60 Only
Step 7 Attach Cam Arms
Step 8 Install End shields
Step 9 Re-Install Guards
Step 10 Adjust Transport Lights
Step 11 Pre-Delivery Inspection
A Tire Pressure (Transport & Stabilizer Wheel Options)
B Wheel Bolt Torque (Transport & Stabilizer Wheel Options)
C Wobble Box
D Sickle Drive Belt Tension
E Reel Centering
F Draper Tension
G Skid Shoe Settings
H Reel Tine To Cutter bar Clearance
I Lubricate Header
J End Shields
K Operator’s Manual And Parts Catalog
Step 12 Run-Up The Header
Step 13 Post Run-Up Adjustments
A Knife
