Name: Macdon Pick-Up Header PW7 Parts Catalog 169177 Revision G
SKU: 528909
Price: 10.00 USD
Availability: InStock

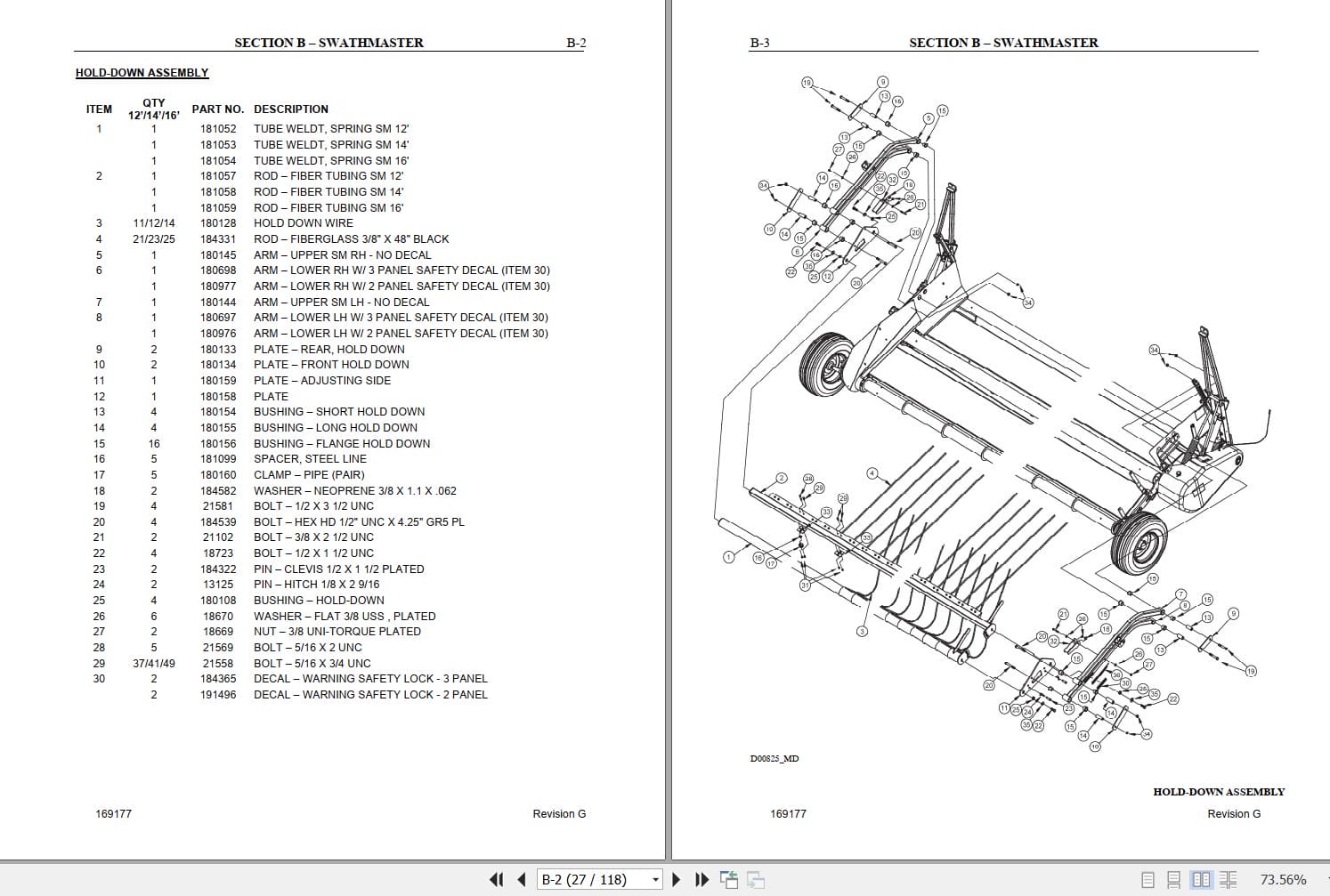

Macdon Pick Up Header PW7 Parts Catalog 169177 Revision G (1)

Macdon Pick Up Header PW7 Parts Catalog 169177 Revision G (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Macdon Pick-Up Header PW7 Parts Catalog 169177 Revision G

Size: 8.32 MB

Format: PDF

Language: English

Brand: Macdon

Type of Machine: Pick-Up Header

Type of Manual: Parts Manual

Model: Macdon PW7 Pick-Up Header

Publication Date: 2016

Parts Number: 169177 Revision G

Number Of Pages: 118 Pages

10$ USD

Tags: Macdon Parts Catalog, Macdon Pick-Up Header Manual, PW7

Description

Description

Contents:
Section A – Rake Up
Hold down Assembly
Draper And Gear Box Drive
Drive End Rotor
Idler End Rotor
Main Gear Box
Shield Assembly
Main Frame Mounting Assembly
Hydraulics
Section B – Swath master
Hold down Assembly
Drive Assembly
Roller, Tire, And Frame Assembly
Suspension Assembly
Shields
Hydraulics
Draper Assembly
Draper/Shield Assy (12’ Small Seed)
Section C – Rake Up/Swath master
Tire/Wheel Assembly
Hydraulic Cylinder
Section D – Service Tools &
Replacement Parts
Section E –Pw7 Header For John Deere /
Claas-Lexion / Agco Combines
Header Table
Auger Drive & Support (Lh)
Auger Support (Rh)
Auger Assembly
Header Hydraulics
Electrical / Lighting
Drive Shaft
Shield Assembly
Header Decals & Document Case
Section F –Pw7 Header For Cnh Combines
Section G – Options
Automatic Height Control:
Dial-A-Speed (Jd)
Active Header Height Control (Cih)
Active Header Height Control (Nh)
Section H – Numerical List
Section I – Suggested Stocking Lists
