Name: Macdon Pick-Up Header PW7 Unloading and Assembly Instructions
SKU: 528914
Availability: InStock

Macdon Pick Up Header PW7 Unloading and Assembly Instructions (1)

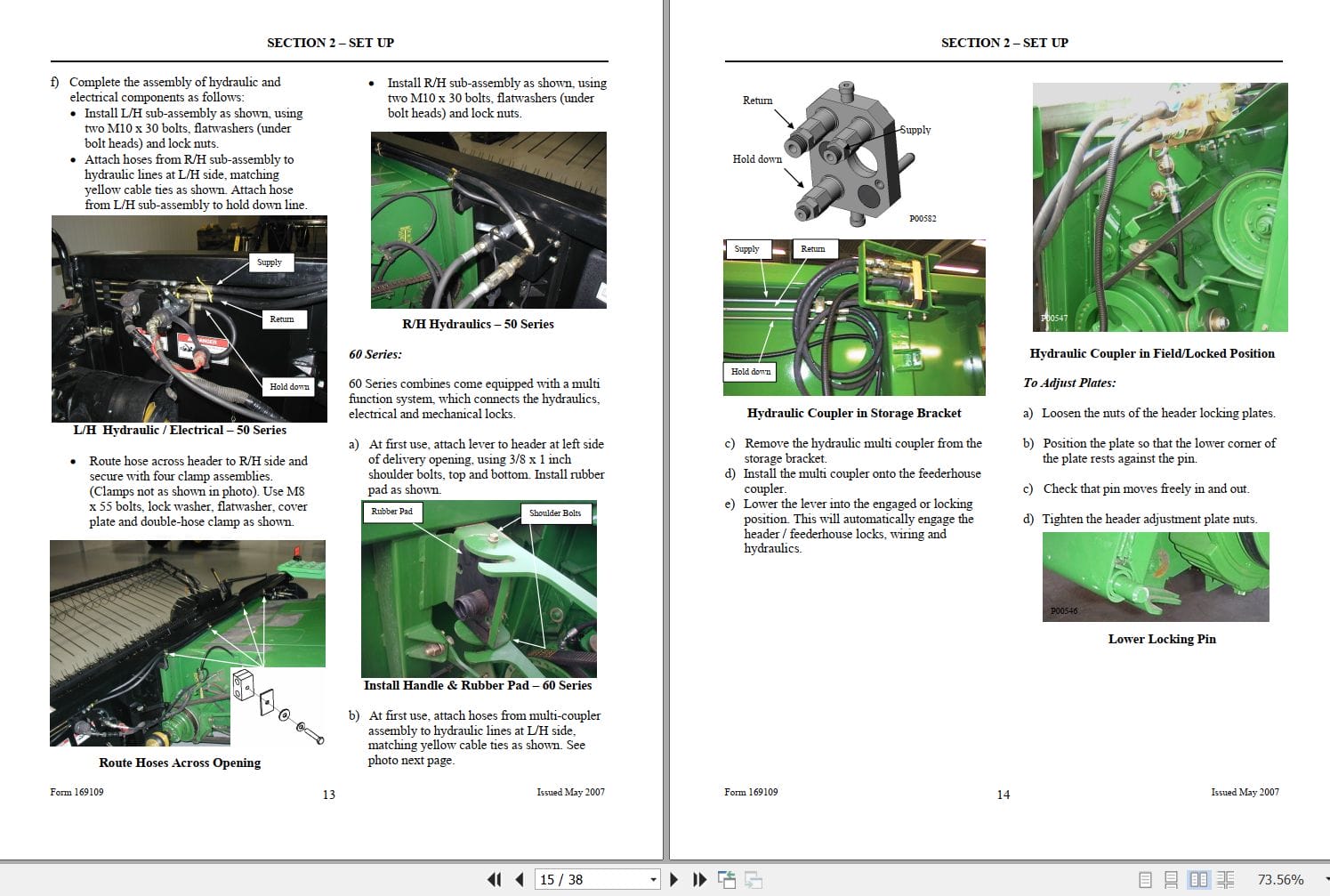

Macdon Pick Up Header PW7 Unloading and Assembly Instructions (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Macdon Pick-Up Header PW7 Unloading and Assembly Instructions

Size: 55.21 MB

Format: PDF

Language: English

Brand: Macdon

Type of Machine: Pick-Up Header

Type of Manual: Unloading & Assembly Instructions

Model: Macdon PW7 Pick-Up Header

List Of Files:

PW7 Unloading and Assembly Instructions 169109 2007

PW7 Unloading and Assembly Instructions 169109 2009

PW7 Unloading and Assembly Instructions 169109 2010

PW7 Unloading and Assembly Instructions 169109 Revision C

PW7 Unloading and Assembly Instructions 169109 Revision E

15 USD

Tags: Macdon Pick-Up Header Manual, Macdon Unloading and Assembly Instructions, PW7

Description

Description

Contents:
Section 1 Safety
1.1 General Safety Practices
1.2 Safety During Combine Attachment
1.3 Safety During Operation
A) Extremity Lights
B) Drive Shaft Safety
1.4 Safety During Servicing
A) Tire Safety
B) Hold Down Safety Locks
C) Feed House Safety Locks
Section 2 Setup
2.1 Handling Units In Shipping Configuration
2.2 Lowering To Field Position
2.3 Removing Shipping Stands
2.4 Feeder House Width Completion / Conversion
2.5 Connecting Header/Pickup To Combine
2.6 Disengaging Storage Braces And Locks
2.7 Rotating Spring Wires Out Of Shipping Position
2.8 Testing Hydraulic Hold Down
A) Test
B) Servicing Hold Down Hydraulics
C) Bleed Hydraulics
2.9 Drive Shaft Installation
2.10 Moving Extremity Lights Into Field Position
Section 3 Adjustments
3.1 Opening Header Side Panels
3.2 Removal Of Pick Up Shields
3.3 Teeth Height Adjustment
3.4 Suspension Adjustment
3.5 Tire Pressure And Wheel Torque
3.6 Draper Belt Tensioning
3.7 Fiberglass Rod/Spring Wire Orientation
3.8 Pick Up Drive Belt Tension
3.9 Speed Control & Height Control
3.10 Auger Finger Adjustment
3.11 Auger Adjustment
A) Auger Clearance To Header Bottom
B) Auger Forward/Rearward Adjustment Procedure
3.12 Stripper Bar Adjustment
3.13 Header Drive Chain Adjustment
