Name: Macdon Rotary Disc R80 Unloading &amp; Assembly Instructions 169079
SKU: 529015
Price: 10.00 USD
Availability: InStock

Macdon Rotary Disc R80 Unloading & Assembly Instructions 169079 (1)

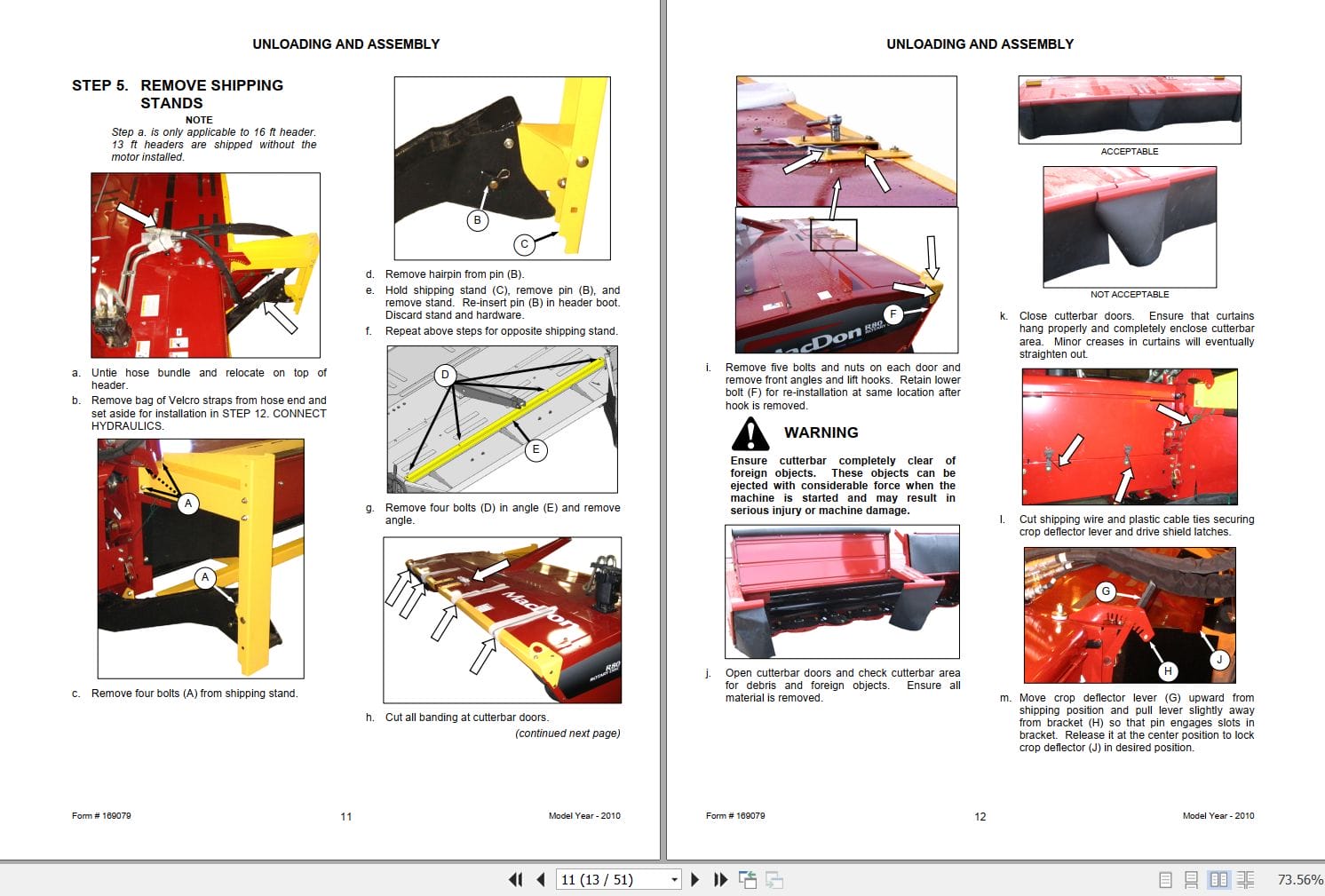

Macdon Rotary Disc R80 Unloading & Assembly Instructions 169079 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Macdon Rotary Disc R80 Unloading & Assembly Instructions 169079

Size: 14.67 MB

Format: PDF

Language: English

Brand: Macdon

Type of Machine: Rotary Disc Self-Propelled Windrower Header

Type of Manual: Unloading & Assembly Instructions

Model: Macdon R80 Self Propelled Rotary Disc Header

Model Year: 2010

Parts Number: 169079

Number Pages: 51 Pages

10$ USD

Tags: Macdon Rotary Disc Manual, Macdon Unloading & Assembly Instructions, R80

Description

Description

Contents:
Step 1 Unload Header
Step 2 Remove Underside Shipping Stand
Step 3 Install Gauge Rollers Or Skid Shoes – 16 Ft Only
Step 4 Lower Header
Step 5 Remove Shipping Stands
Step 6 Install Motor – 13 Ft Only
Step 7 Install Hose Support
Step 8 Assemble Forming Shield
Step 9 Install Forming Shield
Step 10 Install Tall Crop Feed Plates
Step 11 Attach Header To Windrower
Step 12 Connect Center Link
Step 13 Connect Hydraulics
Step 14 Install Rotary Switch
Step 15 Install Options
Step 16 Lubricate The Header
Step 17 Perform Pre-Delivery Checks
