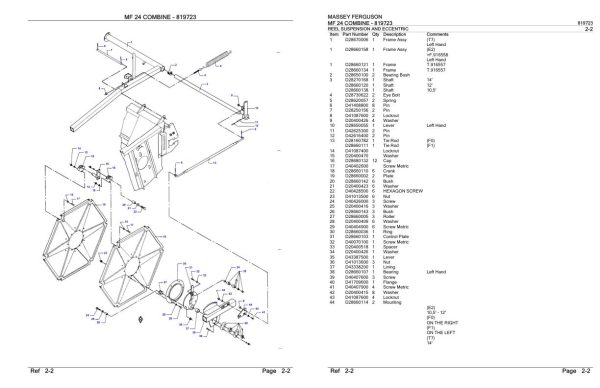

Massey Ferguson MF 24 Combine Parts Catalog 819723 1

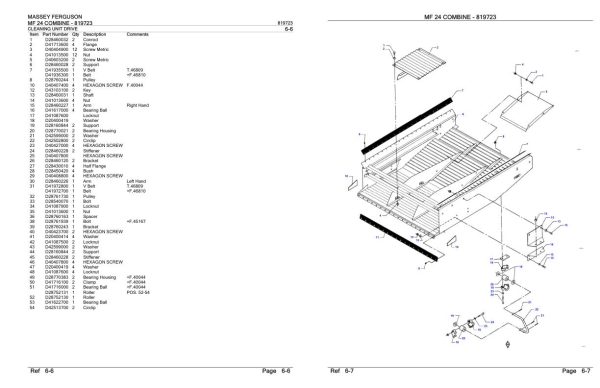

Massey Ferguson MF 24 Combine Parts Catalog 819723 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson MF 24 Combine Parts Catalog 819723

Size: 11.20 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Harvesting Combines – Conventional

Type of Manual: Spare Parts Manual

Model: MF 24 Combine

Part Number: 819723

Number of Pages: 302 Pages

10 USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
STRAW DIVIDER
KNIVES AND FINGERS
WEARING PLATES AND STONE STOP
COUNTER SHAFT
GUARDING
FEEDER DRUM
TABLE TRAILER
LIGHTENING BRACKET AND WHEEL
SIDE KNIFE
LIGHTENING BRACKET
REEL
REEL SUSPENSION AND ECCENTRIC
REEL SUSPENSION AND HYDRAULIC CYLINDERS
REEL SUSPENSION AND HYDRAULIC MOTOR
FEEDER SHAFT LOWER WITH SUSPENSION
UPPER FEEDER SHAFT WITH SUSPENSION AND COVER
FEEDER CHAIN – HYDRAULIC CYLINDER
TABLE CLUTCH
TENSION PULLEYS – GUARDING
TABLE CLUTCH – MAIZE EQUIPMENT
CONCAVE
CONCAVE SETTING
THRESHING DRUM
DRUM SELECTOR WITH GUARDING
STONE TRAP AND DRUM COVER
STRIPPER BEATER WITH SELECTOR
STRIPPER BEATER WITH PULLEYS
TENSION ROLLER AT STRIPPER BEATER – TABLE LEVER
STRAW SHAKER AND CRANKS
CHECK FLAPS
MAIN FAN HOUSING 1
MAIN FAN HOUSING 2-GUARDING
MAIN FAN BLADES GRAIN AUGER AND RETURN AUGER
MAIN FAN SELECTOR
CONVEYOR PAN WITH SUSPENSION
CLEANING UNIT DRIVE
CLEANING UNIT WITH SUSPENSION
SIEVES
GRAIN ELEVATOR 1
GRAIN ELEVATOR 2 WITH CHAIN AND BOTTOM PART
FILLING ELEVATOR WITH CHAIN
FILLING ELEVATOR WITH BOTTOM PART
COUNTERSHAFT – FILLING ELEVATOR
COUNTERSHAFT WITH SPROCKET AND COUPLING
RETURN ELEVATOR
CHANNEL F. RETURN MATERIAL – BOTTOM FLAP
UPPER RETURN AUGER
SECOND CLEANER WITH DE-AWNER
SECOND CLEANER WITH FAN
SECOND CLEANER-MAIZE EQUIPMENT
GRAIN TANK TOP
GRAIN TANK – TRANSMISSION FILLING AUGER
DISCHARGE AUGER CLUTCH 1
DISCHARGE AUGER CLUTCH 2
DISCHARGE AUGER FIXED PART
DISCHARGE AUGER SWIVEL PART
SUCTION CHANNEL AND HYDRAULIC COOLER-PERKINS
RADIATOR HOSES AND CABLES-PERKINS
AIR CLEANER-PERKINS
STRAINER-PERKINS
REAR ENGINE BRACKET WITH PROPULSION PUMP-PERKINS
COUPLING OF THRESHING MECHANISM-PERKINS
SILENCER AND HOSES-PERKINS
P.T.O. AND HYDRAULIC PUMP-PERKINS
FUEL TANK AND BRACKET
COVER FOR ENGINE COMPARTMENT – OIL TANK – PERKINS
SUCTION CHANNEL AND HYDRAULIC COOLER-TYPE 411 DSL
RADIATOR-ENGINE BRACKET-TYPE 411 DSL
AIR CLEANER-TYPE 411 DSL
STRAINER-TYPE 411 DSL
SILENCER AND CABLES-TYPE 411 DSL
ENGAGEMENT OF THRESER – TYPE 411 DSL
PROPULSION PUMP-TYPE 411 DSL
P.T.O. AND HYDRAULIC PUMP-TYPE 411 DSL
COVER FOR ENGINE COMPARTMENT-OIL TANK-TYPE 411 DSL
BELT MOUNTING
FRONT AXLE WITH HYDRO MOTOR
GEARBOX AND CABLES
FRONT AXLE WITH SIDE PINIONS AND WHEELS
REAR AXLE
STEERING WHEEL AND STEERING CYLINDER
GEAR BOX 1
GEAR BOX 2
GEAR BOX 3
SIDE PINIONS
PLATFORM RIGHT-INDICATOR PIN
HANDRAIL – SUN ROOF
LADDER-PLATFORM LEFT
BRAKE PEDALS AND BRAKE CABLES
OPERATOR SEAT AND STEERING WHEEL ARRANGEMENT
OPERATING LEVERS
CONTROL BOX
INSTRUMENT BOX
OPERATING LEVERS – CONNECTING SHAFT
CONTROL BOX WITH CABLES
CAB ROOF
OPERATOR CABIN
WINDOW PANES
STEERING CYLINDER – HYDRAULIC CYLINDER 1
STEERING CYLINDER – HYDRAULIC CYLINDER 2
HYDRAULIC CHART
HYDRAULIC TABLE 1
HYDRAULIC TABLE 2
PROPULSION HYDRAULIC F.46105
PROPULSION HYDRAULIC T.46024
GUARD REAR RIGHT – ACCUMULATOR
GUARDING RIGHT SIDE
GUARDING LEFT SIDE
STRAW NOSE – WIND GUARDING – STRAW GUIDE
REAR MACHINE HOUSING
TOOLS – PAINT
WIRING
WIRING GRAIN LOSS MONITOR
STRAW CHOPPER 1
ACCESSORIES
STRAW CHOPPER REKORD
ACCESSORIES REKORD
STRAW CHOPPER 2
ACCESSORIES – STRAW CHOPPER 2
SPREADER HOOD – STRAW CHOPPER 2
PICK-UP DRUM
