Name: Massey Ferguson MF 480XTRA Tractor Parts Catalog C048003
SKU: 462765
Availability: InStock

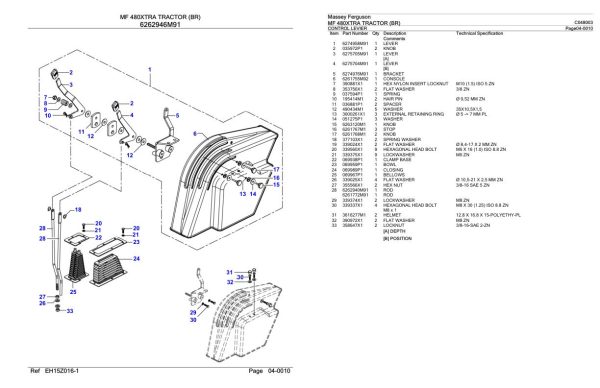

Massey Ferguson MF 480XTRA Tractor Parts Catalog C048003 1

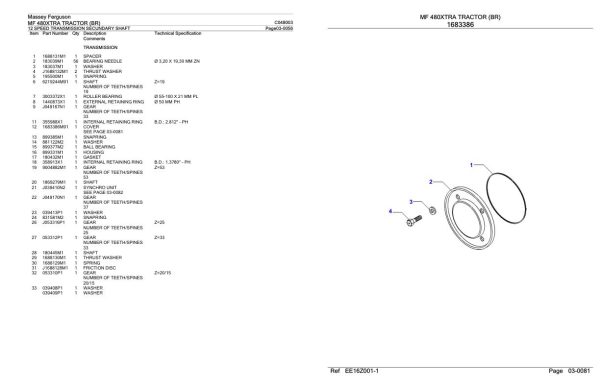

Massey Ferguson MF 480XTRA Tractor Parts Catalog C048003 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson MF 480XTRA Tractor Parts Catalog C048003

Size: 100.06 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Tractors Agricultural – Wheeled

Type of Manual: Spare Parts Manual

Model: MF 480XTRA Tractor

Part Number: C048003

Number of Pages: 2334 Pages

50 USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
ENGINE FUEL AND EXHAUST SYSTEM
ENGINE
ENGINE INSTALLATION
ENGINE INSTALLATION
AIR PRE FILTER
AIR CLEANER
EXHAUST VERTICAL
EXHAUST SYSTEM
FUEL SYSTEM
FUEL TANK LEFT HAND
FUEL TANK
COOLING SYSTEM
HEAT EXCHANGER
COOLING SYSTEM 4 WD
HOSE
AXLES
DRIVE KIT
FASTENER REAR AXLE – TRANSMISSON
PROPELLER AXLE WITH SPACER
SPACER
CENTRAL FRAME 540 1000 RPM
CENTRAL FRAME
FILLER NOZZLE – ASSEMBLY
FASTENERS
DIFFERENTIAL LOCK
FASTENER REAR AXLE – TRANSMISSON TRAILER HITCH
CENTRAL FRAME WITHOUT TDP
PINION AND DIFERENTIAL
KIT GEAR AND PINION 9 35 D
DIFFERENTIAL – MOUNTING
FLANGE AND PINION
CENTRAL FRAME PTO 540 RPM
PTO SHAFT
CENTRAL FRAME IPTO 540 RPM
CENTRAL FRAME IPTO 540 1000 RPM
POWER TAKE OFF COVER
LEVER ASSEMBLY
COVER
INTERMEDIATE SHAFT TDP
SHAFT
COUVER FIXATION
OUTER FINAL DRIVE GEAR
MASTER CYLINDER
BRAKE
BRAKE DRIVE
REAR FINAL DRIVE
FLANGE AND PINION – 2 WHEELS DRIVE
FRONT AXLE
FRONT AXLE CARRARO – 20.21
FRONT AXLE CARRARO – 20.21 – STRAW SPREADER HOUSING
FRONT AXLE CARRARO – 20.21 – FLANGE
FRONT AXLE CARRARO – 20.21 – DIFFERENTIAL – CARRARO
FRONT AXLE CARRARO – 20.21 – CROSSHEAD
DIFERENTIAL KIT
DRIVE TRAIN SYSTEM
SINGLE CLUTCH
SINGLE CLUTH WITH SPRING 13
DUAL CLUTCH
CLUTCH SPLIT TORQUE
CLUTCH SPLIT TORQUE 13
SINGLE CLUTH WITH SPRING 13
CLUTCH SPLIT TORQUE 13
LEVER 12 SPEED
LEVER
RANGE AND SPEED GEAR LEVERS – MOUNTING
SHIFT LEVERS
DRIVE ASSEMBLY
DRIVE KIT SIDE PLUG
TRANSMISSION
BEARING
12 SPEED TRANSMISSION – SYNCRO HOUSING
TRANSMISSION HOUSING
TRANSMISSION CASE
12 SPEED TRANSMISSION – SYNCRO SHAFTS and FORKS
12 SPEED TRANSMISSION – SYNCRO INPUT SHAFT
INLET SHAFT – Z15
12 SPEED TRANSMISSION – SYNCRO MAIN SHAFT
SYNCROMESH
12 SPEED TRANSMISSION – SYNCRO SECONDARY SHAFT
BEARING COVER – TRANSMISSION
SYNCHRO – 2Â° 3Â°
12 SPEED TRANSMISSION – SYNCRO EPICYCLIC UNIT
INLET SHAFT – Z20
TRANSMISSION ARRANGEMENT – 12 X 4 SPEED TRANSMISSION
12 SPEED TRANSMISSION – SYNCRO HOUSING – EATON
12 SPEED TRANSMISSION – SYNCRO SHAFTS and FORKS – EATON
12 SPEED TRANSMISSION – SYNCRO INPUT SHAFT – EATON
12 SPEED TRANSMISSION – SYNCRO MAIN SHAFT – EATON
12 SPEED TRANSMISSION – SYNCRO SECONDARY SHAFT – EATON
12 SPEED TRANSMISSION – SYNCRO EPICYCLIC UNIT – EATON
SATELITE HOLDER
12 SPEED TRANSMISSION – SYNCRO HOUSING – TAFE
12 SPEED TRANSMISSION – SYNCRO SHAFTS and FORKS – TAFE
12 SPEED TRANSMISSION – SYNCRO EPICYCLIC UNIT – TAFE
12 SPEED TRANSMISSION – SYNCRO INPUT SHAFT – TAFE
12 SPEED TRANSMISSION – SYNCRO MAIN SHAFT – TAFE
12 SPEED TRANSMISSION – SYNCRO SECONDARY SHAFT – TAFE
12 SPEED TRANSMISSION HOUSING
12 SPEED TRANSMISSION SHAFTS and FORKS
12 SPEED TRANSMISSION INPUT SHAFT
12 SPEED TRANSMISSION MAIN SHAFT
12 SPEED TRANSMISSION SECUNDARY SHAFT
12 SPEED TRANSMISSION EPICYCLIC UNIT
HYDRAULIC SYSTEM
HYDRAULIC COVER
SPRING ASSY – CONTROL
DRAFT BRAKET
ASSY. ARTICULATOR – DEPTH CONTROL LEVER
HYDRAULIC CYLINDER LIFT – MOUNTING
HYDRAULIC CYLINDER LIFT
CONTROL LEVIER
ROD
CONSOLE
HYDRAULIC COVER – ASSEMBLY
CONTROL LEVER – HYDRAULIC ARMS
HYDRAULIC CYLINDER
COVER WITHOUT LIFT
HYDRAULIC COVER – CAP INSTALLATION
COMBINED FLOW VALVE
HYDRAULIC PUMP WITH LIFT – WITHOUT IPTO
HYDRAULIC PUMP COLLECTOR AND GLOVE
HYDRAULIC PUMP – PARTIAL
BODY
HYDRAULIC LIFT PUMP STRAINER UNIT
HYDRAULIC PUMP OSCILLATOR VALVE
HYDRAULIC PUMP ASSEMBLY – WITHOUT CREEPER
HYDRAULIC PUMP
HYDRAULIC PUMP ASSEMBLY – MOUNTING
HYDROSTATIC STEERING 4 WHEELS DRIVE
FILTER
HYDRAULIC OIL FILTER – PARKER
HYDRAULIC OIL FILTER – DONALDSON
HYDRAULIC STEERING
PROTECTION OF THE HOSE
HYDRAULIC BRAKES
AUXILIAR HYDRAULIC CYLINDER
AUXILIARY CYLINDER LEFT HAND
AUXILIARY CYLINDER RIGHT HAND
HYDRAULIC CYLINDER RIGHT HAND
HYDRAULIC CYLINDER LEFT HAND
REMOTE CONTROL
CONTROL VALVES 3 BODY – KOF + KOF + SRN
HYDRAULIC COMMAND
KIT 2 VALVES
REMOTE CONTROL 2 VALVES
HYDRAULIC COMMAND VALVES
HYDRAULIC COMMAND 2 ELEMENTS – VARIABLE FLOW
HYDRAULIC COMMAND 2 ELEMENTS – KICKOUT FLOAT KOF+KOF
REMOTE CONTROL 1 VALVE
CONTROL VALVES 1 BODDY – KICKOUT
CONTROL VALVES 1 BODDY – SPRING RETURN SRN
REMOT CONTROL LEVER 2 BODYS
REMOT CONTROL LEVER 1 BODY
RC LEVER ASSY – 2 VALVES WITH CAB
REMOTE CONTROL LEVER
HYDRAULIC COMMAND 2 ELEMENTS – DUAL SPRING RETURN SRN+SRN
PIPE SUPPORT
REMOTE CONTROL
HYDRAULIC COMMAND VALVES
CONTROL VALVES 3 BODY – KOandF – SRN – M.HDY
CONTROL LEVERS
ELECTRICAL SYSTEM
BATTERY
INSTRUMENT PANEL
ELECTRIC SYSTEM
FRONT HARNESS
HARNESS FUSE BOX
ELECTRIC SYSTEM CAB
HEADLAMP
STARTING HEATER
HORN ASSY
CONTROL PANEL
LAMP
LIGHTING REAR
LIGHTING SYSTEM
LIGHT NUMBER PLATE
LIGHTING
FITTING ITEMS
CAB
AIR CONDITIONER ENGINE
CAB BRACKET – INSTALLATION
SUPPORT
DRAIN – AIR CONDITIONED
CONTAINER
TOP COVERING ASSEMBLY
CLADDING
MIRROR
CAB AIR CONDITIONER
CAB ASSY
FENDER
EXTERNAL REAR-VIEW MIRROR
REAR WINDOW AND GLASS OF THE CAB
CAB COVERING
PANE
CAB DOOR
WINDSCREEN WIPER
RAISED CAB AND AIR CONDITIONING
KIT GRILLE – AIR
AIR CONDITIONER
CAB ROOF
RADIO
TOOLS BOX
STOPPING
ROOF
PANEL
PANEL – CONTROLLER
AIR CONDITIONING OPTIONAL EQUIPMENT
EVAPORATOR
SUN-SHIELD ASSY
CAB ELETRIC ASSEMBLY
HARNESS – CAB
HYDRAULIC BRAKE
MASTER
THROTTLE CONTROLS
HAND THROTTLE
SEAT
STEERING FRAME
LADDER
CLADDING
MATTING
PLATFORM
THROTTLE
FOOTSTEP
FOOTSTEPS
CANOPY
WARNING LIGHT
SAFETY FRAME
SUPPORT MUDGUARD
CHASSIS
SHEET METAL
REAR MUDGUARD
EXTENSION
REAR MUDGUARD EXTENSION
FRONT MUDGUARDS
VELOCITY SCALE 12 SPEED
DECAL SPANISH
DECALS
EMBLEMS
DEFLECTOR
HEADLIGHT AUXILIARY
WHEELS
FRONT WHEELS
FRONT WHEELS 290 95 R34
WHEEL AND TYRE
FRONT WHEELS 12.4X24 R1
FRONT WHEELS 14.9-28 8L
FRONT WHEELS 4 WHEEL DRIVE
FRONT WHEEL 14.9-28 R2 8L
FRONT WHEELS 14.9-24
FRONT WHEELS 14.9-28 R1 8L
FRONT WHEEL W12X28
FRONT WHEEL W10 X 24
REAR WHEEL WEIGHTS 3 + 3 X 88 KG
REAR WHEELS
REAR WHEELS 18.4 X 34 R1
REAR WHEELS 18.4 X 38 R1
WHEEL ASSY 320 90 R50 – RIGHT SIDE
WHEEL ASSY 320 90 R50 – LEFT SIDE
REAR WHEEL WEIGHTS – 2 84KG + 2 52KG
REAR WHEEL WEIGHTS – 2 84KG + 4 52KG
REAR WHEEL WEIGHTS 1 + 1 X 72 KG
REAR WHEEL WEIGHTS 2 + 2 X 72 KG
FRONT WHEIGHT
REAR WHEELS 320 90 R 50
IMPLEMENT DRIVE SYSTEM
INDEPENDENT POWER TAKE OFF
INDEPENDENT POWER TAKE OFF COVER
COVER AND CONTROLS
DRIVE LEVER OF THE IPTO
INDEPENDENT POWER TAKE-OFF CLUTCH
DRIVE KIT TDPI
PTO-COUPLING DRIVE MECHANISM
PTO SHAFT – PTO 540 1000
PROTECTOR IPTO PTO
DRAWBAR OSCILLATING 4WD
DRAWBAR AND HITCH
DRAWBAR OSCILLATING 2WD
TELESCOPIC STABILISER
LINKAGE
LIFT ARMS
HYDRAULIC ARMS WITH TELESCOPIC STABILISER HD
LEVELLING ARM
ARM REST
HYDRAULIC ARMS
TELESCOPIC STABILISER – AUXILIARY CYLINDER
MASTER BEAM AND DRAWBAR
MASTER BEAN
COUPLER
ACCESSORIES
TDP KIT 540 RPM
TDP KIT 540 1000 RPM
KIT LIFT HYDRAULIC SYSTEM
TOOLS
GREASER
WARNING TRIANGLE
HEARING PROTECTOR
KIT ARM REINFORCEMENT
