Name: Massey Ferguson MF 506 L M Planter Fertilizer Parts Catalog C050601
SKU: 462773
Availability: InStock

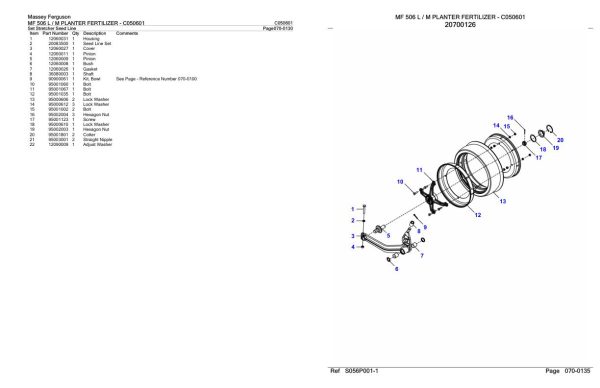

Massey Ferguson MF 506 L M Planter Fertilizer Parts Catalog C050601 1

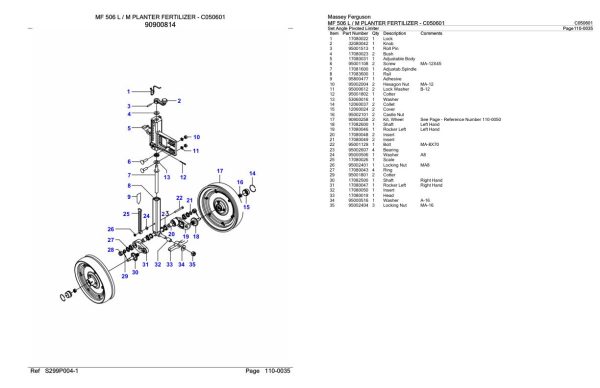

Massey Ferguson MF 506 L M Planter Fertilizer Parts Catalog C050601 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson MF 506 L M Planter Fertilizer Parts Catalog C050601

Size: 19.23 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Seeding Planter

Type of Manual: Spare Parts Manual

Model: MF 506 L M Planter Fertilizer

Part Number: C050601

Number of Pages: 328 Pages

10 USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
Header
Header Set
Header Hitch Set
Chassis Assy.
Chassis Assy. – L
Chassis Assy. – M
Pre Set Ladder
Set Ladder
Set Support Stand
Set Side Protector
Set Body Guard
Wheels
Set Wheels
Set Wheels Right W Transmission
Left Wheeled Assy.
Set Hub
Set Tire With Whell
Set Line Diverter
Set Stretcher Roller
Fertilizer Tank
Set Fertilizer Spreader
Set Six Compartment Fertilizer Box
Fertilizer Distributor
Set Fertilizer Distribution Bushing
Set Transmission
Set Right Fertisytem Dosing
Fertilizer Line
Set Smaller Upper Cutting Disc
Set Larger Upper Cutting Disc
Set Cutting Disk – Smaller – Upper
Set Cutting Disk – Larger – Upper
Set Fork Flat Cutting Disc 18
Set Fork Cutting Disk
Set Cutting Disk Hub
Set Left Furrower
Set Right Furrower
Set Furrower
Set Larger Right Furrower
Set Larger Left Furrower
Set Disarm Arm Furrower Large
Rigth Dual Disk 15 Pol
Left Dual Disk 15 Pol
Set Dual Disk
Set Right Dual Disk
Set Left Dual Disk
Set Left Pvt Turbo Disk
Set Right Pvt Turbo Disk
Set Ptg Turbo Disk
Set Turbo Disk Hub
Set Left Limiter Arm
Set Right Limiter Arm
Set Limiter Wheel Hub
Set Wheel
Greaser
Seed Line
Set Pvt Seed Short Line
Set Pvt Seed Long Line
Set Short Seed Line Side Limiting
Set Long Seed Line Side Limiting
Set Seed Line
Set Ptg Line
Short Line Assembly – From Serial or Engine Number DI000097
Long Line Assembly – From Serial or Engine Number DI000097
Set Seed Distribution
Set Larger Seed Box
Set Seed Line – From Serial or Engine Number DI000097
Long Line Assembly
Bearing
Set Reservoir Fixing Clamp
Set Dual Disk 15 Pol
Pre Set Coupling Base With Crown And Pinion
Clip Set
Pre Conjunto Caixa E Tampa
Set Right Dual Disk Hub
Set Left Dual Disk Hub
Pre Set Seed Line Coupling Base
Pre Set Short Seed Line
Set Stretcher Seed Line
Set Left Limiting Wheels
Set Right Limiting Wheels
Set Aligned Dual Disk Support 16 Pol
Set Large Compactor
Set Pneumatic Limiting Hub
Set Aligned Dual Disk Support
Set Handle Regulatory
Set Compactor Wheel
Set Rail Cleaner Hub
Pre Set Side Long Line
Rear Structure Set
Set Lower Articulator
Set Top Articulator
M Line Structure Set
Structure Transmission Shaft Set – Right Side
Set Line Stretched Pantograph
Set Base Acoplad
Bearing – 2 Bolts
Bearing With Flanged Bush
Set Limiter Line Side
Set Line Transmission
Transmission
Set Transmission Pvtl
Set Pantograph Transmission
Set Pantographic Seed Axle
Set Front Axle Manure Mec Pant
Rear Shaft Set
Set Twist Cast Stretcher
Set Right Ratchet
Set Bearing With Flange
Set Seed Shaft
Front Shaft Set
Pre Set Seed Bushing
Set 6 Gear
Pre Set 3 Gear Set
Set Roller
Pre Conjunto Rolamento Com Flange 3 Furos
Pre Set Stretcher
Set Mecanical Transmission Pantograph
Set Internal Stretcher
Hydraulic system
Set Hydraulic System
Set Thin Cylinder Wedge
Thick Cylinder Wedge Set
Set Smaller Cylinder Wedge
Set Hydraulic Hoses
Line Marker
Set Marker Lines
Set Marker Disk
Dependent Hydraulic Marker Set
Hydraulic Marker Hub Set
Limiters – Compact
Set Compactor
Set Flat Adjustable Compactor
Set Flat Fixed Limiter
V Fixed Limiter Set
Set Flat Pivoted Limiter
Set Angle Pivoted Limiter
Set Flat Compacting Wheel
Set Limiting Wheels
Set Right Limiting Wheel
Optional
Pvt Rail Cleaner Set
Ptg Rail Cleaner Set
Set Rose Gear Rail Cleaner
Set Limiter Line Side – From Serial or Engine Number DI000097
Arm – From Serial or Engine Number DI000097
Regulator Kit – From Serial or Engine Number DI000097
Set Wheels – From Serial or Engine Number DI000097
Set Compactor – From Serial or Engine Number DI000097
Cover Grove – From Serial or Engine Number DI000097
Set Rose Gear Rail Cleaner – From Serial or Engine Number DI000097

Massey Ferguson MF 506 L M Planter Fertilizer Parts Catalog C050601

Massey Ferguson MF 506 L M Planter Fertilizer Parts Catalog C050601
