Name: Massey Ferguson MF 510 515 Combine FR Parts Catalog 957387
SKU: 462778
Availability: InStock

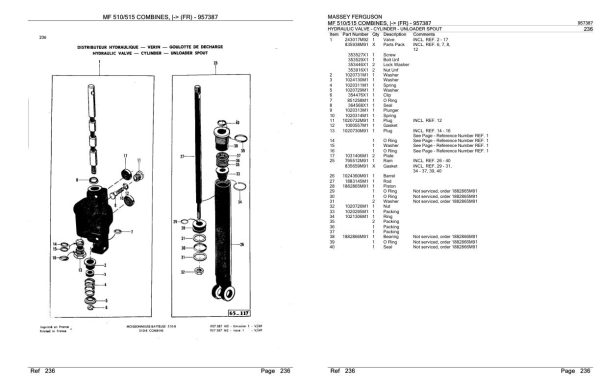

Massey Ferguson MF 510 515 Combine FR Parts Catalog 957387 1

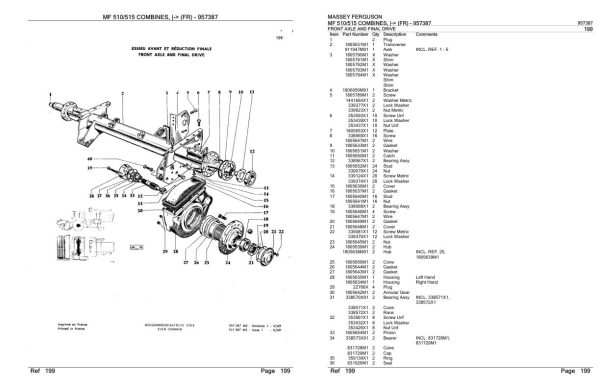

Massey Ferguson MF 510 515 Combine FR Parts Catalog 957387 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson MF 510 515 Combine FR Parts Catalog 957387

Size: 7.64 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Harvesting Combines – Conventional

Type of Manual: Spare Parts Manual

Model: MF 510 515 Combine FR

Part Number: 957387

Number of Pages: 243 Pages

10 USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
KNIFE AND DRIVE ARRANGEMENT
DRIVE ARRANGEMENT
REAR SHAFT – VARIATOR – REAR SHAFT – VARIATOR
VARIATOR MOVING BACK TO ZERO – VARIATOR
REEL ARM
PICK UP REEL
TABLE AUGER SHAFT DRIVE
TABLE AUGER
TABLES
GUARD ASSEMBLIES TABLE
GUARD REAR SHAFT
DIVIDERS
FLOATING EXTENSION
TABLE WITH AUTOMATIC HEIGHT CONTROL
TABLE ELEVATOR HOUSING
ELEVATOR TO CYLINDER – TOP SHAFT
ELEVATOR TO CYLINDER – LOWER SHAFT
ANTIWIND KIT
TABLE THROW OUT CLUTCH
CYLINDER HOUSING
CLUTCH AND COUNTER – SHAFT
LUBRICATING ASSY
CYLINDER DRIVE AND CONTROL
CYLINDER DRIVE GEARBOX
CYLINDER
CONCAVE FIXED RODS AND DRUM DEFLECTOR
CONCAVE ASSEMBLY REMOVABLE RODS
CONCAVE CONTROL
GRAIN PAN
SHAKER SHOE
CLEANING FAN
SCREEN KIT CLEANING FAN
AUGERS GRAIN AND RETURN
RETURN ELEVATOR
STRAW WALKERS AND GRAIN PANS
FRAME – FRONT AXLE AND WHEELS
REAR HOOD
GRAIN ELEVATOR
GRAIN TANK
UNLOADER DRIVE AND CONTROLS
UNLOADING AUGERS
UNLOADING AUGERS EXTENSION
COOLING AIR INTAKE
RADIATOR AND FAN
FUEL TANK AND TUBES
MANIFOLDS AND AIR FILTER
AIR FILTER AND PRE-FILTER ITALY
ELECTRIC WIRING AND BATTERY
ENGINE POWER OUT PUT SHAFT – DIESEL
VARIABLE SPEED PULLEYS
TRACTION CLUTCH
GEAR SHIFT LEVERS
GEAR BOX AND DIFFERENTIAL
FINAL DRIVE
BRAKES
BRAKE FLUID CONTAINER
BRAKE CYLINDER
BRAKE PEDALS
OPERATOR’S PLATFORM
SEAT
CONTROL BOX
CONTROL BOX FOR AUTOMATIC TABLE HEIGHT CONTROL
INSTRUMENT PANEL
WIRING ALARM – FUEL PUMP AND GAUGE
STEERING GEAR
POWER STEERING LINKAGE
FRONT AXLE AND FINAL DRIVE
REAR AXLE AND WHEELS
PUMP BRACKET – PULLEY
HYDRAULIC PUMP
FOUR SPOOL UNI – BODY VALVE
HYDRAULIC OIL TANK AND VALVE
HYDRAULIC – TABLE VARIATOR STEERING
HYDRAULIC – POWER STEERING
HYDRAULIC TO TABLE
HYDRAULIC ON TABLE
HYDRAULIC – SPOUT UNLOADER
HYDRAULIC VALVE – CYLINDER – UNLOADER SPOUT
RAMS – TABLE LIFT
HYDRAULIC ACCUMULATORS
RAMS
LIGHTING EQUIPMENT
LIGHTING EQUIPMENT EXPORT
LIGHTING EQUIPMENT – CORN HEAD 33 43
BELTS
CHAINS
CONVEYORS
TRANSFER AND PLATES
STRAW SPREADER
AUGER AND SLIP CLUTCH – CASCADE SEPARATOR
CYLINDER AND DRIVES – CASCADE SEPARATOR
GRAIN ELEVATOR – CASCADE SEPARATION
MISCELLANEOUS TOOLS
