Name: Massey Ferguson MF 520 525 Combine Parts Catalog 1646022
SKU: 462783
Availability: InStock

Massey Ferguson MF 520 525 Combine Parts Catalog 1646022 1

Massey Ferguson MF 520 525 Combine Parts Catalog 1646022 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson MF 520 525 Combine Parts Catalog 1646022

Size: 9.58 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Harvesting Combines – Conventional

Type of Manual: Spare Parts Manual

Model: MF 520 525 Combine

Part Number: 1646022

Number of Pages: 334 Pages

10 USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
KNIFE – 10′ 12′ 14′
DRIVE ARRANGEMENT
KNIFE DRIVE HOUSING – 797248M91
REAR SHAFT – VARIATOR – 3 M – 10′ 3 20 M – 12′ 4 20 M – 14′
REEL LIFT ARMS AND PULLEY
PICK UP REEL – 3 M – 10′ 3 60 M – 12′ 4 20 M – 14′
DRIVES SHAFT AND AUGER DRIVE – 3 M – 10′ 3 60 M – 12′ 4 20 M – 14′
TABLE AUGER – 3 M – 10′ 3 60 M – 12′ 4 20 M – 14′
TABLE – 10′ 12′ 14′
TABLE GUARDS
GUARD REAR SHAFT – 3 M – 10′ 3 60 M – 12′ 4 20 M – 14′
FLOATING EXTENSION
DIVIDERS
STIFF DIVIDER
SENSING FINGERS – 10′ 12′ 14′
LONG CUT – 12′ AND 14′ TABLES
TABLE ELEVATOR
TABLE ELEVATOR – TOP SHAFT
ELEVATOR TO CYLINDER – DRUM
TABLE THROW OUT CLUTCH
CYLINDER HOUSING
COUNTER SHAFT AND CLUTCH
LUBRICATING ASSY
SEPARATOR CLUTCH
CYLINDER DRIVE ARRANGEMENT
CYLINDER ARRANGEMENT
HIGH INERTIA CYLINDER
CONCAVE REAR BEATER STONE TRAP
CONCAVE ADJUSTMENT
GRAIN PAN ARRANGEMENT
SHAKER SHOE
SHAKER SHOE – 3 GRILLES
TRIPLE SHAKER SHOE
SHAKER SHOE – 4 SCREENS
CLEANING FAN
AUGERS GRAIN AND RETURN
RETURNS ELEVATOR
STRAW WALKERS PANS AND DRIVE ARRANGEMENT
STRAW WALKER BODY
REAR HOOD
GRAIN ELEVATOR
DISTRIBUTION DRIVE
GRAIN TANK
GRAIN TANK EXTENSION
GRAIN TANK UNLOADER DRIVE
GRAIN TANK UNLOADER PIPE
ENGINE COVER ARRANGEMENT
RADIATOR AIR INTAKE ARRANGEMENT
RADIATOR AND FAN
FUEL TANK ARRANGEMENT
ENGINE – EXHAUST SYSTEM
AIR INTAKE
AIR INTAKE – 15399-15999
ELECTRICAL EQUIPMENT
ALTERNATOR
STARTER
ENGINE POWER OUTPUT SHAFT
VARIABLE SPEED PULLEYS
RAM
TRACTION CLUTCH
GEAR SHIFT
GEAR BOX
TRACTION GEAR BOX

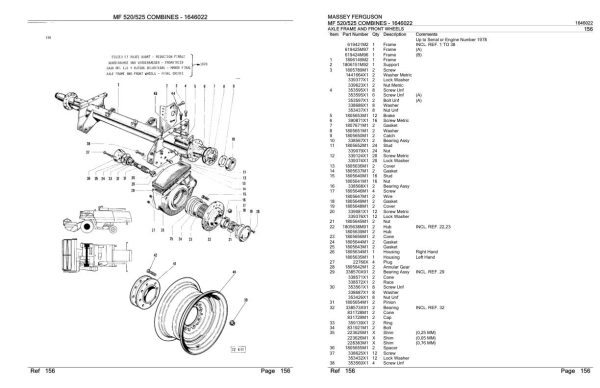

AXLE FRAME AND FRONT WHEELS
AXLE FRAME
FINAL DRIVE
BRAKES
BRAKES CONTROL
BRAKING CONTROL – CYLINDER DRIVE BOX
VALVES – 786145M91
BRAKE FLUID CONTAINER
PARKING LATCH
HAND BRAKE – GERMANY
OPERATORS PLATFORM
SEAT BRACKET
OPERATORS SEAT
SEAT HOLDER
OPERATORS SEAT – GERMANY
SEAT – GERMANY
CONTROL BOX
AUTOMATIC TABLE HEIGHT CONTROL
WARNING SYSTEM
WIRING ALARM – GERMANY
STEERING
HYDROSTATIC STEERING
HYDROSTATIC STEERING PUMP
SAFETY BLOCK
REAR AXLE AND WHEELS
RAM – 1748044M92
RAM – 1748177M91
HYDRAULIC PUMP
HYDRAULIC PUMP – 619601M91
TANK AND CONTROL VALVE
VALVES – 1806973M91
VALVES – 1630992M92
VALVES – 1807035M91
VALVE
HYDRAULIC TANK – 619633M1
HYDRAULIC TANK – 1615145M91

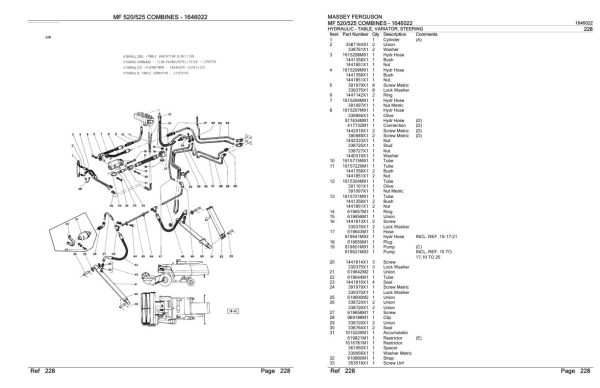

HYDRAULIC – TABLE VARIATOR STEERING
RAM – 1748103M92
RAM – 1748104M92
HYDRAULIC TO TABLE
VALVES – 619663M1
TABLE HYDRAULICS – 3 M – 10′
RAM – 1748382M91
RAM – 1748381M91
RAM – 1748119M92
HYDRAULIC – SPOUT UNLOADER
RAM – 619662M1
RAM – 1748185M91
CHAINS AND BELTS
CHAINS
TRANSFERS-FRENCH – IN FRENCH
WEIGHT FRAME – MAIZE
AUGER AND SLIP CLUTCH – MULTI-FLOW
CYLINDER DRIVE – MULTI-FLOW
GRAIN ELEVATOR – MULTI-FLOW
GUARDS-TRANSMISSION – MULTI-FLOW
LIGHTING
HEAD LAMPS AND TAIL LAMPS
INSTRUMENT PANEL
TOOL OUTFIT
