Name: Massey Ferguson MF 530 535 Combine Parts Catalog 1637078
SKU: 462788
Availability: InStock

Massey Ferguson MF 530 535 Combine Parts Catalog 1637078 1

Massey Ferguson MF 530 535 Combine Parts Catalog 1637078 2

✓

Expert Support

✓

Full Speed

✓

100% Working

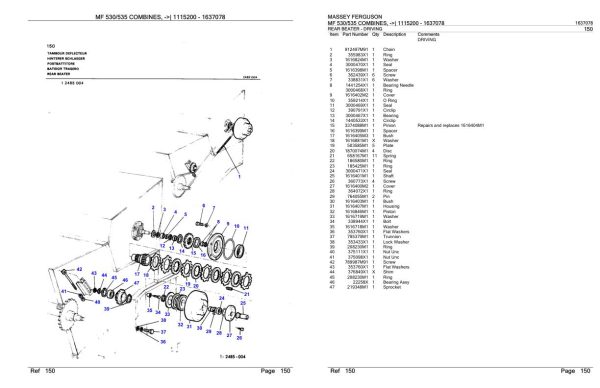

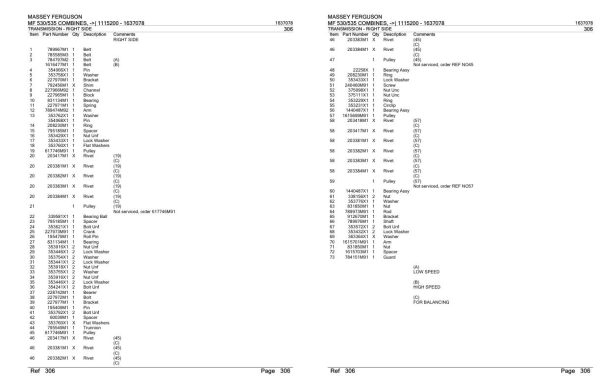

Massey Ferguson MF 530 535 Combine Parts Catalog 1637078

Size: 17.18 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Harvesting Combines – Conventional

Type of Manual: Spare Parts Manual

Model: MF 530 535 Combine

Part Number: 1637078

Number of Pages: 473 Pages

10 USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
ENGINE AND ACCESSORIES
CYLINDER BLOCK
CRANKSHAFT
CYLINDER HEAD
CYLINDER HEAD COVER
ROCKER ARM
AIR INDUCTION
TIMING GEAR
LUBRICATING OIL SYSTEM
LUBRICATING OIL FILTER
WATER PUMP
FUEL PIPINGS
FUEL OIL LIFT PUMP
FUEL FILTER
FUEL INJECTION EQUIPMENT
AUXILIARY DRIVE
JOINTS AND GASKETS
ALTERNATOR POSITIONER
ALTERNATOR-LUCAS
STARTER-LUCAS
ELECTRICAL EQUIPMENT
RADIATOR
RADIATOR – TUBE
ROTATING AIR INTAKE
ROTATING AIR INTAKE – LOWER HOUSING
ROTATING AIR INTAKE – DRIVING
FUEL TANK AND ATTACHMENTS
FUEL TANK AND ATTACHMENTS – TUBE
FUEL TANK AND ATTACHMENTS – COWL
AIR FILTER
AIR FILTER – DETAIL
AIR PRE FILTER
EXHAUST SYSTEM
ENGINE FRAME
MOTOR COVER
KNIFE
WOBBLE DRIVE
TABLE DRIVE
REEL
REEL – DRIVING SHAFTS
REEL CARRIER
AUGER
TABLE
TABLE – 12′-14′
DIVIDER – SLOPING
DIVIDER – TALL CROP
DIVIDER – HARPOON
ATHC – MECHANICAL
ATHC
SENSING FINGERS
CLUTCH – TABLE
ELEVATOR
ELEVATOR – UPPER SHAFT
ELEVATOR – DRUM
ELEVATOR – CHAIN
CYLINDER HOUSING – LEFT SIDE
CYLINDER HOUSING – RIGHT SIDE
CYLINDER HOUSING – DOOR-COVER
SEPARATOR CLUTCH – CONTROLS
SEPARATOR CLUTCH
REAR BEATER – DRIVING
REAR BEATER
CYLINDER
CYLINDER – DRIVE GEAR BOX
CYLINDER – DRIVE
CONCAVE
CONTROL LINKAGE
CONTROL LINKAGE – REAR
STONE STRAP
SMALL SEED KIT
HOOD – BELT-SIGNAL
HOOD – MULTI-FLOW
GRAIN ELEVATOR
GRAIN ELEVATOR – LOWER COMPONENT
CASCADE SEPARATOR – COWL
CASCADE SEPARATOR
SHAKER SHOE – DOUBLE SHOE
SHAKER SHOE – TRIPLE SHOE
PAN – DRIVE
PAN
SCREEN – DOUBLE SHOE
SCREEN – TRIPLE SHOE
FANNING HILL
FANNING HILL – COWL
STRAW WALKER – UPPER DRIVE
STRAW WALKER – LOWER DRIVE
STRAW WALKER
STRAW WALKER – DIVIDER
STRAW WALKER BODY – EXTERNAL COMPONENTS
STRAW WALKER BODY – INTERNAL COMPONENTS
GLEANINGS ELEVATOR – UPPER COMPONENTS
GLEANINGS ELEVATOR – LOWER COMPONENT
GLEANINGS ELEVATOR – SLINGER HOUSING
RETURN ELEVATOR ALARM ARRANGEMENT
ALARM
MAIN FRAME – REINFORCEMENT
MAIN FRAME – DOOR
HOOD
GRAIN TANK – LEFT COMPONENT
GRAIN TANK – RIGHT COMPONENT
GRAIN TANK – LOWER COMPONENT
GRAIN TANK – LOWER AUGER
AUGER AND PITMAN CRANK
GRAIN TANK – EXTENSION
GRAIN TANK – CHAINS
GRAIN ELEVATOR – UPPER COMPONENTS
GRAIN ELEVATOR – CHAINS
UNLOADER DRIVE AND CONTROLS
AUGER LOWER – UPPER COMPONENTS
AUGER LOWER – LOWER COMPONENT
AUGER LOWER – EXTENSION
TANK FILLING CONTROL
FLYWHEEL
TRANSMISSION – RIGHT SIDE
TRANSMISSION – LEFT SIDE
COUNTER SHAFT AND CLUTCH
COUNTER SHAFT AND CLUTCH – LUBRICATION
SECONDARY COUNTERSHAFT
TRACTION DRIVE – VARIATOR
TRACTION CLUTCH
TRACTION CLUTCH – CONTROLS
FRONT AXLE FINAL DRIVE-4 WHEEL DRIVE
TRANSMISSION GEAR BOX
TRANSMISSION GEAR BOX – DRIVE
FRONT AXLE
GEARBOX PARKING BRAKE
BRAKES OPERATING – KNIFE DRIVE HOUSING
BRAKES OPERATING – PARKING
HYDRAULIC BRAKE CONTROL-CYLINDER
BRAKES OPERATING – PEDAL
DRUM BRAKE
OPERATORS PLATFORM
OPERATORS PLATFORM – RAIL-LADDER
SEAT-SABLE
SPRING SUPPORT
CONTROL PANEL – HOUSING
CONTROL PANEL – GUARD LOWER
CONTROL PANEL – SOUND INSULATION
CONTROL PANEL – LEVER
CONTROL PANEL – LEVER-WITH AUTOMATIC TABLE HEIGT CONTROLS
CONTROL PANEL – CABLE
INSTRUMENTS – SUPPORT
INSTRUMENTS – INSTRUMENTS-SWITCH
INSTRUMENTS – JUNCTION
CAB – FRONT
CAB – REAR
CAB – RIGHT HAND
CAB – LEFT HAND
CAB – LATCH LADDER
CAB – LATCH RAMP- GERMANY
CAB – MISCELLANEOUS
CAB – FLOOR
CAB – WIRING
AIR CONDITIONNER-COMPRESSOR – KYSOR
AIR CONDITIONNER-COMPRESSOR – BRACKET AND ASSEMBLING- KYSOR
AIR CONDITIONNER-CONDENSOR – KYSOR
AIR CONDITIONNER-CONDENSOR – BRACKET
AIR CONDITIONNER-EVAPORATOR – KYSOR
STEERING COLUMN
STEERING COLUMN – HOUSING
STEERING COLUMN – ADJUSTING
STEERING PUMP
SAFETY BLOCK
REAR AXLE
WHEELS
HYDRAULIC CIRCUIT
REEL HYDROSTATIC DRIVE
HYDRAULIC MOTOR
REEL – HYDRAULIC
REEL LIFT HYDRAULICS
REEL HYDRAULIC PUMP AND TANK
RAM FOR REEL LIFT – LEFT
RAM FOR REEL LIFT – RIGHT
RAM FOR REEL FORE AND AFT ARRANGEMENT – LEFT HAND
RAM FOR REEL FORE AND AFT ARRANGEMENT – LEFT
HYDRAULIC CIRCUIT – CONTAINER-PUMP-VALUE
HYDRAULIC CIRCUIT – REEL
HYDRAULIC CIRCUIT – STEERING
HYDRAULIC CIRCUIT – TRACTION
HYDRAULIC CIRCUIT – REAR BEATER CLUTCH
HYDRAULIC UNLOADER ARRANGEMENT
UNLOADER SPOUT ARRANGEMENTS
HYDRAULIC PUMP
CONTROL VALVE
RAM FOR TRACTION
RAM FOR STEERING
RAM FOR TABLE LIFT – RIGHT
RAM FOR TABLE LIFT – LEFT
CHAINS
BELT DETAILS
LIGHTING – FRONT
LIGHTING – REAR
LIGHTING – HAPPER SPOTLIGHT
LIGHTING – ROTAING LIGHT-HELLA
LIGHTING – ROTATING LIGHT-S.E.V
LIGHTING – WORKING LIGHT
MISCELLANEOUS
TRANSFER FOR TABLE
TRANSFERS
GUARDS-FAN – TABLE
WEIGHT FRAME AND WEIGHTS – WEIGHT
ELEVATOR – RICE MACHINES .COWL. FUEL TANK
CYLINDER – RICE MACHINES- CONIC TEETH
CONCAVE – RICE MACHINES .COWL. FUEL TANK
REAR AXLE – RICE MACHINES .COWL. FUEL TANK
TRACK CHAIN – FINAL DRIVE
UNDERCARRIAGE
TRACK CHAIN – GUARDS
WHEELS – RICE MACHINES .COWL. FUEL TANK
