Name: Massey Ferguson MF 9130 Plus Sprayer Parts Catalog C913001
SKU: 462961
Price: 30.00 USD
Availability: InStock

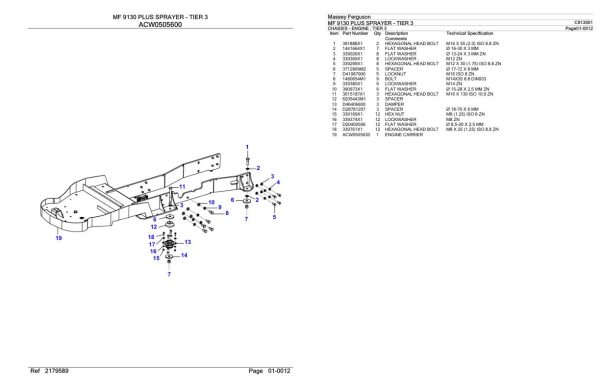

Massey Ferguson MF 9130 Plus Sprayer Parts Catalog C913001 1

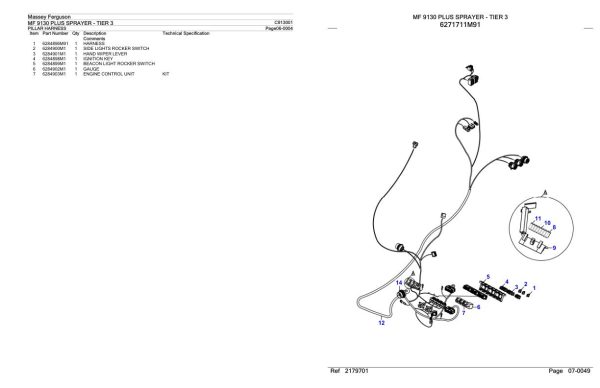

Massey Ferguson MF 9130 Plus Sprayer Parts Catalog C913001 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson MF 9130 Plus Sprayer Parts Catalog C913001

Size: 84.48 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Applicators Sprayer

Type of Manual: Spare Parts Manual

Model: MF 9130 Plus Sprayer

Part Number: C913001

Number of Pages: 1662 Pages

30$ USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
ENGINE FUEL AND EXHAUST SYSTEM
TIER3 ENGINE
ENGINE INSTALLATION – ENGINE TIER 3
ALTERNATOR – 200 A
STARTER MOTOR – 12V 4.2KW
INSTALLATION – PACKER
COUPLING FLEX
COOLING SYSTEM – TIER3 ENGINE
INSTALLATION – FUEL SYSTEM
FUEL TANK – 360 L
INSTALLATION – AIR FILTER
AIR CLEANER
CHASSIS – ENGINE TIER 3
ELECTRIC SYSTEM ENGINE
INSTALLATION – EXHAUST
CLAMP
PRE-FUEL FILTER
FUEL FILTERS
ELECTRONIC ENGINE MANAGEMENT
ENGINE V834870534 66 CW3
ENGINE ASSEMBLIES
CYLINDER BLOCK
TIMING GEARS AND HOUSING
FLYWHEEL AND HOUSING
CRANKSHAFT AND PISTONS
CAMSHAFT AND VALVE MECHANISM
CYLINDER HEAD
VALVE ROCKER COVER
INTAKE MANIFOLD
TURBOCHARGER AND EXHAUST MANIFOLD
OIL PUMP AND SUMP
OIL COOLER AND FILTER
COOLANT PUMP AND THERMOSTAT
FUEL INJECTION SYSTEM
BELT TENSIONER
ENGINE OVERHAUL PARTS
SPECIAL OVERHAUL PARTS
AXLES
FRONT AXLE
ROD
BAR ASSEMBLY – FIXED
BAR ASSEMBLY – ADJUSTABLE
REAR AXLE GROUP
SWAY-BAR
INST. GROUND CLEARENCE OF 1.5M
INST. GROUND CLEARENCE OF 1.65M
WHEEL LEG 380 90R46 – INST. GROUND CLEARENCE OF 1.5M 1.65M
CHAFF SPREADER KIT – FLANGE
CLAMP 16 31 20
CLAMP 16 31
FAN WITH DRIVE – HIGH TORQUE
GEARS FOR SHIFT-ON-THE-GO – WHEEL ENGINE
LEG WHEEL R34 – INST. GROUND CLEARENCE OF 1.5M
AIR SYSTEM
INSTALLATION – AIR PRESSER
INSTALLATION – PNEUMATIC PUMP
PNEUMATIC PUMP
AIR COMPRESSED VALVE KIT
COMPRESSED AIR CONNECTION KIT
HYDRAULIC SYSTEM
INSTALLATION – HYDRAULIC CONTAINER
RESERVOIR AND OIL COOLER
CLAMP – HYDRAULIC HOSE
HYDRAULIC OIL CONTAINER – 174 LITERS
HYDRAULIC COOLER INSTALLATION – OIL RADIATOR
HYDROSTATIC TRANSMISSION
FLANGE
HIDROSTATIC PUMP
HYDRAULIC CLAMPS – DOUBLE
HYDRAULIC INSTALLATIONL – STEERING
STEERING CYLINDER
HYD TRACK ADJUST
CYLINDER HYD – TRACK ADJUST
MANUAL HOLDER – HOSES
HYDRAULIC INSTALLATIONL – SPRAY BAR
BOOM BLOCK
LEVELING HYDRAULIC – BREAK SPEED
SHORT BLOCK – BREAK SPEED
SPRAYING
HYDRAULIC VALVE PWM ROGATOR LIQUID 20GPM
SHORT BLOCK – PUMP
LEVELING HYDRAULIC – SPRAYING
LEVELING HYDRAULIC GROUP – NO AUTO BOOM LEVELING
INSTALLATION – BOOM LIFT CONTROL
BOOM LIFT CONTROL NORAC
SUPPORT
LEVELING HYDRAULIC GROUP – WITH AUTO BOOM LEVELING
STEERING WITHOUT AUTO GUIDE
STEERING AUTO GUIDE
SPOOL
ELECTRICAL SYSTEM
LIGHTING EQUIPMENT – REAR LIGHTS
INSTALLATION – BEACON
LIGHTBAR ASSY
PILLAR HARNESS
LIGHT HARNESS – ROUTING – COMMUNICATION
CAB
INSTALLATION – PLATFORM
ELECTRIC SYSTEM – PLATFORM
INSTALLATION – LADDER
LADDER
ENGINE HOOD – MASSEY FERGUSON
INSTALLATION – SHIELDS
FRONT GRILLE
OPTICAL BLOCK WITH BRACKET – OPTICAL BLOCK WITH BRACKET
HOOD INSTALL – UPPER
PANEL – RIGHT HAND
SIDE PANEL – LEFT HAND
HEADLIGHT AUXILIARY
CAB INSTALLATION
INSTALLATION – CAB ROOF
DRAIN – AIR CONDITIONED
KIT GRILLE – AIR
KIT SOUND
TOP COVERING ASSEMBLY
INTERNAL REVETMENT – ROOF
CAB ROOF
COVER – AIR FILTER
ELECTRICAL GROUP – ROOF
AIR CONDITIONING OPTIONAL EQUIPMENT
EVAPORATOR
INSTALLATION – PANEL
PANEL – CONTROLLER
HOSE
SEAT – PNEUMATIC
AIR SUSPENSION SEAT
ASSEMBLY – DRIVERS CAB
WINDSCREEN WIPER
EXTERNAL REAR-VIEW MIRROR
STEERING COLUMN
THERMAL ISOLATION SET
WATER CONTAINER ASSY
RESERVOIR – WINDSCREEN WIPER AND WASHER
SUN-SHIELD ASSY
CAB FRAME
CAB WINDOWS
CAB DOOR ASSEMBLY
CAB INSULATOR
ELECTRIC SYSTEM CAB
CAB HARNESS INSTALLATION
CABIN COAT – LOWER
FLOOR COVERING – FRONT
ARMREST SPRAYER 7 SECTIONS
PANEL – ARM SUPPORT
CAB BRACKET
HVAC TIER3 SYSTEM INSTALL
STEERING COLMN
CROP SHIELP R38 INSTALLATION
BEARING SET
CROP SHIELD R46 INSTALLATION
CLOSING COVER
FENDER R46
FENDER L.H
FENDER L.R
INSTALLATION – FENDER R38
CHASSIS
UNDERCARRIAGE
ELECTRIC INSTALLATION – CHASSIS
HARNESS FRAME SET
LAMP ASSEMBLY
BOX
INSTALLATION – BATTERY INSTALLATION
CABLE LOOM – ALTERNATOR
CABLE LOOM – POSITIVE
SET FRAME
REINFORCEMENT – CHASSIS
STAND
CENTRAL BOOM
DECALS
ADHESIVE – MASSEY FERGUSON
SAFETY DECALS – PORTUGUESE
SAFETY DECALS – SPANISH
SAFETY DECALS – ENGLISH
WHEELS
WHEEL TIRE 18.4-R34
WHEEL TIRE 380 90 R46
PRECISION FARMING SYSTEMS
INSTALLATION – C1000 MF TERMINAL
INSTALLATION – TELEMETRY
MONITOR C3000 ASSY
MONITOR C3000 ASSY – ADVANCED
AG3000 AUTOGUIDE DECIMETER
GPS RECEPTOR
RECEIVER
SUPPORT CANOPY
AUTOGUIDE READY
INSTALLATION – TILT SENSOR
AUTOGUIDE 3000
ANTENNA
HIPER BASE STATION – HIPER AG
HIPER BASE STATION
PRODUCT CONTAINMENT
INSTALLATION – PRODUCT TANK 3000L
PRODUCT TANK 3000L
ELIPTICAL TANK SADDLE
HEIGHT INDICATOR WITHOUT CAAP
INLET CONNECTION
SPRAYING ASSY HOSE FIXING
PRIMARY PRODUCT DISTRIBUTION
SPRAY SYSTEM INST ASSY
FILTER
SET VALVE – RELIEF
FLOWMETER 2.00 POL 140 PULSES PER GALLON 12 VOLTS
FLOWMETER 2.00 POL 137 PULSES PER GALLON 12 VOLTS
SET BYAPASS INSTALLATION
PUMP INSTALLATION CLEARANCE
RELOAD PUMP
INSTALLATION – SPRAYING PUMP PIPING – STAINLESS STEEL
SPRAYING PUMP PIPING – STAINLESS STEEL
HYDRAULIC MOTOR
SECONDARY PRODUCT DISTRIBUTION
INSTALLATION – RINSE TANK ASSY
RINSE TANK ASSY
VALVES
BOOMS
INST. CENTRAL BOOM
BAR LIFT ASSEMBLY
CENTRAL FRAME
BAR OPENING CYLINDER
PIPE LINE FIX ASSY – RIGID TOOLBAR
ELECTRICAL INSTALLATION – RIGID TOOLBAR
TAIL LIGHT – RIGHT
TAIL LIGHT – LEFT HAND
REAR ECU’S BOX ASSY
LIFT CYLINDERS
INTERNAL BAR RIGHT SIDE
INTERNAL BAR LEFT SIDE
PLUMBING BOOM TIP 25M
PIPE LINE FIX ASSY – 1 INCH
SNOUT
PIPE LINE FIX ASSY
PIPE
SERVICE KIT
NOZZLE ASSEMBLY – 3 WAYS
PLUMBING BOOM TIP 28M
PIPE
SERVICE KIT
NOZZLE ASSEMBLY – 3 WAYS
PIPE LINE FIX ASSY
SNOUT
BAR EXTERNAL 24M
FOLLOW-UP BAR CYLINDER
BAR EXTERNAL 28M
INTERNAL BAR PIPING – 7 SECTIONS
CENTRAL PIPE ASSY. 6 TIPS
2-NOZZLE PIPE ASSEMBLY
TUBE 2 NOZZLES
PIPE ASM 6 TIPS BOOM TIP RH
FLANGE – RIGHT SIDE
FLANGE – LEFT SIDE
CENTRAL VALVE ASSY I
MANIFOLD VALVE – ELECTRIC
BOOM VALVE ASSY – RIGHT SIDE
BOOM VALVE ASSY LEFT
CENTRAL VALVE ASSY I
GLIDE ARM
ACCESSORIES
INSTALLATION – CHEMICAL EDUCTOR
CHEMICAL EDUCTOR
SIDE CONSOLE – CHEMICAL EDUCTOR
INSTALLATION – TOOLBOX
TOOLS BOX
