Name: Massey Ferguson MF RB2125F RB2125FPR Parts Catalog 1745992130
SKU: 462982
Availability: InStock

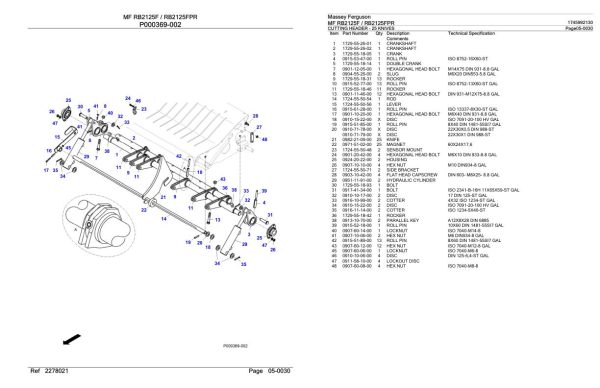

Massey Ferguson MF RB2125F RB2125FPR Parts Catalog 1745992130 1

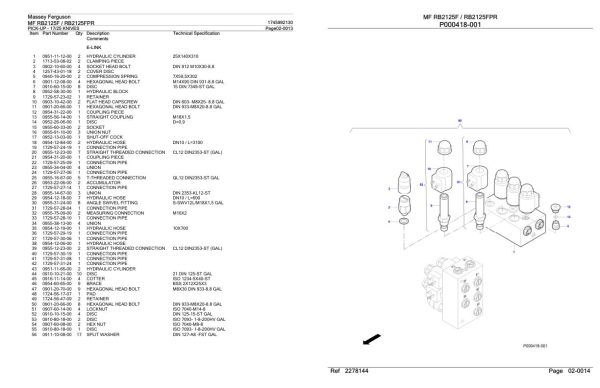

Massey Ferguson MF RB2125F RB2125FPR Parts Catalog 1745992130 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson MF RB2125F RB2125FPR Parts Catalog 1745992130

Size: 15.21 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Hay Equipment Baler

Type of Manual: Spare Parts Manual

Model: MF RB2125F RB2125FPR

Part Number: 1745992130

Number of Pages: 313 Pages

10 USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
DRIVE SYSTEM
PROPELLER SHAFT – OVERRUNNING
GEAR – HOUSING – ROUND
GEAR
CHAIN DRIVE – CLAMPING PARTS
HYDRAULIC SYSTEM
TAILGATE
NET WRAPPING
PICK-UP 2 00 M – WITHOUT KNIVES
PICK-UP 2 25 M – WITHOUT KNIVES
PICK-UP – 13 KNIVES
PICK-UP – 17 25 KNIVES
PICK-UP – VALVE UNIT
PICK-UP – VALVE BLOCK ASSEMBLY
ELECTRICAL SYSTEM
LIGHTS
HARNESS – BCE
WIRING HARNESS – E-LINK
LUBRICATION SYSTEM
CENTRAL CHAIN LUBRICATION – PUMP
CENTRAL CHAIN LUBRICATION
ROLLER LUBRICATION – RIGHT HAND
ROLLER LUBRICATION – LEFT HAND
ROLLER LUBRICATION ELECTRICAL – RIGHT HAND
ROLLER LUBRICATION ELECTRICAL – LEFT HAND
ROLLER LUBRICATION ELECTRICAL – PUMP
BALE FEEDING SYSTEM
PICK-UP – PROPEL
PICK-UP CAMTRACK – DRIVE – CHOPPER – FROM THE SERIAL NUMBER 2016S00007
PICK-UP 2 00 M CAMTRACK ALPINE – CHASSIS
PICK-UP 2 00 M CAMTRACK – CHASSIS
PICK-UP 2 00 M CAMTRACK – TINE ARM
PICK-UP 2 25 M CAMTRACK – CHASSIS
PICK-UP 2 25 M CAMTRACK – TINE ARM
PICK-UP 2 00 M – CHASSIS
PICK-UP 2 00 M – BRACKET
PICK-UP 2 00 M – PROTECTION – INERTIA WHEEL
PICK-UP 2 00 M – BEARING
PICK-UP 2 00 M – TINE ARM
PICK-UP 2 25 M – CHASSIS
PICK-UP 2 25 M – BRACKET
PICK-UP 2 25 M – SHROUD
PICK-UP 2 25 M – BEARING
PICK-UP 2 25 M – TINE ARM
HOUSING – PICK-UP 2 00 M
HOUSING – PICK-UP 2 25 M
LAYSHAFT – PICK-UP 2 00 M
LAYSHAFT – PICK-UP 2 25 M
ROTOR SCRAPERS – 13 KNIVES
ROTOR SCRAPERS – 17 KNIVES
ROTOR SCRAPERS – 25 KNIVES
FLOOR – 13 KNIVES
FLOOR – 17 KNIVES
FLOOR – 25 KNIVES
CUTTING HEADER – 13 KNIVES
CUTTING HEADER – 17 KNIVES
CUTTING HEADER – 25 KNIVES
BRACKET – KNIVES
LOW HOLDER SHEET METAL – PICK-UP 2 00 M
LOW HOLDER SHEET METAL – PICK-UP 2 25 M
ROLL HOLDERS – PICK-UP 2 00 M
ROLL HOLDERS – PICK-UP 2 25 M
ROLL HOLDERS – PICK-UP 2 00 M CAMTRACK
ROLL HOLDERS – PICK-UP 2 25 M CAMTRACK
GUIDE WHEELS 6 PR – RIGID
GUIDE WHEELS 10 PR – RIGID
GUIDE WHEELS 6 PR
GUIDE WHEELS 10 PR
GUIDE WHEELS 6 PR – PICK-UP CAMTRACK
GUIDE WHEELS 10 PR – PICK-UP CAMTRACK
BALE FORMING SYSTEM
ROLLER 1 – BOTH SIDES LUBRICATED
ROLLER 2 4-12 14 15 – SELF-ALIGNING ROLL BEARING
ROLLER 4-12 14 15 – LUBRICATED
ROLLER 2 – BOTH SIDES LUBRICATED
ROLLER 3 – BOTH SIDES LUBRICATED
ROLLER 13 17 – BOTH SIDES LUBRICATED
ROLLER 16 18 – LUBRICATED
ROLLER 16 18 – SELF-ALIGNING ROLL BEARING
BINDING SYSTEM
NET WRAPPING – CHASSIS
NET WRAPPING – CUTTING DEVICE
NET WRAPPING – SUPPORT FOR NET ROLL
SUPPORT FOR NET ROLL – CRANK
NET WRAPPING – V-BELT DRIVE
NET WRAPPING – NET LENGTH REGULATION
TWINE AND NET WRAPPING – CHASSIS
TWINE WRAPPING – CHASSIS
TWINE WRAPPING – CUTTING DEVICE
TWINE WRAPPING – PROPEL
TWINE WRAPPING – DRIVE DEVICE ASSEMBLY
TWINE WRAPPING – TWINE THROWER
BALE EJECTING SYSTEM
BALE KICKER
CHASSIS
AXLE – 70MM
AXLE – 80MM
BRAKE AXLE – 80MM
AXLE – FIXING PARTS
AIR BRAKE – BRAKE VALVE
AIR BRAKE – AIR TANK
AIR BRAKE
HYDRAULIC BRAKE ASSY
HYDRAULIC BRAKE ASSY – VALVE – MAT
PARKING BRAKE
CHASSIS – TAILGATE
CHASSIS – ADAPTER ASSEMBLY
CHASSIS – LOCKING KIT
TIE RODS
TIE RODS – TOWING EYE
TIE RODS – ACCESSORIES SECTION
SUPPORT LEG
ACCESS – LADDER
HOOP GUARD – PICK-UP 2 00 M
HOOP GUARD – PICK-UP 2 25 M
PROTECTIVE COVER – TOP
PROTECTIVE COVER – LOCKING KIT
PROTECTIVE HOUSING
PROTECTIVE COVER – REAR
PROTECTIVE COVER – TRANSMISSION ASSEMBLY
PROTECTIVE COVER – PICK-UP 2 00 M
PROTECTIVE COVER – PICK-UP 2 25 M
DECALS
STICKERS – LOGO
STICKERS – FRONT
STICKERS – REAR
STICKERS – LEFT HAND
STICKERS – RIGHT HAND
WARNING SIGNS – ATTACHMENTS
SPINDLES AND WHEELS
WHEELS – 11.5 80-15.3
WHEELS – 15.0 55-17
WHEELS – 19.0 45-17
WHEELS – 480 45-17
WHEELS – 500 55-20
WHEELS – 500 60-22.5
WHEELS – 500 54-22.5
WHEELS – 500 50-22.5
ACCESSORIES
IMMOBILIZER SYSTEM
SAFETY CHAIN
TOOL SET – ACCESSORIES SECTION
