Name: Massey Ferguson TH.7035 ST4 Telescopic Handler Parts Catalog 6246278
SKU: 463035
Price: 20.00 USD
Availability: InStock

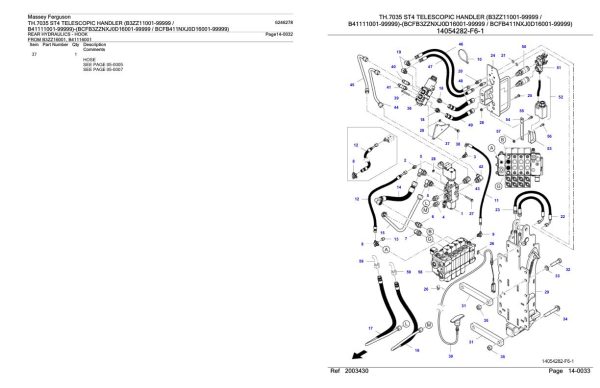

Massey Ferguson TH.7035 ST4 Telescopic Handler Parts Catalog 6246278 1

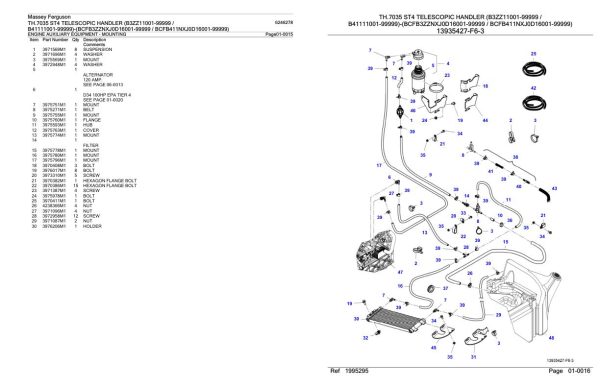

Massey Ferguson TH.7035 ST4 Telescopic Handler Parts Catalog 6246278 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Massey Ferguson TH.7035 ST4 Telescopic Handler Parts Catalog 6246278

Size: 29.60 MB

Format: PDF

Language: English

Brand: Massey Ferguson

Type of Machine: Material Handling Loader Handler

Type of Manual: Spare Parts Manual

Model: TH.7035 ST4 Telescopic Handler

Part Number: 6246278

Number of Pages: 534 Pages

20$ USD

Tag: Massey Ferguson Parts Manual

Description

Description

Contents:
TABLE OF CONTENT
ENGINE FUEL AND EXHAUST SYSTEM
COOLING SYSTEM
COOLING SYSTEM – AIR INTAKE HOSE REPLACEMENT KIT
RADIATOR WATER EXCHANGER
HEATER and AIR CONDITIONNING COMPONENTS
AIR INTAKE
EXHAUST SYSTEM
SCR SYSTEM – HOUSING
SCR SYSTEM – DEF SENSOR KIT
SCR SYSTEM – PLUMBING
SCR SYSTEM – PUMP
SCR SYSTEM – TANK
ENGINE AUXILIARY EQUIPMENT – MOUNTING
FUEL LINE and FILTER
FUEL TANK and ATTACHMENTS
ENGINE
FLYWHEEL HOUSING
FLYWHEEL
CYLINDER BLOCK
CYLINDER HEAD
ROCKER ARM COVER
VALVES AND ROCKER SHAFT
CAMSHAFT
PISTON and CRANKSHAFT
OIL PAN and SEAL
OIL PUMP
OIL COOLER and FILTER
OIL COOLER ASSEMBLY – 17 COOLING PLATES
OIL COOLER ASSEMBLY – 9 COOLING PLATES
WATER PUMP
THERMOSTAT
INTAKE AIR HEATER
INTAKE MANIFOLD
EXHAUST MANIFOLD
TURBOCHARGER
EXHAUST GAS RECIRCULATION EGR – FIN TYPE COOLER
EXHAUST GAS RECIRCULATION EGR – TUBE TYPE COOLER
INJECTION PUMP
FUEL RAIL and INJECTORS
AIR CLEANER
FRAME AND SUSPENSION
MAIN FRAME
COUNTERWEIGHT
STEERING SYSTEM
STEERING COLUMN
DRIVE TRAIN SYSTEM
DRIVE TRAIN
GEARBOX – COMPONENTS
DRIVE SHAFT
FRONT AXLE – HOUSING
FRONT AXLE – DIFFERENTIAL
FRONT AXLE – BRAKES
FRONT AXLE – HUB REDUCTION
FRONT AXLE – STEERING
REAR AXLE – HOUSING
REAR AXLE – DIFFERENTIAL
REAR AXLE – HUB REDUCTION
REAR AXLE – STEERING
HYDRAULIC SYSTEM
HYDRAULIC TANK
HYDRAULIC CIRCUIT – GEAR PUMP
HYDRAULIC CIRCUIT – CONTROL VALVE and MANIFOLD BLOCK
HYDRAULIC CIRCUIT – BOOM and AUXILIARY
HYDRAULIC CIRCUIT – POWER ATTACHMENT LOCK
HYDRAULIC CIRCUIT – TILTING
HYDRAULIC CIRCUIT – EXTENSION
HYDRAULIC CIRCUIT – LIFT and SELF-LEVELING
HYDRAULIC CIRCUIT – NON REVERSIBLE FAN MOTOR
HYDRAULIC CIRCUIT – REVERSIBLE FAN MOTOR
HYDRAULIC CIRCUIT – STEERING
SERVICE BRAKE HYDRAULICS – WITHOUT TRAILER BRAKE
SERVICE BRAKE HYDRAULICS – WITH TRAILER BRAKE
HYDRAULIC CIRCUIT – PARKING BRAKE ACCUMULATOR – UP TO B3ZZ16000 B41116000
HYDRAULIC CIRCUIT – PARKING BRAKE ACCUMULATOR – FROM B3ZZ16001 B41116001
HYDRAULIC CIRCUIT – PARKING BRAKE ACCUMULATOR – ITALY
HYDRAULIC CIRCUIT – PARKING BRAKE ACCUMULATOR – GERMANY
HYDRAULIC CIRCUIT – GEARBOX
COUPLER BLOCK
HYDRAULIC PUMP – COMPONENTS
CONTROL VALVE – COMPONENTS
DISTRIBUTOR COMPONENTS – INLET
DISTRIBUTOR COMPONENTS – LIFTING
DISTRIBUTOR COMPONENTS – TILTING
DISTRIBUTOR COMPONENTS – TELESCOPING
DISTRIBUTOR COMPONENTS – AUXILIARY HYDRAULIC
DISTRIBUTOR COMPONENTS – OUTLET
MANIFOLD ASSEMBLY – COMPONENTS
NON REVERSIBLE FAN MOTOR – COMPONENTS
REVERSIBLE FAN MOTOR – COMPONENTS
STEERING VALVE – COMPONENTS
SERVICE BRAKE – PEDAL COMPONENTS
LIFT CYLINDER – COMPONENTS
HYDRAULIC CYLINDER – SELF LEVELER
HYDRAULIC CYLINDER – EXTENSION
TILT CYLINDER – COMPONENTS
ELECTRICAL SYSTEM
CAB ELECTRICAL INSTALLATION – HARNESSES
CAB ELECTRICAL INSTALLATION – UPPER HARNESS and WORKING LIGHT
FRAME ELECTRICAL SYSTEM – HARNESS
FRAME ELECTRICAL SYSTEM – HARNESSES
ENGINE ELECTRICAL – HARNESS
ELECTRICAL CIRCUIT – ENGINE STARTING
ENGINE ELECTRICAL – SCR SYSTEM
ENGINE ECU HARNESS
ENGINE SENSORS
ALTERNATOR
STARTER
CAB
OPERATOR CAB
CAB INTERIOR – CLADDING
ARMREST
CAB – EXTERIOR
OPERATOR CAB – DOOR
OPERATOR CAB – WINDOW
OPERATOR CAB – REAR WINDOW
OPERATOR CAB – WIPER
OPERATOR SEAT – BASIC
BASIC SEAT – ASSEMBLY
BASIC SEAT – SUSPENSION ASSEMBLY
OPERATOR SEAT – PREMIUM
PREMIUM SEAT – ASSEMBLY
PREMIUM SEAT – SUSPENSION ASSEMBLY
OPERATOR CONTROLS – INSTRUMENT PANEL
OPERATOR CONTROLS – JOYSTICK and RIGHT HAND SWITCHES
OPERATOR CONTROLS – KEYLESS START
THROTTLE PEDAL
HEATING and COOLING
HEATER – COMPONENTS
HEATING and COOLING – AIR CONDITIONING ASSEMBLY
HEATING and COOLING – CONTROL PANEL
MANUAL CONTAINER
DOCUMENT HOLDER – STORAGE NET
ROTARY BEACON
SUN VISOR
ROAD LIGHTS and RIGHT MIRROR – HALOGEN
ROAD LIGHTS and EXTERNAL MIRRORS – LED
CHASSIS
ENGINE BASKET and HOOD
HOOD ASSEMBLY – WITH ONE-PIECE HANDLE and UNLOCK BUTTON
NOISE REDUCTION
DECALS
DECALS – INSIDE
DECALS – OUTSIDE
DECALS – EMBLEMS
WHEELS
WHEELS – 20
WHEELS – 24
MUDGUARDS AND SUPPORTS – 20 RIBBED
MUDGUARDS AND SUPPORTS – 24 – 400 460
WHEELS WEDGES
ARTICULATING ARM
FIXED BOOM
BOOM END
ATTACHMENT CARRIER – MANITACH
ATTACHMENT CARRIER – QUICK ATTACH
ATTACHMENT CARRIER – J-TACH
ATTACHMENT CARRIER – MERTACH
HITCH
REAR HITCH – ADJUSTABLE – AUTOMATIC LOCK
REAR HITCH – ADJUSTABLE – MANUAL LOCK
REAR HITCH – BASIC
REAR HITCH – CLEVIS TYPE
REAR HITCH – PINTLE HOOK
FRONT HITCH
REAR HYDRAULIC HOOK – ASSEMBLY
HYDROSTATIC SYSTEM
HYDROSTATIC SYSTEM – OIL COOLING and FILTRATION
HYDROSTATIC CIRCUIT – HYDROSTATIC PUMP and MOTOR
HYDROSTATIC MOTOR – COMPONENTS
HYDROSTATIC PUMP – COMPONENTS
HYDROSTATIC PUMP
HYDROSTATIC PUMP – CHARGE PUMP ASSEMBLY
HYDROSTATIC PUMP – CONTROL UNIT
ATTACHMENTS
ACD INPUT HARNESS
AUXILIARY CONTROLLER
BOOM HARNESS
BOOM STOP
BOOM – WORK LIGHT
WORK LIGHT – BLUE LIGHTING
REAR WORK LIGHT
POWER ATTACHMENT LOCK – MANITACH
POWER ATTACHMENT LOCK – QUICKTACH
ATTACHMENT CARRIER KIT – MANITACH
ATTACHMENT CARRIER KIT – MERTACH
POWER ATTACHMENT LOCK – MERTACH
ATTACHMENT CARRIER KIT – J-TACH
POWER ATTACHMENT LOCK – J-TACH
DUST PROTECTION KIT
TILT CYLINDER – PROTECTION KIT
BOOM SUSPENSION – DOUBLE ACCUMULATOR
BOOM SUSPENSION – SINGLE ACCUMULATOR
HYDRAULIC CIRCUIT – REAR AUXILIARY HYDRAULICS
REAR AUXILIARY HYDRAULICS
TRAILER BRAKES – SINGLE LINE
TRAILER BRAKES – DUAL LINES
REAR HYDRAULICS – HOOK
REAR HYDRAULIC HOOK and AUXILIARY HYDRAULICS – REAR HYDRAULIC HOOK and AUXILIARY HYDRAULICS
HYDRAULIC CIRCUIT – REAR HYDRAULIC HOOK and AUXILIARY HYDRAULICS
REAR HYDRAULICS – DIVERTER VALVE
LICENCE PLATE HOLDER – WITHOUT REAR HYDRAULIC HOOK
LICENCE PLATE HOLDER – WITH REAR HYDRAULIC HOOK
LICENCE PLATE HOLDER – FRONT
REVERSE LIGHT
SIDE MARKER LIGHT
LED ROAD LIGHTS REAR REFLECTOR
WINDSHIELD PROTECTION GRILL
SOUND SYSTEM
FUEL CAP COVER KIT
REAR VIEW MIRROR
MIRROR – PROTECTION
SAFETY HAMMER
SERVICE WRENCH
TOOL BOX – FRONT
TOOL BOX – REAR
FIRE EXTINGUISHER
REVERSE ALARM
REAR ELECTRIC PLUG
