Minuteman Scrubber Bulldog 20Inch 26Inch ECO Parts Manual And Wiring Diagram

Size: 8.71 MB
Format: PDF
Language: English
Brand: Minuteman
Type of Machine: Brush Drive Walk Behind Scrubber
Type of Manual: Parts Manual And Wiring Diagram
Model:
Minuteman Bulldog 20Inch E20BDQP-FC E20BDQPG-FC Brush Drive Walk Behind Scrubber
Minuteman Bulldog 20Inch E20CQP-FC E20CQPG-FC Walk-Behind Traction Drive Cylindrical
Minuteman Bulldog 20Inch E20DTDQPG-FC Traction Drive Walk Behind Scrubber
Minuteman Bulldog 26Inch ECO WD26 Floor Scrubber Traction Drive Disc

10 USD

Tags: , ,
  • Description

Description

List of Files:

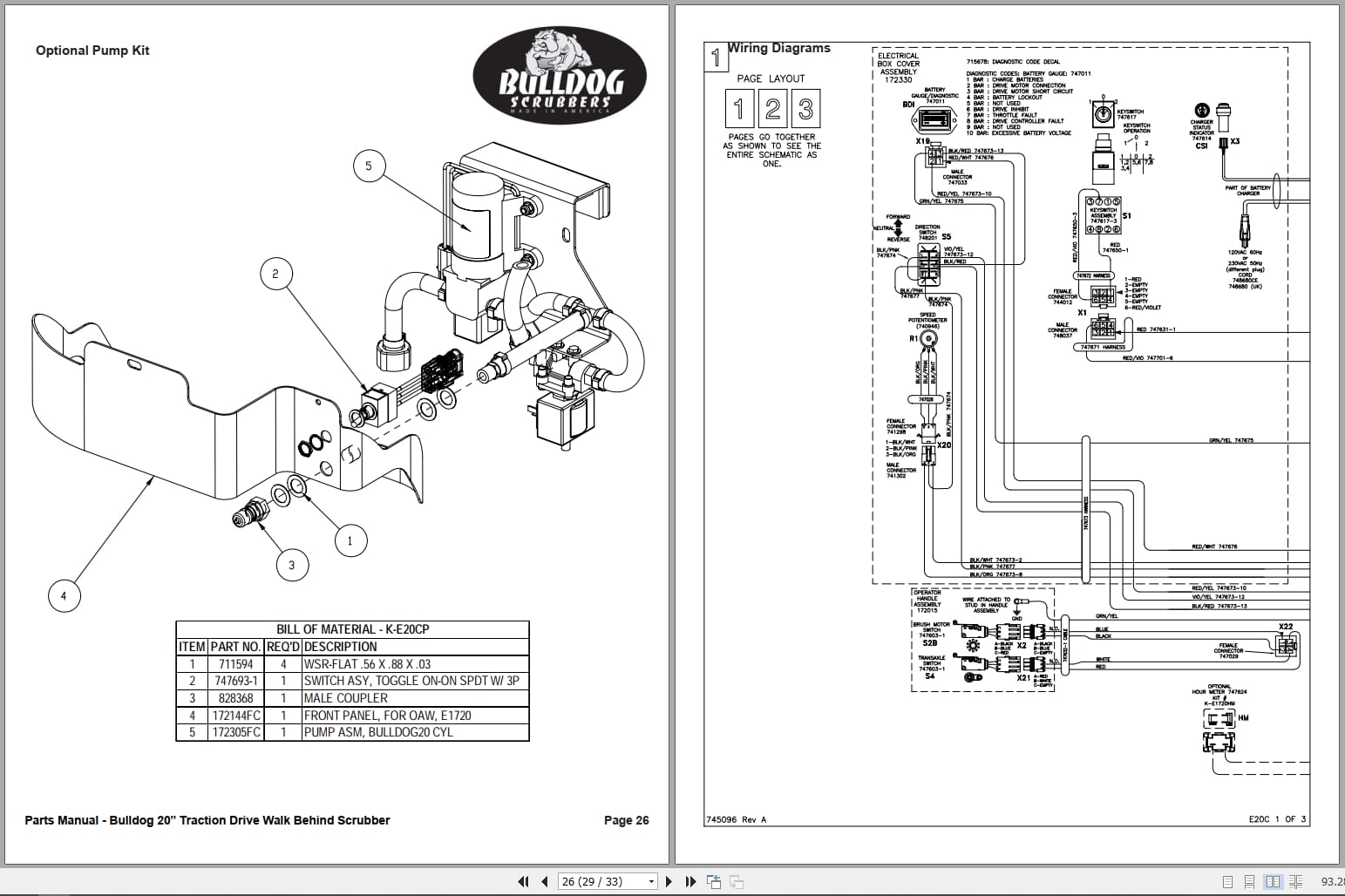

Bulldog 20Inch E20BDQP-FC E20BDQPG-FC Brush Drive Walk Behind Scrubber Parts Manual And Wiring Diagram 988720FC 2016.pdf
Technical Specifications
Main Assembly
Main Assembly BOM
Brush Drive Base Assembly
Brush Drive Base Assembly BOM
Base Assembly
Chassis Assembly
Chassis Assembly BOM
Solution Valve Assembly
Solution Tank Assembly
Lift Pedal Stop Assembly
Recovery Tank Assembly
Recovery Tank Assembly BOM
Handle Assembly
Battery Tray Assembly
Electrical Box Assembly
Electrical Box Assembly BOM
Electrical Box Cover Assembly
Vac Motor Assembly
20” Brush Deck Assembly
20” Brush Deck Assembly BOM
Brush Hub Assembly
Rear Squeegee Assembly (Curved)
Squeegee Mechanism Assembly
Optional Pump Kit
Wiring Diagrams
Bulldog 20Inch E20CQP-FC E20CQPG-FC Walk-Behind Traction Drive Cylindrical Parts Manual And Wiring Diagram 2010.pdf
Main Assembly
Main Assembly BOM
Traction Drive Base Assembly
Traction Drive Base Assembly BOM
Base Assembly
Chassis Assembly
Chassis Assembly BOM
Solution Tank Assembly
Recovery Tank Assembly
Recovery Tank Assembly BOM
Handle Assembly
Pump Assembly
Solution Valve Assembly
Battery Tray Assembly
Electrical Box Assembly
Electrical Box Assembly BOM
Electrical Box Cover Assembly
Vac Motor Assembly
20” Cyl
Cylindrical Scrubdeck
Cylindrical Scrubdeck BOM
Cylindrical Scrubdeck SubAssy I – Idler Support
Cylindrical Scrubdeck SubAssy II – Gear Support
Rear Squeegee Assembly
Tension Band Sub-Assembly
Squeegee Mechanism Assembly
Optional Pump Kit
Wiring Diagrams
Bulldog 20Inch E20DTDQPG-FC Traction Drive Walk Behind Scrubber Parts Manual And Wiring Diagram 988721FC 2016.pdf
Technical Specifications cations
Main Assembly
Main Assembly BOM
Traction Drive Base Assembly
Traction Drive Base Assembly BOM
Base Assembly
Chassis Assembly
Chassis Assembly BOM
Solution Valve Assembly
Solution Valve Assembly
Solution Tank Assembly
Lift Pedal Stop Assembly
Recovery Tank Assembly
Recovery Tank Assembly BOM
Handle Assembly
Battery Tray Assembly
Electrical Box Assembly
Electrical Box Assembly BOM
Electrical Box Cover Assembly
Vac Motor Assembly
20” TD Disk Deck Assembly
20” TD Disk Deck Assembly BOM
Brush Hub Assembly
Rear Squeegee Assembly (Curved)
Tension Band Sub-Assembly
Squeegee Mechanism Assembly
Optional Pump Kit
Wiring Diagrams
Bulldog 26Inch ECO WD26 Floor Scrubber Traction Drive Disc Parts Manual And Wiring Diagram 2010.pdf
Main Assembly
Main Assembly BOM
Base Assembly
Base Assembly BOM
Base Assembly
Chassis Assembly
Chassis Assembly BOM
Solution Tank Assembly
Recovery Tank Assembly
Recovery Tank Assembly BOM
Handle Assembly
Solution Valve Assembly
Battery Tray Assembly
Electrical Box Assembly
Electrical Box Assembly BOM
Electrical Box Cover Assembly
Vacuum Motor Assembly
Rear Squeegee Assembly – View 1
Rear Squeegee Assembly – View 2
Squeegee Mechanism Assembly
Optional Pump Kit
Wiring Diagrams
