Name: Minuteman Walk-Behind Scrubber E28 Parts User Manual And Wiring Diagram
SKU: 554040
Price: 10.00 USD
Availability: InStock

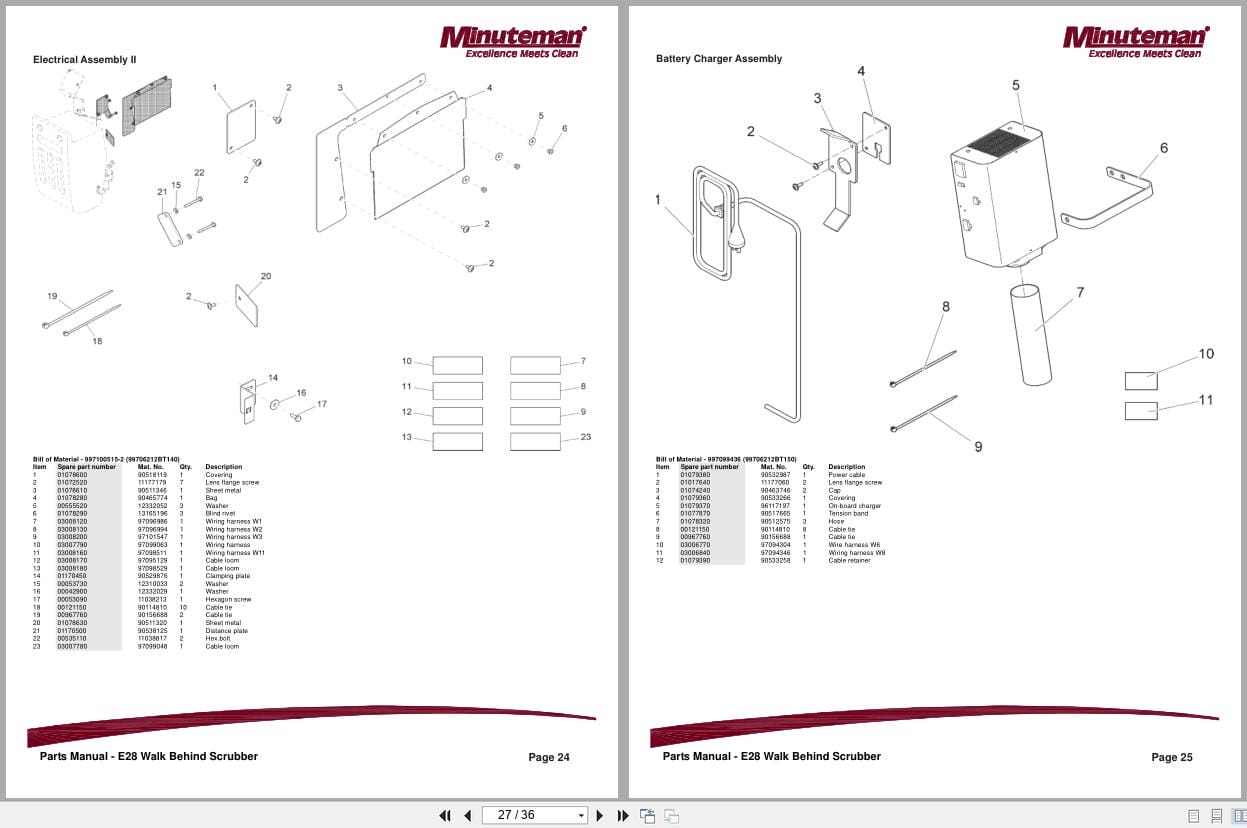

Minuteman Walk Behind Scrubber E28 Parts User Manual And Wiring Diagram (1)

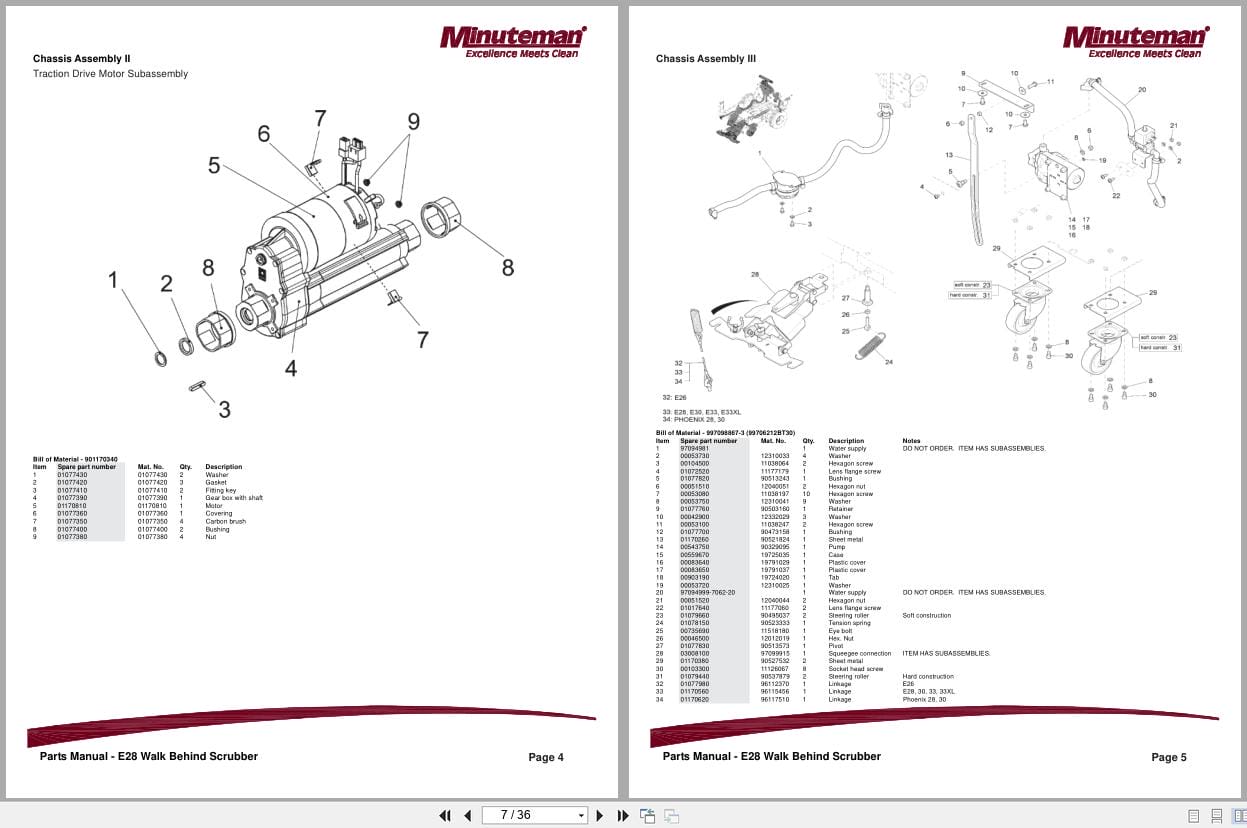

Minuteman Walk Behind Scrubber E28 Parts User Manual And Wiring Diagram (2)

Minuteman Walk Behind Scrubber E28 Parts User Manual And Wiring Diagram (3)

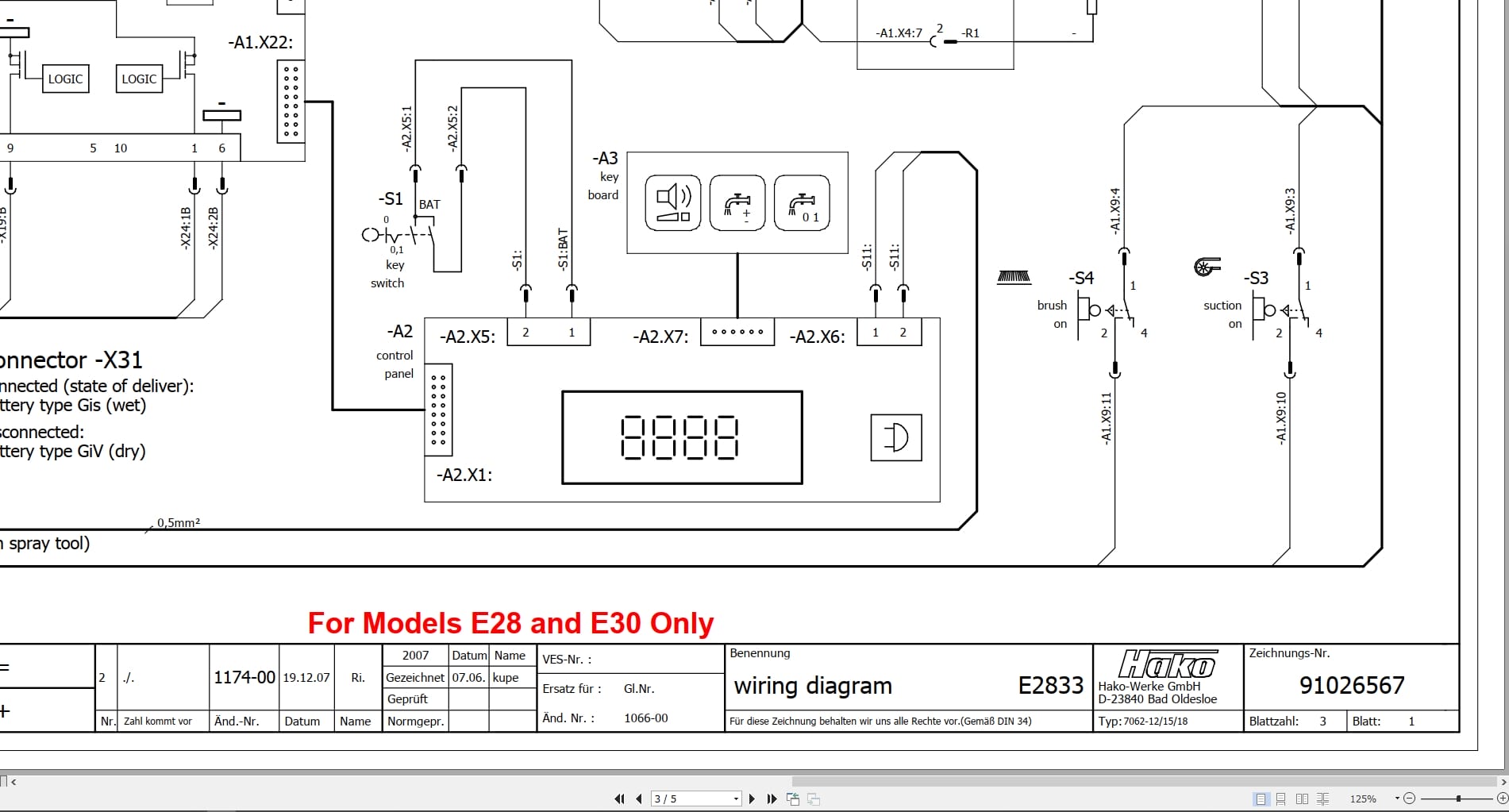

Minuteman Walk Behind Scrubber E28 Parts User Manual And Wiring Diagram (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Minuteman Walk-Behind Scrubber E28 Parts User Manual And Wiring Diagram

Size: 9.48 MB

Format: PDF

Language: English

Brand: Minuteman

Type of Machine: Walk-Behind Scrubber

Type of Manual: User Manual, Parts Manual, Electrical Schematic

Model: Minuteman E28 7062.12 Walk-Behind Scrubber

10 USD

Tags: E28, Minuteman Parts User Manual And Wiring Diagram, Minuteman Walk Behind Scrubber Manual

Description

Description

List of Files:
E24 E26 E28 E30 Harness.pdf
E28 E30 E33 Connect Schematic 91026575.pdf
E28 E30 E33 User Manual 88-10-2795.pdf
Introduction
Preface
Proper use
Notes of warranty
Acceptance of the machine
1 Safety information
1.1 Safety and Warning Symbols
1.2 General Provisions
1.3 Provisions for Operation
1.4 Maintenance instructions
1.5 Specific Hazards
1.6 Information for Protection of Environment
1.7 Labels at the Machine
2 First Operation
2.1 Instruction
2.2 Initial charging procedure
2.3 Before Taking into Operation
2.4 Start Machine
2.5 Operation
2.6 Stop Machine
2.7 After Work
2.8 Transporting Machine
3 Operation
3.1 Method of operation
3.1.1 Brush Deck
3.1.2 Solution Tank
3.1.3 Squeegee
3.1.4 Recovery Tank
3.1.5 Traction Drive
3.1.6 Batteries and Charger
3.1.7 Options
3.2 Operating and Indicating Elements
3.2.1 Operating Panel
3.2.2 At the machine
4 Technical Data
5 Maintenance and Care
5.1 System Maintenance
5.2 Maintenance document
5.3 Maintenance Schedule
5.4 Battery Systems
5.4.1 Charge Batteries
5.4.2 Low Discharge Signal sender (LDS)
5.4.3 Maintenance of Drive Batteries
5.4.4 Remove Batteries
5.4.5 Install Batteries
5.4.6 Disposal of Batteries
5.5 Solution Tank
5.5.1 Fill Solution Tank
5.5.2 Empty Solution Tank
5.5.3 Clean Solution Filter
5.6 Recovery Tank
5.6.1 Empty Recovery Tank
5.6.2 Clean Recovery Tank
5.6.3 Clean Suction Filter
5.7 Disc brush Deck
5.7.1 Clean Brushes
5.7.2 Change Brushes
5.7.3 Change Roller Bumper
5.7.4 Change Sealing Strip
5.8 Cylindrical brush deck
5.8.1 Clean dirt hopper
5.8.2 Remove brushes
5.8.3 Clean brushes
5.8.4 Fit brushes
5.8.5 Change roller bumper
5.9 Squeegee
5.9.1 Clean Squeegee
5.9.2 Change Squeegee Blades
5.9.3 Adjust Squeegee Blades
Minuteman Limited Warranty
E28 Parts Manual 988028 2008.pdf
Chassis Assembly I
Lift Pedal Subassembly
Chassis Assembly II
Traction Drive Motor Subassembly
Chassis Assembly III
Water Supply Subassembly I
Water Supply Subassembly II
Squeegee Connection Subassembly I
Squeegee Connection Subassembly II
Battery Tray Assembly
Solution Tank Assembly
Recovery Tank Assembly
Vacuum Motor Assembly
Squeegee Lift Handle Assembly
Squeegee Lock Assembly
Squeegee Assembly I
Squeegee Assembly II
Control Panel Assembly
Console Subassembly
Electrical Assembly I
Retainer Subassembly
Electrical Assembly II
Battery Charger Assembly
Machine Labels
Cylindrical Scrub Deck Assembly
Brush Deck Assembly I
Dirt Hopper Subassembly
Brush Deck Assembly II
Carrier Subassembly
Brush Deck Assembly III
