Name: Mitsubishi Forklift FB16KT Chassis Mast Options Europe Parts Catalog 98714-30030
SKU: 604737
Availability: InStock

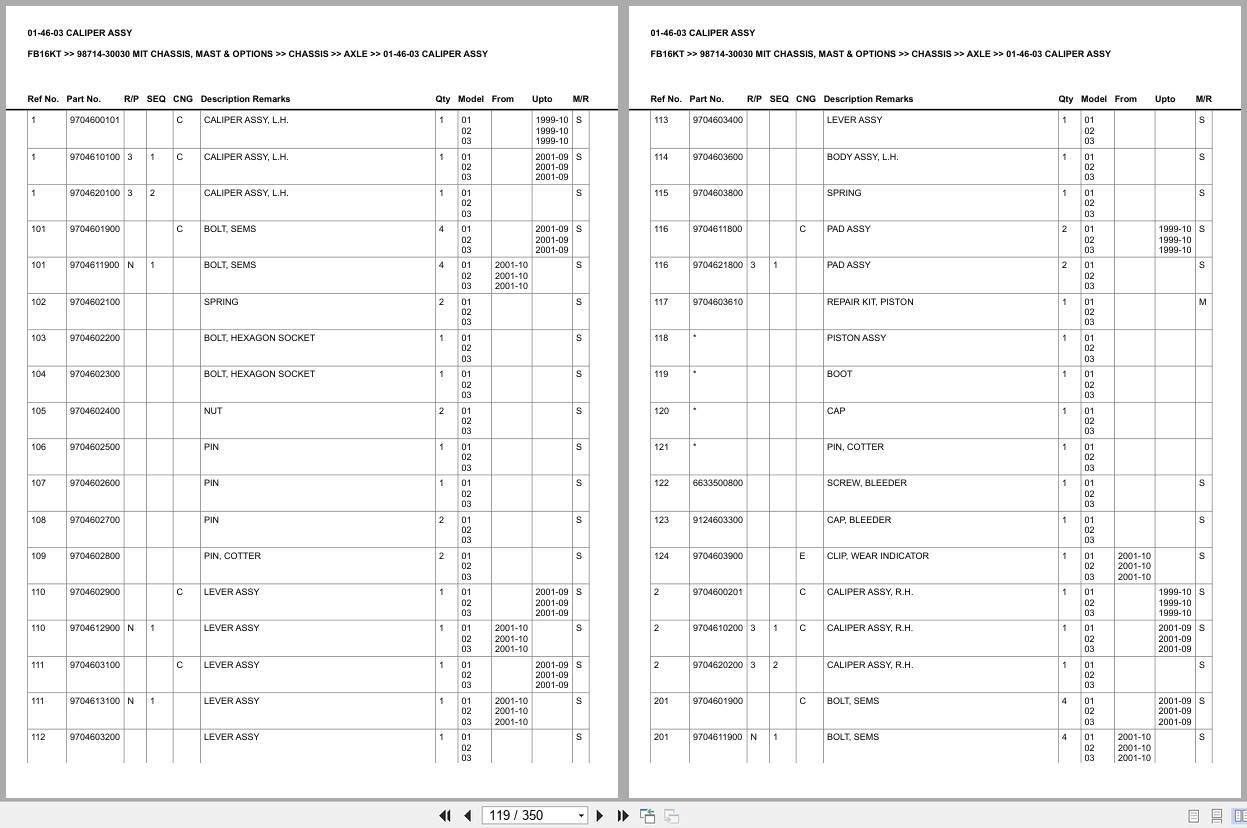

Mitsubishi Forklift FB16KT Chassis Mast Options Europe Parts Catalog 98714 30030 (1)

Mitsubishi Forklift FB16KT Chassis Mast Options Europe Parts Catalog 98714 30030 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Mitsubishi Forklift FB16KT Chassis Mast Options Europe Parts Catalog 98714-30030

Size: 48.90 MB

Format: PDF

Language: English

Brand: Mitsubishi

Type of Machine: Forklift

Type of Manual: Parts Manual

Region: Europe

Model: Mitsubishi FB16KT Chassis Mast Options Europe

Part Number: 98714-30030

Number of Pages: 350 Pages

50 USD

Tag: Mitssubishi Parts Catalog

Description

Description

Contents:
ELECTRIC SYSTEM (MAIN CABLE)
ELECTRIC SYSTEM (MAIN HARNESS)
ELECTRIC SYSTEM (CONSOLE BOX)
ELECTRIC EQUIPMENT
JOYSTICK BOX (FC MODEL)
POWER RELAY (FC MODEL)
POWER RELAY (MC MODEL)
FRAME & BODY (PART-1)
FRAME & BODY (PART-2)
SEAT (OLD TYPE)
SEAT (NEW TYPE)
HEAD GUARD
MOTOR MOUNTING
01-20-01A TRACTION MOTOR (OLD TYPE) (PRESTOLITE MAKE)
01-20-01B TRACTION MOTOR (NEW TYPE) (SCHABMULLER MAKE)
01-20-02A PUMP MOTOR (OLD TYPE) (OLDHAM COUPLING)
01-20-02B PUMP MOTOR (NEW TYPE) (SPLINED MUFF)
01-20-03A POWER STEERING MOTOR (OLD TYPE)
01-20-03B POWER STEERING MOTOR(NEW TYPE)
MOTOR CONTROLLER
MAIN CONTROLLER ASSY (PART-1) (PRESTOLITE MOTOR)
MAIN CONTROLLER ASSY (PART-2) (PRESTOLITE MOTOR)
MAIN CONTROLLER ASSY (PART-3) (PRESTOLITE MOTOR)
MAIN CONTROLLER ASSY (PART-1) (SCHABMULLER MOTOR)
MAIN CONTROLLER ASSY (PART-2) (SCHABMULLER MOTOR)
MAIN CONTROLLER ASSY (PART-3) (SCHABMULLER MOTOR)
CONTACTOR
TRANSFER & DIFFERENTIAL (L.H.)
TRANSFER & DIFFERENTIAL (R.H.)
FRONT AXLE
REAR AXLE
REAR AXLE ASSY
BRAKE PIPING
PARKING BRAKE
CALIPER ASSY
01-51-01A BRAKE PEDAL ASSY (OLD TYPE)
01-51-01B BRAKE PEDAL ASSY (NEW TYPE)
ACCEL PEDAL
HAND BRAKE
TILT STEERING
01-54-01A STEERING GEAR (OLD TYPE) (W_O RELIEF VALVE)
01-54-01B STEERING GEAR (NEW TYPE) (W_O RELIEF VALVE)
01-54-01C STEERING GEAR (W_RELIEF VALVE)
STEERING WHEEL
01-71-01A HYDRAULIC PUMP (OLD TYPE) (OLDHAM COUPLING)
01-71-01B HYDRAULIC PUMP (NEW TYPE) (SPLINE SHAFT)
01-71-02A STEERING PUMP (OLD TYPE) (W_RELIEF VALVE)
01-71-02B STEERING PUMP (NEW TYPE) (W_O RELIEF VALVE)
HYDRAULIC CONTROL (MC MODEL)
CONTROL VALVE (3 VALVES) (PART-1) (MC MODEL)
CONTROL VALVE (3 VALVES) (PART-2) (MC MODEL)
CONTROL VALVE (4 VALVES) (MC MODEL)
CONTROL VALVE (3 VALVES) (PART-1) (FC MODEL)
CONTROL VALVE (3 VALVES) (PART-2) (FC MODEL)
CONTROL VALVE (4 VALVES) (FC MODEL)
HYDRAULIC LINE (PART-1)
HYDRAULIC LINE (PART-2)
HYDRAULIC LINE (PART-3)
FLOW REGULATOR VALVE
ATTACHMENT VALVE PIPING
NAME-PLATE
LIFT BRACKET COMMON PARTS
LIFT BRACKET
BACKREST
02-04-01A TILT CYLINDER (L.H.)(OLD TYPE) (6DEGREE-5DEGREE, 6DEGREE-7DEGREE, 6DEGREE-3DEGREE)
02-04-01B TILT CYLINDER (L.H.)(NEW TYPE) (6DEGREE-5DEGREE, 6DEGREE-7DEGREE, 6DEGREE-3DEGREE)
02-04-02A TILT CYLINDER (R.H.)(OLD TYPE) (6DEGREE-5DEGREE, 6DEGREE-7DEGREE, 6DEGREE-3DEGREE)
02-04-02B TILT CYLINDER (R.H.)(NEW TYPE) (6DEGREE-5DEGREE, 6DEGREE-7DEGREE, 6DEGREE-3DEGREE)
FORK (FOR 2G15A,2H15A,2J15A)
FORK (FOR 1G20A,1H20A,1J20A)
MAST COMMON PARTS (PART-1) (FOR SIMPLEX MAST)
MAST COMMON PARTS (PART-2) (FOR SIMPREX MAST)
MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)
MAST COMMON PARTS (PART-2) (FOR TRIPLEX MAST)
MAST COMMON PARTS (PART-3) (FOR TRIPLEX MAST)
MAST COMMON PARTS (PART-4) (FOR TRIPLEX MAST)
MAST COMMON PARTS (PART-1) (FOR DUPLEX MAST)
MAST COMMON PARTS (PART-2) (FOR DUPLEX MAST)
MAST COMMON PARTS (PART-3) (FOR DUPLEX MAST)
DUPLEX MAST MODEL 2H15A 28-40,1H20A28-40
LIFT CYLINDER (1ST) (FOR 2H15A,1H20A)
02-18-01A LIFT CYLINDER (2ND) (OLD TYPE) (FOR 2H15A,1H20A)
02-18-01B LIFT CYLINDER (2ND) (NEW TYPE) (FOR 2H15A,1H20A)
02-20-01A TRIPLEX MAST MODEL 2J15A37-70, 1J20A37-70(OLD TYPE)
02-20-01B TRIPLEX MAST MODEL 2J15A37-70, 1J20A37-70(NEW TYPE)
LIFT CYLINDER (1ST) (FOR 2J15A,1J20A)
LIFT CYLINDER (2ND) (FOR 2J15A,1J20A)
SIMPLEX MAST MODEL 2G15A 20-60,1G20A20-60
LIFT CYLINDER (FOR 2G15A,1G20A)
TM1010 FIRE EXTINGUISHER (5 LB DRY) 9040105317
TM5190 SEAT RELOCATION GROUP 9040105533
TM5190 HEADGUARD GROUP, DRIVE-IN-RACK 9040105922
TM5190 HEADGUARD GROUP, DRIVE-IN-RACK 9040106679
TM5190 HEADGUARD GROUP, DRIVE-IN-RACK 9040113190
TIRE KIT (NONMARKING CUSHION)
TIRE KIT (FOR FB16KT,FB18KT)
TIRE KIT (FOR FB20KT)
TIRE KIT
TIRE KIT (FOR FB16KT,FB18KT)
FOOT DIRECTION CONTROL KIT
TM3320 INSTALLATION GROUP – 1 FUNCTION CASCADE MAST 9040105013
TM3320 INSTALLATION GROUP – 2 FUNCTION MAST 9040105014
