Name: Mitsubishi Forklift KFD15 Chassis Mast MC (1999-) Europe Parts Catalog 98711-02110
SKU: 605194
Availability: InStock

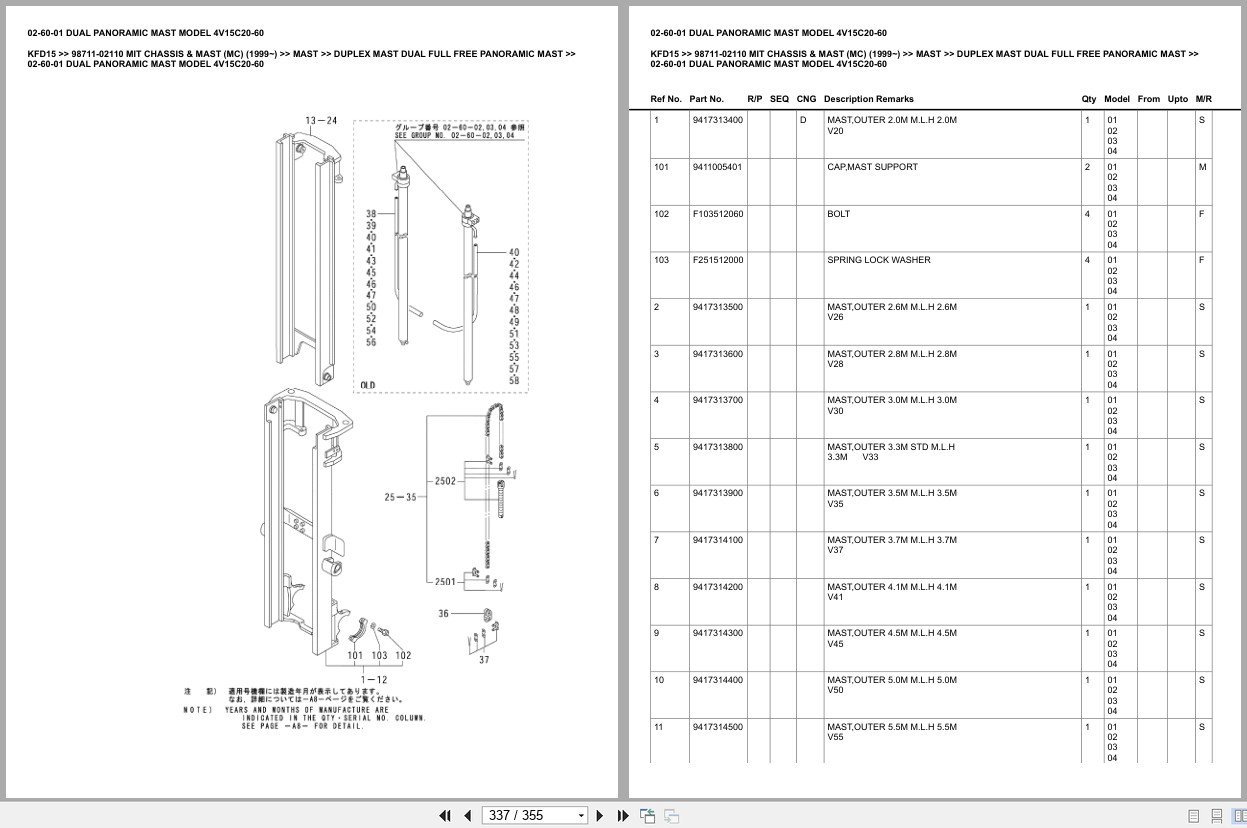

Mitsubishi Forklift KFD15 Chassis Mast MC (1999 ) Europe Parts Catalog 98711 02110 (1)

Mitsubishi Forklift KFD15 Chassis Mast MC (1999 ) Europe Parts Catalog 98711 02110 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Mitsubishi Forklift KFD15 Chassis Mast MC (1999-) Europe Parts Catalog 98711-02110

Size: 128.89 MB

Format: PDF

Language: English

Brand: Mitsubishi

Type of Machine: Forklift

Type of Manual: Parts Manual

Region: Europe

Model: Mitsubishi KFD15 Chassis Mast MC (1999-) Europe

Part Number: 98711-02110

Number of Pages: 355 Pages

50 USD

Tag: Mitssubishi Parts Catalog

Description

Description

Contents:
COOLING SYSTEM (PART-1)
COOLING SYSTEM (PART-2)
ELECTRIC WIRING
CONSOLE BOX (PART-1) (FOR KFD10D-KFD18D)
CONSOLE BOX (PART-2) (FOR KFD10D-KFD18D)
CONSOLE BOX (PART-1) (FOR KFD10T-KFD18T)
CONSOLE BOX (PART-2) (FOR KFD10T-KFD18T)
ELECTRIC EQUIPMENT (PART-1)
ELECTRIC EQUIPMENT (PART-2)
FRAME
BODY
SEAT
HEAD GUARD
CLUTCH ASSY
TORQUE-CONVERTER ASSY
TRANSMISSION (PART-1) (FOR TORQUE DRIVE)
TRANSMISSION (PART-2) (FOR TORQUE DRIVE)
TRANSMISSION (PART-3) (FOR TORQUE DRIVE)
TRANSMISSION (PART-1) (FOR DIRECT DRIVE)
TRANSMISSION (PART-2) (FOR DIRECT DRIVE)
TRANSMISSION (PART-3) (FOR DIRECT DRIVE)
CONTROL VALVE (FOR TORQUE DRIVE)
REDUCTION & DIFFERENTIAL
FRONT AXLE
REAR AXLE (PART-1)
REAR AXLE (PART-2)
WHEEL BRAKE PIPING
WHEEL BRAKE ASSY (L.H.)
WHEEL BRAKE ASSY (R.H.)
PEDAL ASSY (FOR DRY CLUTCH)
PEDAL ASSY (FOR WET CLUTCH)
PEDAL ASSY (FOR TORQUE DRIVE)
HAND BRAKE
ACCEL PEDAL
DRIVING CONTROL (FOR DRY & WET)
DRIVING CONTROL (FOR TORQUE DRIVE)
STEERING LINK (PART-1)
STEERING LINK (PART-2)
TILT STEERING ASSY (OLD TYPE)
STEERING GEAR
STEERING WHEEL
TILT STEERING ASSY (NEW TYPE)
AIR INTAKE SYSTEM
EXHAUST SYSTEM
FUEL SYSTEM
PUMP & JOINT
HYDRAULIC CONTROL
CONTROL VALVE (2 VALVES)PART-1
CONTROL VALVE (2 VALVES)PART-2
CONTROL VALVE (3 VALVES)
CONTROL VALVE (4 VALVES)
HYDRAULIC LINE (PART-1)
01-75-01A HYDRAULIC LINE (PART-2) (FOR 2,3 VALVES)
01-75-01B HYDRAULIC LINE (PART-2) (FOR 4 VALVES)
HYDRAULIC LINE (PART-3)
FLOW REGULATOR VALVE
NAME-PLATE
LIFT BRACKET COMMON PARTS
LIFT BRACKET
BACKREST
TILT CYLINDER
FORK
MAST COMMON PARTS (PART-1) (FOR DUAL PANORAMIC)
MAST COMMON PARTS (PART-2) (FOR DUAL PANORAMIC)
COMMON PARTS (PART-1)(TRIPLE FULL FREE PANORAMIC)
COMMON PARTS (PART-2)(TRIPLE FULL FREE PANORAMIC)
COMMON PARTS (PART-3)(TRIPLE FULL FREE PANORAMIC)
COMMON PARTS (PART-4)(TRIPLE FULL FREE PANORAMIC)
COMMON PARTS (PART-1)(DUAL FULL FREE PANORAMIC)
COMMON PARTS (PART-2)(DUAL FULL FREE PANORAMIC)
COMMON PARTS (PART-3)(DUAL FULL FREE PANORAMIC)
DUAL FULL FREE PANORAMIC MAST MODEL 4F15C28-40
LIFT CYLINDER (1ST) (FOR 4F15C28-40)
02-18-01A LIFT CYLINDER (2ND)(OLD TYPE) (FOR 4F15C28-40)
02-18-01B LIFT CYLINDER (2ND)(NEW TYPE) (FOR 4F15C28-40)
TRIPLE FULL FREE PANORAMA MAST MODEL 4M15C37-70
LIFT CYLINDER (1ST) (FOR 4M15C37-70)
02-20-01A LIFT CYLINDER (2ND)(OLD TYPE) (FOR 4M15C37-70)
02-20-01B LIFT CYLINDER (2ND)(NEW TYPE) (FOR 4M15C37-70)
DUAL PANORAMIC MAST MODEL 4V15C20-60
LIFT CYLINDER (OLD TYPE) (FOR 4V15C20-60)
LIFT CYLINDER (NEW TYPE) (FOR 4V15C20-22)
LIFT CYLINDER (NEW TYPE) (FOR 4V15C35-60)
