Name: Multiquip Trench Roller RX1575 RX157533 Part Manual 2015
SKU: 466083
Availability: InStock

Multiquip Trench Roller RX1575 RX157533 Part Manual 2015 1

Multiquip Trench Roller RX1575 RX157533 Part Manual 2015 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Multiquip Trench Roller RX1575 RX157533 Part Manual 2015

Size: 7.15 MB

Format: PDF

Language: English

Brand: Multiquip

Type of Machine: Trench Roller

Type of Manual: Part Manual

Model: Multiquip RX1575 Trench Roller

Engine: Yanmar 3TNV76 Diesel Engine

Publication Date: 2015

Number of Pages: 94 Pages

10 USD

Tag: Multiquip Manual

Description

Description

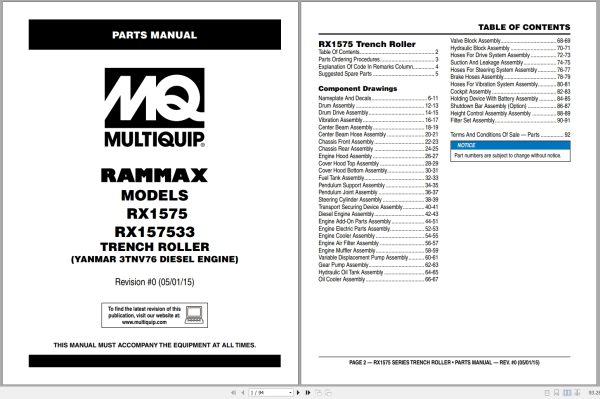

Contents:
RX1575 Trench Roller
Parts Ordering Procedures
Explanation Of Code In Remarks Column
Suggested Spare Parts

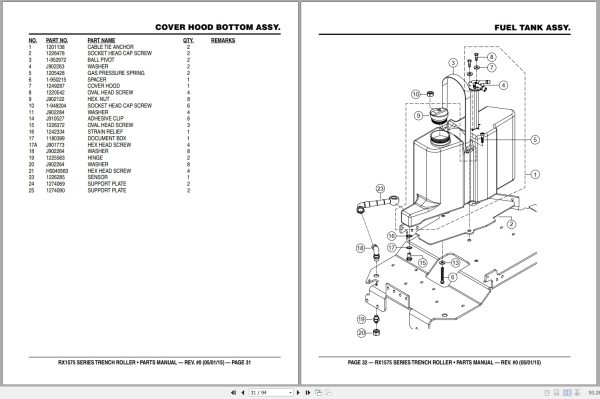

Component Drawings
Nameplate And Decals
Drum Assembly
Drum Drive Assembly
Vibration Assembly
Center Beam Assembly
Center Beam Hose Assembly
Chassis Front Assembly
Chassis Rear Assembly
Engine Hood Assembly
Cover Hood Top Assembly
Cover Hood Bottom Assembly
Fuel Tank Assembly
Pendulum Support Assembly
Pendulum Joint Assembly
Steering Cylinder Assembly
Transport Securing Device Assembly
Diesel Engine Assembly
Engine Add-On Parts Assembly
Engine Electric Parts Assembly
Engine Cooler Assembly
Engine Air Filter Assembly
Engine Muffler Assembly
Variable Displacement Pump Assembly
Gear Pump Assembly
Hydraulic Oil Tank Assembly
Oil Cooler Assembly
Valve Block Assembly
Hydraulic Block Assembly
Hoses For Drive System Assembly
Suction And Leakage Assembly
Hoses For Steering System Assembly
Brake Hoses Assembly
Hoses For Vibration System Assembly
Cockpit Assembly
Holding Device With Battery Assembly
Shutdown Bar Assembly (Option)
Height Control Assembly Assembly
Filter Set Assembly
Terms And Conditions Of Sale — Parts
