New Holland Excavator E35BSR Tier 4 Parts Catalog S3PX00038ZE01NA 2008

Description

Contents:
Filter List
Sleeve
Nut
Paint Color
Frame Assy, Upper (Pw52f00047f1, Pw24c00005f1)
Bracket Assy, Swing (Nibbler & Breaker) (9px02b00148f1, Px02b00147f1,
Px02b00149f1)
Counterweight Installation (Px60c00017f1, Pw60c00018f1,
Pw60c00019f1)
Engine Assy (Pw02p00018f1)
Engine Installation (Pw02p00019f1, Pw02p00020f1)
Radiator Installation (Pw05p00042f1, Pw05p00047f1)
Radiator Assy (Pw05p00040f1, Pw05p01214f1)
Cleaner Assy, Air (Pw11p00031f1, Pw11p00027f1, Pw11p00028f1)
Cleaner Assy, Air (Pw11p00021f1, Pw11p00027f1, Pw11p00020f1)
Muffler Assy (Px12p00011f1)
Fuel Lines (Pw21p00009f1)

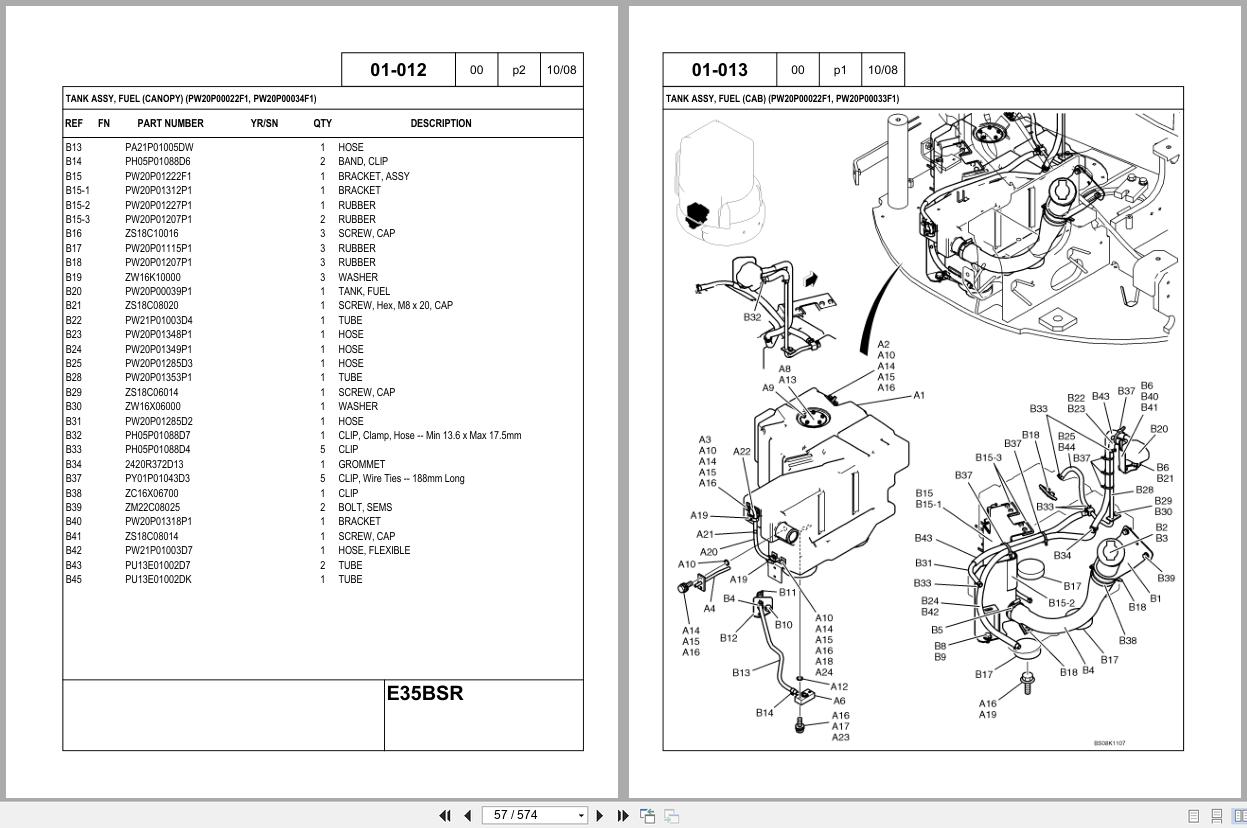

Tank Assy, Fuel (Canopy) (Pw20p00022f1, Pw20p00034f1)
Tank Assy, Fuel (Cab) (Pw20p00022f1, Pw20p00033f1)
Tank Assy, Hyd (Nibbler & Breaker) (Pw33h00050f1, Pw33h00039f1)
Control Assy, Engine (With Deceleration), (Pw11m00010f1)
Control Assy, Engine (With Deceleration)
Power Take-Off Assy (Pw30p00007f1)
Motor Installation, Swing (Pw32w00005f1)
Hyd Lines, Cylinder (Swing) (Px42h00027f1)
Valve Installation (Pw64h00079f1)
Hyd Lines, Pump (Pw30h00007f1)
Hyd Lines, Upper (Pw03h00035f1, Pw19h00019f1)
Hyd Lines, Upper (Pw03h00035f1)
Hyd Lines, Upper (Pw03h00036f1)
Hyd Lines, Return (Pw32h00012f1)
Controls, Operators (Pw03m00092f1)
Cover Assy (Pw03m01702f1)
Grip Assy (Pw03m01954f1, Pw03m01718f1)
Control Box Assy (Left Hand) (Pw03m00093f1)
Stand Assy, Control (Canopy) (Pw03m00108f1, Pw03m01715f1)
Stand Assy, (Cab) (Pw03m00109f1, Pw03m01716f1)
Lever Assy, Control (Ph50m00011f1, Pw55m00015f1)
Control Lines, Remote (Nibbler & Breaker) (Pw64h00037f1,
Pw64h00038f1, Pw68h00031f1)
Pw68h00031f1)
Control Lines, Remote (Multi) (Pw06h00008f1, Pw64h00055f1,
Pw64h00056f1)
Conrol Lines, Remote (Dozer) (Pw68h00043f1)
Control Lines, Remote (Pw62h00021f1, Pw64h00043f1)
Control Lines, Remote, (Pw64h00087f1)
Plate Group, Floor (Canopy) (Pw03m00115f1)
Plate Group, Floor (Cab) (Pw03m00114f1)
Cab Installation (Pw02c00039f1, Pw02c00050f1%K2)
Cab Installation (Pw02c00024f1)
Cab Assy, (Pw02c00050f1%K2, Pw02c00060f1%K2)
Cab Assy, (Pw02c00068f1)
Guard Assy, Head (Pw25c00003f1)
Window Assy, Frame (Pw50c00002f1)
Door Assy, Cab (Pm51c00006f1%Ld)
Canopy Assy (Pw06c00036f1, Pw80e00006f1, Pw22t00169f1)
Canopy Installation (Pw06c00027f1)
Light Installation (Cab) (Pw80e00007f1)
Light Assy, (Pw80s00003f1)
Light Assy, (Pw80s00004f1)
Light Assy, (Pm80s00008f1)
Seat Installation (Pw25m00029f1)
Guard Installation (Canopy) (Pw21c00032f1)
Guard Installation (Canopy) (Pw21c00027f1)
Guard Installation (Canopy)
Guard Installation (Canopy) (Pw22c01151f1)
Guard Installation (Cab) (Pw21c00033f1)
Guard Installation (Cab) (Pw21c00027f1)
Guard Installation (Cab)
Guard Installation (Cab) (Pw22c01151f1)
Key Assy (Pw03m01869f1)
Guage Assy, Cluster (Ph59s00005f1)
Battery Installation (Pw72e00011f1)
Heater Assy (With Heater) (Pw21m00013f1)
Heater Assy (Without Heater) (Pw21m00012f1)
Elec Assy, Upper (Px03e00002f1)
Harness Assy, Cab (Pw14e00002f1)
Harness Assy (Air Cleaner) (Pw11e00013f1)
Harness Assy (Ph11e00021f1)
Harness Assy, Engine (Pw16e00005f1)
Relay Assy (Px24e00007f1)
Low Group (Px01f00008f1, Px53d00010f1, Pw19h00023f1)
Ring Assy, Slewing (Pw40f00006f1)
Idler Assy, Crawler (Px52d00032f1)
Idler Assy, Crawler (Px52d00033f1)
Idler Assy (Px52d00034f1)
Idler Adjust Assy (Px54d00011f1)
Roller Assy, Track (Px64d00010f1)
Roller Assy, Upp (Pw64d00008f1)
Shoe Assy. (Px60d00019f1, Px60d00021f2)
Shoe Assy (Px61d00018f1)
Hyd Lines, Low (Px02h00007f1, Pw19h00012f1, Pw13h00001f1)
Dozer Assy (Px51b00078f1, Px51b00071f1, Pw51b00028f1, Px51b00072f1)
Boom Assy, Std 2.5m (8ft 2in) (Px02b00142f1, Px02b00168f1, Px02b00161f1)
Hyd Lines, Boom 2.5m (8ft 2in) (Px42h00053f1, Px42h00056f1, Px42h00057f1)
Hyd Lines, Boom 2.5m (8ft 2in) (Nibbler & Breaker) (Px42h00068f1,
Px43h00017f1)
Cylinder Instal (Canopy) (Px02b00146f1, Px02b00141f1)
Cylinder Instal (Cab) (Px02b00145f1, Px02b00141f1)
Light Instal (Boom) (Pw80e00012f1, Pw15e00005f1)
Arm Assy, Std 1.32m (4ft 4in) (Px12b00092f1, Px12b00120f1)
Hyd Lines, Arm 1.32m (4ft 4in) (Px43h00025f1, Px12b00108f1, Px43h00024f1,
Px43h01011f1, Px43h01021f1)
Bucket Instal (Px61b00072f1)
Tool & Accessory (Pm01t00002fa)
Manual Assy (Px91z00011fe)
Engine Instal (Cooler) (Pw02p00021f1, Pw02p00022f1)
Radiator Instal (Cooler) (Pw05p00042f1, Pw05p00048f1)
Radiator Assy (Cooler) (Pw05p00040f1, Pw05p01217f1)
Fuel Lines (Cooler) (Pw21p00011f1)
Power Take-Off Assy (Cooler) (Pw30p00006f1)
Control Lines, Remote (Cooler) (Pw64h00047f1)
Control Lines, Remote (With A Pump Z Port) (Pw62h00029f1,
Pw64h00069f1)
Control Lines, Remote (With A Pump Z Port) (Pw62h00069f1)
Cab Instal (Cooler) (Pw02c00073f1, Pw02c00060f1%K2)
Cab Instal (Cooler) (Pw02c00041f1)
Cab Assy (Cooler) (Pw02c00069f1)
Cab Assy (Cooler) (Pw02c00069f1, Pw50c00002f1)
Radio Instal (Without Radio) (Pm54e00003f2)
Stopper Assy (Cooler) (Pw25m01067f1)
Guard Instal (Cooler) (Pw21c00034f1, Pw22c00022f1)
Guard Instal (Cooler) (Pw21c00034f1)
Guard Instal (Cooler) (Pw21c00034f1, Pw21c00027f1)
Guard Instal (Cooler) (Pw21c00034f1, Pw22c01151f1)
Cooler Assy (Pw20m00028f1, Pw20m00025f1)
Cooler Assy (Pw20m00022f1)
Drier Assy, Air (Pw96v00005f1)
Cooler Assy (Ph20m00016f1)
Cooler Assy (Ph20m00019f1)
Harness Assy (Cooler) (Ph11e00012f1)
Name Plate Installation (Pw22t00083f2), Page 1 Of 2
Name Plate Installation (Pw22t00083f2), Page 2 Of 2
Name Plate Installation (Pw22t00123f1)
Name Plate Installation (Pw22t00185f1)
Name Plate Installation (Decel) (Pw22t00113f1)
Name Plate Installation (Pw22t00183f1)
Name Plate Installation (Pw22t00182f1)
Name Plate Installation (Cema Mark) (Yn22t00288f1)
Name Plate Installation (Cab) (Pw22t00085f1)
Name Plate Installation (Pw22t00156f2)
Name Plate Installation (Ph22t00094f1)
Name Plate Installation (Model) (Px22t00112f1)
Name Plate Installation (Pw22t00170f2)
Name Plate Installation (Pw22t00172f1)
Name Plate Installation (Nibbler & Breaker) (Pw22t00087f1,
Pw22t00087f2)
Name Plate Installation(Attachment) (Pw22t00166f2)
Name Plate Installation (Canopy) (Px22t00085f3)
Name Plate Installation (Cab) (Px22t00086f3)
Valve Assy, Control (Px30v00041f1, Px30v00041f2, Px30v00041f3)
Valve Assy, Shuttle (Ph26v00001f1)
Valve Assy Control (Dozer) (Px30v00048f1)
Valve Assy, Control (Slewing) (Px30v00049f1, Px30v00049f2,
Px30v00049f3)
Valve Assy, Control (Supply & Straight Travel) (Px30v00050f1)
Valve Assy, Control (Arm) (Px30v00051f1, Px30v00051f2)
Valve Assy, Control (Service) (Px30v00052f1)
Vale Assy, Control (Boom Swing) (Px30v00053f1)
Valve Assy, Control (Travel Right) (Px30v00054f1, Px30v00054f2)
Valve Assy, Control (Supply) (Px30v00055f1)
Valve Assy, Control (Travel Left) (Px30v00056f1, Px30v00056f2)
Valve Assy, Control (Boom) (Px30v00057f1, Px30v00057f2)
Valve Assy, Control (Boom Lock) (Pm30v01026f1)
Valve Assy, Control (Bucket) (Px30v00058f1, Px30v00058f2)
Valve Assy, Overload Relief (Pm22v00005f1 – Fg)
Valve Assy, Relief (Pr22v00004f1-Fa)
Valve Assy, Relief (Px22v00004f1, Px22v00004f2)
Motor Assy (Swing) (Px15v00024f1)
Plug Assy (Ph50t00001f1)
Valve Assy, Relief (Px22v00003f1)
Motor Assy (Propelling) (Px15v00025f1)
Pump Assy (Px10v00013f1)
Shaft Assy (Px10v01004f1)
Block Assy (Px10v01005f1)
Rotary Assy (Px10v01006f1)
Cover Assy (Px10v01007f1)
Spring Assy (Px10v01008f1)
Pump Assy (Px10v00015f1)
Housing Assy (Px10v01010f1)
Pump Assy, Gear (Px10v00014f1)
Pump Assy (Px10v00012f1)
Housing Assy (Px10v01009f1)
Cylinder Assy, Boom (Canopy) (Px01v00062f1)
Cylinder Assy, Boom (Cab) (Px01v00065f1)
Cylinder Assy, Arm (Px01v00063f1)
Cylinder Assy, Bucket (Px01v00064f1)
Cylinder Assy, Dozer (Px01v00043f1 & F2)
Cylinder Assy, Swing (Px01v00042f1, F2)
Valve Assy, Pilot, (Px30v00043f1)
Valve Assy, Pilot (Pb30v00002f1, F2)
Valve Assy, Pilot (Propelling) (Pm30v00019f6)
Valve Assy, Solenoid (Px35v00003f1)
Valve Assy, Relief (Yr22v00001f1)
Valve Assy, Solenoid (Pw35v00002f1)
Valve Assy, Solenoid (Yj35v00004f1, F2)
Valve Assy, Selector (Px30v00060f1)
Joint Assy, Swivel (Pw55v00015f1, F2)
Cylinder Block
Gear Housing
Flywheel Housing & Oil Smup
Cylinder Head & Bonnet
Suction Manifold
Exhaust Manifold
Camshaft & Driving Gear
Crank Shaft & Piston
Lub, Oil System
Cooling Water System
Fuel Injection Pump
Governor
Fuel Injection Valve
Fuel Line
Starting Motor
Generator
Gasket Set
