Name: New Holland Hydraulic Excavator Handy Checker V3 Programing Tool
SKU: 587318
Availability: InStock

New Holland Hydraulic Excavator Handy Checker V3 Remote Installation Cover

New Holland Hydraulic Excavator Handy Checker V3 Remote Installation

New Holland Hydraulic Excavator Handy Checker V3 Remote Installation 1

New Holland Hydraulic Excavator Handy Checker V3 Remote Installation 2

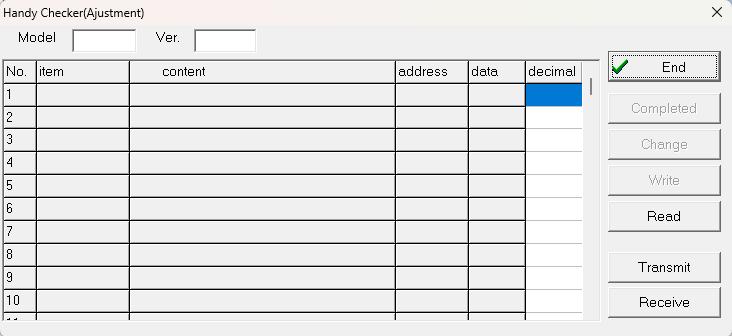

New Holland Hydraulic Excavator Handy Checker V3 Remote Installation 3

New Holland Hydraulic Excavator Handy Checker V3 Remote Installation 4

✓

Expert Support

✓

Full Speed

✓

100% Working

New Holland Hydraulic Excavator Handy Checker V3 Programing Tool

Size: 38.9 MB (Winrar Files)

Interface + Database Language: English

OS: Windows 7, Windows 8, Windows 10, Windows 11 32 64bit (Tested on Windows 10 Pro 22H2 64bit English)

Price range: 190 through 450 USD

Description
Additional information

Description

0702KS0300.mot
0702KS0500.mot
130NS510.HEX
16KN0200.hex
16KS0400.hex
1708KS0300.mot
1708KS0600.mot
1708KS5100.mot
1708KS5200.mot
1709KS0300.mot
1709KS0400.mot
1709LS0400.mot
2008BN0300.mot
2008BS0400.mot
2108KN0100.mot
2108KN0300.mot
2108KS0200.mot
2108KS0202.mot
2108KS0500.mot
2108KS0600.mot
2108KS5100.mot
2108KS5200.mot
2109KS0200.mot
2109KS0300.mot
2109LS0400.mot
21KN0300.HEX
21KS0800.hex
3508KS0600.mot
3509LS0300.mot
4858KS0201.mot
4859LS0100.mot
controllerContent47.txt
Excavator3 NH old.htm
Excavator3 NH.htm

NH Dealer Software Index old.xls
NH Dealer Software Index.xls

MODEL CONTROLLER WITH SOFTWARE PART NO. CONTROLLER WITHOUT SOFTWARE PART NO. VERSION File Name (Suffix .HEX or .MOT) APPLIC. REVISION DESCRIPTION SERIAL NUMBER AFFECTIVITY ISSUE DATE
EH130/E130 YY22E00071F1 YN22E00108F1 5.10 130NS510 Std Original Software Release, Tier II NATA13XXX~ 12/2/03
EH160/E3130 YM22E00008F1 YN22E00149F3 4.00 16KS0400 Std Improved arm control N4DA16XXX~ 11/5/05
EH160/E125 YM22E00008F1 YN22E00149F3 2.00 16KN0200 LR Current version, replaces defective vers N4DA16XXX~ 2/3/04
EH215/E125 YN22E00146F1 YN22E00149F3 8.00 21KS0800 Std Improved arm control N4DA21XXX~ 11/5/05
EH215/E215 YN22E00168F1 YN22E00149F3 3.00 21KN0300 LR Current N4DA21XXX~ 4/17/03
E70B/80B NA NA 3.00 0702KS0300 Std Previous, Standard All 7/22/08
E70B/80B NA NA 5.00 0702KS0500 Std Current All 2/27/12
E175B (-8) YM22E00023F3 YN22E00425F1 3.00 1708KS0300 Std Do Not Use (engine rpm increase) all 10/25/07
E175B (-8) YM22E00023F6 YN22E00425F1 6.00 1708KS0600 Std Current, Standard (Controller regulator, increase engine RPM) all 6/14/13
E215B (-8) YN22E00234F3 YN22E00425F1 2.00 2108KS0200 Std Previous, Standard All 7/2/07
E215B (-8) N/A YN22E00425F1 2.02 2108KS0202 Std Previous, Standard (modified swing priority) All 8/12/07
E215B (-8) YN22E00234F7 YN22E00425F1 6.00 2108KS0600 Std Current, Standard (Controller Countermeasure) all std 6/14/13
E215B (-8) TBD TBD 5.00 2108KS0500 Std Current, Standard All 2/28/12
E215B (-8) YN22E00234F7 YN22E00425F1 6.00 2108KS0600 Std Current, Standard (Controller Countermeasure) all std 6/14/13
E215B (-8) YN22E00266F1 YN22E00425F1 1.00 2108KN0100 LR Current, Long Reach All 6/30/07
E215B (-8) YN22E00266F3 YN22E00425F1 3.00 2108KN0300 LR Current, Long Reach (Controller Countermeasure) all LR 6/14/13
E175B (-8 ROPS) YM22E00027F1 YN22E00425F1 1.00 1708KS5100 Std Previous, Standard Use V.2 3/20/11
E175B (-8 ROPS) YM22E00027F2 YN22E00425F1 2.00 1708KS5200 Std Current, Standard YM04 3/20/11
E215B (-8 ROPS) YN22E00396F1 YN22E00425F1 1.00 2108KS5100 Std Previous, Standard All 3/20/11
E215B (-8 ROPS) YN22E00396F2 YN22E00425F1 2.00 2108KS5200 Std Current, Standard All 3/20/11
E170-9 N/A YN22E00425F1 3.00 1709KS0300 Std Previous, Standard All 1/26/12
E170-9 YM22E00033F2 YN22E00425F1 4.00 1709KS0400 Std Current, Standard (Controller Countermeasure) all std 6/14/2013
E170C(-9) Unregulated YM22E00041F2 YN22E00425F1 4.00 1709LS0400 Std Current, Standard (Controller Countermeasure) all std 6/14/2013
E215C (-9) YN22E00455F1 YN22E00425F1 2.00 2109KS0200 Std Previous, Standard All 10/28/11
E215C (-9) YN22E00455F3 YN22E00425F1 3.00 2109KS0300 Std Current, Standard (Controller Countermeasure) All 6/14/2013
E215C (-9) Unregulated YN22E00475F2 YN22E00425F1 4.00 2109LS0400 Std Current, Standard (Controller Countermeasure) All 6/14/2013
E-385B unregulated N/A YN22E00425F1 6.00 3508KS0600 Std Current, Standard All 12/10/2008
E-485B unregulated N/A YN22E00425F1 2.01 4858KS0201 Std Current, Standard All 7/17/2008
E-385C unregulated N/A YN22E00425F1 3.00 3509LS0300 Std Current, Standard All 6/12/2013
E-485C unregulated N/A YN22E00425F1 1.00 4859LS0100 Std Current, Standard All 1/2/2013
BRAZIL PRODUCTION N/A YN22E00425F1 4.00 2008BS0400 Std Current Standard All 7/23/13
E215B, CX220B N/A
E215B Mass Excavator N/A
BRAZIL PRODUCTION N/A YN22E00425F1 3.00 2008BN0300 Std Current Standard All 7/23/13
