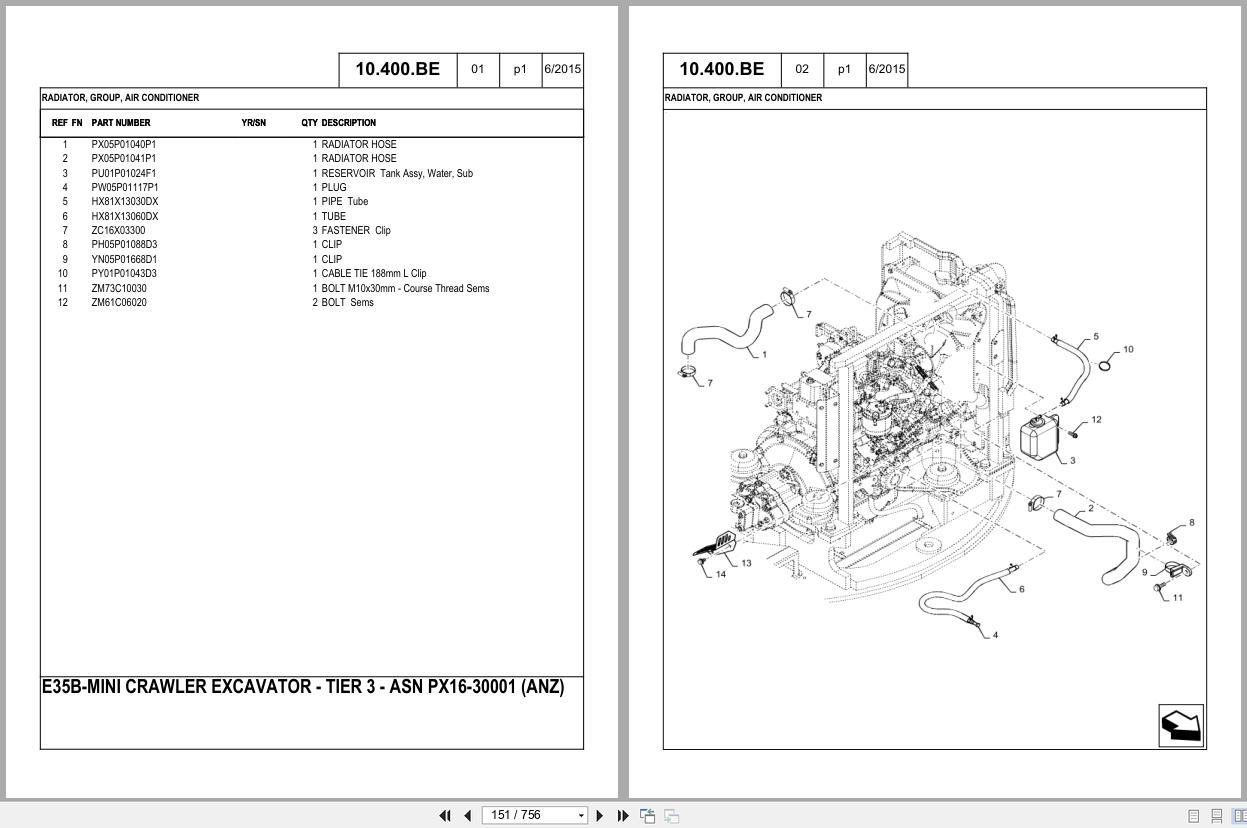

New Holland Mini Crawler Excavator E35B Tier 3 Parts Catalog 47880304 2015 (1)

New Holland Mini Crawler Excavator E35B Tier 3 Parts Catalog 47880304 2015 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

New Holland Mini Crawler Excavator E35B Tier 3 Parts Catalog 47880304 2015

Size: 47.80 MB

Format: PDF

Language: English

Brand: New Holland

Type of Machine: Mini Crawler Excavator

Type of Manual: Parts Catalog

Model: New Holland E35B Tier 3 Mini Crawler Excavator

Serial Number: PX16-30001

Part Number: 47880304

Publication Date: 2015

Number of Pages: 756 Pages

20 USD

Tags: E35B, New Holland Mini Crawler Excavator Manual, New Holland Parts Catalog, tie

Description

Description

Contents:
Pictorial Index – Main Sections, Canopy
Pictorial Index – Main Sections, Cab
Pictorial Index – Engine
Pictorial Index – Hydraulic Systems
Pictorial Index – Frames And Ballasting
Pictorial Index – Tracks And Track Suspension
Pictorial Index – Cab Climate Control
Pictorial Index – Electrical Systems
Pictorial Index – Lubrication System
Pictorial Index – Front Loader And Bucket
Pictorial Index – Booms, Dippers & Bucket
Pictorial Index – Dozer
Pictorial Index – Accessories
Pictorial Index – Platform, Cab, Bodywork And Decal
Initial Stocking List (List A)
Initial Stocking List (List B)
Filter List
Capacities
Section Index – Engine
Cylinder Block
Gasket, Set
Engine Install
Cylinder Head & Bonnet
Flywheel & Housing, Oil Sump
Crankshaft, Piston
Camshaft, Driving Gear
Gear, Housing
Cleaner, Assy, Air – W / Element
Cleaner, Assy, Air
Cleaner Install, Air
Fuel Tank Install
Tank, Assy, Fuel
Fuel Line
Fuel Injection Valve
Fuel Injection Pump
Control, Assy, Engine – Diesel
Control, Assy, Engine, Diesel
Governor
Exhaust Manifold
Muffler, Assy
Suction Manifold
Lubricant, Oil System
Cooling Water System
Radiator, Group, Air Conditioner
Radiator Install – Air Conditioner
Radiator, Assy
Radiator Install – Air Conditioner Less
Section Index – Hydraulic Systems
Pump, Assy, Hydraulic
Power Take – Off Assy
Control, Lines, Remote
Control, Lines, Remote – Nibbler & Breaker
Clamp, Assy
Tank Install, Hyd
Tank, Assy, Hydraulic
Hyd. Line, Pump
Hyd. Line, Return
Hyd. Line, Upper
Valve, Selector
Motor Install, Swing
Motor, Assy, Swing
Hyd. Line, Lower
Hyd. Line, Propel
Joint Install, Swivel
Joint, Swivel
Hyd. Line, Swivel
Valve Install
Pilot Valve
Grip, Assy
Pedal Install
Control, Lines Propel
Control, Assy, Dozer
Valve Install – Nibbler & Breaker
Valve, Assy, Control
Control, Lines, Main
Control, Lines, Multi – Bhl Multi
Control, Lines, Valve
Valve, Assy, Solenoid
Control, Lines, Valve, W/ And W/Out Accumulator
Valve Shuttle
Valve, Solenoid
Valve, Shuttle
Control, Lines , Valve
Lever, Assy, Control
Hyd. Line, Arm 1.37m – Nibbler & Breaker
Control, Lines, Block
Valve Install – Bhl Multi
Valve, Control
Cylinder, Install – Boom
Cylinder, Boom
Hyd. Line, Boom
Hyd. Line, Cylinder, Boom
Cap, Assy
Cylinder Install, Arm
Cylinder, Arm
Hyd. Line, Cylinder, Arm
Cylinder Install – Bucket
Cylinder, Bucket
Hyd. Line, Cylinder, Bucket
Hyd. Line, Arm 1.37m
Cylinder Install – Swing
Cylinder, Swing
Hyd. Line, Cylinder – Swing
Cylinder, Install – Dozer
Cylinder, Dozer
Hyd. Line, Cylinder, Dozer
Section Index – Frames And Ballasting
Frame, Assy, Lower
Cover Assy, Under
Lower, Group
Bracket, Group, Swing – Nibbler & Breaker
Bracket Install, Swing
Frame, Group, Upper
Slewing Ring, Assy
Counterweight, Install – 655kg
Counterweight, Assy
Counterweight Install
Counterweight, Gain
Section Index – Tracks And Track Suspension
Shoe, Assy – 300mm
Rubber, Crawler Belt
Motor Install, Propel
Motor, Assy, Propel
Idler, Assy, Crawler, Left
Idler, Assy, Crawler, Right
Roller, Assy, Track
Roller, Assy, Upper
Section Index – Cab Climate Control
Air Conditioner
Air Conditioner, Assy
Section Index – Electrical Systems
Harness, Assy, Air Conditioner
Harness, Assy, Upper
Harness, Assy, Upper, Floor
Travel Alarm, Assy
Starting Motor
Key, Assy
Alternator Assy
Battery Install
Light, Assy, Canopy
Monitor,Install
Monitor, Install
Socket, Assy – 12v Socket
Harness, Assy, Boom
Light Install, Boom
Radio Install – Radio Less
Radio Install – Cab
Light Install – Cab
Section Index – Lubrication System
Lubrication Line, Swing Cylinder Attachment
Section Index – Front Loader And Bucket
Bucket, Assy, 0.05m3
Bucket, Assy, 0.07m3
Bucket, Assy, 0.09m3
Bucket, Assy, 0.12m3
Bucket, Assy, 0.11m3
Section Index – Booms, Dippers & Bucket
Bucket, Assy (Cnh)
Thumb
Bucket Install
Boom, Group
Boom, Install
Boom, Hoe 2.47m
Arm, 1.37m
Cap, Assy, Arm
Arm, Group
Arm Install
Section Index – Dozer
Dozer Blade, Assy
Dozer Blade, Group
Dozer Blade Install
Section Index – Accessories
Tool, Assy
Section Index – Platform, Cab, Bodywork & Decals
Name Plate Install – Air Conditioner Less
Plate, Group, Floor, Cab Nibbler & Breaker
Plate, Group, Floor – Canopy, Nibbler & Breaker
Canopy, Assy
Guard Install
Seat Install
Cab Install
Mirror Install – Canopy Rear View Mirror
Mirror Install – Canopy Rear Under Mirror
Control, Operators – Cab
Stand, Assy
Cover, Assy, Stand
Cover Assy, Stand
Control, Operators – Canopy
Control, Operators
Control Box Assy
Support, Assy
Cover Assy
Cover Assy, Canopy
Cover Assy, Cab
