Name: New Idea Air Planter 9000 Series Parts Catalog 988014A
SKU: 456117
Availability: InStock

New Idea Air Planter 9000 Series Parts Catalog 988014A 1

New Idea Air Planter 9000 Series Parts Catalog 988014A 2

New Idea Air Planter 9000 Series Parts Catalog 988014A 3

✓

Expert Support

✓

Full Speed

✓

100% Working

New Idea Air Planter 9000 Series Parts Catalog 988014A

Size: 5.52 MB

Format: PDF

Language: English

Brand: New Idea

Type of Machine: Air Planter

Type of Manual: Parts Catalog

Model: New Idea 9000 Series Air Planter

Part Number: 988014A

Number of Pages: 143 Pages

10 USD

Tag: New Idea Parts Manual

Description

Description

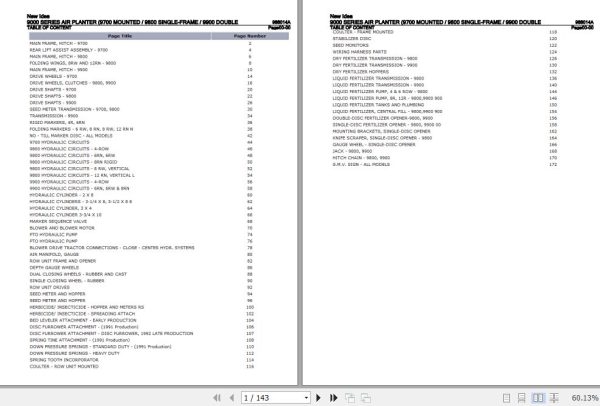

Contents:
Main Frame, Hitch – 9700
Rear Lift Assist Assembly – 9700
Main Frame, Hitch – 9800
Folding Wings, 8rw And 12rn – 9800

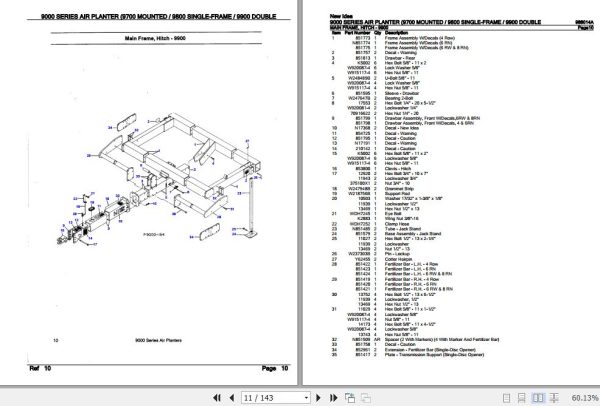

Main Frame, Hitch – 9900
Drive Wheels – 9700
Drive Wheels, Clutches – 9800, 9900
Drive Shafts – 9700
Drive Shafts – 9800
Drive Shafts – 9900
Seed Meter Transmission – 9700, 9800
Transmission – 9900
Rigid Markers, 4r, 6rn
Folding Markers – 6 Rw, 8 Rn, 8 Rw, 12 Rn N
No – Till Marker Disc – All Models
9700 Hydraulic Circuits
9800 Hydraulic Circuits – 4-Row
9800 Hydraulic Circuits – 6rn, 6rw
9800 Hydraulic Circuits – 8rn Rigid
9800 Hydraulic Circuits – 8 Rw, Vertical
9800 Hydraulic Circuits – 12 Rn, Vertical L
9900 Hydraulic Circuits – 4-Row
9900 Hydraulic Circuits – 6rn, 6rw & 8rn
Hydraulic Cylinder – 2 X 8
Hydraulic Cylinders – 3-1 4 X 8, 3-1 2 X 8 8
Hydraulic Cylinder, 3 X 4
Hydraulic Cylinder 3-3 4 X 10
Marker Sequence Valve

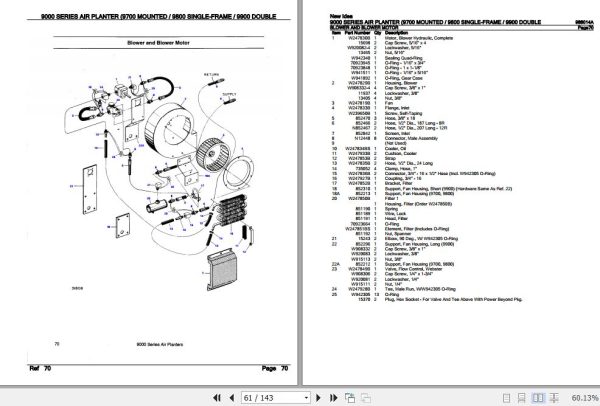

Blower And Blower Motor
Pto Hydraulic Pump
Blower Drive Tractor Connections – Close – Center Hydr. Systems
Air Manifold, Gauge
Row Unit Frame And Opener
Depth Gauge Wheels
Dual Closing Wheels – Rubber And Cast
Single Closing Wheel – Rubber
Row Unit Drives
Seed Meter And Hopper
Herbicide Insecticide – Hopper And Meters Rs
Herbicide Insecticide – Spreading Attach
Bed Leveler Attachment – Early Production
Disc Furrower Attachment – (1991 Production)
Disc Furrower Attachment – Disc Furrower, 1992 Late Production
Spring Tine Attachment – (1991 Production)
Down Pressure Springs – Standard Duty – (1991 Production)
Down Pressure Springs – Heavy Duty
Spring Tooth Incorporator
Coulter – Row Unit Mounted
Coulter – Frame Mounted
Stabilizer Disc
Wiring Harness Parts
Dry Fertilizer Transmission – 9800
Dry Fertilizer Transmission – 9900
Dry Fertilizer Hoppers
Liquid Fertilizer Transmission – 9800
Liquid Fertilizer Transmission – 9900
Liquid Fertilizer Pump, 4 & 6 Row – 9800
Liquid Fertilizer Pump, 8r, 12r – 9800,9900 900
Liquid Fertilizer Tanks And Plumbing
Liquid Fertilizer, Central Fill – 9800,9900 900
Double-Disc Fertilizer Opener-9800, 9900
Single-Disc Fertilizer Opener – 9800, 9900 00
Mounting Brackets, Single-Disc Opener
Knife Scraper, Single-Disc Opener – 9800
Gauge Wheel – Single-Disc Opener
Jack – 9800, 9900
Hitch Chain – 9800, 9900
S.M.V. Sign – All Models
