New Idea Combine 545 4296 Parts Catalog W448070

Description

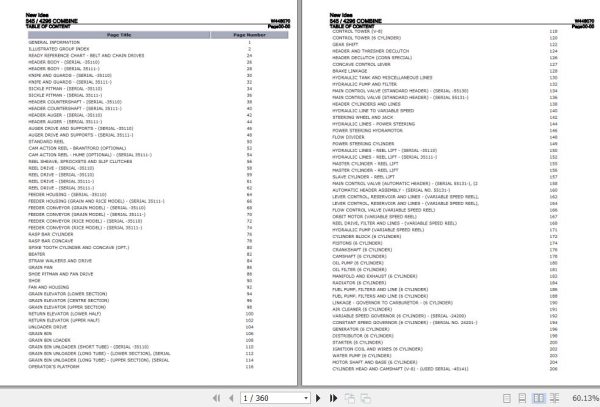

Contents:
General Information
Illustrated Group Index

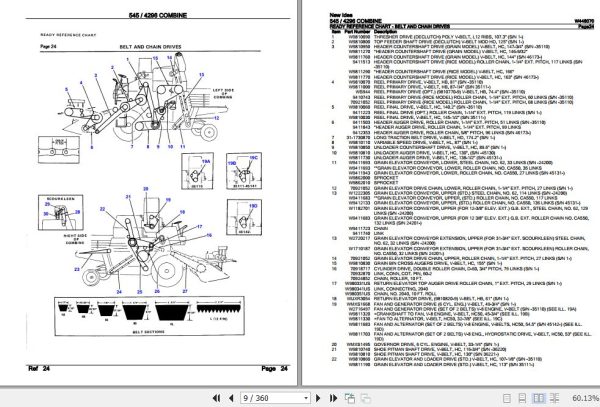

Ready Reference Chart – Belt And Chain Drives
Header Body – (Serial -35110)
Header Body – (Serial 35111-)
Knife And Guards – (Serial -35110)
Knife And Guards – (Serial 35111-)
Sickle Pitman – (Serial -35110)
Sickle Pitman – (Serial 35111-)

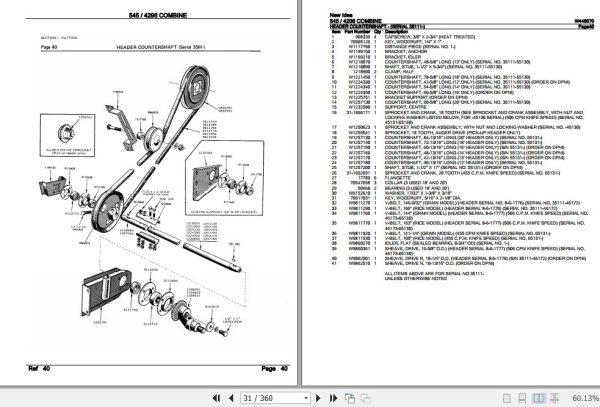

Header Countershaft – (Serial -35110)
Header Countershaft – (Serial 35111-)
Header Auger – (Serial -35110)
Header Auger – (Serial 35111-)
Auger Drive And Supports – (Serial -35110)
Auger Drive And Supports – (Serial 35111-)
Standard Reel
Cam Action Reel – Brantford (Optional)
Cam Action Reel – Hume (Optional) – (Serial 35111-)
Reel Sheave, Sprockets And Slip Clutches
Reel Drive – (Serial -35110)
Reel Drive – (Serial 35111-)
Feeder Housing – (Serial -35110)
Feeder Housing (Grain And Rice Model) – (Serial 35111-)
Feeder Conveyor (Grain Model) – (Serial -35110)
Feeder Conveyor (Grain Model) – (Serial 35111-)
Feeder Conveyor (Rice Model) – (Serial -35110)
Feeder Conveyor (Rice Model) – (Serial 35111-)
Rasp Bar Cylinder
Rasp Bar Concave
Spike Tooth Cylinder And Concave (Opt.)
Beater
Straw Walkers And Drive
Grain Pan
Shoe Pitman And Fan Drive
Shoe
Fan And Housing
Grain Elevator (Lower Section)
Grain Elevator (Centre Section)
Grain Elevator (Upper Section)
Return Elevator (Lower Half)
Return Elevator (Upper Half)
Unloader Drive
Grain Bin
Grain Bin Loader
Grain Bin Unloader (Short Tube) – (Serial -35110)
Grain Bin Unloader (Long Tube) – (Lower Section), (Serial
Grain Bin Unloader (Long Tube) – (Upper Section), (Serial
Operator’s Platform
Control Tower (V-8)
Control Tower (6 Cylinder)
Gear Shift
Header And Thresher Declutch
Header Declutch (Corn Special)
Concave Control Lever
Brake Linkage
Hydraulic Tank And Miscellaneous Lines
Hydraulic Pump And Filter
Main Control Valve (Standard Header) – (Serial -55130)
Main Control Valve (Standard Header) – (Serial 55131-)
Header Cylinders And Lines
Hydraulic Line To Variable Speed
Steering Wheel And Jack
Hydraulic Lines – Power Steering
Power Steering Hydramotor
Flow Divider
Power Steering Cylinder
Hydraulic Lines – Reel Lift – (Serial -35110)
Hydraulic Lines – Reel Lift – (Serial 35111-)
Master Cylinder – Reel Lift
Slave Cylinder – Reel Lift
Main Control Valve (Automatic Header) – (Serial 55131-), (2
Automatic Header Assembly – (Serial No. 55131-)
Lever Control, Reservoir And Lines – (Variable Speed Reel),
Flow Control Valve (Variable Speed Reel)
Orbit Motor (Variable Speed Reel)
Reel Drive, Filter And Lines – (Variable Speed Reel)
Hydraulic Pump (Variable Speed Reel)
Cylinder Block (6 Cylinder)
Pistons (6 Cylinder)
Crankshaft (6 Cylinder)
Camshaft (6 Cylinder)
Oil Pump (6 Cylinder)
Oil Filter (6 Cylinder)
Manifold And Exhaust (6 Cylinder)
Radiator (6 Cylinder)
Fuel Pump, Filters And Line (6 Cylinder)
Linkage – Governor To Carburetor – (6 Cylinder)
Air Cleaner (6 Cylinder)
Variable Speed Governor (6 Cylinder) – (Serial -24200)
Constant Speed Governor (6 Cylinder) – (Serial No. 24201-)
Generator (6 Cylinder)
Distributor (6 Cylinder)
Starter (6 Cylinder)
Ignition Coil And Wires (6 Cylinder)
Water Pump (6 Cylinder)
Motor Shaft And Base (6 Cylinder)
Cylinder Head And Camshaft (V-8) – (Used Serial -45141)
Cylinder Head And Camshaft (V-8) – (Used Serial No. 45142-)
Cylinder Block (V-8) – (Used Serial -45141)
Cylinder Block (V-8) – (Used Serial 45142-)
Pistons (V-8)
Crankshaft (V-8)
Oil Pump (V-8)
Water Pump (V-8)
Radiator (V-8)
Oil Filter And Oil Lines (V-8) – (Used Serial No. -45141)
Fuel Pump, Filters And Lines (V-8)
Carburetor (V-8) (Grain And Rice)
Carburetor (V-8) (Rice Special) – (Serial No. 1-)
Governor (V-8) – (Used Serial -65130)
Governor (V-8) – (Used Serial 65131-)
Distributor (V-8) – (Used Serial -65130)
Distributor (V-8) – (Used Serial 65131-)
Starter (V-8) – (Used Serial -35110)
Starter (V-8) – (Used Serial 35111-)
Generator (V-8) – (Used Serial -35110
Alternator (V-8) – Used Serial 35111-)
Ignition Coil And Wires (V-8)
Air Cleaner (V-8)
Exhaust System (V-8) – (Used Serial -45141)
Exhaust System (V-8) – (Used Serial 45142-)
Motor Shaft And Base (V-8)
Variable Speed Shaft
Clutch And Variable Speed Sheaves
Clutch Housing And Linkage
Transmission
Differential
Disc Brakes
Final Drive
Rear Axle
Front Wheels
Miscellaneous Parts
Lights
Safety Shields
Straw Spreader
Axle Extensions
Rotor Assembly – Crop Chopper
Drive Assembly – Crop Chopper
Housing And Spreader Asy. – Crop Chopper
Corn Kit – Crop Chopper
Scourkleen Housing And Screens
Scourkleen Drives And Dockage Tube
Cab (Ansel)
Glass Specifications (Ansel Cab)
Top Extension (Ansel Cab)
Cab – George White, (Serial No. -55130)
Glass Specifications – George White, Serial No. -55130
Glass Specifications – George White, (Used Serial 55131-)
Cab – George White, Serial No. 55131-
Windshield Wiper – Cab
Heater – Cab
Weather Strip And Seals For Cab
Shields And Stubble Guard
Rear Ladder, Air Cleaner Stack Extension – Tachometer And
Feeder Stand And Support Jacks – (Ezi-Change And Drive In
Frame Extensions And Pivot Angles – (Ezi-Change Feeder And
Warning Lamp
Declutch (Grain Bin Cross Augers)
Common Decals
Paint
