New Idea Combine 7600 Parts Catalog W448064A

Description

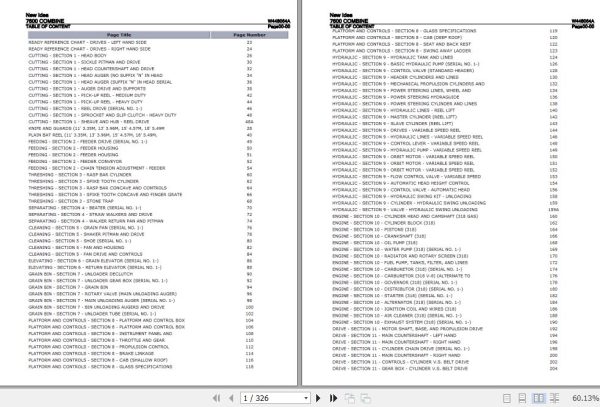

Contents:
Ready Reference Chart – Drives – Left Hand Side
Ready Reference Chart – Drives – Right Hand Side
Cutting – Section 1 – Head Body
Knife And Guards (11′ 3.35m, 13′ 3.96m, 15′ 4.57m, 18′ 5.49m

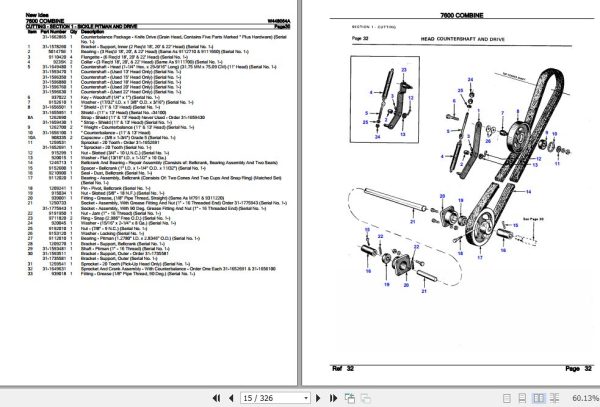

Cutting – Section 1 – Sickle Pitman And Drive
Cutting – Section 1 – Head Countershaft And Drive
Cutting – Section 1 – Head Auger (No Suffix N In Head
Cutting – Section 1 – Head Auger (Suffix N In Head Serial
Cutting – Section 1 – Auger Drive And Supports

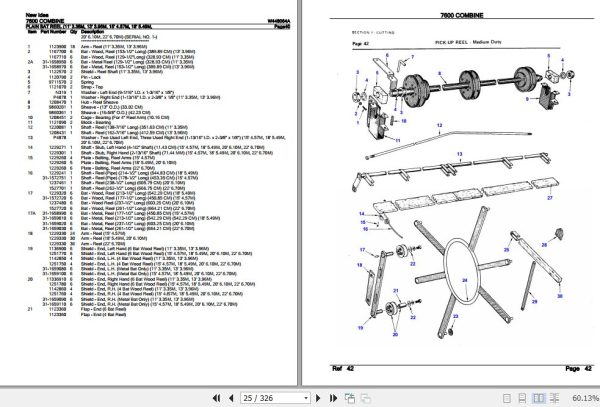

Plain Bat Reel (11′ 3.35m, 13′ 3.96m, 15′ 4.57m, 18′ 5.49m,
Cutting – Section 1 – Pick-Up Reel – Medium Duty
Cutting – Section 1 – Pick-Up Reel – Heavy Duty
Cutting – Section 1 – Reel Drive (Serial No. 1-)
Cutting – Section 1 – Sprocket And Slip Clutch – Heavy Duty
Cutting – Section 1 – Sheave And Hub – Reel Drive
Feeding – Section 2 – Feeder Drive (Serial No. 1-)
Feeding – Section 2 – Feeder Housing
Feeding – Section 2 – Feeder Conveyor
Feeding – Section 2 – Chain Tension Adjustment – Feeder
Threshing – Section 3 – Rasp Bar Cylinder
Threshing – Section 3 – Spike Tooth Cylinder
Threshing – Section 3 – Rasp Bar Concave And Controls
Threshing – Section 3 – Spike Tooth Concave And Finger Grate
Threshing – Section 3 – Stone Trap
Separating – Section 4 – Beater (Serial No. 1-)
Separating – Section 4 – Straw Walkers And Drive
Separating – Section 4 – Walker Return Pan And Pitman
Cleaning – Section 5 – Grain Pan (Serial No. 1-)
Cleaning – Section 5 – Shaker Pitman And Drive
Cleaning – Section 5 – Shoe (Serial No. 1-)
Cleaning – Section 5 – Fan And Housing
Cleaning – Section 5 – Fan Drive And Controls
Elevating – Section 6 – Grain Elevator (Serial No. 1-)
Elevating – Section 6 – Return Elevator (Serial No. 1-)
Grain Bin – Section 7 – Unloader Declutch
Grain Bin – Section 7 – Unloader Gear Box (Serial No. 1-)
Grain Bin – Section 7 – Grain Bin
Grain Bin – Section 7 – Rotary Valve (Main Unloading Auger)
Grain Bin – Section 7 – Main Unloading Auger (Serial No. 1-)
Grain Bin – Section 7 – Bin Unloading Augers And Drive
Grain Bin – Section 7 – Unloader Tube (Serial No. 1-)
Platform And Controls – Section 8 – Platform And Control Box
Platform And Controls – Section 8 – Instrument Panel And
Platform And Controls – Section 8 – Throttle And Gear
Platform And Controls – Section 8 – Propulsion Control
Platform And Controls – Section 8 – Brake Linkage
Platform And Controls – Section 8 – Cab (Shallow Roof)
Platform And Controls – Section 8 – Glass Specifications
Platform And Controls – Section 8 – Cab (Deep Roof)
Platform And Controls – Section 8 – Seat And Back Rest
Platform And Controls – Section 8 – Swing Away Ladder
Hydraulic – Section 9 – Hydraulic Tank And Lines
Hydraulic – Section 9 – Basic Hydraulic Pump (Serial No. 1-)
Hydraulic – Section 9 – Control Valve (Standard Header)
Hydraulic – Section 9 – Header Cylinders And Lines
Hydraulic – Section 9 – Mechanical Propulsion Cylinders And
Hydraulic – Section 9 – Power Steering Lines, Wheel And
Hydraulic – Section 9 – Power Steering Hydraguide
Hydraulic – Section 9 – Power Steering Cylinder And Lines
Hydraulic – Section 9 – Hydraulic Lines – Reel Lift
Hydraulic – Section 9 – Master Cylinder (Reel Lift)
Hydraulic – Section 9 – Slave Cylinder (Reel Lift)
Hydraulic – Section 9 – Drives – Variable Speed Reel
Hydraulic – Section 9 – Hydraulic Lines – Variable Speed Reel
Hydraulic – Section 9 – Control Lever – Variable Speed Reel
Hydraulic – Section 9 – Hydraulic Pump – Variable Speed Reel
Hydraulic – Section 9 – Orbit Motor – Variable Speed Reel
Hydraulic – Section 9 – Flow Control Valve – Variable Speed
Hydraulic – Section 9 – Automatic Head Height Control
Hydraulic – Section 9 – Control Valve – Automatic Head
Hydraulic – Section 9 – Hydraulic Swing Kit – Unloading
Hydraulic – Section 9 – Cylinder – Hydraulic Swing Unloading
Hydraulic – Section 9 – Valve – Hydraulic Swing Unloading
Engine – Section 10 – Cylinder Head And Camshaft (318 Gas)
Engine – Section 10 – Cylinder Block
Engine – Section 10 – Pistons
Engine – Section 10 – Crankshaft
Engine – Section 10 – Oil Pump
Engine – Section 10 – Water Pump (318) (Serial No. 1-)
Engine – Section 10 – Radiator And Rotary Screen
Engine – Section 10 – Fuel Pump, Tanks, Filter, And Lines
Engine – Section 10 – Carburetor (318) (Serial No. 1-)
Engine – Section 10 – Carburetor (318 V-8) (Alternate To
Engine – Section 10 – Governor (318) (Serial No. 1-)
Engine – Section 10 – Distributor (318) (Serial No. 1-)
Engine – Section 10 – Starter (318) (Serial No. 1-)
Engine – Section 10 – Alternator (318) (Serial No. 1-)
Engine – Section 10 – Ignition Coil And Wires
Engine – Section 10 – Air Cleaner (318) (Serial No. 1-)
Engine – Section 10 – Exhaust System (318) (Serial No. 1-)
Drive – Section 11 – Motor Shaft, Base, And Propulsion Drive
Drive – Section 11 – Main Countershaft – Left Hand
Drive – Section 11 – Main Countershaft – Right Hand
Drive – Section 11 – Cylinder Chain Drive (Serial No. 1-)
Drive – Section 11 – Controls – Cylinder V.S. Belt Drive
Drive – Section 11 – Gear Box – Cylinder V.S. Belt Drive
Drive – Section 11 – Thresher Declutch
Drive – Section 11 – Mechanical Propulsion Drive
Drive – Section 11 – Clutch And V.S. Sheaves – Mechanical
Drive – Section 11 – Clutch Housing And Linkage – Mechanical
Drive – Section 11 – Hydrostatic Drive (Serial No. 1-)
Drive – Section 11 – Charge Pump – Hydrostatic Propulsion
Drive – Section 11 – Hydrostatic Unit
Drive – Section 11 – Tank And Lines – Hydrostatic Propulsion
Drive – Section 11 – Transmission (Serial No. 1-)
Drive – Section 11 – Differential (Serial No. 1-)
Drive – Section 11 – Disc Brakes (Serial No. 1-)
Drive – Section 11 – Final Drive (Serial No. 1-)
Miscellaneous – Section 12 – Non-Adjustable Rear Axle
Miscellaneous – Section 12 – Adjustable Rear Axle (Serial
Miscellaneous – Section 12 – Main Body
Miscellaneous – Section 12 – Shields – Right Hand
Miscellaneous – Section 12 – Shields – Left Hand
Miscellaneous – Section 12 – Lights
Accessories – Section 13 – Chaffers – Shoe (Accessory)
Accessories – Section 13 – Cleaning Screens – Shoe
Accessories – Section 13 – Corn Cob Mix Attachment
Accessories – Section 13 – Straw Spreader (Accessory)
Accessories – Section 13 – Front Axle Extension (Accessory)
Accessories – Section 13 – Rotor Assembly – Crop Chopper
Accessories – Section 13 – Drive Assembly – Crop Chopper
Accessories – Section 13 – Housing And Spreader Assembly –
Accessories – Section 13 – Corn Kit – Crop Chopper
Accessories – Section 13 – Windshield Wiper – Cab
Accessories – Section 13 – Propulsion Drive Shields
Accessories – Section 13 – Engine Hourmeter (Accessory)
Accessories – Section 13 – Tachometer And Rivet Extractor
Accessories – Section 13 – Feeder Stand (Accessory)
Accessories – Section 13 – De-Icer Kit (318 Gas)
Accessories – Section 13 – Muffler Field Kit (Serial No. 1-)
Accessories – Section 13 – Floating Cutter Bar (Rivetted
Accessories – Section 13 – Floating Cutter Bar (Bolted
Accessories – Section 13 – Monitor System (Accessory)
Accessories – Section 13 – Cab Air Conditioner
Accessories – Section 13 – Compressor Mounting And Hoses
Accessories – Section 13 – Compressor & Drive Pulley –
Accessories – Section 13 – Compressor & Drive Pulley – York
Accessories – Section 13 – Wiring (Air Conditioner)
Accessories – Section 13 – Cab Heater (Serial No. 1-)
Accessories – Section 13 – Rear Weights (Serial No. 1-)
Accessories – Section 13 – Rear Ladder (Serial No. 1-)
Paint (Not Illustrated) (Serial No. 1-)
7600 Decals (Not Illustrated) (Serial No. 1-)
