Name: New Idea Corn Picker 300 Two-Row 10 One-Row 302 One-Row Snapper Parts Catalog 986344
SKU: 456127
Availability: InStock

New Idea Corn Picker 300 Two Row 10 One Row 302 One Row Snapper Parts Catalog 986344 1

New Idea Corn Picker 300 Two Row 10 One Row 302 One Row Snapper Parts Catalog 986344 2

New Idea Corn Picker 300 Two Row 10 One Row 302 One Row Snapper Parts Catalog 986344 3

✓

Expert Support

✓

Full Speed

✓

100% Working

New Idea Corn Picker 300 Two-Row 10 One-Row 302 One-Row Snapper Parts Catalog 986344

Size: 6.59 MB

Format: PDF

Language: English

Brand: New Idea

Type of Machine: Corn Picker

Type of Manual: Parts Catalog

Model:

New Idea 300 Two-Row Corn Picker

New Idea 10 One-Row Corn Picker

New Idea 302 One-Row Snapper Corn Picker

Part Number: 986344

Number of Pages: 185 Pages

10 USD

Tag: New Idea Parts Manual

Description

Description

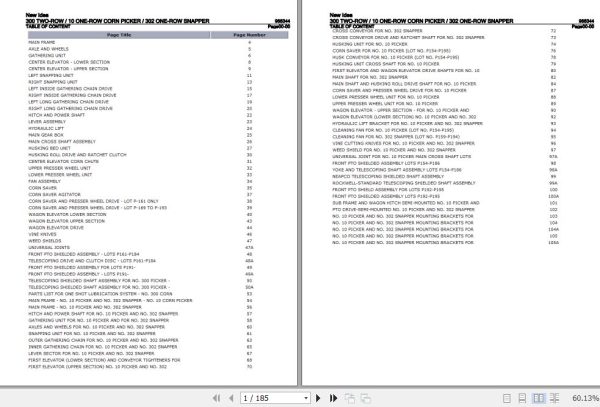

Contents:
Main Frame
Axle And Wheels

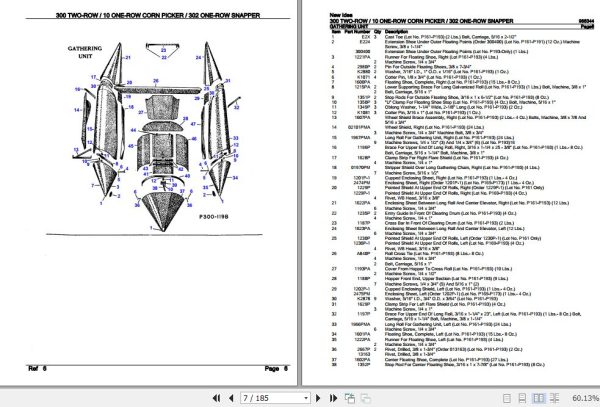

Gathering Unit
Center Elevator – Lower Section
Center Elevator – Upper Section
Left Snapping Unit
Right Snapping Unit
Left Inside Gathering Chain Drive
Right Inside Gathering Chain Drive
Left Long Gathering Chain Drive
Right Long Gathering Chain Drive
Hitch And Power Shaft
Lever Assembly
Hydraulic Lift
Main Gear Box
Main Cross Shaft Assembly
Husking Bed Unit
Husking Roll Drive And Ratchet Clutch

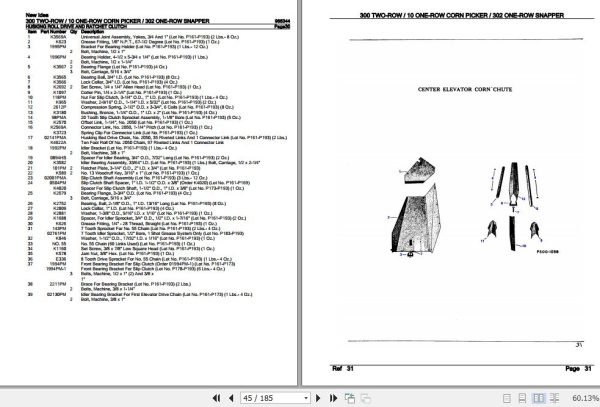

Center Elevator Corn Chute
Upper Presser Wheel Unit
Lower Presser Wheel Unit
Fan Assembly
Corn Saver
Corn Saver Agitator
Corn Saver And Presser Wheel Drive – Lot P-161 Only
Corn Saver And Presser Wheel Drive – Lot P-169 To P-193
Wagon Elevator Lower Section
Wagon Elevator Upper Section
Wagon Elevator Drive
Vine Knives
Weed Shields
Universal Joints
Front Pto Shielded Assembly – Lots P161-P184
Telescoping Drive And Clutch Disc – Lots P161-P184
Front Pto Shielded Assembly For Lots P191-
Front Pto Shielded Assembly – Lots P191-
Telescoping Shielded Shaft Assembly For No. 300 Picker –
Parts List For One Shot Lubrication System – No. 300 Corn
Main Frame – No. 10 Picker And No. 302 Snapper – No. 10 Corn Picker
Main Frame – No. 10 Picker And No. 302 Snapper
Hitch And Power Shaft For No. 10 Picker And No. 302 Snapper
Gathering Unit For No. 10 Picker And For No. 302 Snapper
Axles And Wheels For No. 10 Picker And No. 302 Snapper
Snapping Unit For No. 10 Picker And No. 302 Snapper
Outer Gathering Chain For No. 10 Picker And No. 302 Snapper
Inner Gathering Chain For No. 10 Picker And No. 302 Snapper
Lever Sector For No. 10 Picker And No. 302 Snapper
First Elevator (Lower Section) And Conveyor Tighteners For
First Elevator (Upper Section) No. 10 Picker And No. 302
Cross Conveyor For No. 302 Snapper
Cross Conveyor Drive And Ratchet Shaft For No. 302 Snapper
Husking Unit For No. 10 Picker
Corn Saver For No. 10 Picker (Lot No. P154-P195)
Husk Conveyor For No. 10 Picker (Lot No. P154-P195)
Husking Unit Cross Shaft For No. 10 Picker
First Elevator And Wagon Elevator Drive Shafts For No. 10
Main Shaft For No. 302 Snapper
Main Shaft And Husking Roll Drive Shaft For No. 10 Picker
Corn Saver And Presser Wheel Drive For No. 10 Picker
Lower Presser Wheel Unit For No. 10 Picker
Upper Presser Wheel Unit For No. 10 Picker
Wagon Elevator – Upper Section – For No. 10 Picker And
Wagon Elevator (Lower Section) No. 10 Picker And No. 302
Hydraulic Lift Bracket For No. 10 Picker And No. 302 Snapper
Cleaning Fan For No. 10 Picker (Lot No. P154-P195)
Cleaning Fan For No. 302 Snapper (Lot No. P159-P194)
Vine Cutting Knives For No. 10 Picker And No. 302 Snapper
Weed Shield For No. 10 Picker And No. 302 Snapper
Universal Joint For No. 10 Picker Main Cross Shaft Lots
Front Pto Shielded Assembly Lots P154-P186
Yoke And Telescoping Shaft Assembly Lots P154-P186
Neapco Telescoping Shielded Shaft Assembly
Rockwell-Standard Telescoping Shielded Shaft Assembly
Front Pto Shield Assembly For Lots P192-P195
Front Pto Shielded Assembly Lots P192-P195
Sub Frame And Wagon Hitch Semi-Mounted No. 10 Picker And
Pto Drive-Semi-Mounted No. 10 Picker And No. 302 Snapper
No. 10 Picker And No. 302 Snapper Mounting Brackets For
