Name: New Idea Grain Head 900 Series Parts Catalog W448094A
SKU: 456134
Availability: InStock

New Idea Grain Head 900 Series Parts Catalog W448094A 1

New Idea Grain Head 900 Series Parts Catalog W448094A 2

New Idea Grain Head 900 Series Parts Catalog W448094A 3

✓

Expert Support

✓

Full Speed

✓

100% Working

New Idea Grain Head 900 Series Parts Catalog W448094A

Size: 3.17 MB

Format: PDF

Language: English

Brand: New Idea

Type of Machine: Grain Head

Type of Manual: Parts Catalog

Model: New Idea 900 Series Grain Head

Part Number: W448094A

Number of Pages: 84 Pages

10 USD

Tag: New Idea Parts Manual

Description

Description

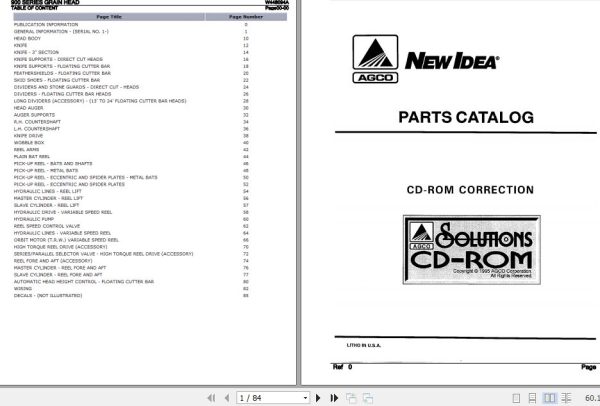

Contents:
Publication Information
General Information – (Serial No. 1-)
Head Body
Knife
Knife – 3 Section
Knife Supports – Direct Cut Heads

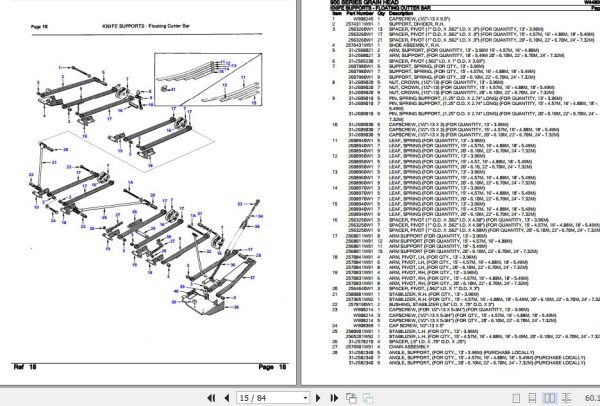

Knife Supports – Floating Cutter Bar
Feathershields – Floating Cutter Bar
Skid Shoes – Floating Cutter Bar
Dividers And Stone Guards – Direct Cut – Heads
Dividers – Floating Cutter Bar Heads
Long Dividers (Accessory) – (13′ To 24′ Floating Cutter Bar Heads)

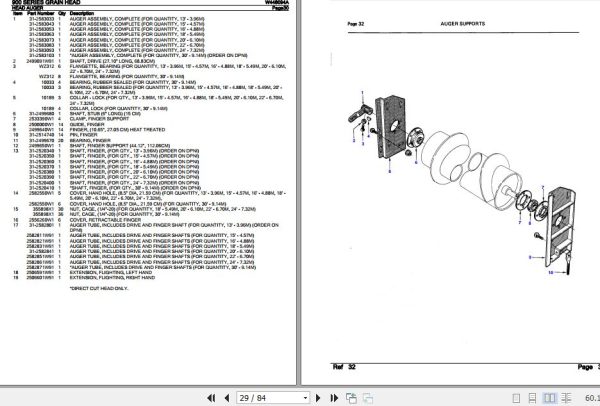

Head Auger
Auger Supports
R.H. Countershaft
L.H. Countershaft
Knife Drive
Wobble Box
Reel Arms
Plain Bat Reel
Pick-Up Reel – Bats And Shafts
Pick-Up Reel – Metal Bats
Pick-Up Reel – Eccentric And Spider Plates – Metal Bats
Pick-Up Reel – Eccentric And Spider Plates
Hydraulic Lines – Reel Lift
Master Cylinder – Reel Lift
Slave Cylinder – Reel Lift
Hydraulic Drive – Variable Speed Reel
Hydraulic Pump
Reel Speed Control Valve
Hydraulic Lines – Variable Speed Reel
Orbit Motor (T.R.W.) Variable Speed Reel
High Torque Reel Drive (Accessory)
Series Parallel Selector Valve – High Torque Reel Drive (Accessory)
Reel Fore And Aft (Accessory)
Master Cylinder – Reel Fore And Aft
Slave Cylinder – Reel Fore And Aft
Automatic Head Height Control – Floating Cutter Bar
Wiring
Decals – (Not Illustrated)
