New Idea Harvest Boss Combine 8700 Parts Catalog W448082A

Description

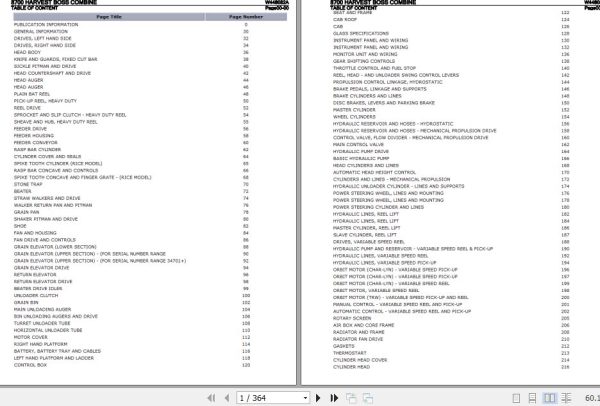

Contents:
Publication Information
General Information

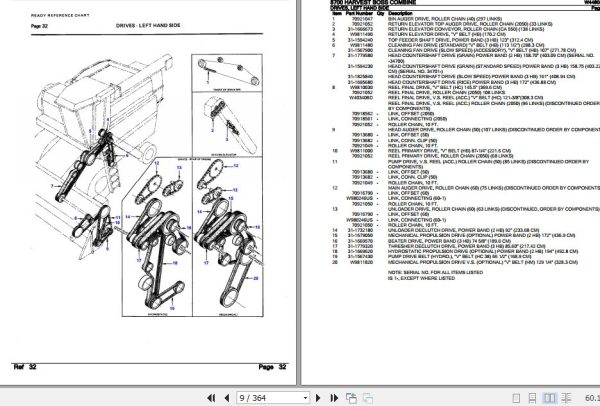

Drives, Left Hand Side
Drives, Right Hand Side
Head Body
Knife And Guards, Fixed Cut Bar
Sickle Pitman And Drive
Head Countershaft And Drive
Head Auger
Plain Bat Reel
Pick-Up Reel, Heavy Duty
Reel Drive
Sprocket And Slip Clutch – Heavy Duty Reel
Sheave And Hub, Heavy Duty Reel
Feeder Drive
Feeder Housing

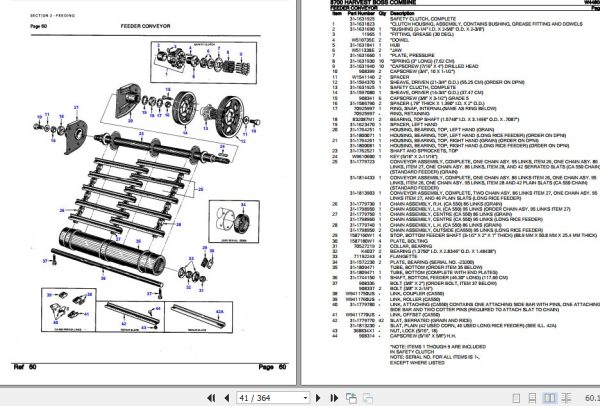

Feeder Conveyor
Rasp Bar Cylinder
Cylinder Cover And Seals
Spike Tooth Cylinder (Rice Model)
Rasp Bar Concave And Controls
Spike Tooth Concave And Finger Grate – (Rice Model)
Stone Trap
Beater
Straw Walkers And Drive
Walker Return Pan And Pitman
Grain Pan
Shaker Pitman And Drive
Shoe
Fan And Housing
Fan Drive And Controls
Grain Elevator (Lower Section)
Grain Elevator (Upper Section) – (For Serial Number Range
Grain Elevator (Upper Section) – (For Serial Number Range 34701+)
Grain Elevator Drive
Return Elevator
Return Elevator Drive
Beater Drive Idler
Unloader Clutch
Grain Bin
Main Unloading Auger
Bin Unloading Augers And Drive
Turret Unloader Tube
Horizontal Unloader Tube
Motor Cover
Right Hand Platform
Battery, Battery Tray And Cables
Left Hand Platform And Ladder
Control Box
Seat And Frame
Cab Roof
Cab
Glass Specifications
Instrument Panel And Wiring
Monitor Unit And Wiring
Gear Shifting Controls
Throttle Control And Fuel Stop
Reel, Head – And Unloader Swing Control Levers
Propulsion Control Linkage, Hydrostatic
Brake Pedals, Linkage And Supports
Brake Cylinders And Lines
Disc Brakes, Levers And Parking Brake
Master Cylinder
Wheel Cylinders
Hydraulic Reservoir And Hoses – Hydrostatic
Hydraulic Reservoir And Hoses – Mechanical Propulsion Drive
Control Valve, Flow Divider – Mechanical Propulsion Drive
Main Control Valve
Hydraulic Pump Drive
Basic Hydraulic Pump
Head Cylinders And Lines
Automatic Head Height Control
Cylinders And Lines – Mechanical Propulsion
Hydraulic Unloader Cylinder – Lines And Supports
Power Steering Wheel, Lines And Mounting
Power Steering Cylinder And Lines
Hydraulic Lines, Reel Lift
Master Cylinder, Reel Lift
Slave Cylinder, Reel Lift
Drives, Variable Speed Reel
Hydraulic Pump And Reservoir – Variable Speed Reel & Pick-Up
Hydraulic Lines, Variable Speed Reel
Hydraulic Lines, Variable Speed Pick-Up
Orbit Motor (Char-Lyn) – Variable Speed Pick-Up
Orbit Motor, Variable Speed Reel
Orbit Motor (Char-Lyn) – Variable Speed Reel
Orbit Motor (Trw) – Variable Speed Pick-Up And Reel
Manual Control – Variable Speed Reel And Pick-Up
Automatic Control – Variable Speed Reel And Pick-Up
Rotary Screen
Air Box And Core Frame
Radiator And Frame
Radiator Fan Drive
Gaskets
Thermostart
Cylinder Head Cover
Cylinder Head
Cylinder Block
Crankshaft And Pistons
Timing Gear And Auxiliary Drive
Oil Pump And Pan
Oil Filter, Cooler And Lines
Fuel Lift Pump
Fuel Filters And Lines
Fuel Injection Lines – Injector And Fittings
Fuel Injection Pump
Water Pump And Thermostat Housing
Solenoid
Starter
Alternator (72 Amp.)
Alternator (90 Amp.)
Air Intake And Precleaner
Air Cleaner
Intake And Exhaust Manifolds
Exhaust Pipes
Fuel Tank And Lines
Rear Engine Drive
Main Countershaft-V.S. Cylinder Drive
Controls, Cylinder V.S. Belt Drive
Gear Box, Cylinder V.S. Belt Drive
Thresher Declutch
Mechanical Propulsion Drive
Clutch And V.S. Sheaves – Mechanical Propulsion Drive
Clutch Housing And Linkage
Hydrostatic Propulsion Drive
Hydrostatic Clutch
Charge Pump – Hydrostatic Propulsion Drive
Hydrostatic Unit
Hydrostatic Oil Cooler And Lines
Transmission
Differential
Final Drive
Adjustable Rear Axle
Rear Axle, Hydro Assist
Hydraulic Lines, Rear Wheel Assist
Torque Hub, Rear Wheel Assist
Hydrostatic Motor, Rear Wheel Assist
Double Selector Valves – Rear Wheel Assist
Main Body
Shields, Right Hand
Shields, Left Hand
Reel Drive Shields
Lights
Propulsion Drive Shields
Rear Ladder
Chaffers, Shoe (Accessory)
Cleaning Screens, Shoe (Accessory)
Corn Cob Mix Attachment (Accessory)
Straw Spreader (Accessory)
Front Axle Extension
Corn Kit – (Heavy Duty Slide Ahead Crop Chopper)
Rotor Assembly – (Heavy Duty Slide Ahead Crop Chopper)
Drive Assembly
Housing And Spreader Assembly
Rear View Mirror, Right Hand
Windshield Wiper, Cab
Feeder Stand (Accessory)
Blower
Cab Air Conditioner
Cab Air Conditioner Hoses
Compressor And Drive Pulley, Tecumseh
Compressor And Drive Pulley, York
Cab Heater
Tachometer And Rivet Extractor
Rear Weights
Grain Loss Monitor (Accessory)
Defroster Fan (Accessory)
Paint
Paint – 8700 Decals
