Name: New Idea Mowers 250 Semi-Mounted 256 Rear Mounted 3 Point Hitch Mowers Parts Catalog
SKU: 612313
Availability: InStock

New Idea Mowers 250 Semi Mounted 256 Rear Mounted 3 Point Hitch Mowers Parts Catalog (1)

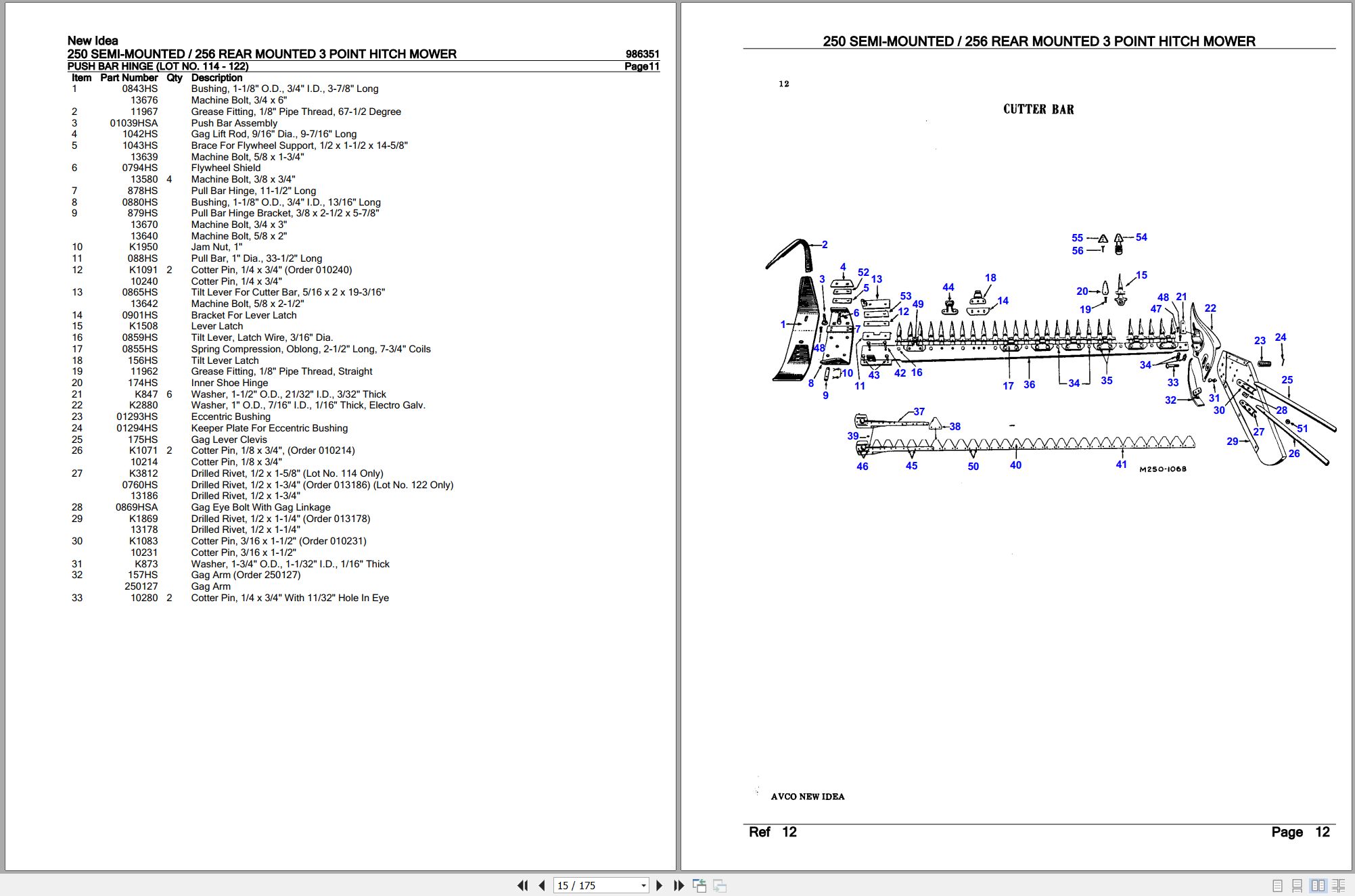

New Idea Mowers 250 Semi Mounted 256 Rear Mounted 3 Point Hitch Mowers Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

New Idea Mowers 250 Semi-Mounted 256 Rear Mounted 3 Point Hitch Mowers Parts Catalog

Size: 5.63 MB

Format: PDF

Language: English

Brand: New Idea

Type of Machine: Mowers

Type of Manual: Parts Catalog

Model: New Idea Mower 250 Semi-Mounted 256 Rear Mounted 3 Point Hitch Mowers Mower

Number of Pages: 175 Pages

20 USD

Tags: 250 Semi-Mounted, 256 Rear Mounted, 3 Point Hitch, New Idea Mowers Manual, New Idea Parts Catalog

Description

Description

Contents:
DIRECTIONS FOR ORDERING
MAIN FRAME
DRIVE AND CRANK SHAFT ASSEMBLY
PITMAN
LEVER AND LIFT CAM
PUSH BAR HINGE
CUTTER BAR
POWER LIFT PARTS
SPECIAL RUNNERS
HYDRAULIC LIFT PARTS
ANTI-WRAP SHIELD
UNIVERSAL JOINT AND TELESCOPE DRIVE ASSEMBLY
UNIVERSAL JOINT ASSEMBLY WITH NON REPLACEABLE SHIELDS – USED
UNIVERSAL JOINT FOR CONDITIONER HITCH ON MOWER
UNIVERSAL JOINT ASSEMBLY USED ON MOWER WITH HAY CONDITIONER
HAY CONDITIONER HITCH ATTACHMENT
ALLIS CHALMERS-WC,CA AND CA SNAP-ON
ALLIS CHALMERS-WD,WD-45,D-14 AND D-17
ALLIS CHALMERS- WD , WD-45 , D-14 AND D-17
CASE S,SC AND DC WITH ANGLE TYPE DRAWBAR SUPPORT 1947
CASE S,SC,CC AND DC BEFORE 1947
CASE VAC,VAC-14 AND VA
CASE 200,300 AND 400 PRIOR TO 1958-700 AND 800
COCKSHUTT 20 , CO-OP E-2 , CO-OP E-3 AND COCKSHUTT 30
FORD AND FERGUSON 2N, 8N, 9N, NAA, 600, 601, 631, 641, 671,
I.H.C. FARMALL C , SUPER C 200 AND 230 WITHOUT FAST HITCH
JOHN DEERE A AND B 50 AND 60 , JOHN DEERE 40 , JOHN
JOHN DEERE 520,530,620,630,720 AND 730
MASSEY HARRIS 30, 33 AND 44, 333 AND 444 WITH ROLLER TYPE
MINNEAPOLIS MOLINE UB AND ZB , MINNEAPOLIS MOLINE Z, ZA,
INDEX TO UNITS
STUB TONGUE P.T.O. DRIVE NOS. 251 AND 252 MOWERS
STUB TONGUE P.T.O. DRIVE NOS. 254 AND 255 MOWERS
AXLE AND WHEELS, NO. 251, 252, 254 AND 255 MOWERS
LIFT ARM NO. 251 AND 254 MOWERS
LIFT ARM NO. 252 AND 255 MOWERS
SWING FRAME NOS. 251, 252, 254 AND 255 MOWERS
PUSH BAR AND HINGE NOS. 251, 252, 254 AND 255 MOWERS
GEAR CASE NO. 251 AND 254 MOWERS
GEAR CASE NO. 252 AND 255 MOWERS
CUTTER BAR NO. 251, 252, 254 AND 255 MOWERS
AUXILIARY DRIVE FOR HAY CONDITINER HITCH NO. 254 AND 255
PITMAN NOS. 251, 252, 254 AND 255 MOWERS
FRONT UNIVERSAL DRIVE NO. 251 AND 252 MOWERS LOTS 117 TO 127
UNIVERSAL JOINT NEXT TO MOWER NO. 251 AND 252 MOWERS
FRONT PTO SHIELD ASSEMBLY
SINGLE ACTING CYLINDER BRACKET NO. 252 AND 255 MOWERS
YOKE NEXT TO GEAR BOX NO. 254 AND 255 MOWERS
P.T.O. EXTENSIONS NO. 251, 252, 254 AND 255 MOWERS
SPECIAL RUNNERS-ANTI-WRAP SHIELD
SWING FRAME AND LATCH
STUB TONGUE AND P.T.O. DRIVE
AXLE WHEELS AND WEIGHT BOX NO.253 MOWER
CUTTER BAR
PITMAN
LIFT ARM
GEAR CASE
FRONT UNIVERSAL DRIVE NO. 253 MOWER LOTS 116 TO 123 ONLY
YOKE NEXT TO GEAR BOX NO. 253 MOWER
PUSH BAR AND HINGE NO. 253 MOWER, LOT 118 – 123
PUSH BAR AND HINGE NO. 253 MOWER, LOT 116 ONLY
P.T.O. EXTENSIONS
UPPER MAIN FRAME
DRAG BAR AND ORBITROL DRIVE
P.T.O. SHIELD ASSEMBLY
CUTTER BAR
PACKAGE GOODS – CUTTER BAR
PACKAGE GOODS
U.S.A. ROLLER CHAIN AND SINGLE LINKS, IMPORT – ROLLER CHAIN – PACKAGE GOODS
U.S.A. ROLLER CHAIN AND SINGLE LINKS, IMPORT – ROLLER CHAIN
U.S.A. CHAIN, STEEL ATTACHMENTS, PAINTS
