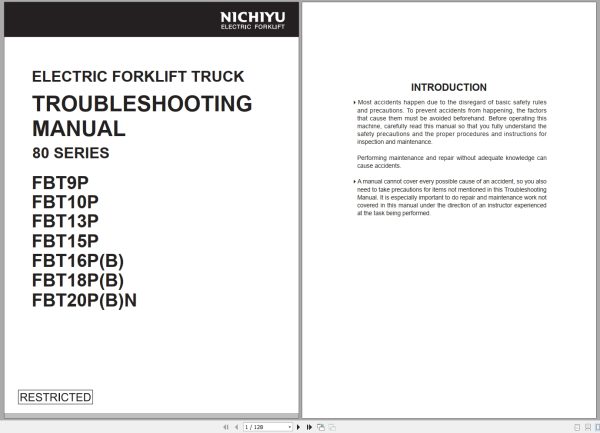

Nichiyu Forklift 80 Series FBT9P-80 To FBT20PBN-80 Troubleshooting Manual SM12-001-R4 2020

Size: 9.42 MB

Format: PDF

Language: English

Brand: Nichiyu

Type of Machine: Electric Forklift Truck

Type of Manual: Troubleshooting Manual, Wiring Diagram

Model: Nichiyu 80 Series Electric Forklift Truck

FBT9P-80 ; FBT10P-80 ; FBT13P-80 ; FBT15P-80 ; FBT16P-80 ; FBT16PB-80 ; FBT18P-80 ; FBT18PB-80 ; FBT20PN-80 ; FBT20PN-80

Part Number: SM12-001-R4

Publication Date: 2020

Number of Pages: 128 Pages

30 USD

Description

Description

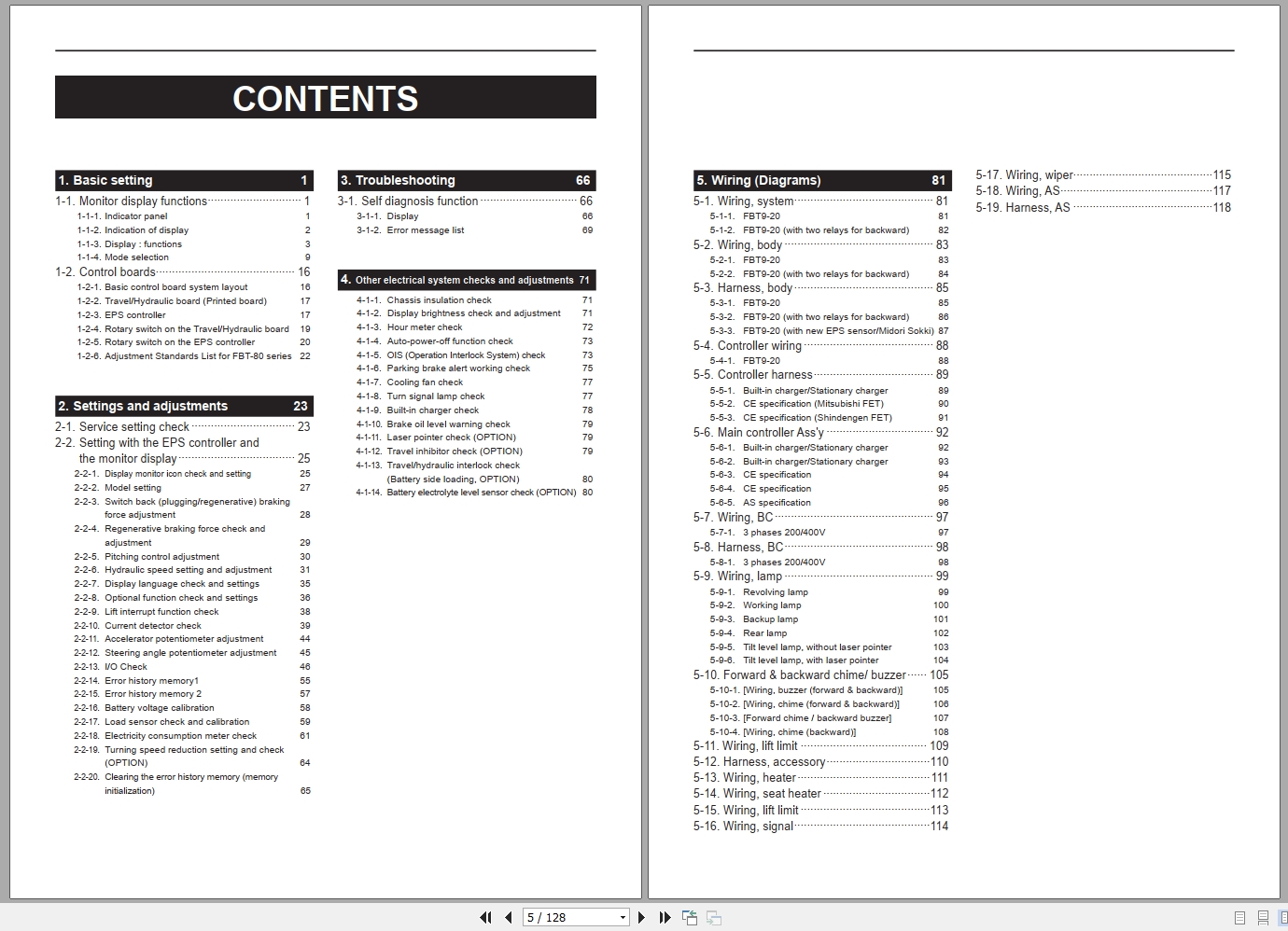

Contents:
1. Basic setting
1-1. Monitor display functions
1-1-1. Indicator panel
1-1-2. Indication of display
1-1-3. Display : functions
1-1-4. Mode selection
1-2. Control boards.
1-2-1. Basic control board system layout
1-2-2. Travel/Hydraulic board (Printed board)
1-2-3. EPS controller
1-2-4. Rotary switch on the Travel/Hydraulic board
1-2-5. Rotary switch on the EPS controller
1-2-6. Adjustment Standards List for FBT-80 series
2. Settings and adjustments 2
2-1. Service setting check
2-2. Setting with the EPS controller and
the monitor display
2-2-1. Display monitor icon check and setting
2-2-2. Model setting
2-2-3. Switch back (plugging/regenerative) braking
force adjustment
2-2-4. Regenerative braking force check and
adjustment

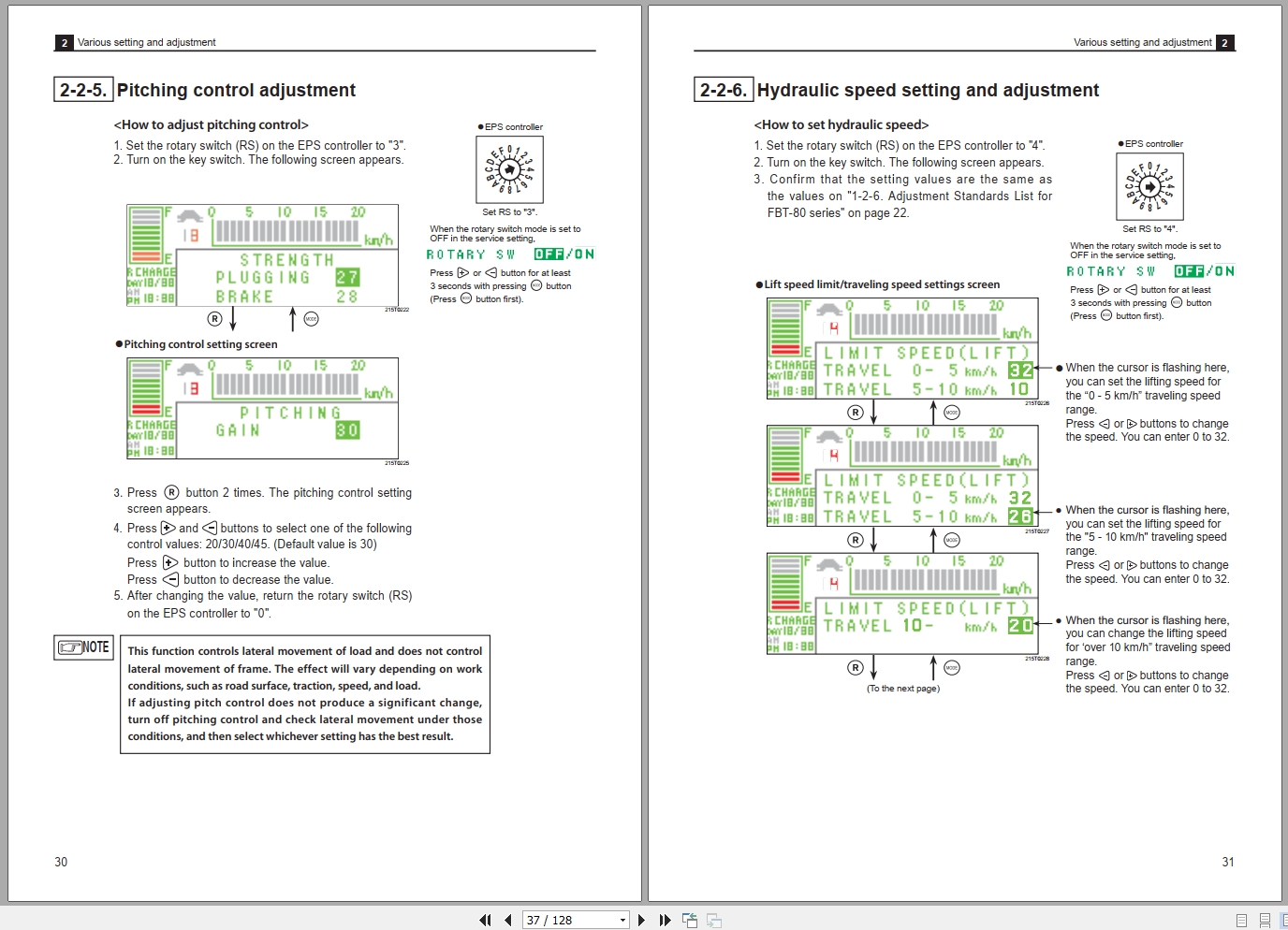

2-2-5. Pitching control adjustment
2-2-6. Hydraulic speed setting and adjustment
2-2-7. Display language check and settings
2-2-8. Optional function check and settings
2-2-9. Lift interrupt function check
2-2-10. Current detector check
2-2-11. Accelerator potentiometer adjustment
2-2-12. Steering angle potentiometer adjustment
2-2-13. I/O Check
2-2-14. Error history memory1
2-2-15. Error history memory 2
2-2-16. Battery voltage calibration
2-2-17. Load sensor check and calibration
2-2-18. Electricity consumption meter check
2-2-19. Turning speed reduction setting and check
(OPTION)
2-2-20. Clearing the error history memory (memory
initialization)
3. Troubleshooting 6
3-1. Self diagnosis function
3-1-1. Display
3-1-2. Error message list
4. Other electrical system checks and adjustments
4-1-1. Chassis insulation check
4-1-2. Display brightness check and adjustment
4-1-3. Hour meter check
4-1-4. Auto-power-off function check
4-1-5. OIS (Operation Interlock System) check
4-1-6. Parking brake alert working check
4-1-7. Cooling fan check
4-1-8. Turn signal lamp check
4-1-9. Built-in charger check
4-1-10. Brake oil level warning check
4-1-11. Laser pointer check (OPTION)
4-1-12. Travel inhibitor check (OPTION)
4-1-13. Travel/hydraulic interlock check
(Battery side loading, OPTION)
4-1-14. Battery electrolyte level sensor check (OPTION)

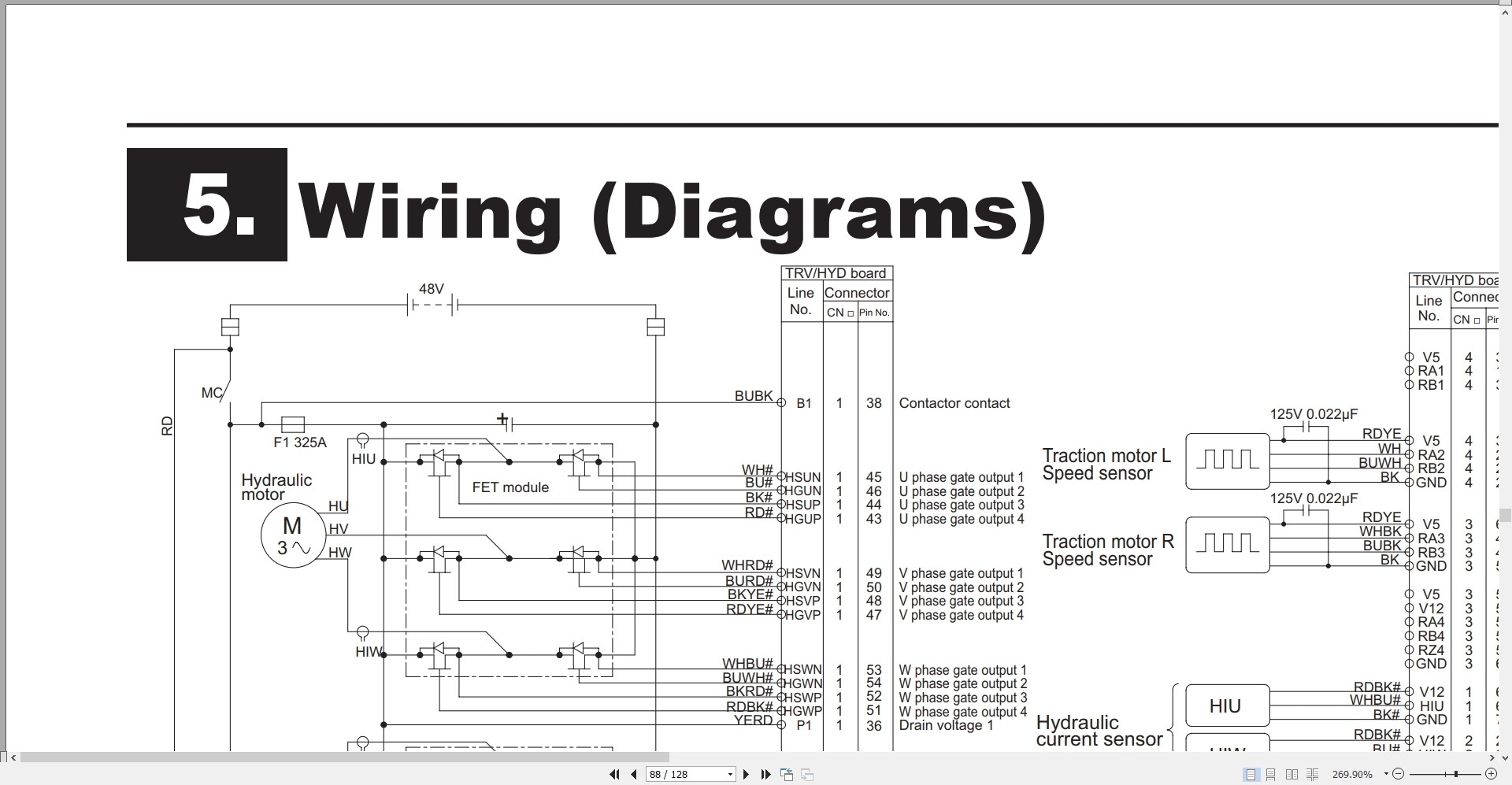

5. Wiring (Diagrams)
5-1. Wiring, system.
5-1-1. FBT9-20
5-1-2. FBT9-20 (with two relays for backward)
5-2. Wiring, body
5-2-1. FBT9-20
5-2-2. FBT9-20 (with two relays for backward)
5-3. Harness, body.
5-3-1. FBT9-20
5-3-2. FBT9-20 (with two relays for backward)
5-3-3. FBT9-20 (with new EPS sensor/Midori Sokki)
5-4. Controller wiring
5-4-1. FBT9-20
5-5. Controller harness.
5-5-1. Built-in charger/Stationary charger
5-5-2. CE specification (Mitsubishi FET)
5-5-3. CE specification (Shindengen FET)
5-6. Main controller Ass’y
5-6-1. Built-in charger/Stationary charger
5-6-2. Built-in charger/Stationary charger
5-6-3. CE specification
5-6-4. CE specification
5-6-5. AS specification
5-7. Wiring, BC.
5-7-1. 3 phases 200/400V
5-8. Harness, BC
5-8-1. 3 phases 200/400V
5-9. Wiring, lamp
5-9-1. Revolving lamp
5-9-2. Working lamp
5-9-3. Backup lamp
5-9-4. Rear lamp
5-9-5. Tilt level lamp, without laser pointer
5-9-6. Tilt level lamp, with laser pointer
5-10. Forward & backward chime/ buzzer
5-10-1. [Wiring, buzzer (forward & backward)]
5-10-2. [Wiring, chime (forward & backward)]
5-10-3. [Forward chime / backward buzzer]
5-10-4. [Wiring, chime (backward)]
5-11. Wiring, lift limit
5-12. Harness, accessory
5-13. Wiring, heater
5-14. Wiring, seat heater
5-15. Wiring, lift limit
5-16. Wiring, signal
5-17. Wiring, wiper
5-18. Wiring, AS
5-19. Harness, AS
