Nichiyu Forklift FB35P-70 Parts Manual

Size: 9.00 MB
Format: PDF
Language: English
Brand: Nichiyu
Type of Machine: Forklift
Type of Manual: Parts Manual
Model: FB35P-70
Number of Pages: 139 Pages

10 USD

Tag:
  • Description

Description

Contents:

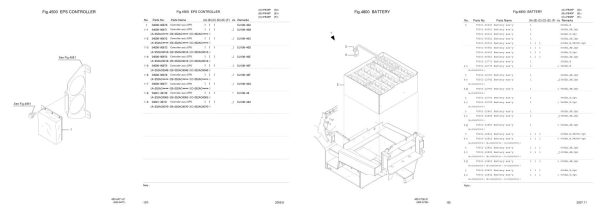

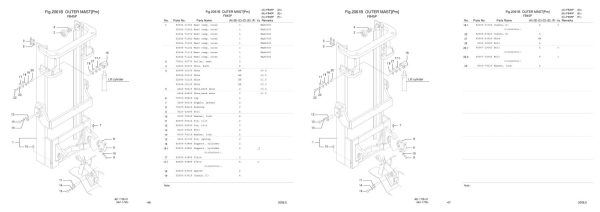

Fig.1010 FRAME
Fig.1011 COVER 1
Fig.1012 COVER 2
Fig.1014 PAD & FLOOR PLATE
Fig.1015 BATTERY COVER
Fig.1030 BATTERY CASE
Fig.1040 COUNTER BALANCE WEIGHT
Fig.1050 SEAT
Fig.1060 OVERHEAD GUARD
Fig.1090 HEAD LAMP
Fig.1093A NAME PLATE
Fig.1093B NAME PLATE
Fig.1094 NAME PLATE
Fig.1095 KNOB PLATE
Fig.1130 FRONT AXLE
Fig.1140 FRONT WHEEL
Fig.1150 FRONT AXLE FIT
Fig.1230 REAR AXLE
Fig.1240 REAR WHEEL
Fig.1310 STEERING LINKAGE 1
Fig.1311 STEERING LINKAGE 2
Fig.1320 FOOT BRAKE LINKAGE 1
Fig.1321 FOOT BRAKE LINKAGE 2
Fig.1330 PARKING BRAKE LINKAGE
Fig.1340A VALVE LINKAGE
Fig.1340B VALVE LINKAGE
Fig.1350 ACCELERATOR LINKAGE
Fig.1500 OIL TANK
Fig.1502 PUMP and PS MOTOR
Fig.1510 OIL PUMP
Fig.1520A CONTROL VALVE
Fig.1520B CONTROL VALVE
Fig.1550 PS PIPING
Fig.1551 FRAME PIPING
Fig.1556 BRAKE PIPING
Fig.2053A LIFT CYLINDER[Pm]
Fig.2054 TILT CYLINDER[Pm]
Fig.2058A MAST PIPING[Pm] 1
Fig.2058B MAST PIPING[Pm] 1
Fig.2059A MAST PIPING[Pm] 2
Fig.2059B MAST PIPING[Pm]
Fig.2061A OUTER MAST[Pm]
Fig.2061B OUTER MAST[Pm]
Fig.2063A INNER MAST[Pm]
Fig.2063B INNER MAST[Pm]
Fig.2064A CHAIN WHEEL[Pm]
Fig.2064B CHAIN WHEEL[Pm]
Fig.2152 LIFT CYLINDER(1st)[Mm]
Fig.2153 LIFT CYLINDER(2nd)[Mm]
Fig.2158 MAST PIPING[Mm]
Fig.2161 OUTER MAST[Mm]
Fig.2162 MIDDLE MAST[Mm]
Fig.2163 INNER MAST[Mm]
Fig.2164 CHAIN WHEEL(MAST)[Mm]
Fig.2165 CHAIN WHEEL(LIFT)[Mm]
Fig.2253 LIFT CYLINDER(2nd)[Fm]
Fig.2258 MAST PIPING[Fm]
Fig.2261 OUTER MAST[Fm]
Fig.2263 INNER MAST[Fm]
Fig.2264 CHAIN WHEEL(MAST)[Fm]
Fig.3620A LIFT BRACKET [Pm]
Fig.3620B LIFT BRACKET [Pm]
Fig.3620C LIFT BRACKET [Pm]
Fig.3620D LIFT BRACKET [Pm]
Fig.3620E LIFT BRACKET [Pm]
Fig.3620F LIFT BRACKET [Pm]
Fig.3620G LIFT BRACKET [Pm]
Fig.3620H LIFT BRACKET [Pm]
Fig.3620I LIFT BRACKET [Mm]
Fig.3620J LIFT BRACKET [Fm]
Fig.3630 FORK
Fig.3640A BACKREST
Fig.3640B BACKREST
Fig.3650 SIDESHIFT
Fig.4071 TRACTION MOTOR
Fig.4072 HYDRAULIC MOTOR
Fig.4074 PS MOTOR
Fig.4400 MAIN CONTROLLER 1
Fig.4401 MAIN CONTROLLER 2
Fig.4402 MAIN CONTROLLER 3
Fig.4403 MAIN CONTROLLER 4
Fig.4404 MAIN CONTROLLER 5
Fig.4500 EPS CONTROLLER
Fig.4800 BATTERY
Fig.4810A CHARGER(BC) 1
Fig.4810B CHARGER(BC) 1
Fig.4811 CHARGER(BC) 2
Fig.4812A TRANSFORMER
Fig.4812B TRANSFORMER
Fig.4823 DISPLAY PANEL
Fig.4824 DISPLAY PANEL
Fig.4825 DIRECTIONAL SWITCH
Fig.4851A WIRE HARNESS (BODY)
Fig.4851B WIRE HARNESS (BODY)
Fig.4852 WIRE HARNESS (MAIN)
Fig.4860 ELECTRIC PARTS 1
Fig.4861 ELECTRIC PARTS 2
Fig.4862 ELECTRIC PARTS 3
Fig.4865 MICROSWITCH
Fig.4877 BUZZER
Fig.4889 HEAD LAMP
Fig.4895 HORN
Fig.5000A ACCESSORY
Fig.5000B ACCESSORY
Fig.5000C ACCESSORY
Fig.5000D ACCESSORY
Fig.5000E ACCESSORY
Fig.5000F ACCESSORY
Fig.6000A ICHIGIMEKUN 1
Fig.6000B ICHIGIMEKUN 1
Fig.6010 ICHIGIMEKUN 2
Fig.6011A ICHIGIMEKUN 3
Fig.6011B ICHIGIMEKUN 3
