Nichiyu Forklift FBS15-75 Parts Manual

Nichiyu Forklift FBS15 75 Parts Manual 1
Nichiyu Forklift FBS15 75 Parts Manual 2
Nichiyu Forklift FBS15 75 Parts Manual 1
Nichiyu Forklift FBS15 75 Parts Manual 2
✓

Expert Support

✓

Full Speed

✓

100% Working

Nichiyu Forklift FBS15-75 Parts Manual

Size: 8.55 MB
Format: PDF
Language: English
Brand: Nichiyu
Type of Machine: Forklift
Type of Manual: Parts Manual
Model: FBS15-75
Number of Pages: 153 Pages

10 USD

Tag:
  • Description

Description

Contents:

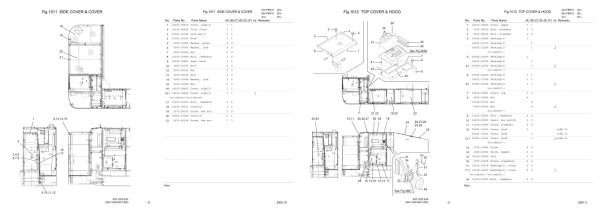

Fig.1010 FRAME
Fig.1011 SIDE COVER & COVER
Fig.1012 TOP COVER & HOOD
Fig.1013 BATTERY PARTS 1
Fig.1014 BATTERY PARTS 2
Fig.1015 PAD & FLOOR PLATE
Fig.1017 MOTOR COVER
Fig.1020 BAND
Fig.1050A BATTERY TABLE
Fig.1055 BATTERY CARRIER
Fig.1060 OVERHEAD GUARD
Fig.1093A NAME PLATE
Fig.1093B NAME PLATE
Fig.1100 DRIVE 1
Fig.1101 DRIVE 2
Fig.1102 DRIVE 3
Fig.1110 DRIVE WHEEL
Fig.1200 CONTROL LINKAGE
Fig.1206 LUBRICATION SYSTEM
Fig.1210 CASTER WHEEL
Fig.1220 LOAD WHEEL (LH)
Fig.1221 LOAD WHEEL (RH)
Fig.1300A STEERING
Fig.1300B STEERING
Fig.1301 STEERING SENSOR
Fig.1320 BRAKE LINKAGE 1
Fig.1321 BRAKE LINKAGE 2
Fig.1325A DISK BRAKE
Fig.1325B DISK BRAKE
Fig.1340 VALVE LINKAGE 1
Fig.1341 VALVE LINKAGE 2
Fig.1500 OIL TANK
Fig.1510 OIL PUMP
Fig.1552 FRAME PIPING
Fig.2053 LIFT CYLINDER[Pm]
Fig.2054 TILT CYLINDER[Pm]
Fig.2055 REACH CYLINDER[Pm]
Fig.2059 MAST PIPING[Pm]
Fig.2061 OUTER MAST[Pm]
Fig.2063 INNER MAST[Pm]
Fig.2064 CHAIN WHEEL[Pm]

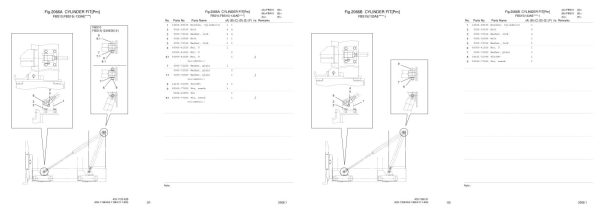

Fig.2066A CYLINDER FIT[Pm]
Fig.2066B CYLINDER FIT[Pm]
Fig.2152 LIFT CYLINDER(1st)[Mm]
Fig.2153 LIFT CYLINDER(2nd)[Mm]
Fig.2154 TILT CYLINDER[Mm]
Fig.2158 MAST PIPING[Mm] 1
Fig.2159 MAST PIPING[Mm] 2
Fig.2161 OUTER MAST[Mm]
Fig.2162 MIDDLE MAST[Mm]
Fig.2163 INNER MAST[Mm]
Fig.2164 CHAIN WHEEL(MAST)[Mm]
Fig.2165 CHAIN WHEEL(LIFT)[Mm]
Fig.2252 LIFT CYLINDER(1st)[Fm]
Fig.2253 LIFT CYLINDER(2nd)[Fm]
Fig.2258 MAST PIPING[Fm] 1
Fig.2259 MAST PIPING[Fm] 2
Fig.2261 OUTER MAST[Fm]
Fig.2263 INNER MAST[Fm]
Fig.3620A LIFT BRACKET [Pm]
Fig.3620B LIFT BRACKET [Pm]
Fig.3620C LIFT BRACKET [Mm]
Fig.3620D LIFT BRACKET [Fm]
Fig.3621A TILT BAR
Fig.3621B TILT BAR
Fig.3630A FORK
Fig.3630B FORK
Fig.3640A BACKREST
Fig.3640B BACKREST
Fig.4071 TRACTION MOTOR
Fig.4072A HYDRAULIC MOTOR
Fig.4073A EPS MOTOR
Fig.4073B EPS MOTOR
Fig.4073C EPS MOTOR
Fig.4073D EPS MOTOR
Fig.4400A MAIN CONTROLLER 1
Fig.4400B MAIN CONTROLLER 1
Fig.4401A MAIN CONTROLLER 2
Fig.4401B MAIN CONTROLLER 2
Fig.4402A MAIN CONTROLLER 3
Fig.4402B MAIN CONTROLLER 3
Fig.4410 CONTACTOR
Fig.4420A ACCELERATOR
Fig.4420B ACCELERATOR
Fig.4500 EPS CONTROLLER
Fig.4600 CONTROL PANEL
Fig.4800 BATTERY
Fig.4810A CHARGER
Fig.4810B CHARGER
Fig.4820A TRANSFORMER
Fig.4820B TRANSFORMER
Fig.4851 WIRE HARNESS(BODY)
Fig.4852 WIRE HARNESS(MAIN)
Fig.4860 ELECTRIC PARTS 1
Fig.4861 ELECTRIC PARTS 2
Fig.4864A PLUG(BC)
Fig.4865 MICRO SWITCH
Fig.4890 HEAD LAMP
Fig.6000A ICHIGIMEKUN 1
Fig.6000B ICHIGIMEKUN 1
Fig.6000C ICHIGIMEKUN 1
Fig.6010 ICHIGIMEKUN 2
Fig.6011 LASER POINTER 3
