Nichiyu Forklift FBT-75ZT-SF Parts Manual

Nichiyu Forklift FBT 75ZT SF Parts Manual 1
Nichiyu Forklift FBT 75ZT SF Parts Manual 2
Nichiyu Forklift FBT 75ZT SF Parts Manual 1
Nichiyu Forklift FBT 75ZT SF Parts Manual 2
✓

Expert Support

✓

Full Speed

✓

100% Working

Nichiyu Forklift FBT-75ZT-SF Parts Manual

Size: 11.06 MB
Format: PDF
Language: English
Brand: Nichiyu
Type of Machine: Forklift
Type of Manual: Parts Manual
Model: FBT-75ZT-SF
Number of Pages: 150 Pages

10 USD

Tag:
  • Description

Description

Contents:
Fig.1010 FRAME
Fig.1011 COVER
Fig.1012 PANEL
Fig.1015 BATTERY COVER
Fig.1040 COUNTER BALANCE WEIGHT
Fig.1050A1 SEAT
Fig.1050A2 SEAT
Fig.1060 OVERHEAD GUARD
Fig.1090 LAMP COVER
Fig.10931A NAME PLATE FIT.
Fig.10931B NAME PLATE FIT.
Fig.10931C NAME PLATE FIT.
Fig.10931D NAME PLATE FIT.
Fig.10931H NAME PLATE FIT.
Fig.10932A NAME PLATE
Fig.10932B NAME PLATE
Fig.10932C NAME PLATE
Fig.10932H NAME PLATE
Fig.1094 NAME PLATE
Fig.1095 KNOB PLATE
Fig.1130 FRONT AXLE
Fig.1140A FRONT WHEEL
Fig.1150 FRONT AXLE FIT.
Fig.1230 REAR AXLE 1
Fig.1231 REAR AXLE 2
Fig.1240 REAR WHEEL
Fig.1310 STEERING LINKAGE 1
Fig.1311 STEERING LINKAGE 2
Fig.1312 STEERING LINKAGE 3
Fig.1313 STEERING LINKAGE 4
Fig.1320 FOOT BRAKE LINKAGE 1
Fig.1321 FOOT BRAKE LINKAGE 2
Fig.1330 PARKING BRAKE LINKAGE 1
Fig.1331 PARKING BRAKE LINKAGE 2
Fig.1340B VALVE LINKAGE 1
Fig.1341B VALVE LINKAGE 2
Fig.1350 ACCELERATOR LINKAGE
Fig.1500A OIL TANK
Fig.1500B OIL TANK
Fig.1510 OIL PUMP
Fig.1520A CONTROL VALVE
Fig.1520B CONTROL VALVE
Fig.1551 FRAME PIPING
Fig.1556 BRAKE PIPING
Fig.2053A LIFT CYLINDER[Pm]
Fig.2053B LIFT CYLINDER[Pm]
Fig.2054 TILT CYLINDER[Pm]
Fig.2058A MAST PIPING[Pm]
Fig.2058B MAST PIPING[Pm]
Fig.2059A MAST PIPING[Pm]
Fig.2059B MAST PIPING[Pm]

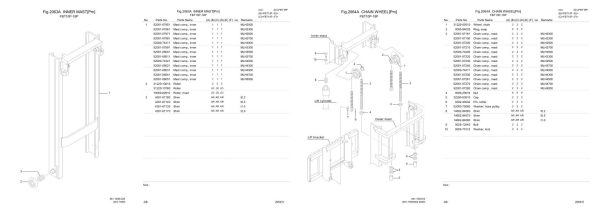

Fig.2061A OUTER MAST[Pm]
Fig.2063A INNER MAST[Pm]
Fig.2064A CHAIN WHEEL[Pm]
Fig.2152A LIFT CYLINDER(1st)[Mm]
Fig.2153A LIFT CYLINDER(2nd)[Mm]
Fig.2153B LIFT CYLINDER(2nd)[Mm]
Fig.2157A MAST PIPING[Mm]
Fig.2157B MAST PIPING[Mm]
Fig.2158A MAST PIPING[Mm]
Fig.2158B MAST PIPING[Mm]
Fig.2161A OUTER MAST[Mm]
Fig.2162A MIDDLE MAST[Mm]
Fig.2163A INNER MAST[Mm]
Fig.2164A CHAIN WHEEL(MAST)[Mm]
Fig.2165A CHAIN WHEEL(LIFT)[Mm]
Fig.2253A LIFT CYLINDER(2nd)[Fm]
Fig.2258 MAST PIPING[Fm]
Fig.2259 MAST PIPING[Fm]
Fig.2261A OUTER MAST[Fm]
Fig.2263A INNER MAST[Fm]

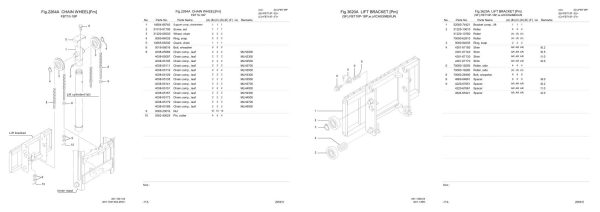

Fig.2264A CHAIN WHEEL[Fm]
Fig.3620A LIFT BRACKET [Pm]
Fig.3620B LIFT BRACKET [Pm]
Fig.3620C LIFT BRACKET [Mm]
Fig.3620D LIFT BRACKET [Mm]
Fig.3620E LIFT BRACKET [Fm]
Fig.3630 FORK
Fig.3640A BACKREST
Fig.3650A SIDESHIFT
Fig.3650B SIDE SHIFT [Pm]1
Fig.3650C SIDE SHIFT [Mm]1
Fig.3650D SIDE SHIFT [Fm]1
Fig.3651 SIDE SHIFT 2
Fig.3690 SHIFT CYLINDER BOOT
Fig.4071 TRACTION MOTOR
Fig.4072 HYDRAULIC MOTOR
Fig.4073A EPS MOTOR
Fig.4400 CONTROL UNIT 1
Fig.4401 CONTROL UNIT 2
Fig.4402 CONTROL UNIT 3
Fig.4403 CONTROL UNIT 4
Fig.4420 ACCELERATOR
Fig.4500 EPS CONTROLLER
Fig.4800A BATTERY (48V)
Fig.4810A CHARGER(BC) 1
Fig.4810B CHARGER(BC) 1
Fig.4811B CHARGER(BC) 2
Fig.4823 DISPLAY PANEL 1
Fig.4824 DISPLAY PANEL 2
Fig.4825 DIRECTIONAL SWITCH
Fig.4851 WIRE HARNESS (BODY)
Fig.4860 ELECTRIC PARTS 1
Fig.4861 ELECTRIC PARTS 2
Fig.4862 ELECTRIC PARTS 3
Fig.4863 ELECTRIC PARTS 4
Fig.4864A PLUG(BC)
Fig.4865 MICROSWITCH
Fig.4889 HEAD LAMP
Fig.5000A ACCESSORY
Fig.5000B ACCESSORY
Fig.5000C ACCESSORY
Fig.5000D ACCESSORY
Fig.5000E ACCESSORY
Fig.5000F ACCESSORY
Fig.5000G ACCESSORY
Fig.5000H ACCESSORY
Fig.5000I ACCESSORY
Fig.6000A ICHIGIMEKUN 1
Fig.6000B ICHIGIMEKUN 1
Fig.6010 ICHIGIMEKUN 2
Fig.6011 ICHIGIMEKUN 3
Fig.6012 ICHIGIMEKUN 4
