Name: Nichiyu Forklift NTT75R(S)-70 Parts Manual
SKU: 494320
Price: 10.00 USD
Availability: InStock

Nichiyu Forklift NTT75RS 70 Parts Manual 1

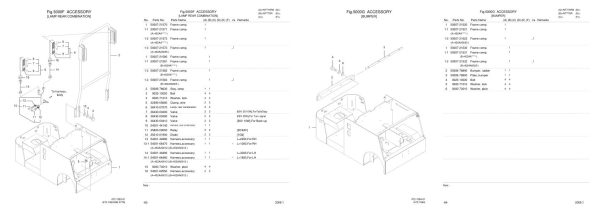

Nichiyu Forklift NTT75RS 70 Parts Manual 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Nichiyu Forklift NTT75R(S)-70 Parts Manual

Size: 3.64 MB

Format: PDF

Language: English

Brand: Nichiyu

Type of Machine: Forklift

Type of Manual: Parts Manual

Model: NTT75R(S)-70

Number of Pages: 65 Pages

10 USD

Tag: Nichiyu Forklift Truck Manual

Description

Description

Contents:
Fig.1010A FRAME
Fig.1010B FRAME
Fig.1011A FRONT COVER
Fig.1011B FRONT COVER
Fig.1012A BATTERY COVER
Fig.1012B BATTERY COVER
Fig.1012C BATTERY COVER
Fig.1012D BATTERY COVER
Fig.1013A FLOOR&NON-SLIP SHEET
Fig.1013B NON-SLIP SHEET
Fig.1014 REAR COVER
Fig.1015 LOCK BATTERY
Fig.1017A COUPLER
Fig.1017B COUPLER
Fig.1050 SEAT
Fig.1055 BATTERY CARRIER
Fig.10931A NAME PLATE FET.
Fig.10931B NAME PLATE FET.
Fig.10932A NAME PLATE
Fig.10932B NAME PLATE
Fig.1130A FRONT AXLE
Fig.1130B FRONT AXLE
Fig.1140 FRONT WHEEL
Fig.1230 REAR AXLE 1
Fig.1231 REAR AXLE 2
Fig.1240 REAR WHEEL
Fig.1310A STEERING LINKAGE 1
Fig.1310B STEERING LINKAGE 1
Fig.1310C STEERING LINKAGE 1
Fig.1311A STEERING LINKAGE 2
Fig.1311B STEERING LINKAGE 2
Fig.1320A BRAKE LINKAGE
Fig.1320B BRAKE LINKAGE
Fig.1330A PARKING BRAKE LINKAGE
Fig.1330B PARKING BRAKE LINKAGE
Fig.4071 TRACTION MOTOR
Fig.4400 MAIN CONTROLLER
Fig.4401 MAIN CONTROLLER
Fig.4402 MAIN CONTROLLER
Fig.4800A BATTERY
Fig.4800B BATTERY
Fig.4810 CHARGER(BC)
Fig.4812 TRANSFORMER
Fig.4820 INDICATOR PANEL
Fig.4825 DIRECTIONAL SWITCH
Fig.4843 PLUG
Fig.4851A WIRE HARNESS (BODY)
Fig.4851B WIRE HARNESS (BODY)
Fig.4852 WIRE HARNESS (MAIN)
Fig.4860A ELECTRIC PARTS 1
Fig.4860B ELECTRIC PARTS 1
Fig.4861A ELECTRIC PARTS 2
Fig.4861B ELECTRIC PARTS 2
Fig.5000A ACCESSORY
Fig.5000B ACCESSORY
Fig.5000C ACCESSORY
Fig.5000D ACCESSORY
Fig.5000E ACCESSORY
Fig.5000F ACCESSORY
Fig.5000G ACCESSORY
Fig.5000H ACCESSORY
