Name: Nissan MURANO Z52 2021 - August 2024 Wiring Diagrams
SKU: 493719
Price: 50.00 USD
Availability: InStock

Nissan MURANO Z52 2021 August 2024 Wiring Diagrams 1

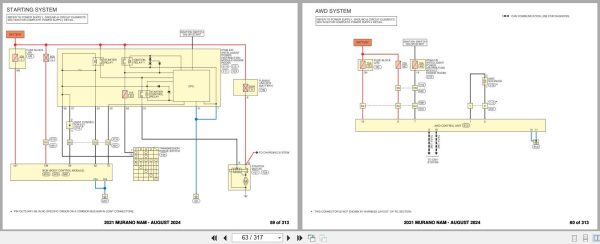

Nissan MURANO Z52 2021 August 2024 Wiring Diagrams 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Nissan MURANO Z52 2021 – August 2024 Wiring Diagrams

Size: 22.04 MB

Format: PDF

Language: English

Brand: Nissan

Type of Machine: Automotive

Type of Manual: Wiring Diagrams

Model: Nissan MURANO Z52 2021 – August 2024

Publication Date: 2021 2022 2023 2024

Number of Pages: 317 Pages

50$ USD

Tags: Nissan Service Manual, Nissan Wiring Diagram

Description

Description

Contents:
POWER
BATTERY POWER SUPPLY
ACCESSORY POWER SUPPLY
IGNITION POWER SUPPLY
FUSE BLOCK (J/B)
FUSE, FUSIBLE LINK BOX AND RELAY BOX
FUSIBLE LINK BOX (BATTERY)
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
GROUNDS
GROUND
WIRING DIAGRAMS
A GENERAL INFORMATION
B ENGINE
D TRANSMISSION & DRIVELINE
E SUSPENSION
F BRAKES
G STEERING
H RESTRAINTS
I VENTILATION, HEATER & AIR CONDITIONER
J BODY INTERIOR
K BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
L DRIVER CONTROLS
M ELECTRICAL & POWER CONTROL
N DRIVER INFORMATION & MULTIMEDIA
O CRUISE CONTROL & DRIVER ASSISTANCE
CONNECTOR VIEWS
CONNECTOR VIEWS
HARNESS LAYOUT
Outline
BODY HARNESS – FRONT VIEW
BODY HARNESS – REAR VIEW
BODY NO. 2 HARNESS – FRONT VIEW
BODY NO. 2 HARNESS – REAR VIEW
FRONT SEAT LH HARNESS
FRONT SEAT RH HARNESS
MOTION ACTIVATED BACK DOOR SUB-HARNESS
CHASSIS HARNESS
FRONT DOOR LH HARNESS
FRONT DOOR RH HARNESS
REAR DOOR LH HARNESS
REAR DOOR RH HARNESS
BACK DOOR HARNESS
ENGINE ROOM HARNESS – BATTERY VIEW
ENGINE ROOM HARNESS – CABIN VIEW
ENGINE ROOM HARNESS – OVER VIEW
FRONT END MODULE HARNESS
BATTERY CABLE
ENGINE CONTROL HARNESS – BATTERY VIEW
ENGINE CONTROL HARNESS – FRONT VIEW
ENGINE CONTROL HARNESS – REAR VIEW
ENGINE CONTROL SUB-HARNESS
CONSOLE SUB-HARNESS
HVAC SUB-HARNESS VIEW
MAIN HARNESS – COLUMN VIEW
MAIN HARNESS – CONSOLE VIEW
MAIN HARNESS – INSTRUMENT PANEL LH VIEW
MAIN HARNESS – INSTRUMENT PANEL RH VIEW
MAIN HARNESS – RADIO VIEW
ROOM LAMP HARNESS
