Name: PowerBoss Compact Rider Sweeper APEX 49B LPG Diesel Electric Service Manual
SKU: 554072
Availability: InStock

PowerBoss Compact Rider Sweeper APEX 49B LPG Diesel Electric Service Manual (1)

PowerBoss Compact Rider Sweeper APEX 49B LPG Diesel Electric Service Manual (2)

PowerBoss Compact Rider Sweeper APEX 49B LPG Diesel Electric Service Manual (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

PowerBoss Compact Rider Sweeper APEX 49B LPG Diesel Electric Service Manual

Size: 1.03 MB

Format: PDF

Language: English

Brand: PowerBoss

Type of Machine: Compact Rider Sweeper

Type of Manual: Service Manual, Training, Troubleshooting, Adjustments, Components/Suppliers

Model: PowerBoss Compact Rider Sweeper

Apex 49 E ; Apex 49 EH ; Apex 49 V ; Apex 49 VH

Number of Pages: 53 Pages

10 USD

Tags: APEX 49B LPG Diesel Electric, PowerBoss Compact Rider Sweeper Manual, PowerBoss Service Manual

Description

Description

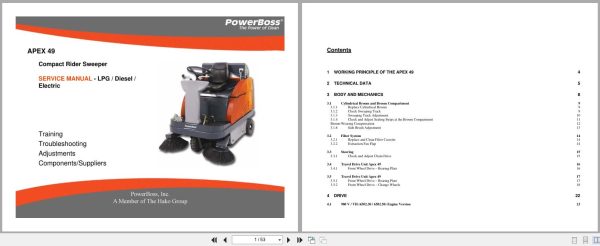

Contents:
1 Working Principle Of The Apex 49
2 Technical Data
3 Body And Mechanics
3.1 Cylindrical Broom And Broom Compartment
3.1.1 Replace Cylindrical Broom
3.1.2 Check Sweeping Track
3.1.3 Sweeping Track Adjustment
3.1.4 Check And Adjust Sealing Strips At The Broom Compartment Broom Wearing Compensation
3.1.6 Side Brush Adjustment
3.2 Filter System
3.2.1 Replace And Clean Filter Cassette
3.2.2 Extraction Fan Flap
3.3 Steering
3.3.1 Check And Adjust Chain Drive
3.4 Travel Drive Unit Apex 49
3.4.1 Front Wheel Drive – Bearing Plate
3.5 Travel Drive Unit Apex 49
3.5.1 Front Wheel Drive – Bearing Plate

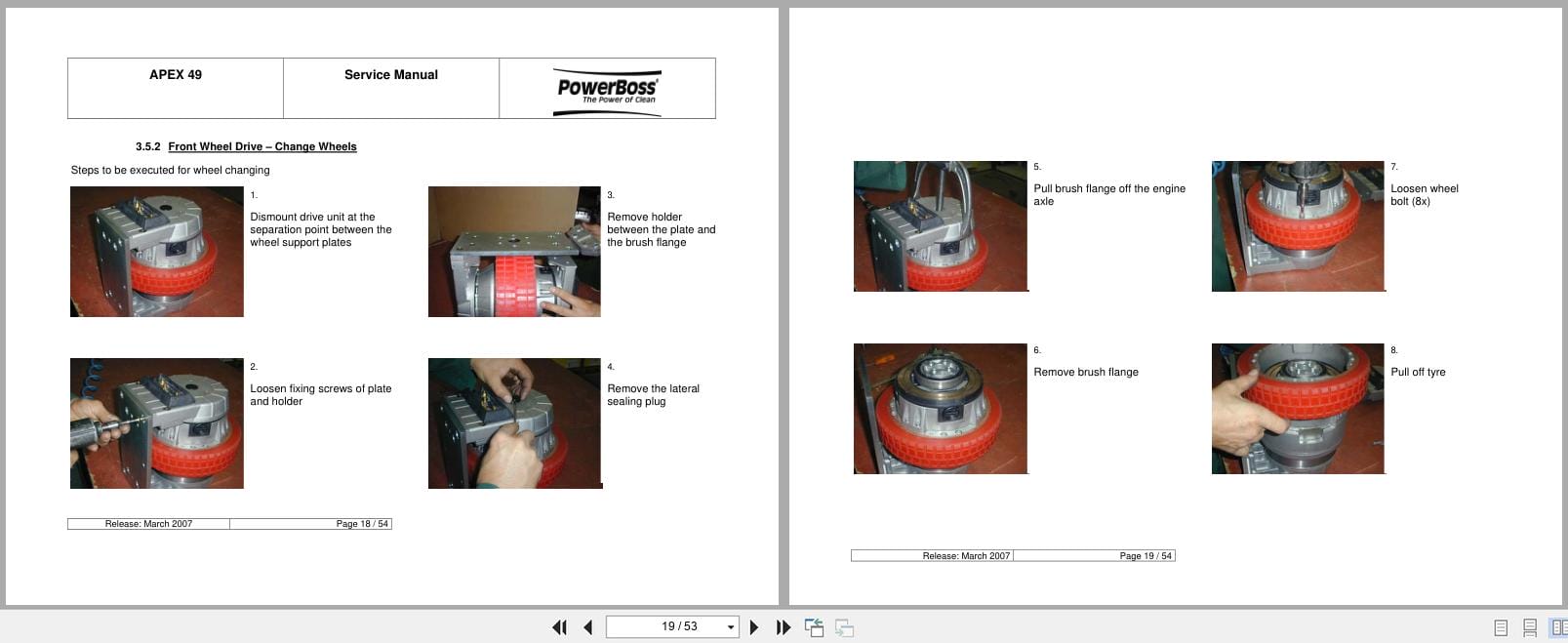

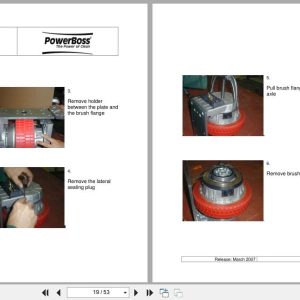

3.5.2 Front Wheel Drive – Change Wheels
4 Drive
4.1 980 V / VH (6502.30 / 6502.50) Engine Version
4.1.1 Wiring Diagram Kawasaki Electric System
4.2 LPG – Kit
4.2.1 Adjusting Of The LPG
5 Hydraulics
5.1 General
5.2 Brief Description Of Apex 49 Travel Drive Unit

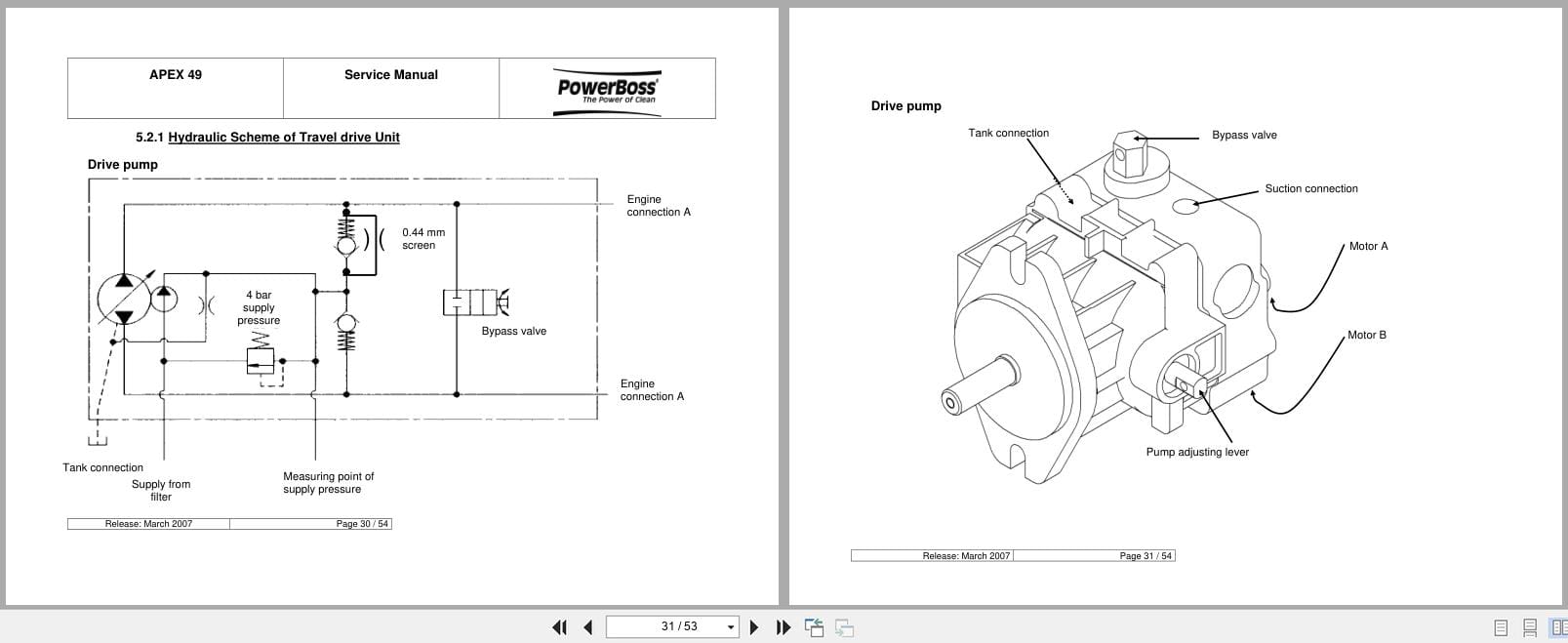

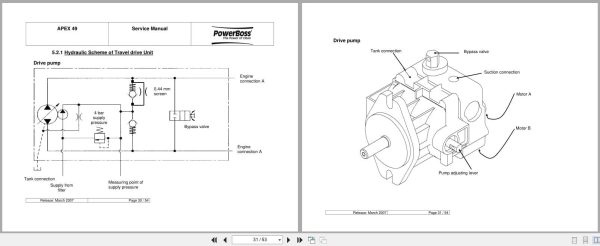

5.2.1 Hydraulic Scheme Of Travel Drive Unit Lifted-Up Disposal Description
5.3.1 Hydraulic Scheme Lifted-Up Disposal
6 Electric System
6.1 Safety Provisions
6.2 Abbreviations Used In This Chapter
6.3 View On 980 V / VH (6502.30 / 6502.50) Relay Plate View On 980 E / EH (6502.40 / 6502.60) Relay Plate
6.5 View On Hydraulic Unit For Lifted-Up Disposal Of Apex 49
6.6 LDS Description For Apex 49 (6502.40 / 6502.60)
6.6.1 LDS Setting Mode
6.6.2 LDS Programming
6.7 Description Of The 980 E / EH (6502.40 / 6502.60) Travel Drive Unit
6.8 Diagnosis Of Drive Control Unit
6.9 Error Codes
6.10 Settings Of Drive Control Unit
6.10.1 General Description Of Keys
6.10.2 Enter Password
6.10.3 Modify Parameter
6.10.4 Calibrate Potentiometer
6.10.5 Set Current Limiting
6.11 Drive Pedal
6.12 Current Consumption Apex 49
7 Maintenance
7.1 Maintenance Schedule Apex 49 (6502.30 / 50)
7.2 Maintenance Schedule Apex 49 (6502.40 / 60)
