Name: PowerBoss Cylindrical Rider Scrubber B175R SM3346CSB SM3346CSBQP Parts Catalog 988786 2021
SKU: 554077
Availability: InStock

PowerBoss Cylindrical Rider Scrubber B175R SM3346CSB SM3346CSBQP Parts Catalog 988786 2021 (1)

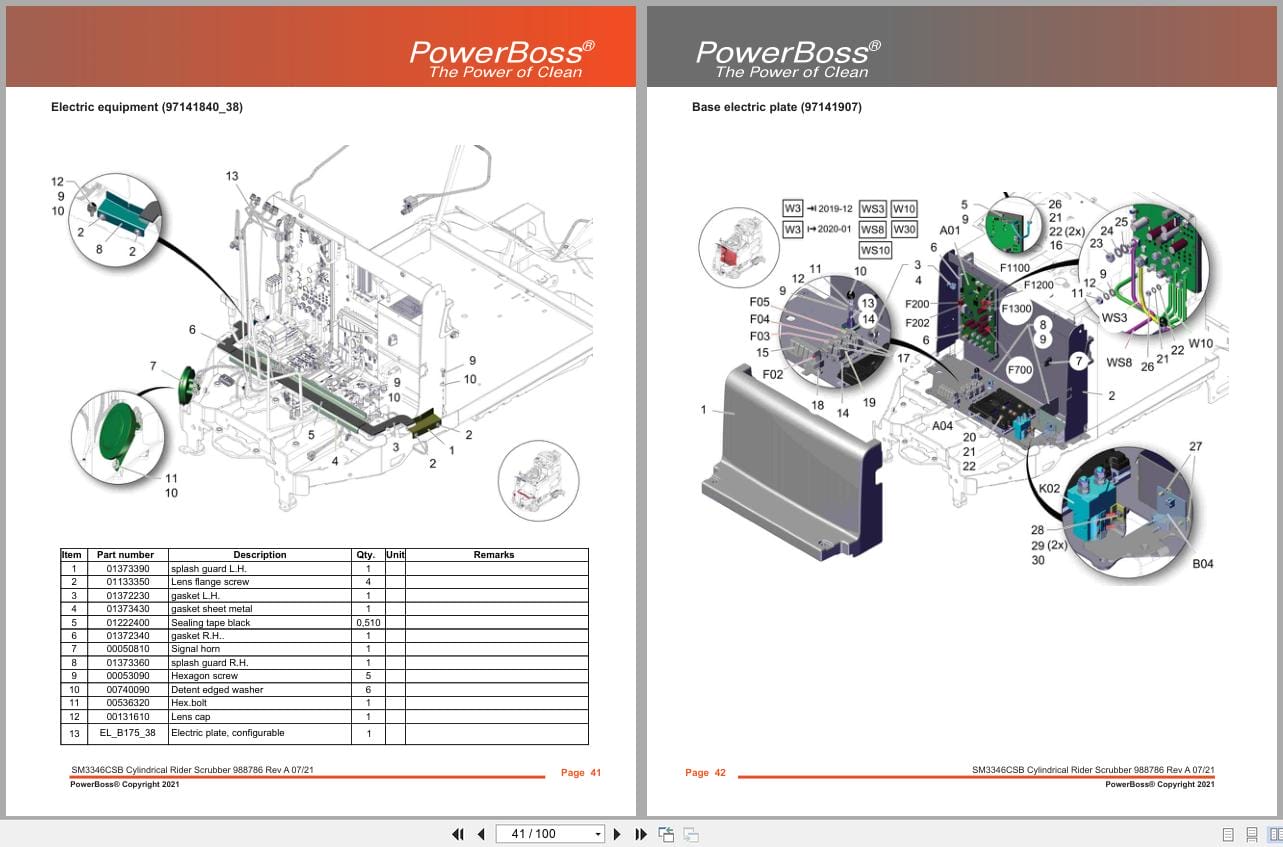

PowerBoss Cylindrical Rider Scrubber B175R SM3346CSB SM3346CSBQP Parts Catalog 988786 2021 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

PowerBoss Cylindrical Rider Scrubber B175R SM3346CSB SM3346CSBQP Parts Catalog 988786 2021

Size: 4.45 MB

Format: PDF

Language: English

Brand: PowerBoss

Type of Machine: Cylindrical Rider Scrubber

Type of Manual: Parts Catalog

Model: PowerBoss B175R SM3346CSB SM3346CSBQP Cylindrical Rider Scrubber

Part Number: 988786

Publication Date: 2021

Number of Pages: 100 Pages

10 USD

Tags: B175R SM3346CSB SM3346CSBQP, PowerBoss Cylindrical Rider Scrubber Manual, PowerBoss Parts Catalog

Description

Description

Contents:
Preface
Technical Specifications
Scrub Master Battery And Charger Chart
Parts Breakdown
Side Broom Equipment (97139174)
Side Broom Equipment (97138309)
Bottom View Of Unit (97138309-A)
Contr4ol Console (97141402_27)
Drive Sensor (01378020)
Steering System (97135206)
Control Panel (97140412)
Seat Group – Seat Variants (97145437)
Seat Plate (97141394)
Operation Area – Covering For Electric Equipment (97141386)
Chassis (97140578_30)
Chassis (97141253)
Front Bumper Side Broom (97141212)
Rear Axle, Not Driven (97141246)
Without Option Onboard Solution Dosage But With Spraying Tools (97140115-3)
Preliminary Parts For Spraying Tools On Water Plate (97145486)
Tank Connection Water System (97138200)
Preliminary Parts For Spraying Tools (97142061)
Electric Equipment (97141840_38)
Base Electric Plate (97141907)
Electric Plate Without Onboard Charger (97159404)
Electric Plate Without 4-Wheel Drive (97141873)
Electric Plate With Option Side Broom System (97141857)
Tank Group Without Tanks (97162747)
Foul Water Tank Red (97162721-97162739_Pb_1)
Cover (97138275-B_27)
Clamping Piece (97146237)
Solution Hose (01372360)
Recovery Hose (01372410)
Height Adjustment (97149587)
Cover’s Put-Up Hinge (97159743)
Cover’s Put-Up Hinge (97139414)
Foul Water Tank Red B175 (01377880)
Foul Water Tank Red Antibacterial B175 (01377970)
Fresh Water Tank Red (97162721-97162739_2)
Fresh Water Tank Red (01374890)
Fresh Water Tank Red Antibacterial (01374930)
Fresh Water Cap (Variant Without Automatic Filling Unit) (97143937)
Cover (Variant Without Driver Canopy) (97140727)
Sealing Plug (Variant Without Second Suction Turbine) (97140537)
Side Covering L.H. – Separating Panel (97140560)
Separating Plate (97145783)
Lifting Cylindrical Brush Head (97144927)
Lifting (97138721)
Rope Assembly (97140479)
Preliminary Parts For Spraying Tools At Tank (97150296)
Rough Mud Strainer (97143929)
Cylindrical Brush Head 850 (97144182)
Retainer Dirt Container (97147946)
Dirt Container (01273190)
Cylindrical Brush Head (97141709)
Carrier, Cpl. (01072560)
Side Cover, Cpl. (01072550)
Side Wiper Cylindrical Brush Head 850 (97144158)
Side Wiper R.H. And L.H. (97144695-97144596)
Spraying Nozzle (97142384)
Retainer Spraying Nozzle (97147334)
Lifting Brush Aggregates (97141675)
Rocker (97135271)
Squeegee Linkage Group (97139935)
Squeegee Linkage Group (03021740)
Lifting Element (97142525)
Suction Unit 1100mm, Cpl. (01378910)
