PowerBoss Nautilus E Battery Operated Rider Scrubber Parts Catalog 988768 07.2020

Size: 10.19 MB

Format: PDF

Language: English

Brand: PowerBoss

Type of Machine: Battery Operated Rider Scrubber

Type of Manual: Parts Catalog, Electrical Schematic

Model: PowerBoss Nautilus E Battery Operated Rider Scrubber

Part Number: 988768

Publication Date: 07.2020

Number of Pages: 186 Pages

10 USD

Tags: Nautilus E Battery Operated, PowerBoss Nautilus E Battery Operated Rider Scrubber Manual, PowerBoss Parts Catalog

Description

Description

Contents:
Preface
Specifications
Parts Breakdown

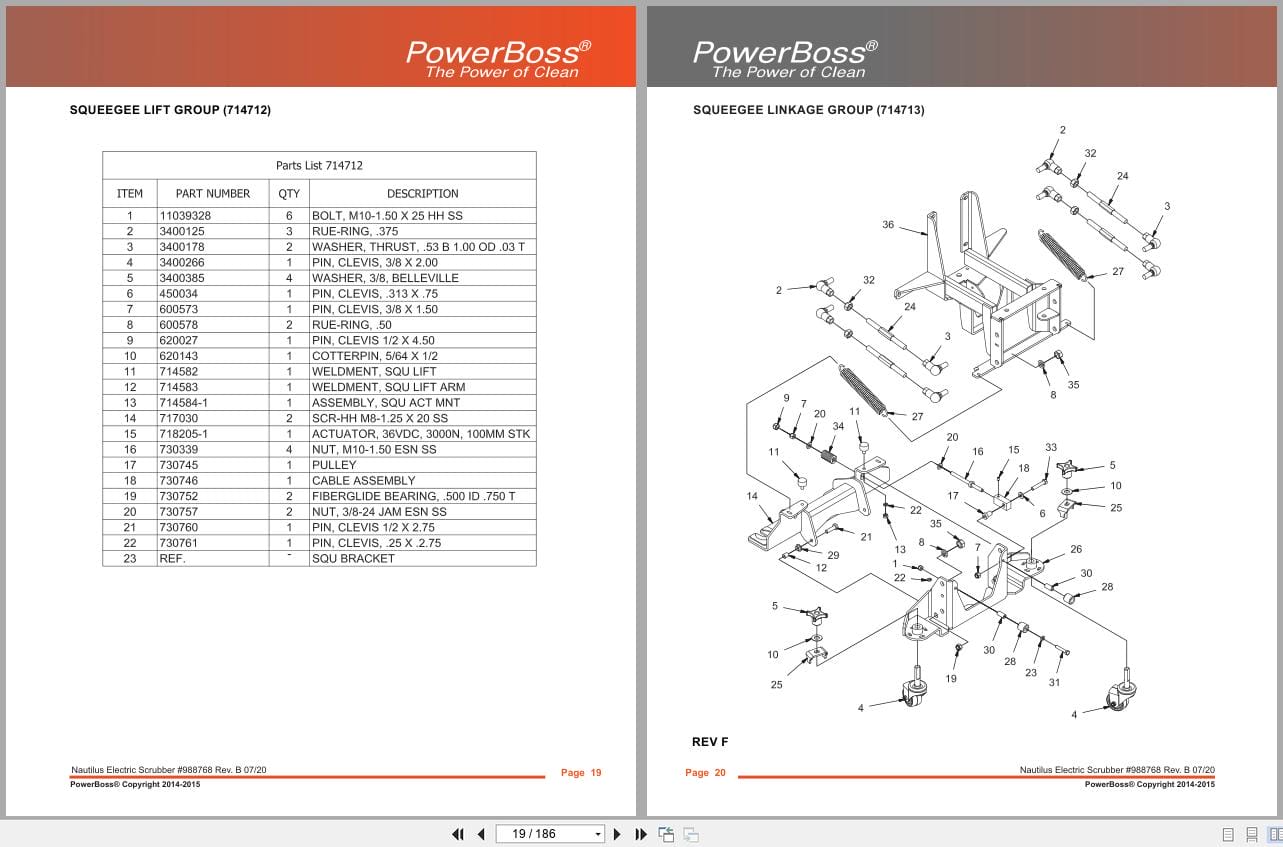

Rear Squeegee Group (714706)
Rear Bumper Group (714707)
Bumper Lift Group (714708)
Brake Group (714710)
Squeegee Lift Group (714712)
Squeegee Linkage Group (714713)
Vacuum Motor Group (714733)
Battery Door Group (714734)
Battery Cover Group (714735)
Vacuum Door Group (714736)
Recovery Tank Group (714737)
Solution Tank Group (714738)
Seat Mount Group (714740)
Tank Drain Hose Group (714747)
Demister Group (714749)
Rear Wheel Group (714757)
Rear Step Group (714758)
Control Pedal Group (714761)
Disc Groups
Main Broom Lift Group (714714)
Main Broom Drive Group (714715)
Main Broom Idler Group (714716)
Hopper Dump Door Group (714717)
High Dump Hopper Group (714718)
Hopper Lift Group (714719)
Disc Scrub Head Group (714720)
Disc Side Squeegee Group – Rh (714721)
Disc Side Squeegee Group – Lh (714722)
Disc Scrub Head Lift Group (714723)
Side Broom Group – Rh (714724)
Side Broom Group – Lh (714725)
From Bumper Group (714726)
Side Broom Lift Group – Rh (714727)
Side Brom Lift Group – Lh (714728)
Drive Wheel Group (714732)
Power Steering Group (714741)
Solution Control, Disc (714743)
Instrument Panel Group (714752)
Hopper Vacuum Motor Group (714753)
Main Broom Skirt And Seal Group (714754)
Frame Group, Disc (714755)
Hopper Filter Group (714759)
Hopper Sub Assembly (714759-1)
Upper Cover Group (714760)
Hopper Hydraulic Unit Group (714762)
Console Group (714763)
Broom Group (714766)
Electrical Box Group (719105)
Cylindrical Groups
Cylindrical Scrub Head Group (714700)
Cylindrical Scrub Head Lift Group (714701)
Scrub Brush Drive Group (714702)
Cylindrical Scrub Brush Idler Group (714703)
Side Squeegee Group – Rh (714704)
Side Squeegee Group – Lh (714705)
Drive Wheel Group – Cylindrical (714709)
Steering Group, Manual (714711)
Front Cover Group (714739)
Solution Control Group, Cylindrical (714742)
Console Group, Cylindrical (714748)
Frame Group, Cylindrical (714750)
Instrument Panel Group, Cylindrical (714751)
Electrical Box Group, Cylindrical (719168)
Options – Parts Breakdown
Option – Side Scrub Group, Cylindrical (718365)
Side Scrub And Squeegee Group (714729)
Side Scrub Lift Group, Cylindrical (714730)
Side Scrub Shift Group (714731)
Side Scrub Solution Cont Group – Cyl (714744)
Side Scrub Guard Group – Cylindrical (714769)
Option – Side Scrub Group, Disc (718366)
Side Scrub Guard Group (714300)
Side Scrub And Squeegee Group (714729)
Side Scrub Shift Group (714731)
Side Scrub Solution Control Group (714745)
Side Scrub Lift Group (714768)
Option – Overhead Guard Group (714301)
Option – Counterweight Group (714746)
Option – Dual Hopper Vac Motor Group (714756)
Option – Battery Roll Out Group (714767)
Option – Vacuum Wand (719517)
Option – Power Steering, Cylindrical (719518)
Option – Overhead Guard Group, Cylindrical (719525)
Option – Rear Squeegee Guard Group (719545)
Option – Side Broom Group – Cylindrical (719559)
Option – Primothane Squeegee Blades Group (718415)
Option – Protective Rail Bumpers (719528)
Batteries And Chargers
Electrical Schematics
Disc Electrical Schematic Layout

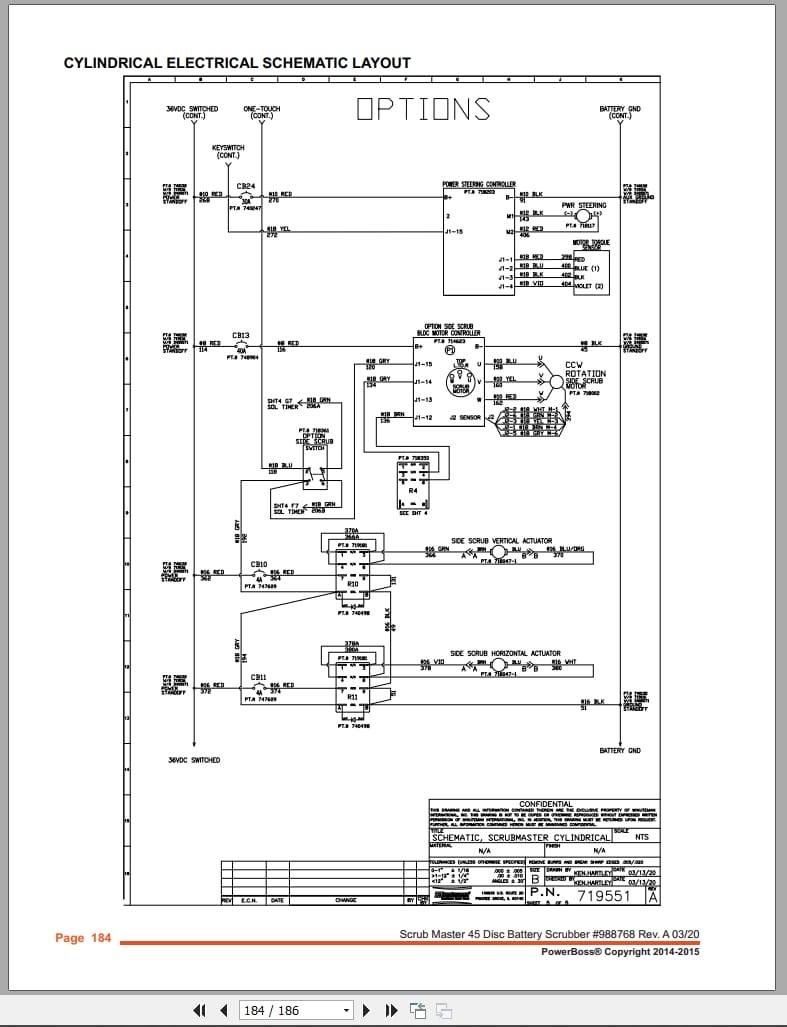

Cylindrical Electrical Schematic Layout
