Name: PowerBoss Riding Scrubber E Ride 26 Sport Parts Manual Wiring Diagram 988726S 2016
SKU: 554194
Availability: InStock

PowerBoss Riding Scrubber E Ride 26 Sport Parts Manual Wiring Diagram 988726S 2016 (1)

PowerBoss Riding Scrubber E Ride 26 Sport Parts Manual Wiring Diagram 988726S 2016 (2)

PowerBoss Riding Scrubber E Ride 26 Sport Parts Manual Wiring Diagram 988726S 2016 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

PowerBoss Riding Scrubber E Ride 26 Sport Parts Manual Wiring Diagram 988726S 2016

Size: 4.11 MB

Format: PDF

Language: English

Brand: PowerBoss

Type of Machine: Riding Scrubber

Type of Manual: Parts Manual, Electrical Schematic

Model: PowerBoss E Ride 26 Sport Riding Scrubber

ER26DS ; ER26DSQP ; ER26DSQPG ; ER26DSQPT ; ER26DSQPGI ; ER26DSQPIW

Part Number: 988726S

Publication Date: 2016

Number of Pages: 68 Pages

10 USD

Tags: E Ride 26 Sport, PowerBoss Parts Manual Wiring Diagram, PowerBoss Riding Scrubber Manual

Description

Description

Contents:

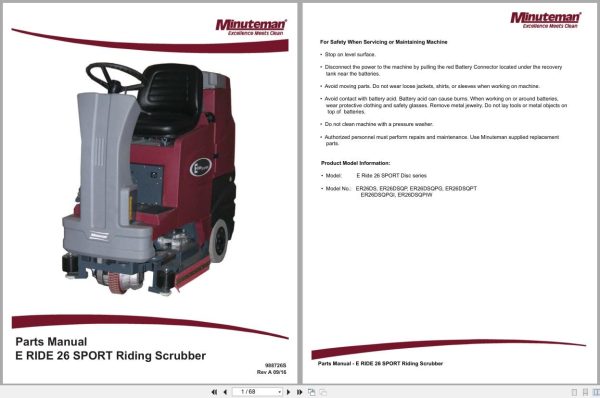

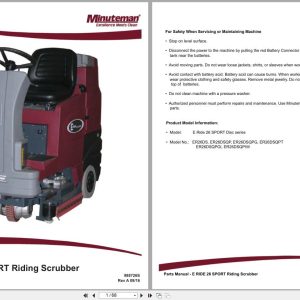

Main Assembly
Main Assembly I
Main Assembly II
Main Assembly III
Main Assembly IV
Main Assembly V
Main Assembly BOM Pg 1 of 2
Front Drive Assembly
Front Drive Assembly BOM
Front Drive Subassembly
Idler Subassembly
Bearing Subassembly
Rear Wheel Assembly
Roller Bumper Assembly
Linkage Assembly
Linkage Assembly BOM
Steering Assembly
Steering Assembly BOM
Console Assembly
Solution Tank Assembly
Solution Tank Assembly I
Solution Tank Assembly II
Solution Tank Assembly BOM
Hose Assembly – Drain, Solution Tank
Electrical Box Assembly
Electrical Box Assembly BOM
Electrical Panel Assembly
Control Panel Subassembly
Switch Panel Assembly
Solution Tank Assembly
Pump Subassembly
Pump Subassembly BOM
Recovery Tank Assembly
Recovery Tank Assembly I
Recovery Tank Assembly II
Recovery Tank Assembly III
Recovery Tank Assembly IV
Recovery Tank Assembly BOM
Dump Hose Assembly
Battery Panel Assembly
Left Hand Side
Right Hand Side
Attachment Assembly
Dashboard Assembly
Dashboard Assembly BOM
Seat Assembly
Horn Assembly
Cable Guide Assembly
Disc Scrubdeck Main Assembly
Side Squeegee Subassembly – Left Hand Side
Side Squeegee Subassembly – Right Hand Side
Disc Scrubdeck Subassemblies
Disc Scrubdeck Subassembly I
Disc Scrubdeck Subassembly II
Disc Scrubdeck BOM
Solution Feed Hose Subassembly

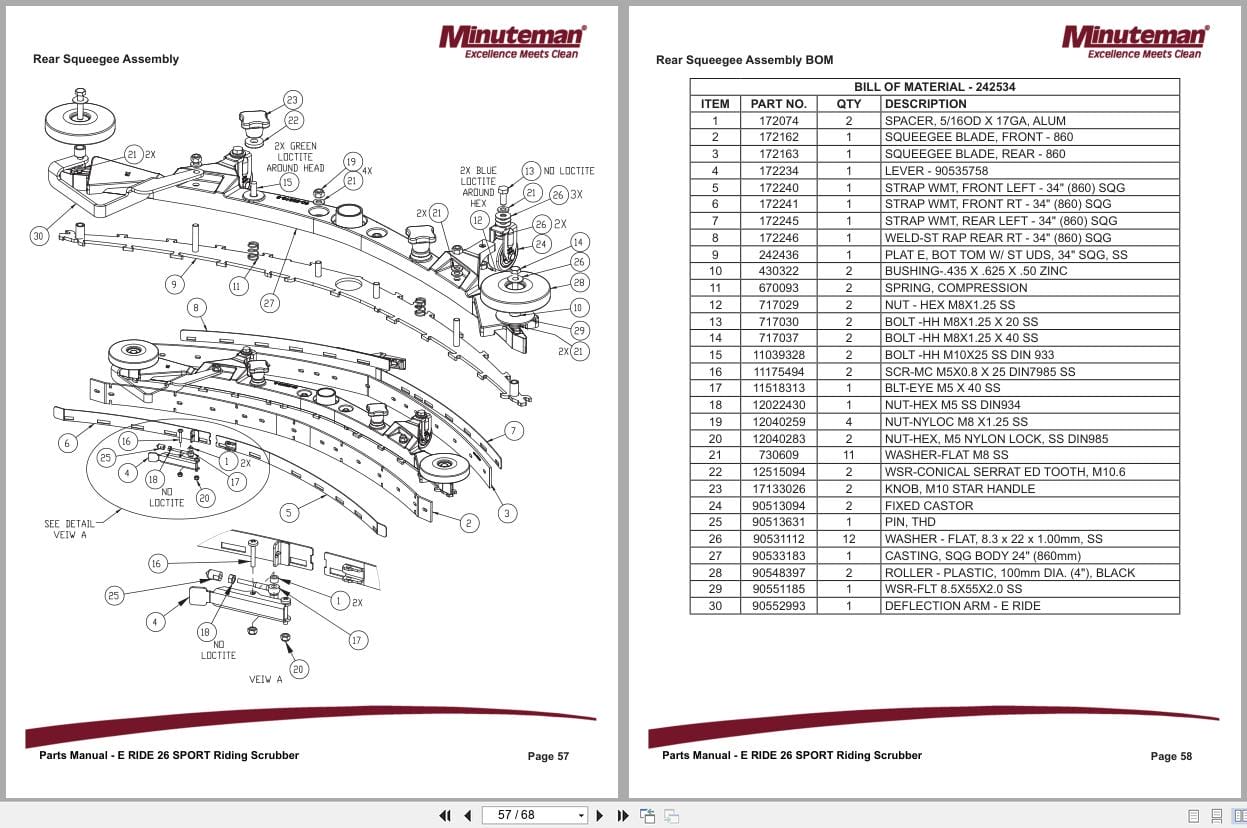

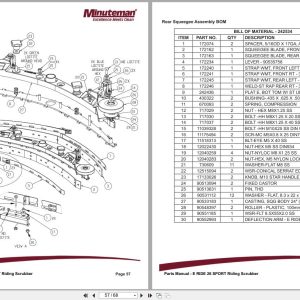

Rear Squeegee Assembly
Rear Squeegee Assembly BOM
Squeegee Mechanism Assembly
Squeegee Mechanism Assembly BOM

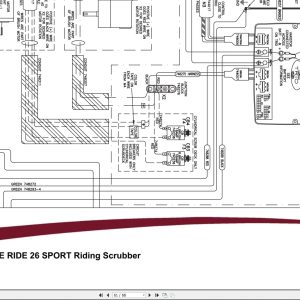

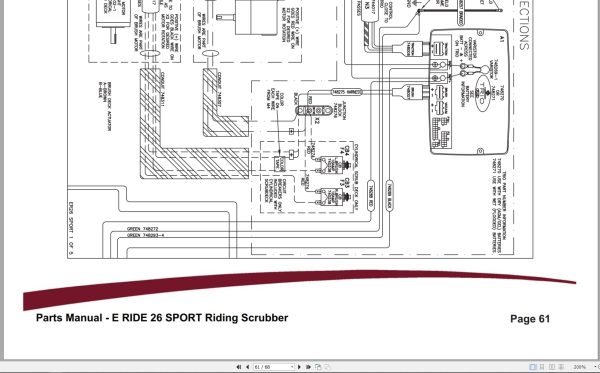

Wiring Diagram
Warranty
