Name: PowerBoss Scrubber E17TD E20DTD H20DTD Parts Manual Wiring Diagram 988721 2020
SKU: 554205
Availability: InStock

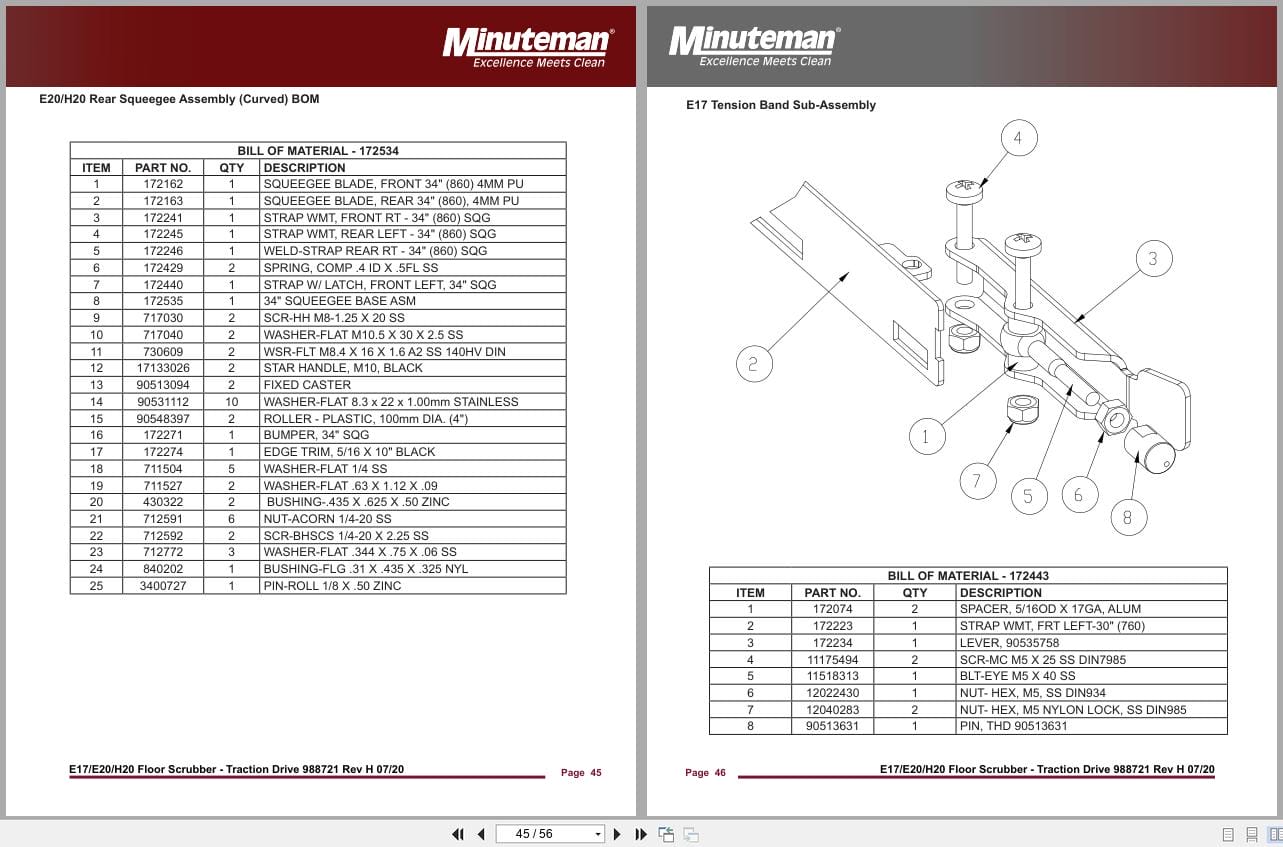

PowerBoss Scrubber E17TD E20DTD H20DTD Parts Manual Wiring Diagram 988721 2020 (1)

PowerBoss Scrubber E17TD E20DTD H20DTD Parts Manual Wiring Diagram 988721 2020 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

PowerBoss Scrubber E17TD E20DTD H20DTD Parts Manual Wiring Diagram 988721 2020

Size: 3.30 MB

Format: PDF

Language: English

Brand: PowerBoss

Type of Machine: Floor Scrubber Disc Traction Drive

Type of Manual: Parts Manual, Electrical Schematic

Model: PowerBoss E17 E17TD ; E20 E20DTD ; H20 H20DTD Floor Scrubber Disc Traction Drive

Part Number: 988721

Publication Date: 2020

Number of Pages: 56 Pages

10 USD

Tags: E17TD E20DTD H20DTD, PowerBoss Parts Manual Wiring Diagram, PowerBoss Scrubber Manual

Description

Description

Contents:
Technical SpecifiCations
Brush Options
Main Assembly E17
Main Assembly E17 Bom
Main Assembly E20/H20
Main Assembly E20/H20 Bom
Traction Drive Base Assembly
Traction Drive Base Assembly Bom
E17/20 Base Assembly
E17/20/H20 Base Assembly Bom
Chassis Assembly
Chassis Assembly Bom
Solenoid Assembly
Old Style – Solution Valve Assembly
New Style – Solution Valve Assembly
Solution Control Handle Assembly
Solution Control Handle Assembly Bom
Solution Tank Assembly
Lift Pedal Stop Assembly
Battery Tray Assembly
Recovery Tank Assembly
Recovery Tank Assembly Bom
Handle Assembly
Handle Assembly Bom
Electrical Box Assembly
Electrical Box Assembly Bom
Electrical Panel Assembly
Vacuum Switch Assembly
Electrical Box Cover Assembly
Vac Motor Assembly
E17/20 Brush Hub Assembly
17” Brush Deck Assembly
17” Brush Deck Assembly Bom
20” Brush Deck Assembly
20” Brush Deck Assembly Bom
E17 Rear Squeegee Assembly
E17 Rear Squeegee Assembly Bom
E20 Rear Squeegee Assembly
E20/H20 Rear Squeegee Assembly (Curved) Bom
E17 Tension Band Sub-Assembly
E20 Tension Band Sub-Assembly
Squeegee Mechanism Assembly
E17/E20/H20 Squeegee Mechanism Assembly Bom
Wiring Diagrams
Warranty
